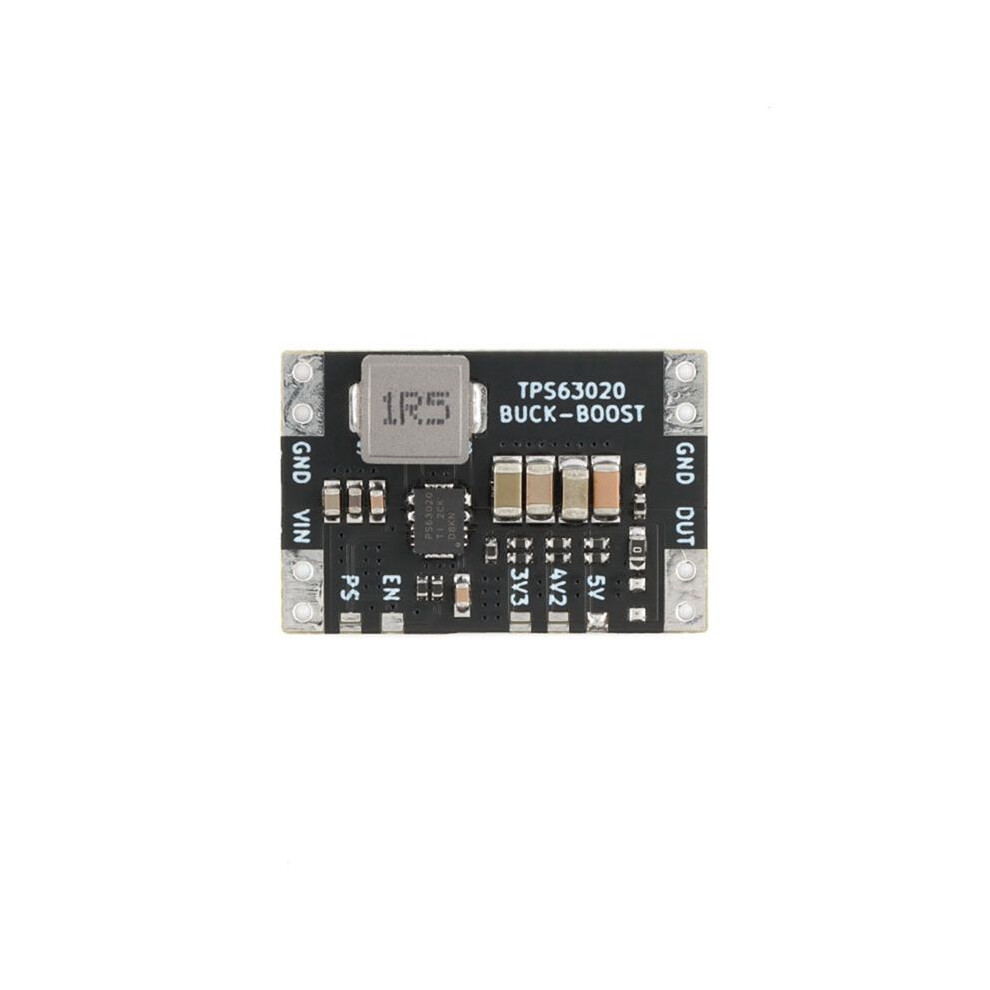

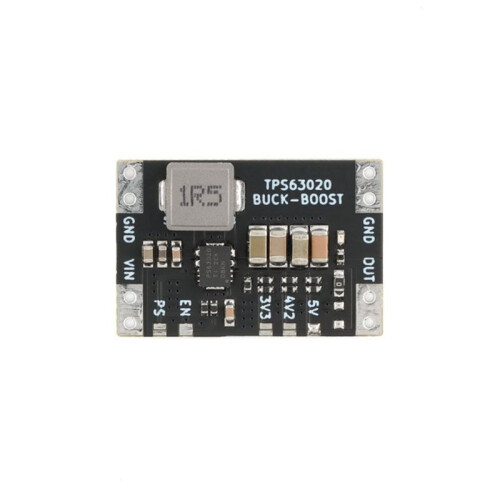

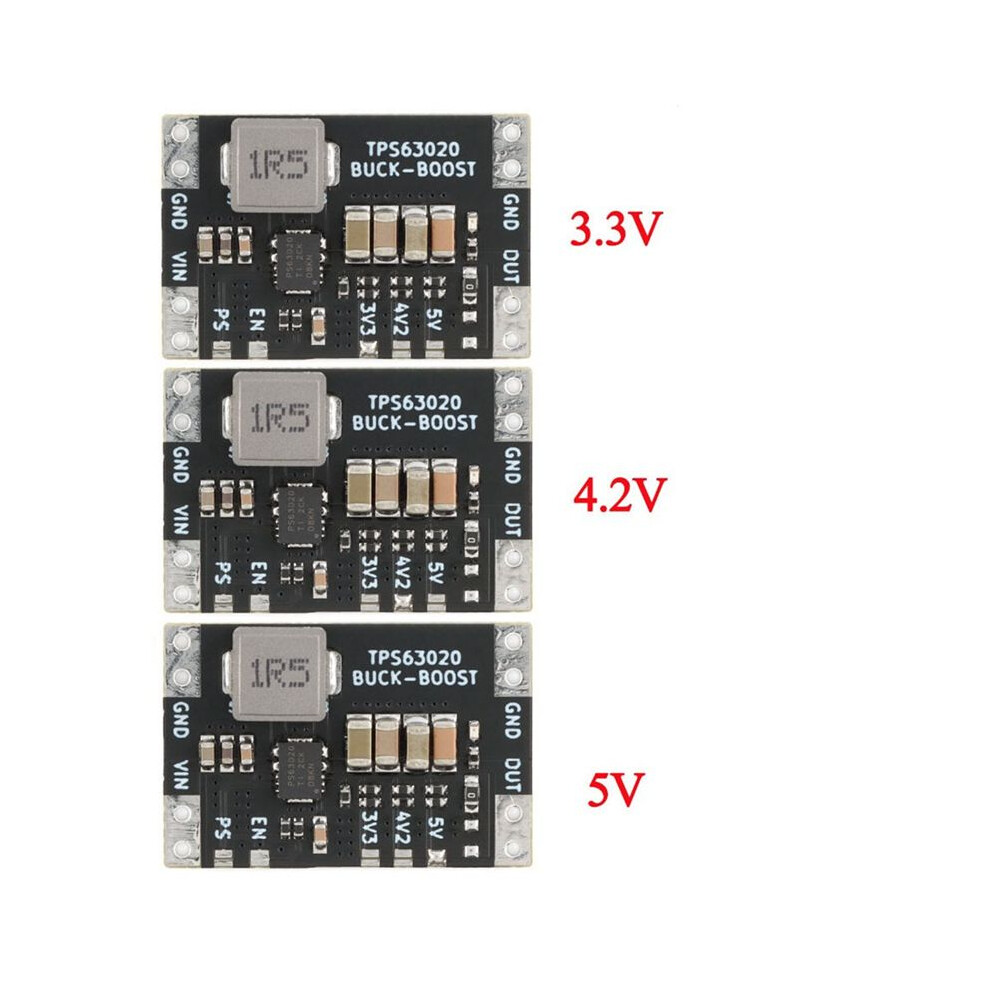

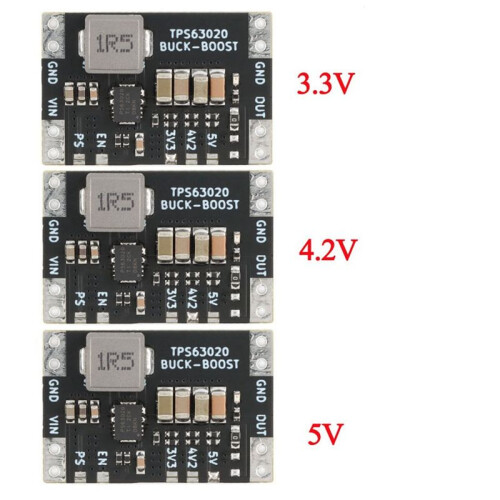

XL63020 TPS63020 Lithium Battery USB Automatic Boost Buck Step Down Module Microcontroller Power Low Ripple 5V
Brand Torribaly
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 126,000 anmeldelser med vurderingen “Fremragende”
61,57 kr.
82,00 kr.
Spar 25%!
Gratis levering
1%
Tjen 0,62 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (Gratis) | fre. 19. - ons. 24. jun.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Hardware til printkort
Beskrivelse og detaljer
Oversigt
- This module adopts TI lifting voltage special chip TPS63020 lifting voltage program, the output ripple is low, stable performance, switching frequency is up to 2.4MHZ, the majority of cases of the output current is greater than 900ma, for the power supply occasions, the same module The module also has two modes for users to choose: normal operation mode and power saving mode.
- The module is a typical step-up/down structure, with input voltage range of 1.8-5.5V, which can meet the power supply requirements of STM32, ESP32, 51 microcontrollers and other models. The module contains a red LED output indicator, and supports power-saving modes to increase the battery life of the input devices.
- Color: Black
- Material: PCB + electronic components
- Automatic Boost Buck Step Up Down Module
XL63020 TPS63020 Lithium Battery USB Automatic Boost Buck Step Down Module Microcontroller Power Low Ripple 5V Beskrivelse
This module adopts TI lifting voltage special chip TPS63020 lifting voltage program, the output ripple is low, stable performance, switching frequency is to 2.4MHZ, the majority of cases of the output current is greater than 900ma, for the power supply occasions, the same module The module also has two modes for users to choose: normal operation mode and power saving mode.
The module is a typical step-/down structure, with input voltage range of 1.8-5.5V, which can meet the power supply requirements of STM32, ESP32, 51 microcontrollers and other models. The module contains a red LED output indicator, and supports power-saving modes to increase the battery life of the input devices.
Color: Black
Material: PCB + electronic components
Input Voltage: 1.8-5.5V
Output Current: [email protected]
Output Voltage: 5V
Switching Frequency: Approx. 2.4MHZ
Regulation: 5V

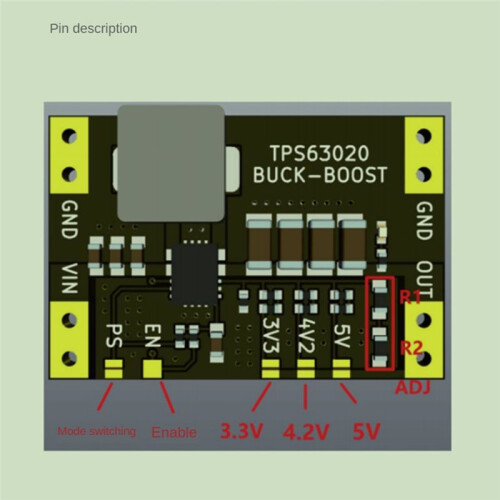

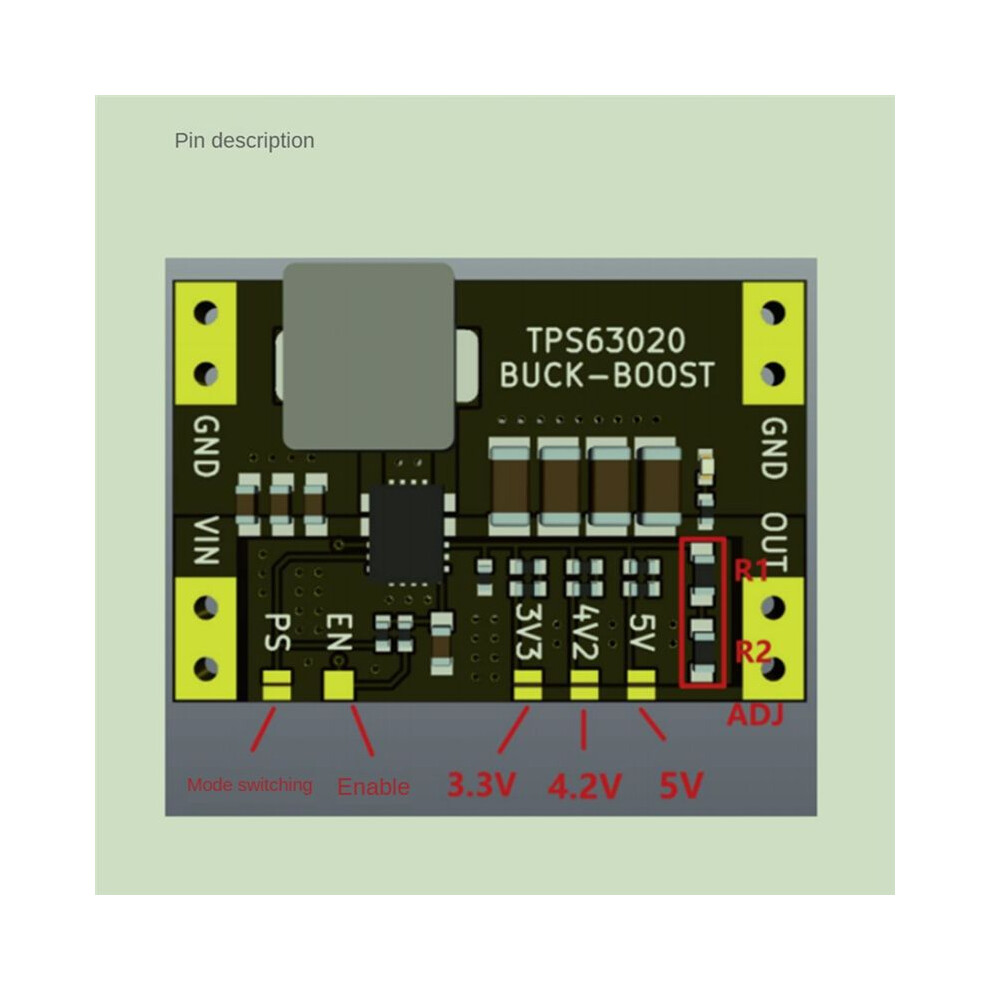

Module interface: large area pad (2.54mm pin)
Package Contents:
1 x Automatic Boost Buck Step Down Module
Detaljer
| OPC | PRNJ668 |
|---|---|
| Mærke | Torribaly |
| Koder | 6031029050718 (EAN) |
Produktdata
| Height | 1cm |
|---|---|
| Width | 2cm |
| Length | 3cm |
| Weight | 0.007kg |
| Colour | Black |
| Size | 5V |
| Material | PCB + electronic components |
