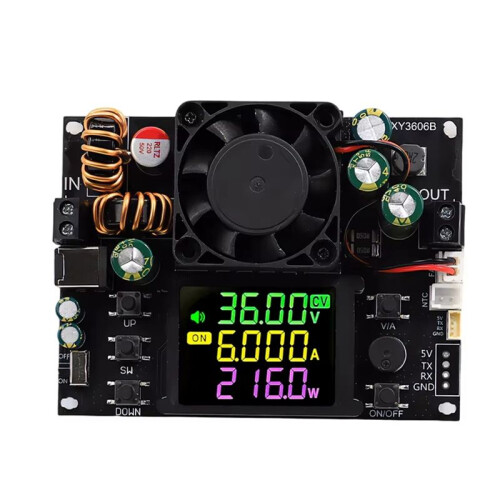

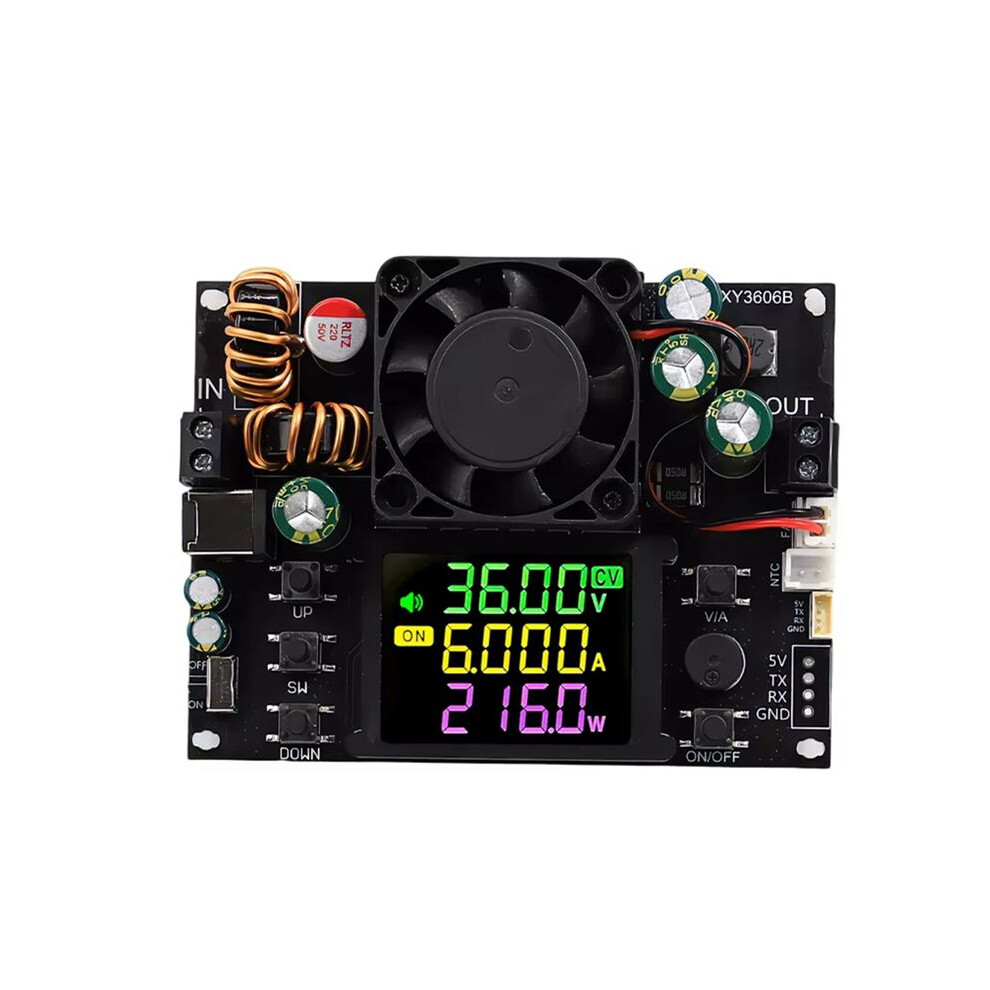

XY3606B 216W CNC Adjustable Voltage Regulator Power Supply Buck Boost Converter Voltage/Current Step-Down Module

XY3606B 216W CNC Adjustable Voltage Regulator Power Supply Buck Boost Converter Voltage/Current Step-Down Module Beskrivelse

Input voltage: 6-36.00V
Output voltage:0.0-36.00V
Accuracy of voltage:+0.5%+1 word
Output current: 0-6.000A
Accuracy of current:0.5%+3 word

Product name: buck-boost power supply
Model:XY3606B
Power output: 216W
Resolution of current:0.001A
Resolution of voltage: 0.01V
Storage data group: 10 groups
Number of buttons:5
Screen size: Over 1.8-inch LCD with a viewable area of 38x29mm
Buzzer:YES
Output ripple typical value:vpp-150mv
Efficiency of conversion: About 88%
MPPT function: Support MPPT solar charging
Protection mechanism:
Anti-backflow: YES
under-voltage (LUP): (Adjustable 5.5-36V, default 5.5V)
over-voltage (OUP): (Adjustable from 0 to 38V, default is 38V)
over-current (OCP): (Adjustable from 0 to 6.2A, default 6.2A)
over-power (OPP): (Adjustable from 0 to 250W, default is 230W)
over-temp (OTP): Adjustable from 0 to 110, default is 95
over- out (OHP): 1 minute-99 hours 59 minutes, off by default
over-capacity (OAH): 0-9999Ah, off by default
over- (OPH): 0-9999KWh, off by default
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Colour:Black
Material:PCB

Package Contents:
1 * Adjustable Voltage Regulator Power Supply

Only the above package content, other products are not included.
