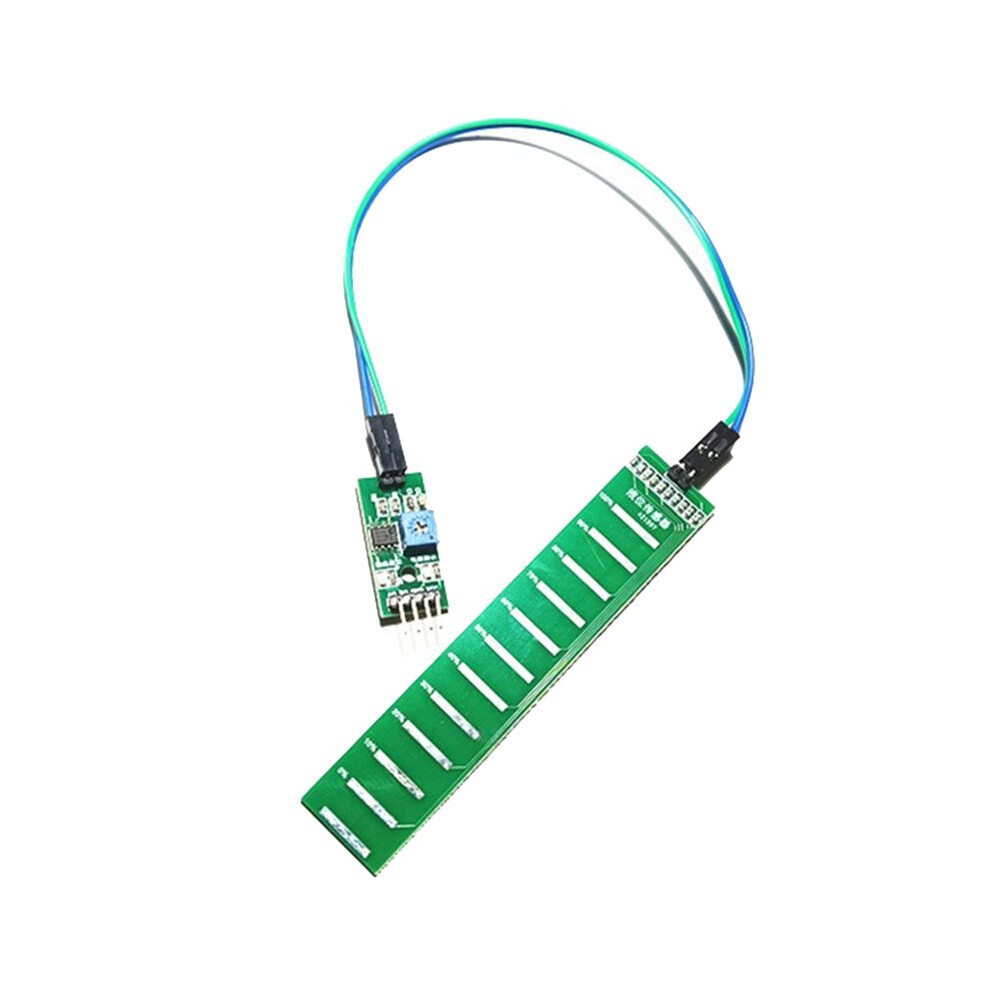

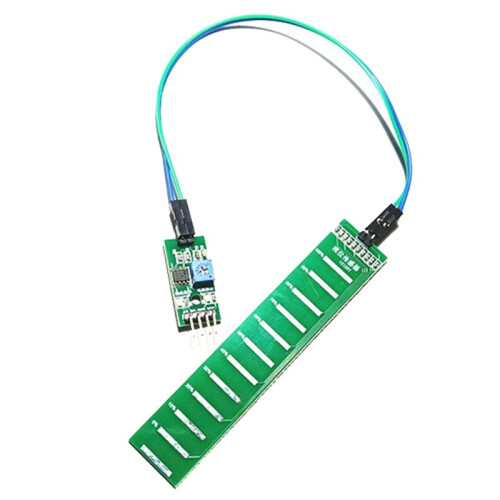

YW01 Liquid Level Sensor, Water Depth, Water Level, Height,Liquid Water Quantity, Rainfall Detection, Microcontroller 5V
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 126,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (Gratis) | tir. 16. - lør. 20. jun.
Solgt af: LLhappy
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Bevægelsessensorer
Oversigt
- Function Introduction: The YW01 liquid level sensor is a simple and easy-to-use resistive liquid level identification and detection sensor. It determines the water level by measuring the liquid level through a series of exposed parallel wire traces. It easily converts the liquid level signal to an analog signal, and the output analog value can be directly read by the microcontroller's AD function module.
- Operating Voltage: DC5.0V
- Detection Range: 0-90mm
- Detection Accuracy: 1cm
- Output Signal: 1 channel analog voltage output 0V~1.0V corresponding to liquid level 0%~100% (non-linear relationship). 1 channel digital output outputs high and low levels.
YW01 Liquid Level Sensor, Water Depth, Water Level, Height,Liquid Water Quantity, Rainfall Detection, Microcontroller 5V Beskrivelse
Function Introduction: The YW01 liquid level sensor is a simple and easy-to-use resistive liquid level identification and detection sensor. It determines the water level by measuring the liquid level through a series of exposed parallel wire traces. It easily converts the liquid level signal to an analog signal, and the output analog value can be directly read by the microcontroller's AD function module.
Operating Voltage: DC5.0V
Detection Range: 0-90mm
Detection Accuracy: 1cm
Output Signal: 1 channel analog voltage output 0V~1.0V corresponding to liquid level 0%~ (non-linear relationship). 1 channel digital output outputs high and low levels.
Demonstration Effect: A demonstration video can be viewed.
Applications: Microcontroller-controlled water depth detection, liquid level detection, water level alarm, etc.
Dimensions: 100x20x1.6mm
Wiring:
Sensor:
VCC: VCC
GND: GND
AO:AIN0
DO:P20
Color: Green
Material: PCB
Package Contents:
1 * YW01 liquid level sensor
Detaljer
| OPC | PV89SPZ |
|---|---|
| Mærke | Zandonà |
| Koder | 4713743686511 (EAN) |
Produktdata
| Height | 3cm |
|---|---|
| Width | 10cm |
| Length | 15cm |
| Weight | 0.065kg |
| Colour | Green |
| Material | PCB |
