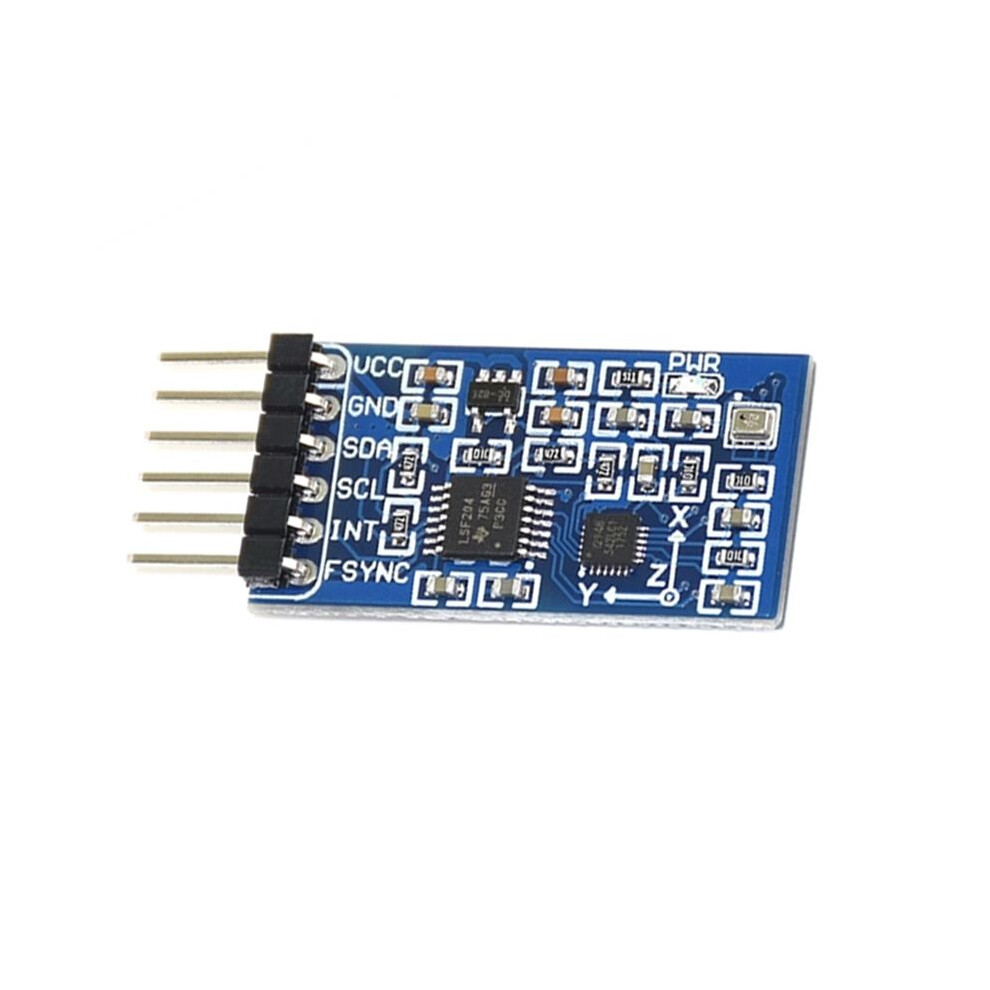

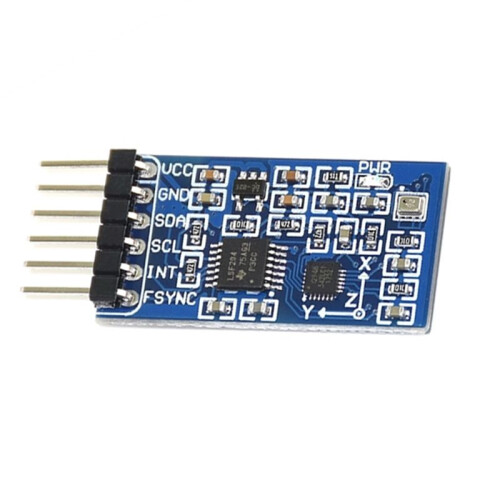

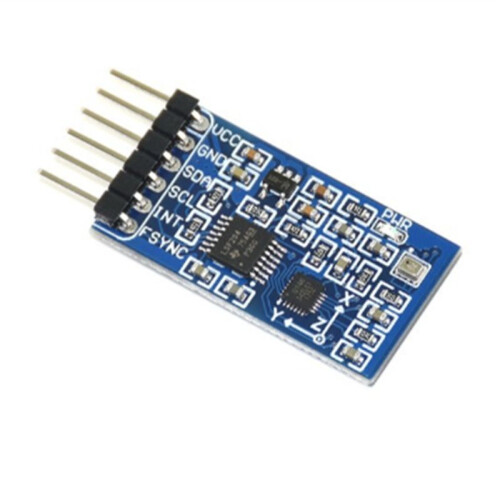

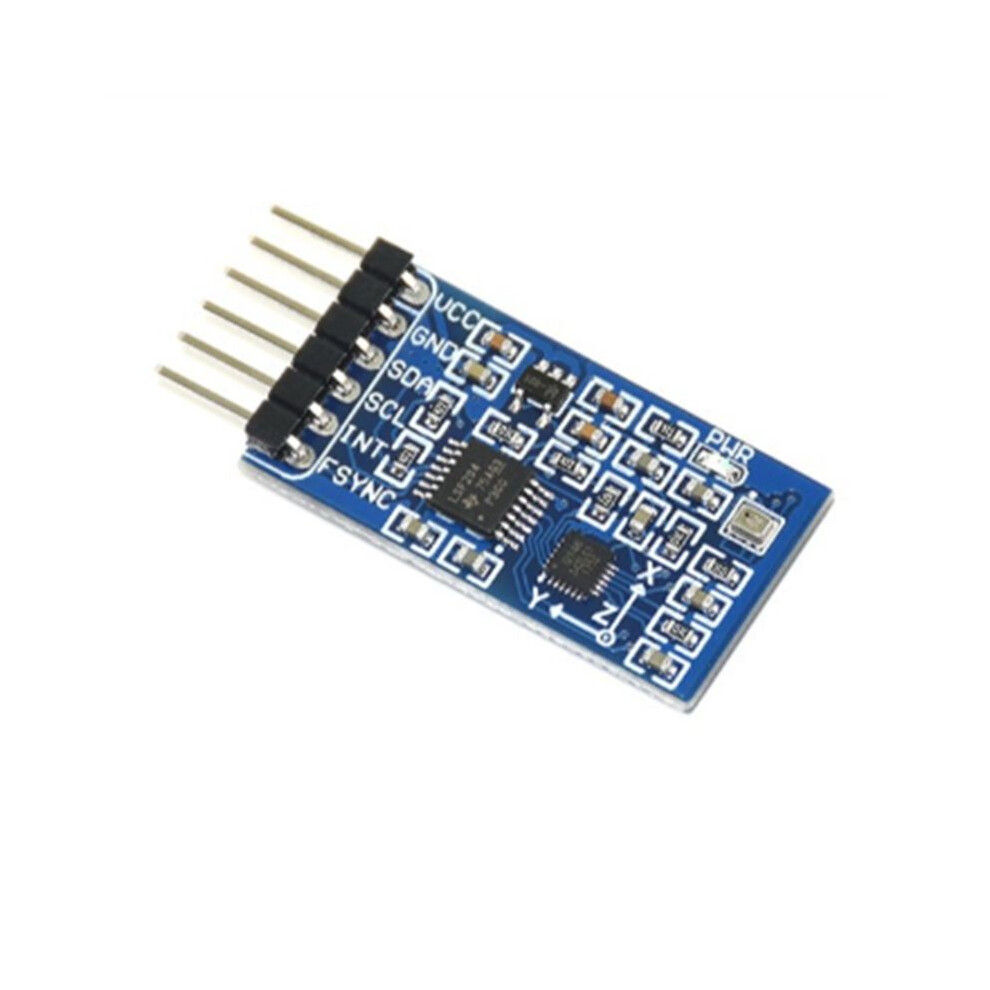

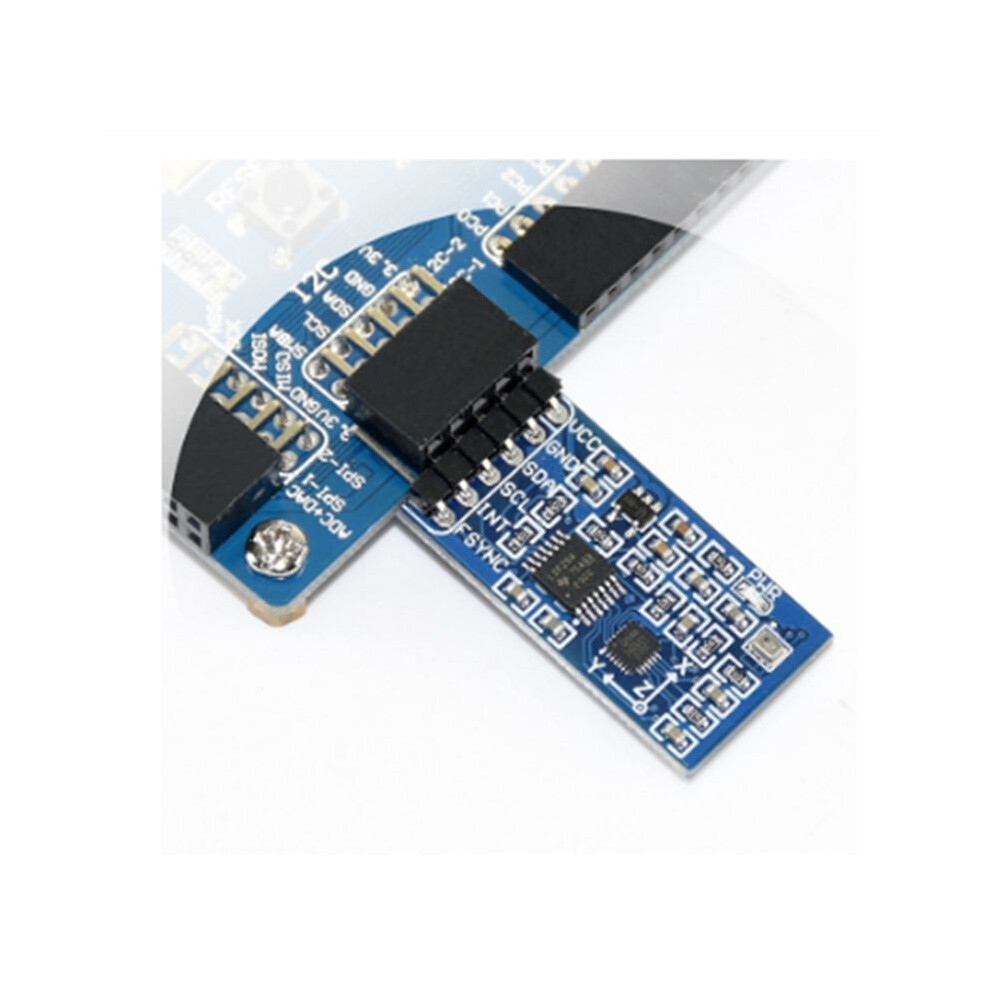

10 DOF IMU Sensor for (D) 10 Axis Inertial Sensor ICM20948/BMP280 Navigation Module, Compass/Acceleration/Gyroscope

Descripción de 10 DOF IMU Sensor for (D) 10 Axis Inertial Sensor ICM20948/BMP280 Navigation Module, Compass/Acceleration/Gyroscope

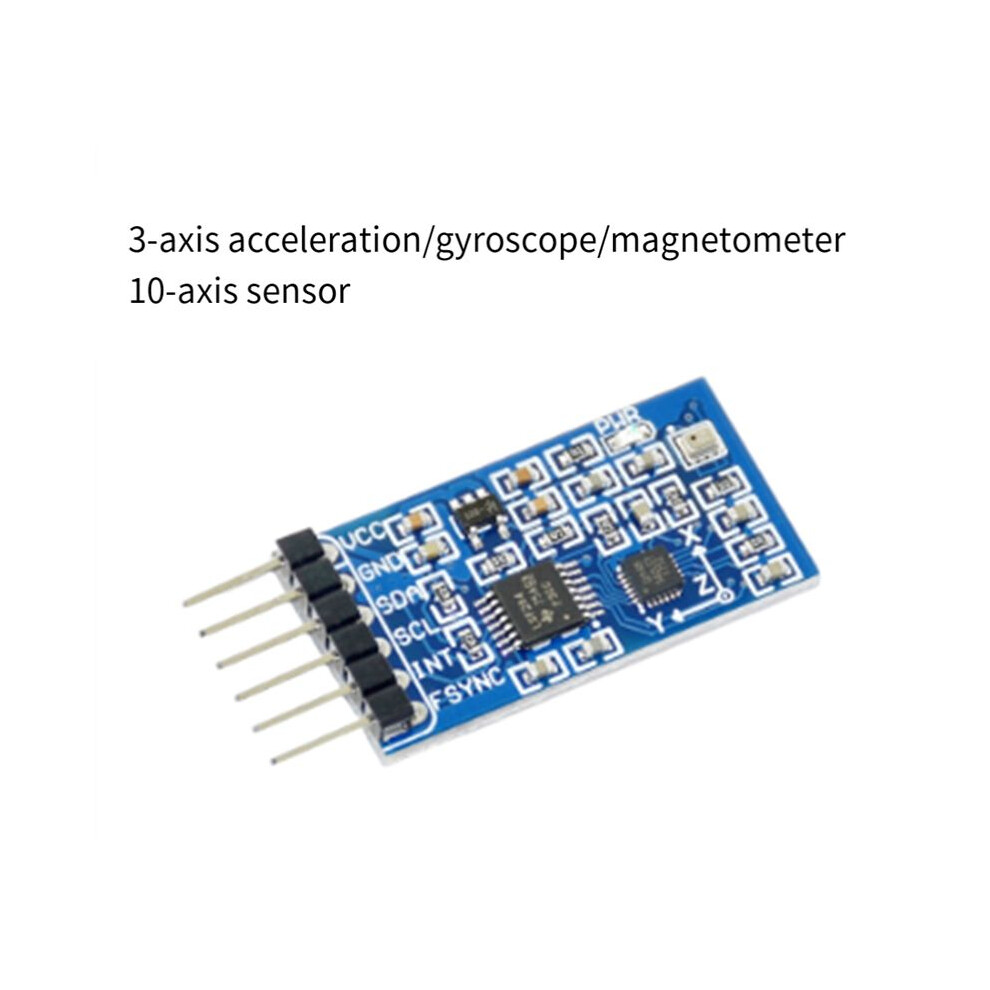

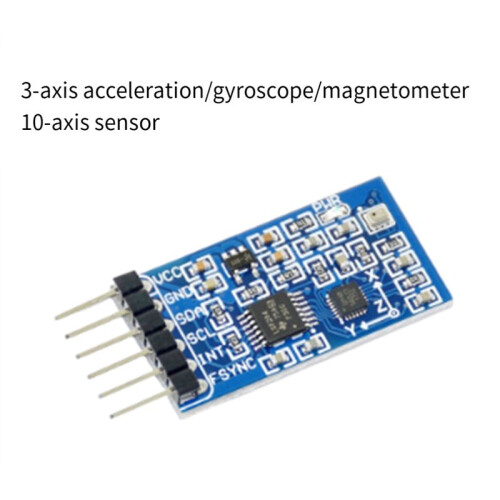

[One-minute Self-introduction] I am a 10-axis sensor. Monitoring motion posture is my strength. l can also tell you the orientation, height, and temperature. If you hope to have a more advanced human-machine interaction, or wish to DlY an aircraft or a self-balancing robot, take me with you.
[My Basic Information] Onboard Iow-power ICM20948 (3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer), with a built-in digital motion processing engine, which can reduce complex fusion calculation data and lighten the processor's load.
Compared with MPU9250, it has higher accuracy, Iower power consumption, and is more suitable for wearable devices. Onboard BMP280 (barometric altimeter), with a built-in temperature sensor for temperature compensation. Compared with BMP180, it has stronger performance and lower power consumption. 10-axis data can be obtained through I2C communication.

Power Supply Range:3.3V-5V (internal low-dropout voltage regulation)
Accelerometer Characteristics:
Resolution: 16 bits
perating current: 68.9uA
Gyroscope characteristics:
Resolution: 16 bits
Operating Current: 1.23mA
Magnetometer Characteristics:
Resolution: 16 bits
Measurement Range: 4900uT
Operating current: 90uA
Barometric Altimeter characteristics:
Barometric Resolution: 0.0016hPa
Temperature Resolution: 0.01
Measurement Range: 300-1100hPa (altitude: +9000m - -500m)
Relative Barometric Accuracy (700hPa-900hPa, 25-40): 0.12hPa(1m)
Operating current (1Hz update rate, ultra-low power mode): 2.8uA
Color:
Material:PC

Package Contents:
1 * Sensor
