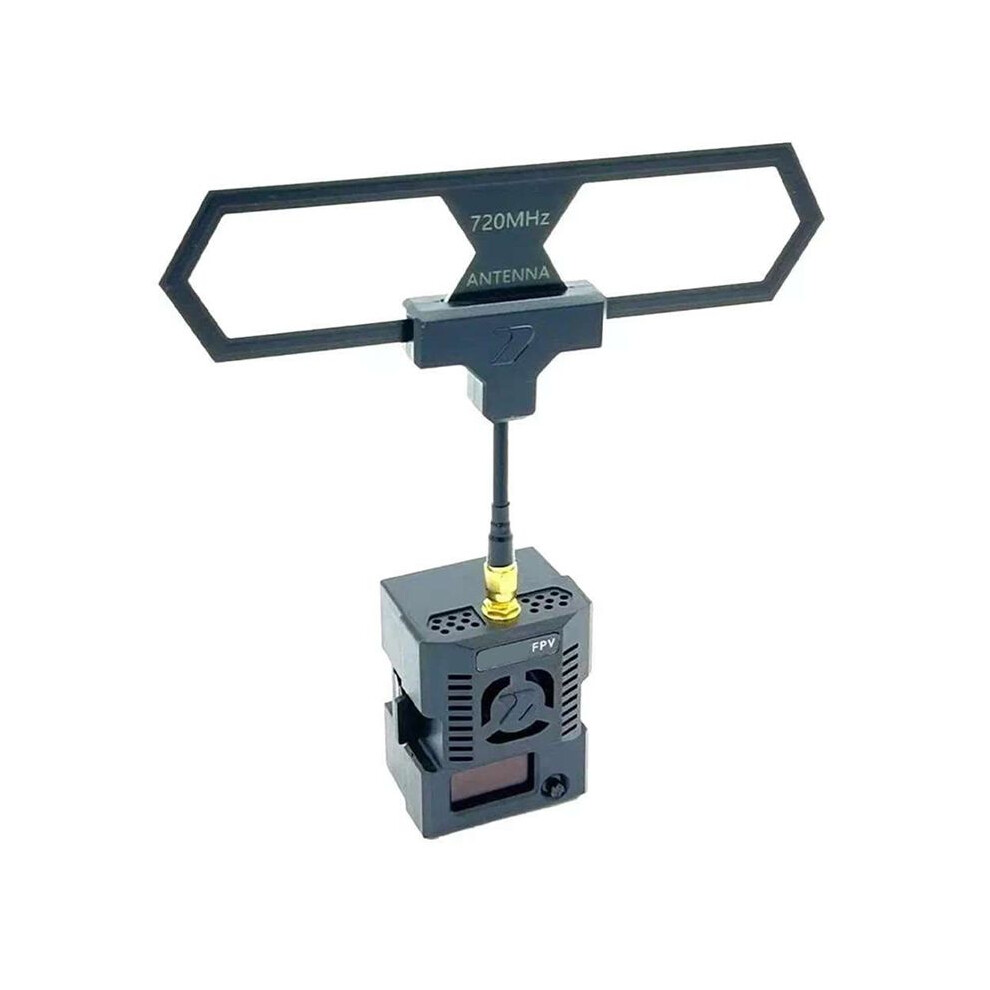

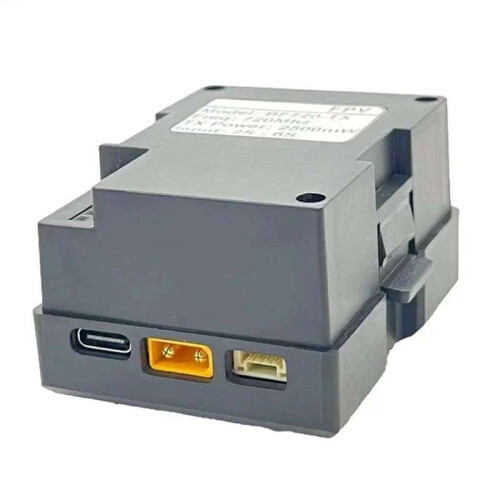

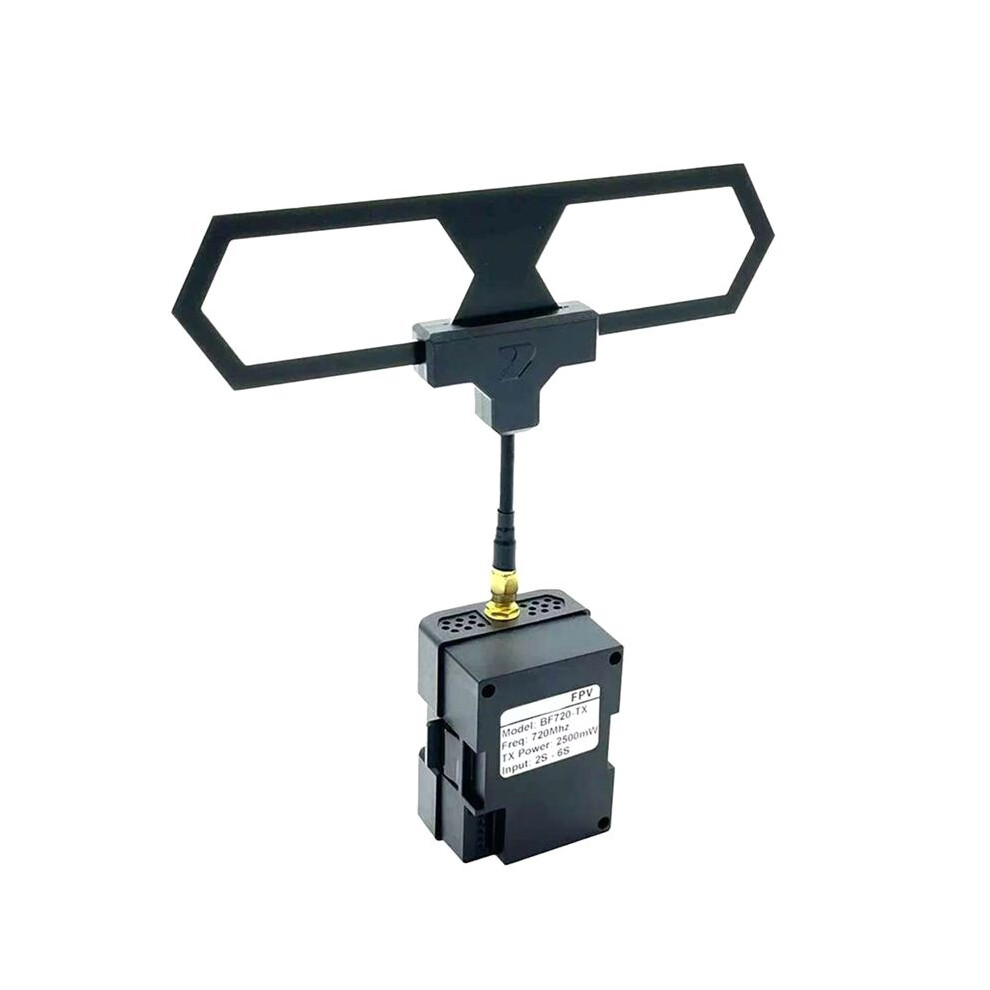

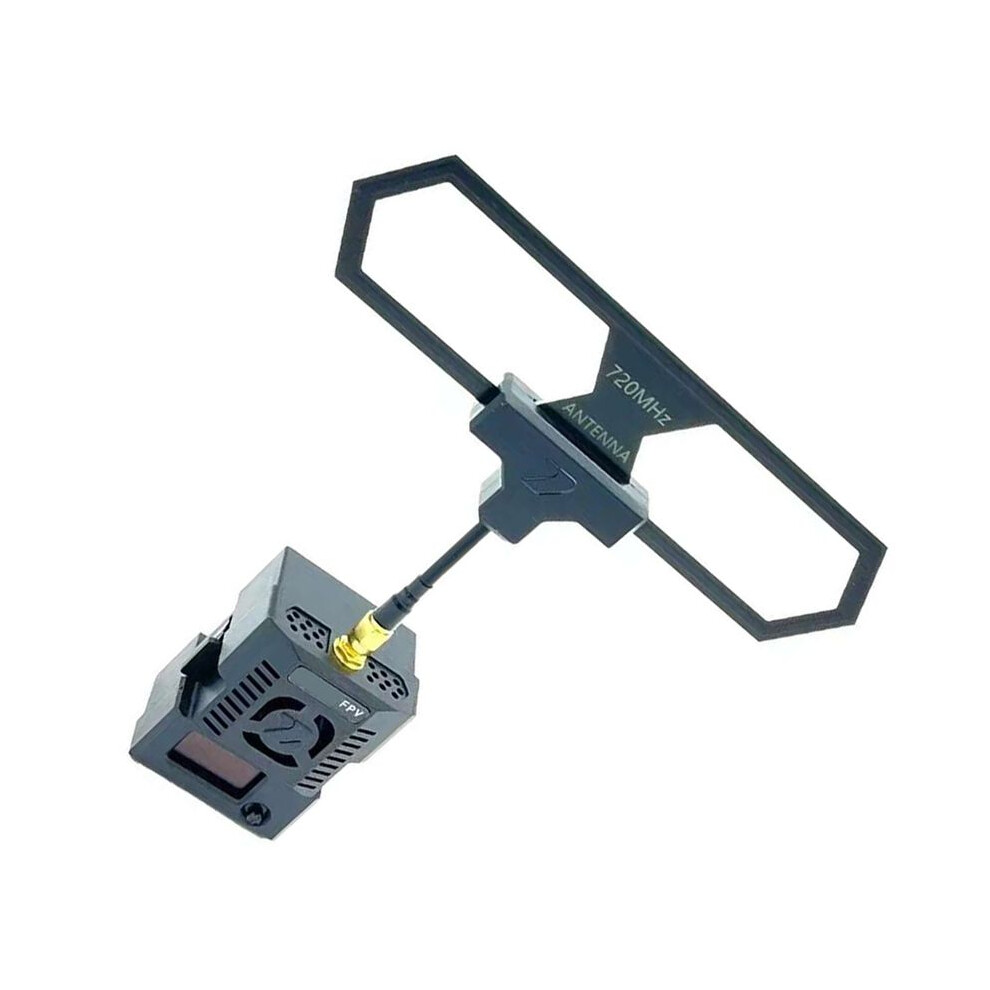

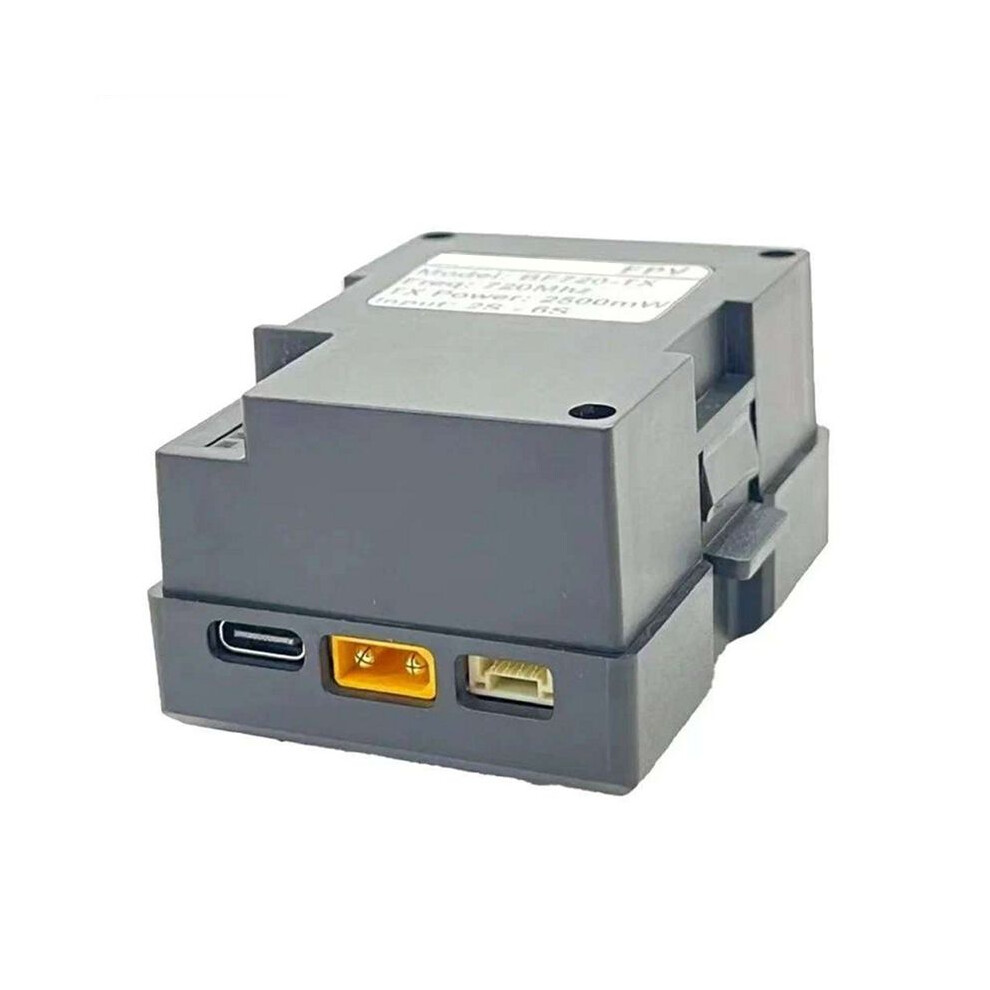

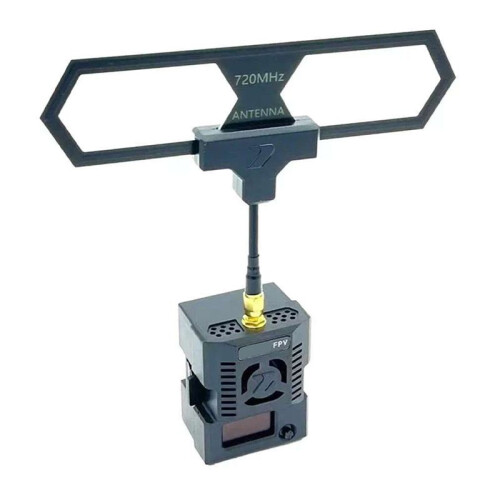

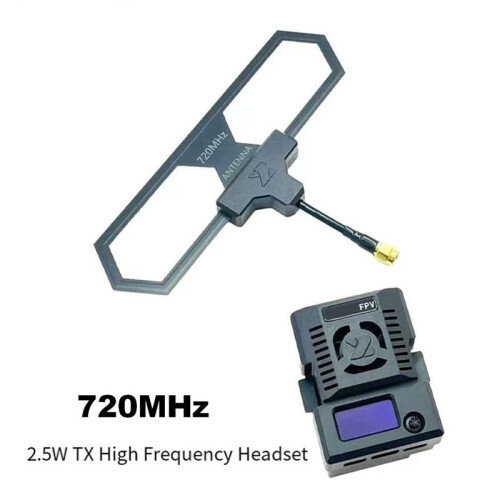

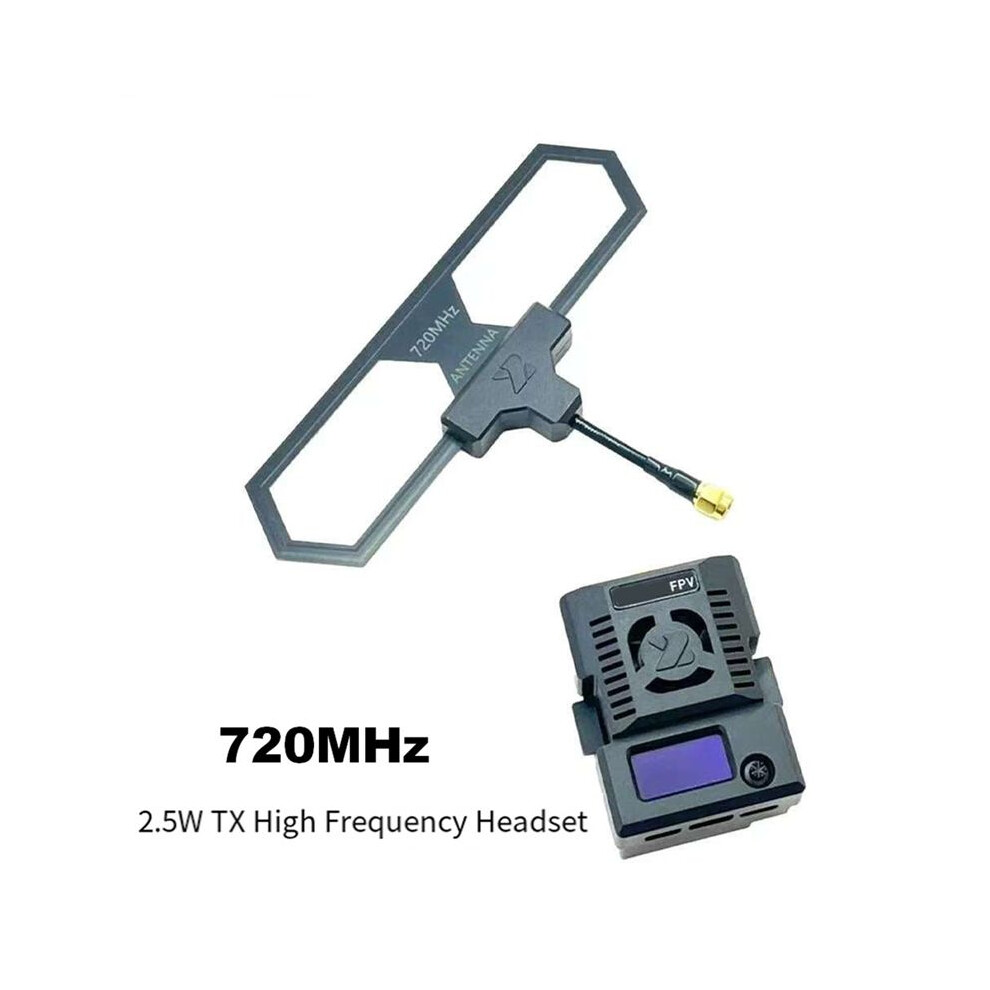

For BEASTFPV ELRS 720MHz Micro-Type TX Module Long Range ExpressLRS 720MHz Receiver RX for RC Transmitter 2.5W

Descripción de For BEASTFPV ELRS 720MHz Micro-Type TX Module Long Range ExpressLRS 720MHz Receiver RX for RC Transmitter 2.5W

Connecting the module to the control panel: Install the module in the rear port of the control panel (the control panel must have a slot for connecting Micro-type format modules (suitable consoles include; RadioMaster Tx12, Boxer...)
Go to the remote control settings using the MDL button, select the second tab and find the ExternalRF item at the very bottom of the settings, set the CRSF protocol (mode). After that, the module will activate and begin to glow, which means that the module is connected to the control panel.
Setting the module using the remote controller: To configure the module and further pair it with the aircraft, you need to go to the ExpressLRS settings by pressing the SYS button and selecting the ExpressLRS tab. Packet Rate - setting the delay. It is recommended to set this item to 50Hz(-115dB) (this setting will increase the control delay (not much), but will significantly improve the stability of the signal).
TX Power - Transmitter module power, set depending the task. Max power 1W.
WiFi Connectivity - Wifi sharing mode, for flashing the module. Bind - Pairing the module with the receiver. (Settings can be changed or customised, depending the operating conditions).

MCU:STM32
RFIC:SX1276
Power:8V-28V(2-6S)
Frequency Ranger:720-750MHz
Transmitter power:Greater than 34 dBm (2.5W)
Control Distance:Greater than 10
Refresh Rate:25Hz-250Hz
Antenna Connector:SMA
(The product printed words may vary depending the batch, but this does not affect use)
Color:As Shown
Material:ABS

Package Contents:
1set * transmitting module
