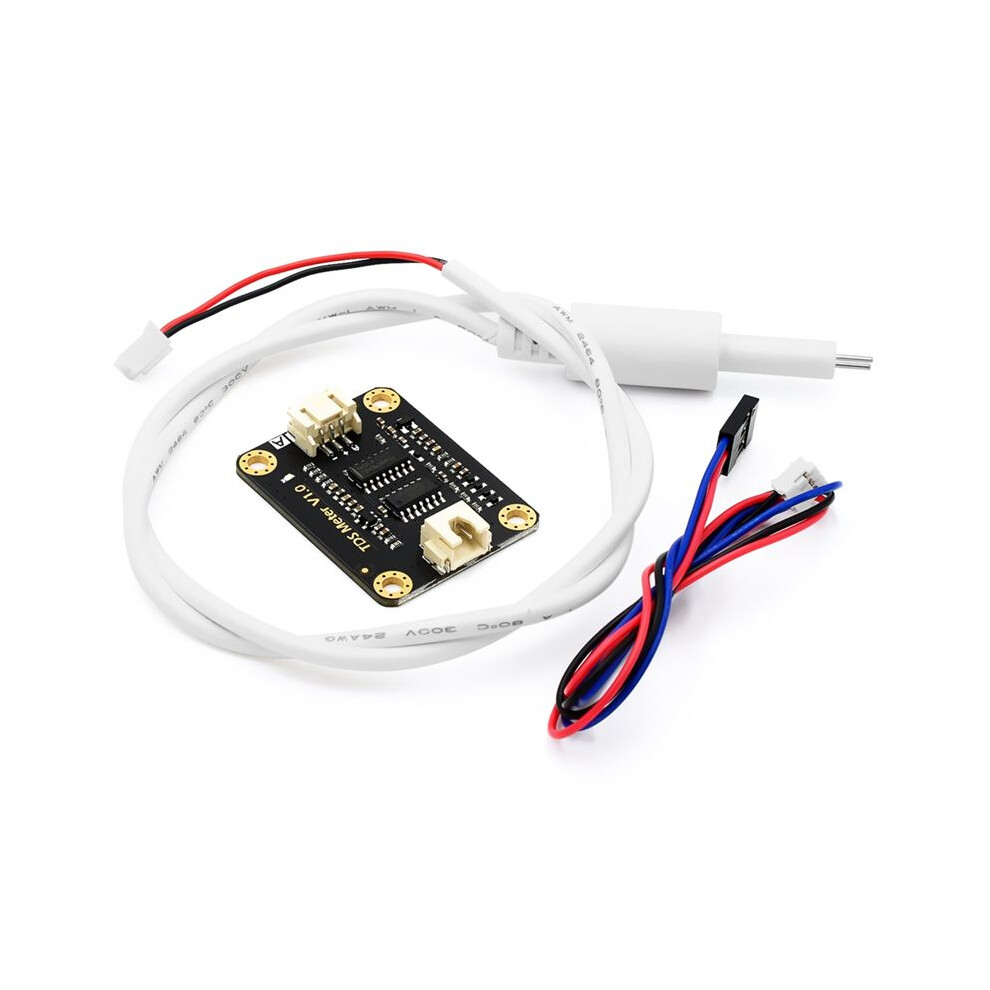

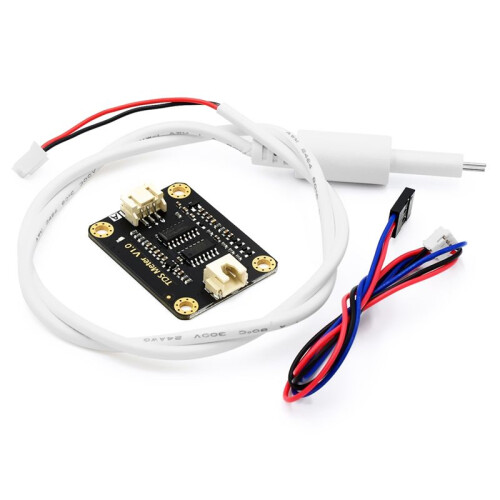

TDS Meter V1.0 Development Board Water Meter Filter Measuring Water Sensor Module for

Descripción de TDS Meter V1.0 Development Board Water Meter Filter Measuring Water Sensor Module for

Wide Voltage Input: 3.3~5.5V
Good Compatibility Output: 0~2.3V analog signal output, compatible with 5V or 3.3V controller
AC Excitation Source: effectively prevent probe from polarization
Waterproof Probe
Easy to Use: for compatible, simple connection, plug and without soldering

Signal Transmitter Board:
Input Voltage: 3.3 ~ 5.5V
Output Voltage: 0 ~ 2.3V
Working Current: 3 ~ 6mA
TDS Measurement Range: 0 ~ 1000ppm
TDS Measurement Accuracy: 10% F.S. (25 )
Module Size: 42 x 32mm
Module Interface: PH2.0-3P
Electrode Interface: XH2.54-2P
TDS probe:
Number of Needle: 2
Total Length: 83cm
Connection Interface: XH2.54-2P
Other: Waterproof Probe
Output Voltage: 0~2.3V analog signal output, compatible with 5V or 3.3V controllers
Signal Transmitter Board: AC Excitation Source to prevent probe polarization and prolong life
TDS probe: Waterproof with 2 needles and 83cm total length
Other: Gravity-based design for easy installation
Attention:
1. The probe can not be used in water above 55 degrees centigrade.
2. The probe can not be left too close to the of the container, otherwise it will affect the reading.
3. The and the cable of the probe are waterproof, but the connector and the signal transmitter board are not waterproof. Please be careful.
Color: As Shown
Material: PCB

Package Contents:
1set * TDS Meter V1.0 development board
