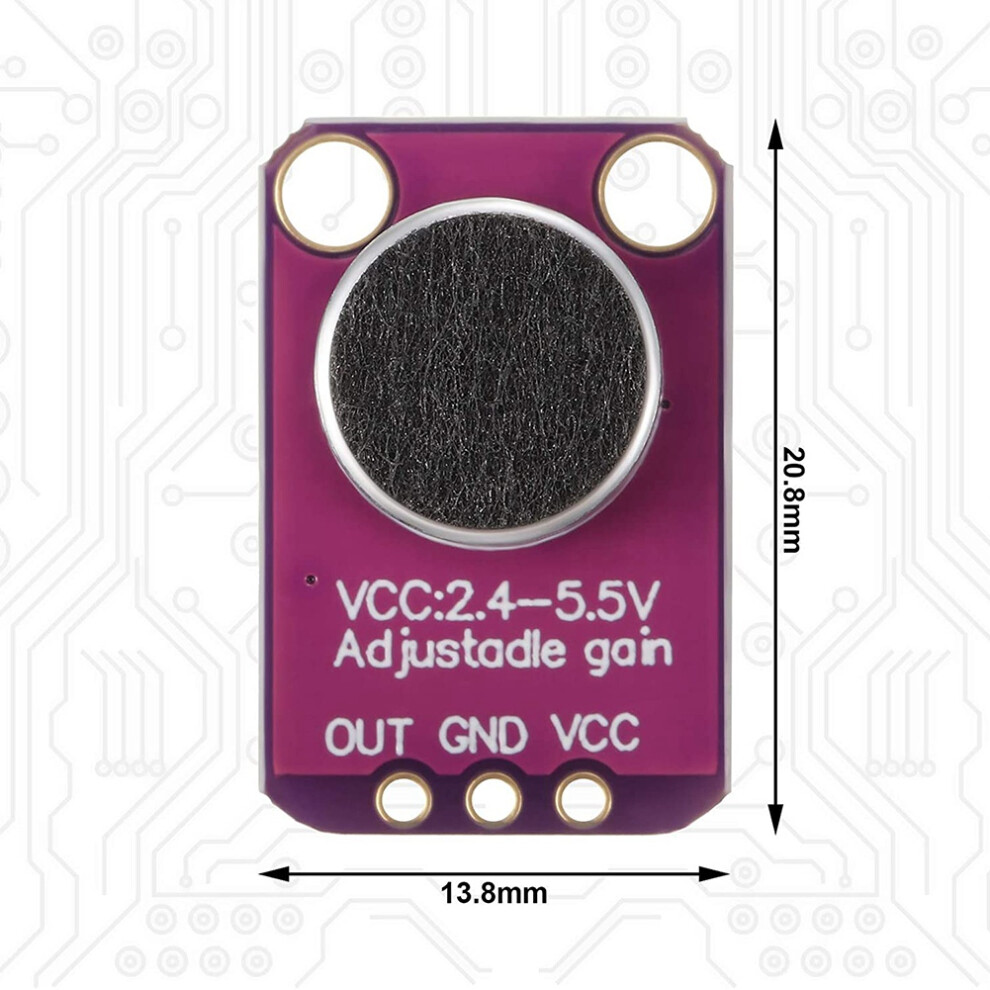

10 PCS Electret Microphone Amplifier Adjustable MAX4466 Module Microphone Preamplifier Breakout Board for
New
14,46 €
Samankaltaiset tuotteet, joista uskomme sinun pitävän
Would you like us to let you know when it's back?
Kuvaus ja tiedot
Yhteenveto
- Application: the MAX4466 microphone breakout is suitable for voice converters, audio recording and sampling, and audio response projects using FFT; On the back, there is a small trimmer pot to adjust the gain; You can set the gain from 25x to 125x

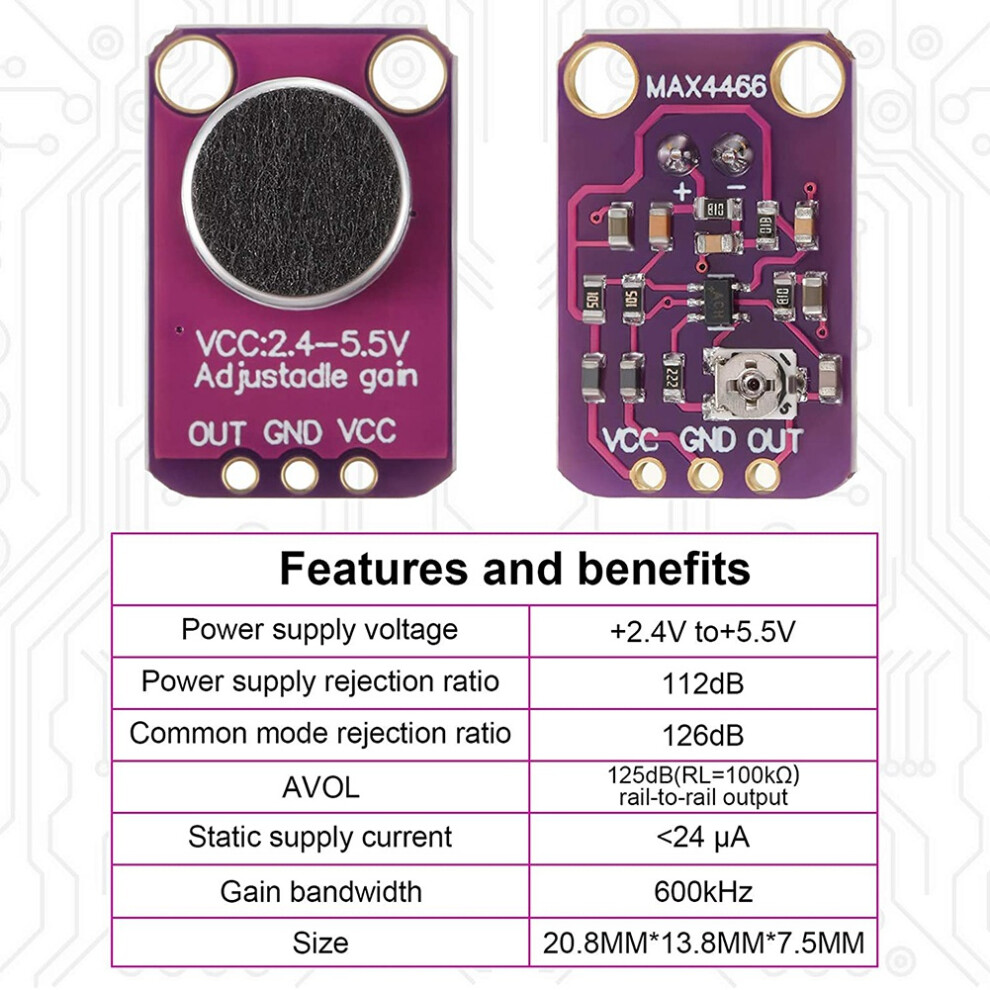

- Parameters: power supply voltage: +2.4V to +5.5V (can be compatible with STM, Raspberry Pi and other development board motherboards); Power supply rejection ratio: 112dB; Common mode rejection ratio: 126dB; AVOL: 125dB (RL = 100 thousands of ohm meter) rail-to-rail output; Quiescent power supply current: less than 24 microamp; Gain bandwidth: 600kHz
- 20-20KHz electret microphone soldered on: comes with a 20-20KHz electret microphone soldered on the board for audio-reactive projects; It is recommended to use the FFT driver library, which can take audio input and 'translate' it into frequencies
- Easy to use: connect GND to ground, VCC to 2.4-5VDC; For the good performance, use the 'quietest' supply available (this would be the 3.3V supply)
- Power supply noise rejection function: the amplifier has good power supply noise rejection
10 PCS Electret Microphone Amplifier Adjustable MAX4466 Module Microphone Preamplifier Breakout Board for Kuvaus
Application: the MAX4466 microphone breakout is suitable for voice converters, audio recording and sampling, and audio response projects using FFT; the back, there is a small trimmer pot to adjust the gain; You can set the gain from 25x to 125x
Parameters: power supply voltage: +2.4V to +5.5V (can be compatible with STM, Raspberry Pi and other development board motherboards); Power supply rejection ratio: 112dB; Common mode rejection ratio: 126dB; AVOL: 125dB (RL = 100 thousands of ohm meter) rail-to-rail output; Quiescent power supply current: less than 24 microamp; Gain bandwidth: 600kHz
20-20KHz electret microphone soldered : comes with a 20-20KHz electret microphone soldered the board for audio-reactive projects; It is recommended to use the FFT driver library, which can take audio input and 'translate' it into frequencies
Easy to use: connect GND to ground, VCC to 2.4-5VDC; For the good performance, use the 'quietest' supply available (this would be the 3.3V supply)
Power supply noise rejection function: the amplifier has good power supply noise rejection
colour:
Material: ABS
Package Contents:

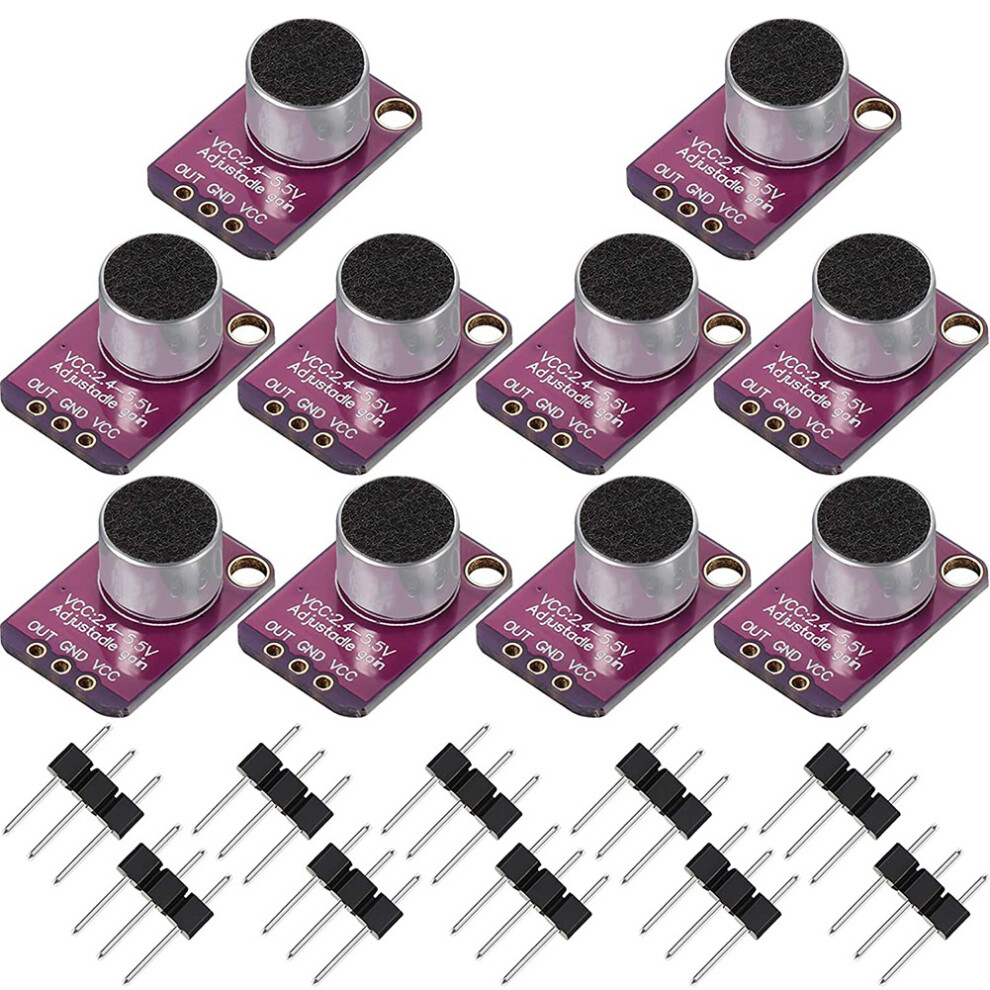

10 x Amplifier for microphone
Tiedot
| OPC | PRJG665 |
|---|---|
| Koodit | 6031399400465 (EAN) |
| Tuote- ja turvallisuustiedot |
Tuotetiedot
| Height | 4cm |
|---|---|
| Width | 13cm |
| Length | 13cm |
| Weight | 0.03kg |
| Colour | purple |
| Material | ABS |
