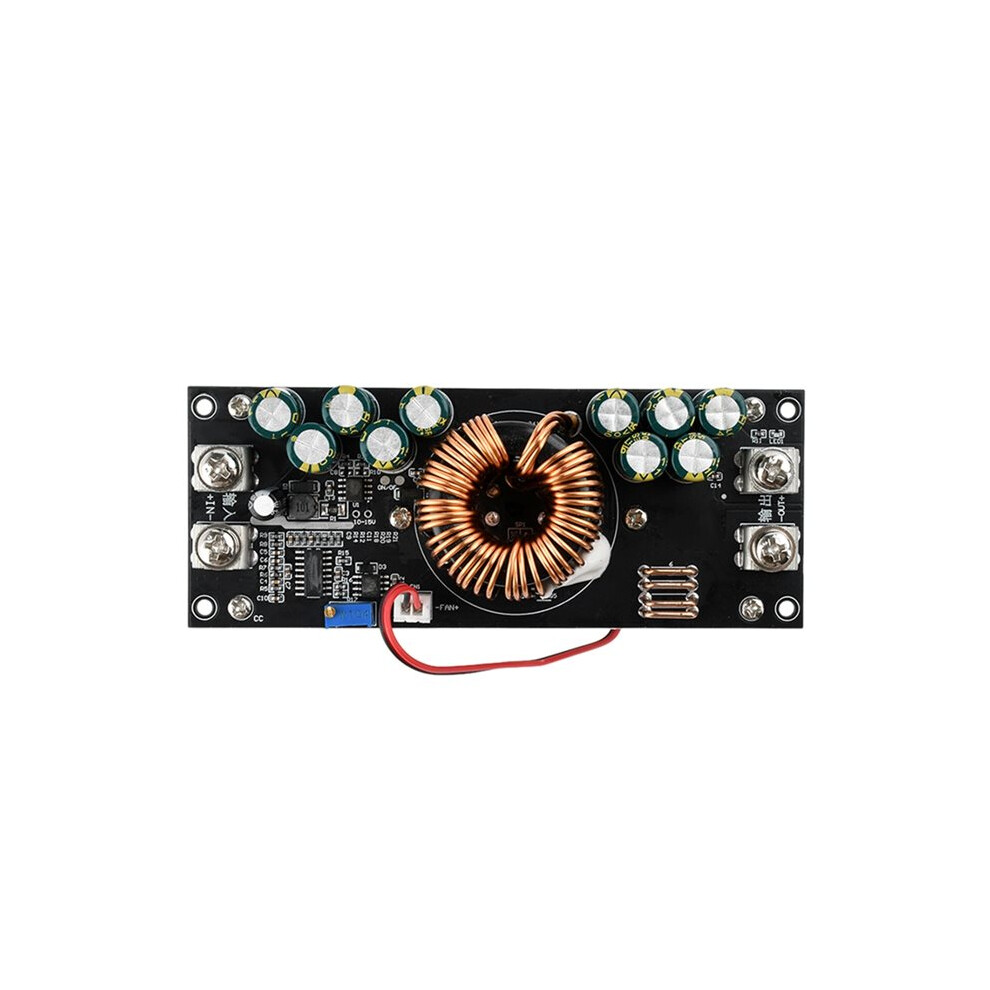

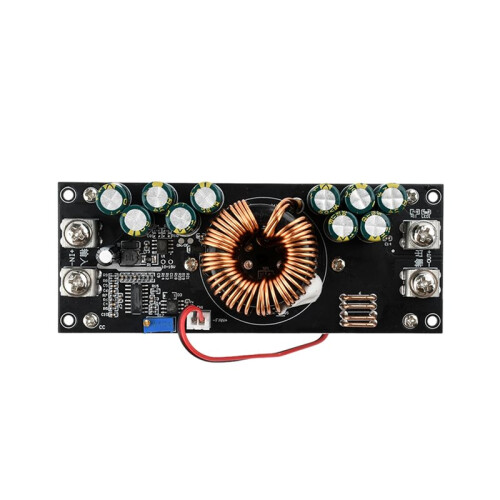

1500W - Adjustable Step-Down Power Module DC15V-90V to DC2.5V-72V Constant Voltage Adjustable Step-Down Power Module

1500W - Adjustable Step-Down Power Module DC15V-90V to DC2.5V-72V Constant Voltage Adjustable Step-Down Power Module Kuvaus

Input voltage range: 15V-90V; output voltage range: 2.5V-72V, accommodating diverse power supply and equipment requirements
Supports maximum power output of 1500W, suitable for high-power devices to ensure stable power delivery
Features constant voltage output to guarantee output stability, ideal for applications demanding precise voltage control

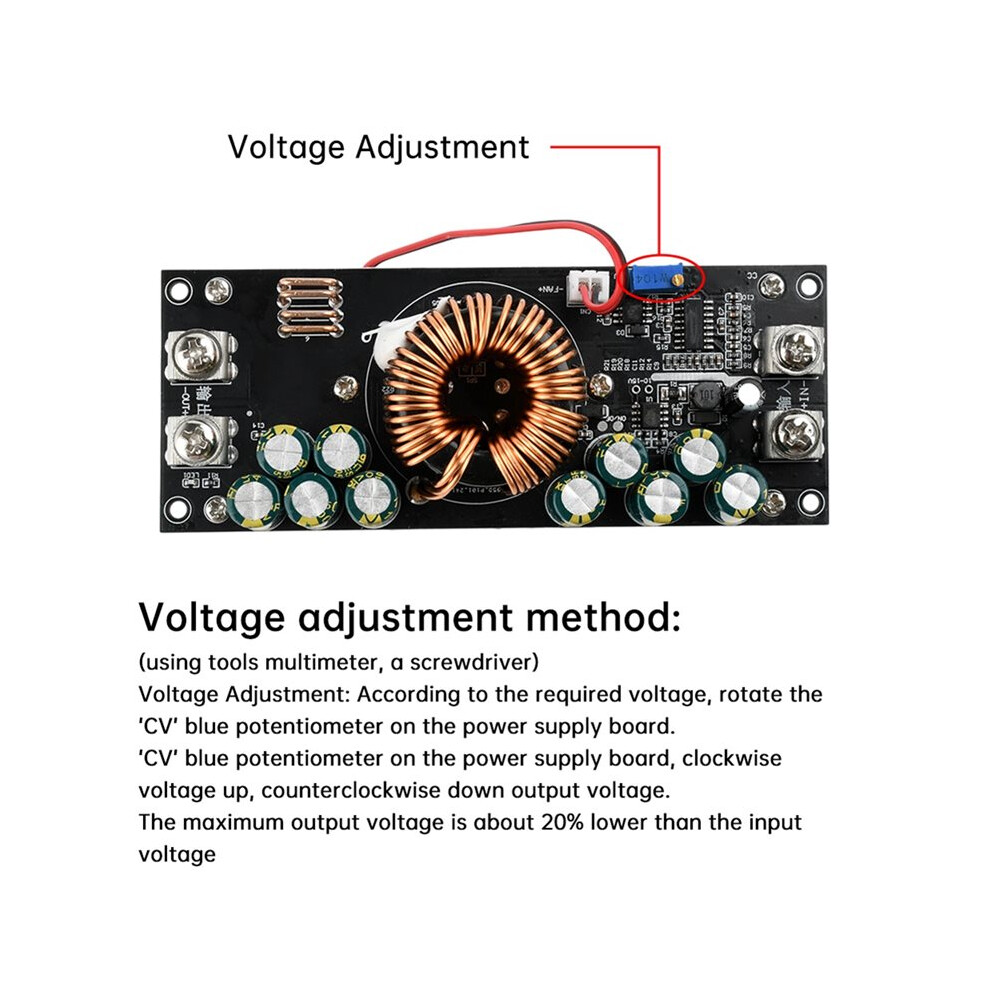

Adjustable output voltage provides flexible adaptation to varied application scenarios, enhancing usability
Efficient buck conversion reduces loss, improves system efficiency, and minimises heat generation

Product Specifications:
Module Type: Non-isolated buck converter (BUCK)
Input Voltage: 15-90V (Alternatively, 10-15V input is possible by shorting the '12-15V' terminals. Once shorted, only 10-15V input is permitted. Inputs exceeding 15V will damage the module; shorting '10-15V' renders the /OFF function inoperative)
Output Voltage: 2.5-72V (must satisfy step-down condition: IN input multiplied by 0.8 equals maximum output voltage)
Minimum Output Voltage: 2.5V
Maximum Output Voltage: 72V (at 90V input; IN voltage x 0.8 equals output voltage)
Maximum Output Current: 1500W model 50A
Cooling method: Air-cooled
Input reverse polarity protection: None (reverse connection strictly prohibited)
Input under-voltage protection: None
Input over-voltage protection: None (overvoltage prohibited)
Output /OFF interface: Present (requires user wiring)
Operating temperature: -10 to +65C
Operating frequency: 80kHz
Conversion efficiency: to 97% (efficiency depends input/output voltage, current, and voltage differential)
Short-circuit protection: None (current limiting to 30A/50A possible)

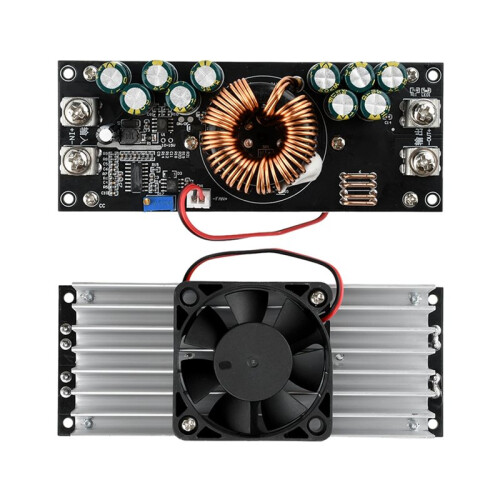

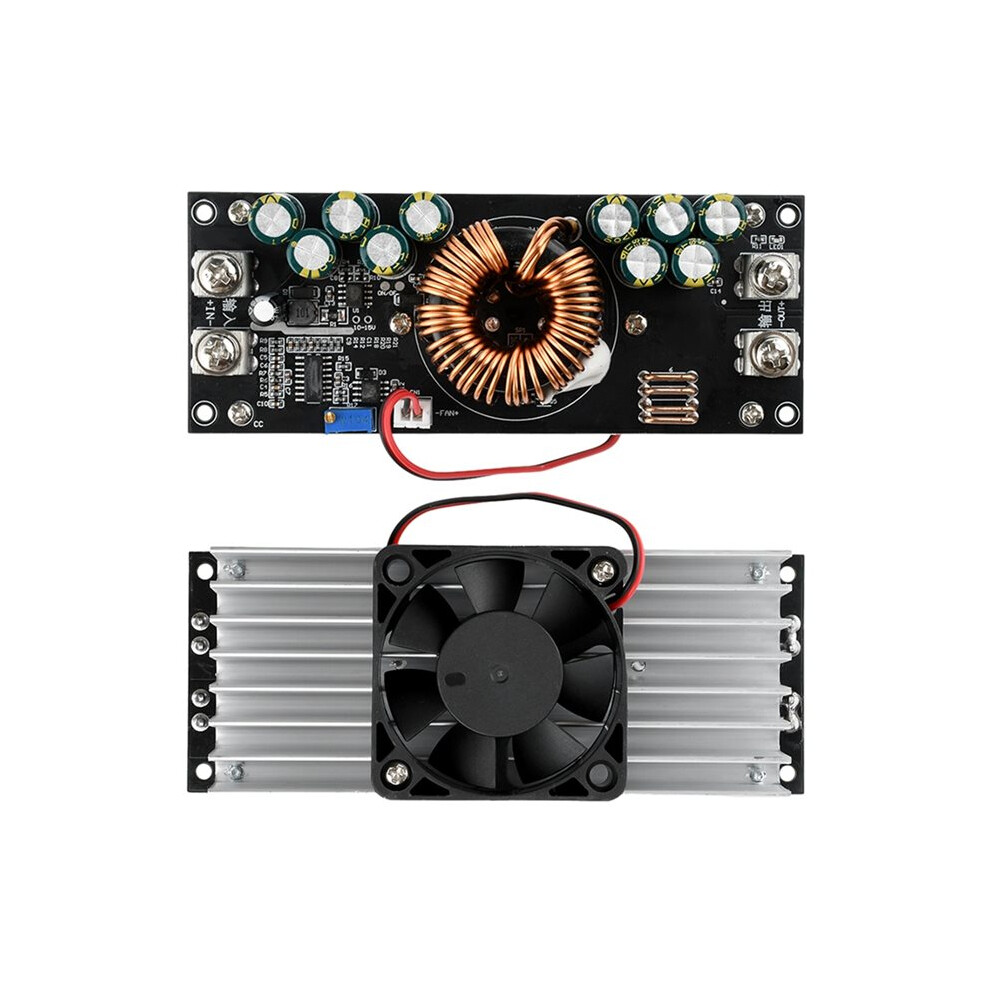

Cooling method: Air-cooled (thermostatically controlled fan activates around 45C)
Color: Black
