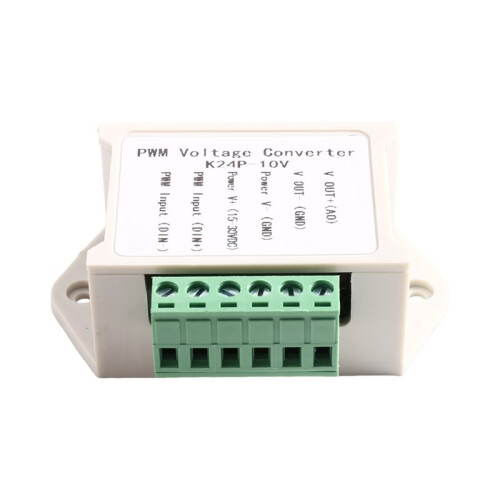

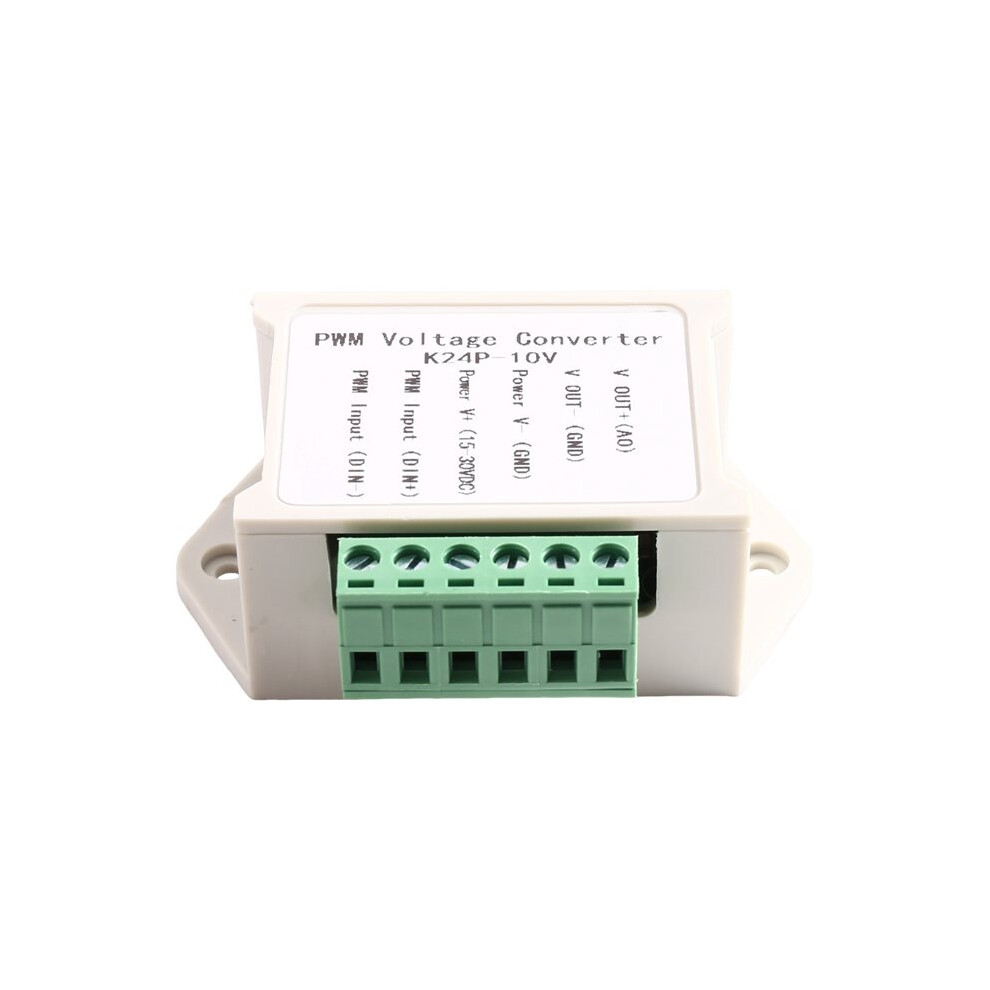

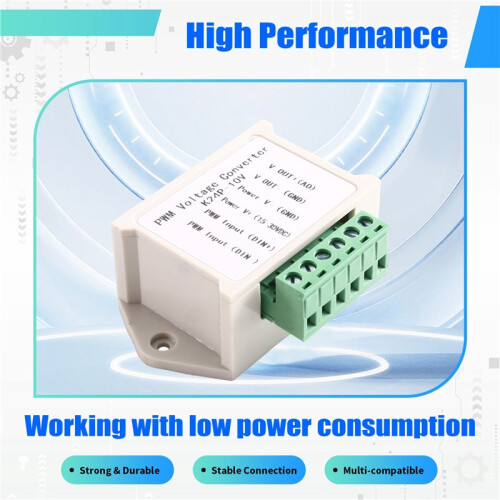

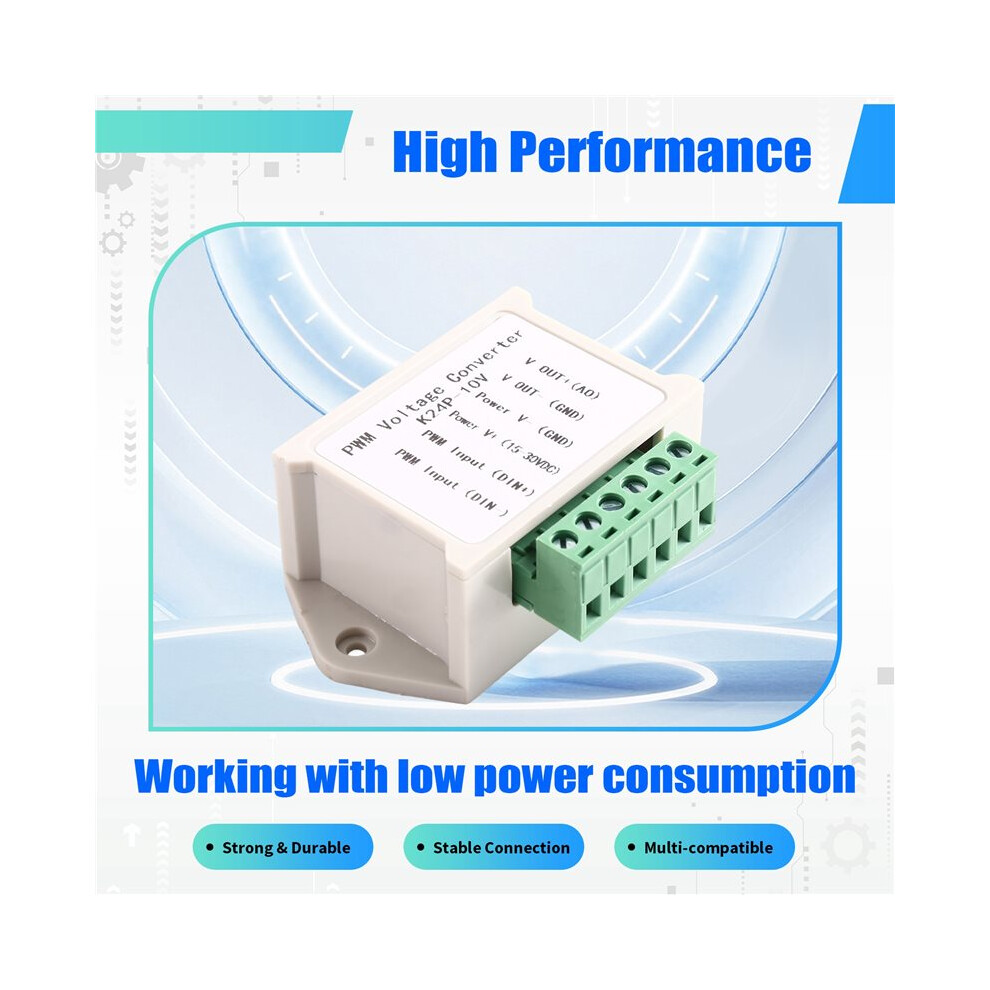

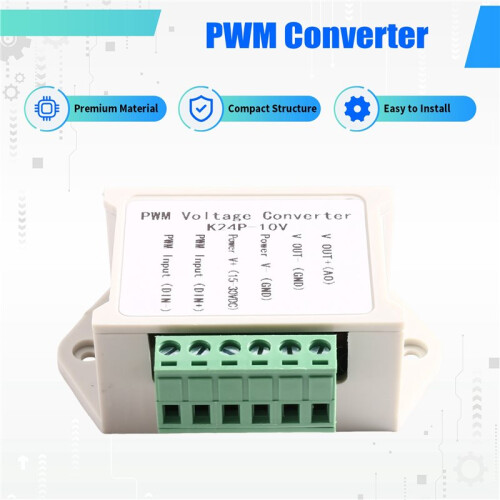

24V Input PWM Converter Stable Connection 0-10V Output Digital Analog Converter Regulator Function Adapter Module

24V Input PWM Converter Stable Connection 0-10V Output Digital Analog Converter Regulator Function Adapter Module Kuvaus

Color: As shown
Material: Plastic

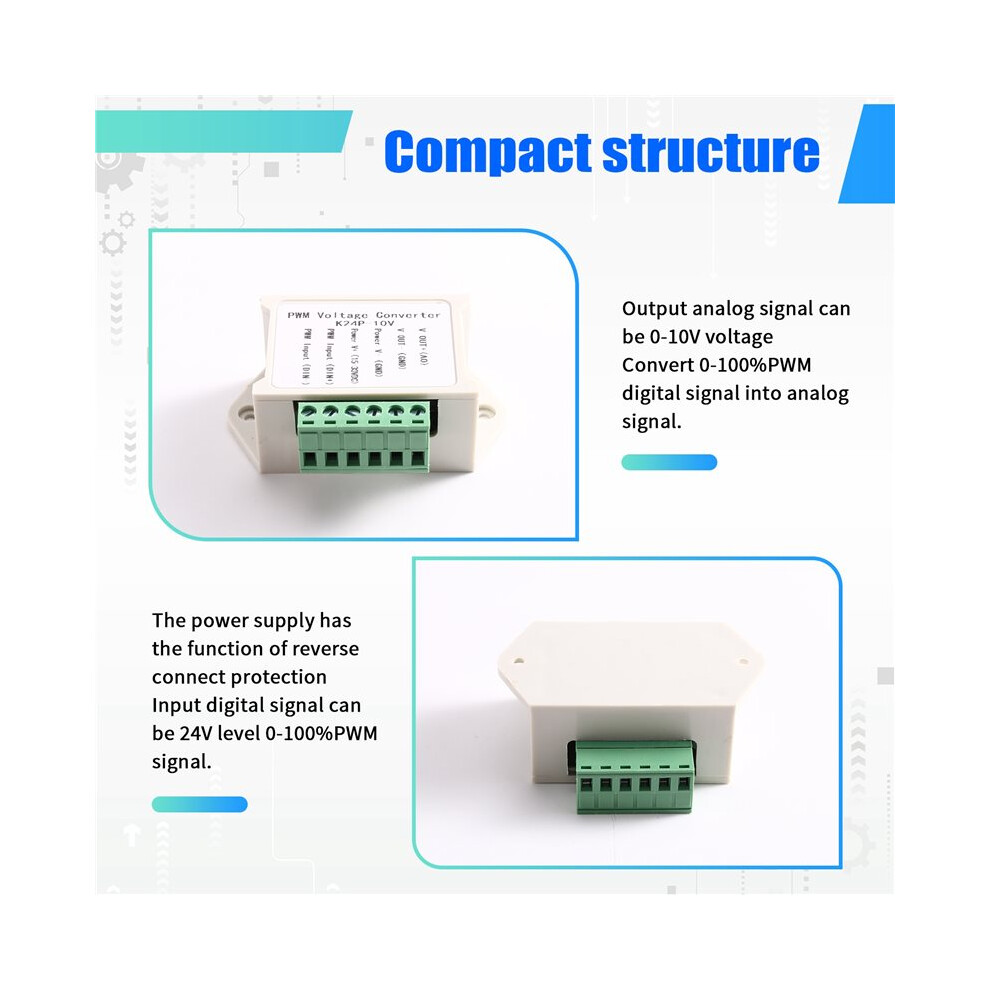

Output analog signal can be 0-10V voltage
Convert 0-PWM digital signal into analog signal
The power supply has the function of reverse connect protection
Input digital signal can be 24V level 0-PWM signal
Widely used in PLC; Signal interface switching between single chip or other industrial control board

Specifications:
PWM signal receiving frequency range: 100hz-3khz, recommended 1khz-3khz.
Port introduce:
DIN+: PWM signal input "-"(common cathode:connect PWM signal, Common anode: connect signal end's 24V)
DIN-: PWM signal input "+"(common cathode:connect signal end's GND,Common anode: connect PWM signal)
15-30V: power supply input "+"
GND: power supply ground wire
GND: signal ground wire
AO: Analog Voltage(0-10V)output port
Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.
Color: As Shown
Material: plastic

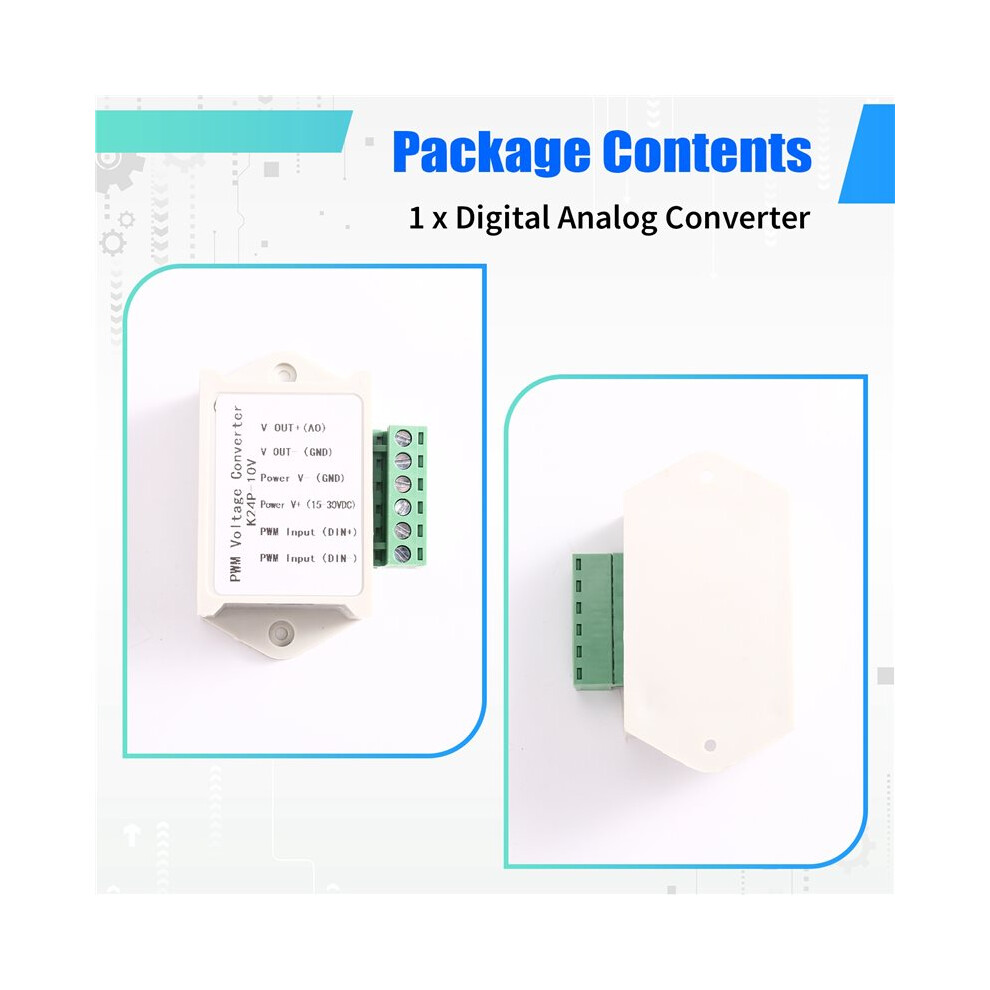

Package Contents:
1*Converter
