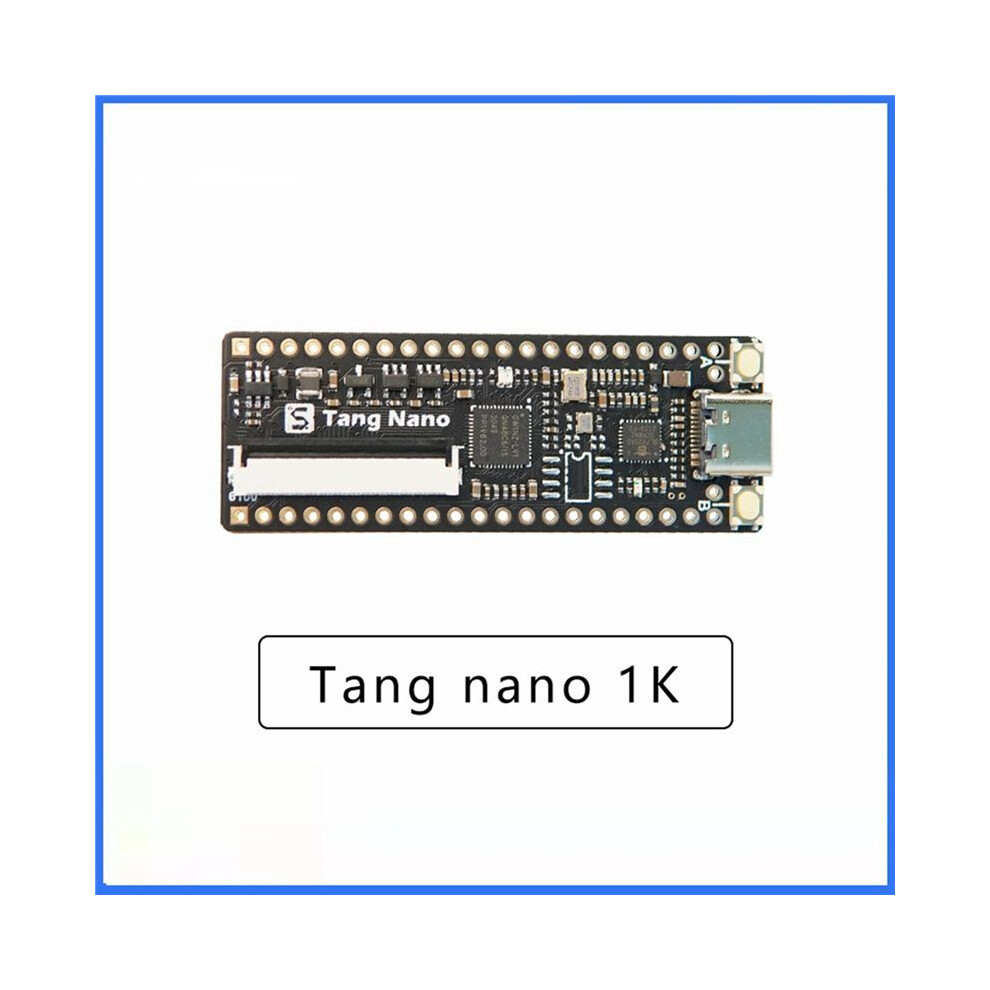

2Pcs Tang Minimalist FPGA Development Board Straight Insert Breadboard Tang 1K Development Board

2Pcs Tang Minimalist FPGA Development Board Straight Insert Breadboard Tang 1K Development Board Kuvaus

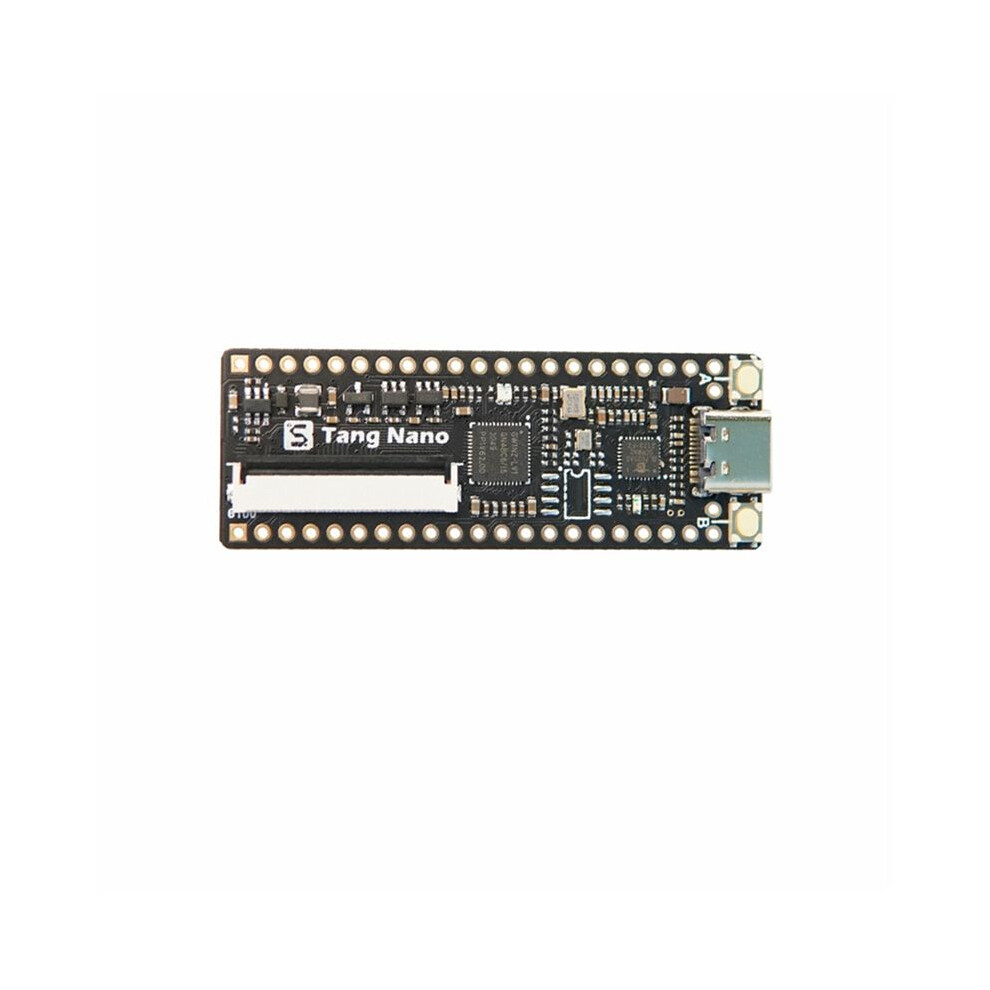

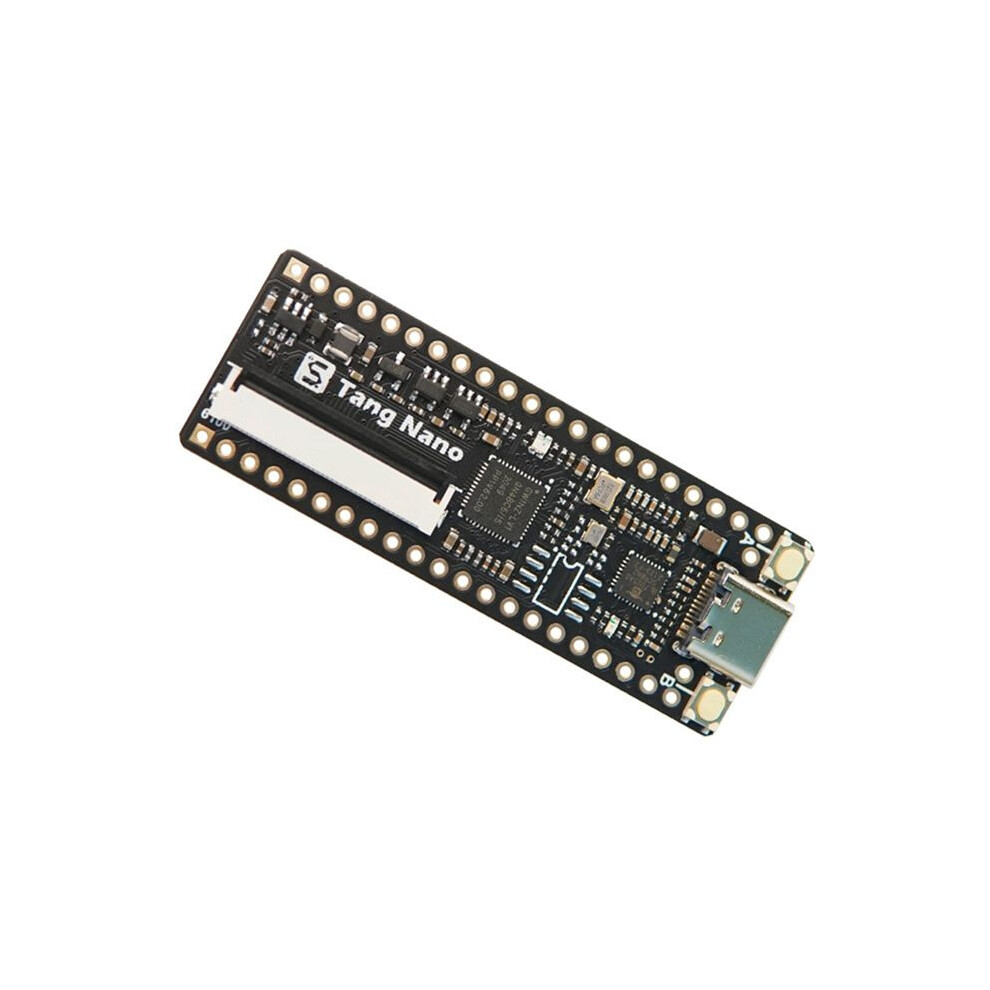

Tang is a simple development board based GOWINSEMI's Bee series GW1N-1 FPGA design.
The design of the development board is small and exquisite, leading out all the resources of the chip, onboard Type-C, USB-JTAG, PSRAM, RGB interface (can be connected to LCD screen, VGA and other peripherals), etc., and leading out all IO resources to facilitate development It is very suitable for the design and experiment of small digital logic.
The GW1N-1 FPGA chip the Tang development board is very powerful, has rich logic resources, supports multiple I/O level standards, and is embedded with block , PLL, Flash and other resources. A non-volatile FPGA product; In addition, the onboard 64Mbits PSRAM provides abundant storage resources for the FPGA.

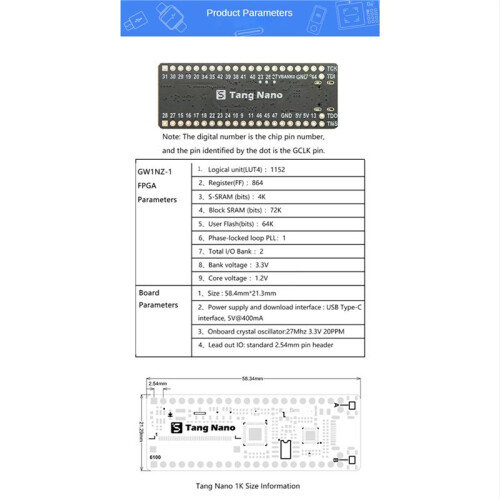

parameter:
Core: GW1N-1 FPGA
Logic Units (LUT4): 1152
Registers (FF): 864
Block (bits): 72K
Number of B- blocks: 4
User flash memory (bits): 96K
Phase-locked loop PLL: 1
Total I/O Banks: 4

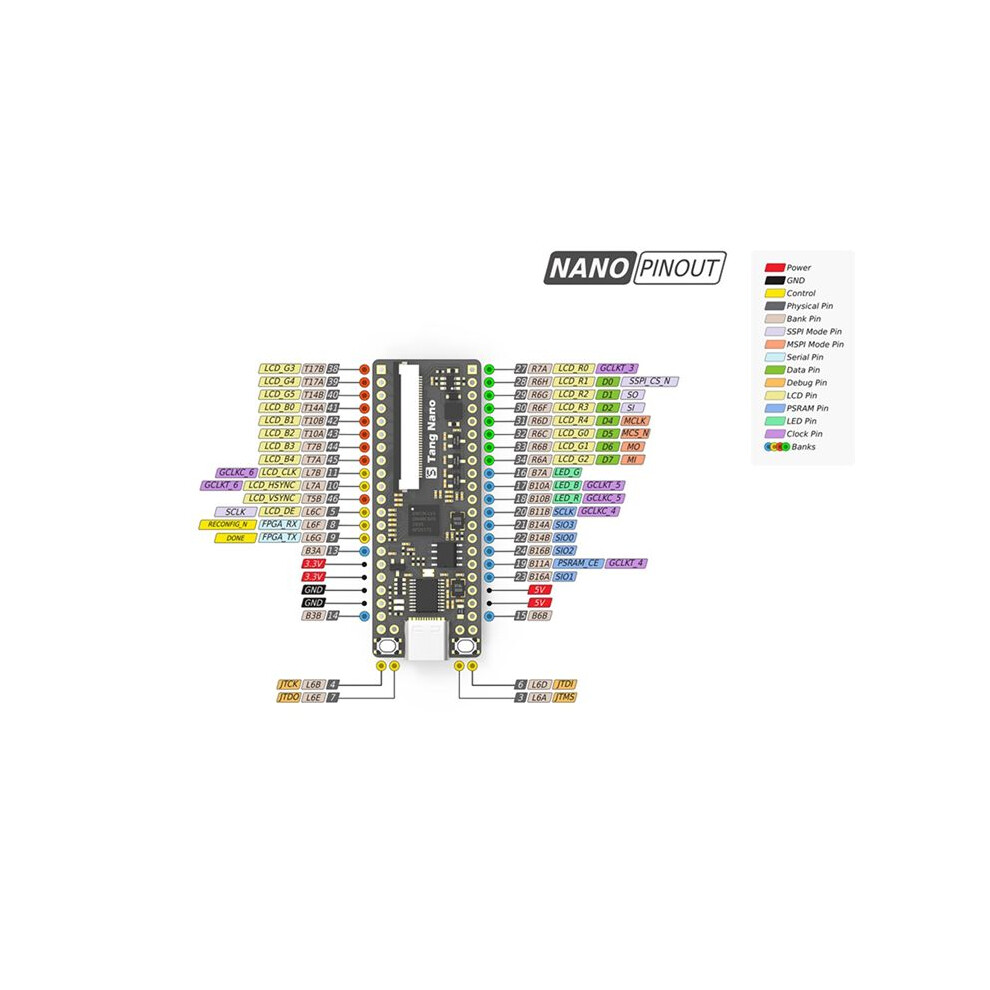

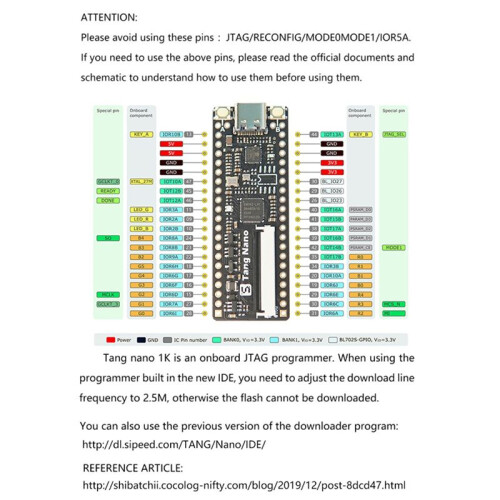

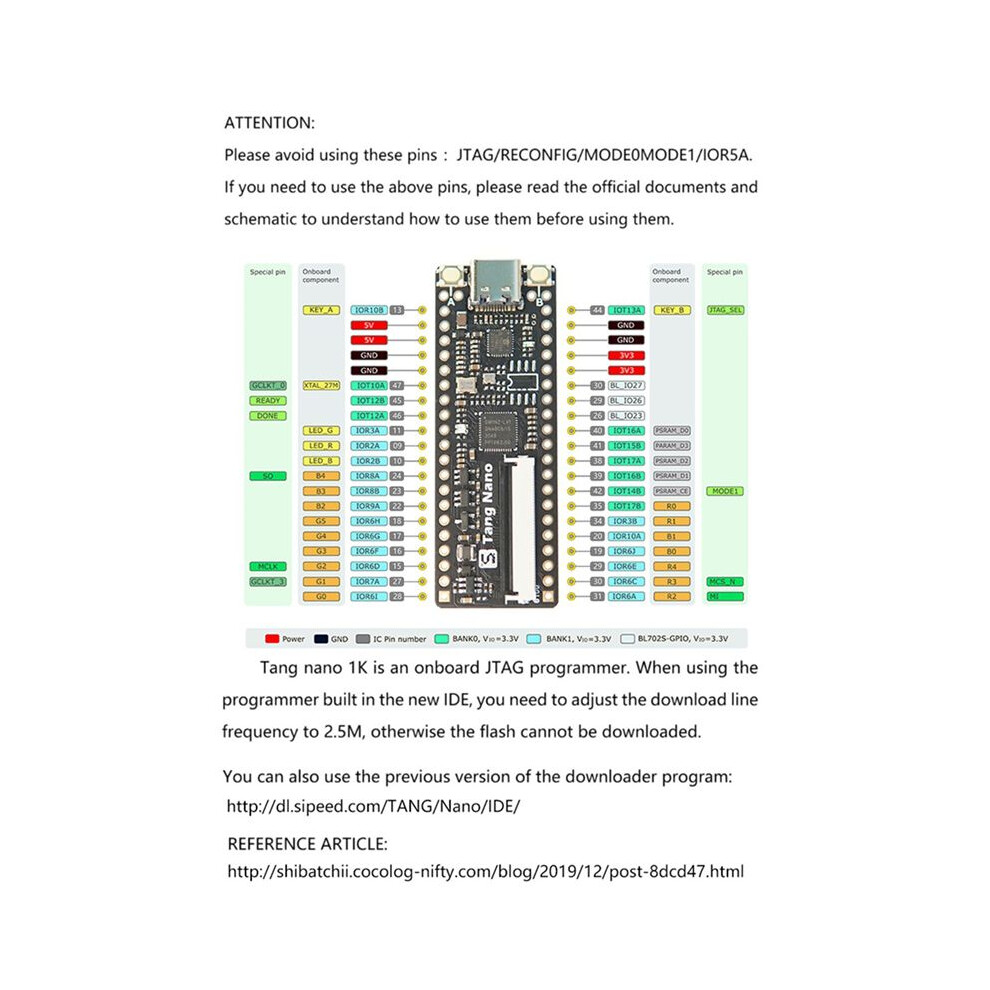

Maximum number of user I/O: 41
Core voltage: 1.2V

size: 58.34 x 21.29mm
Material: PCB
colour: black

Package Contents:

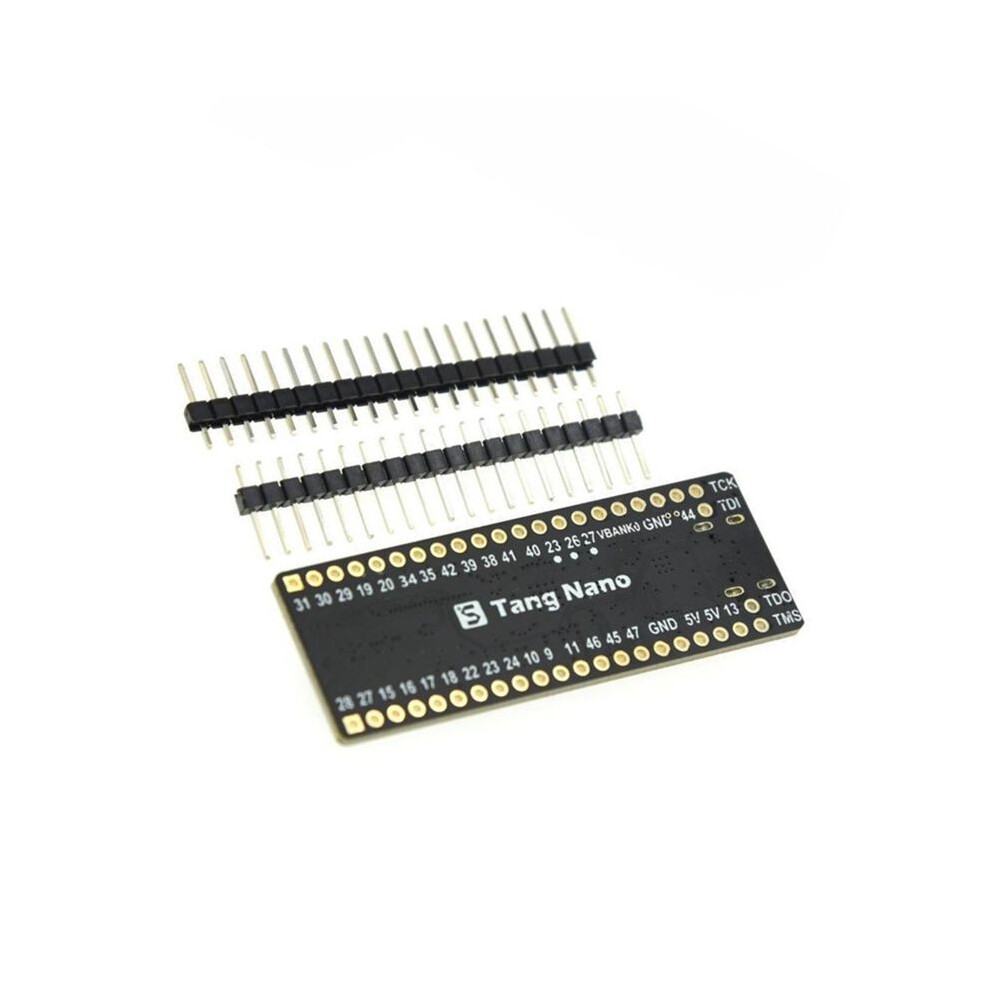

2 x FPGA Development Board

Only the above package content, other products are not included.
