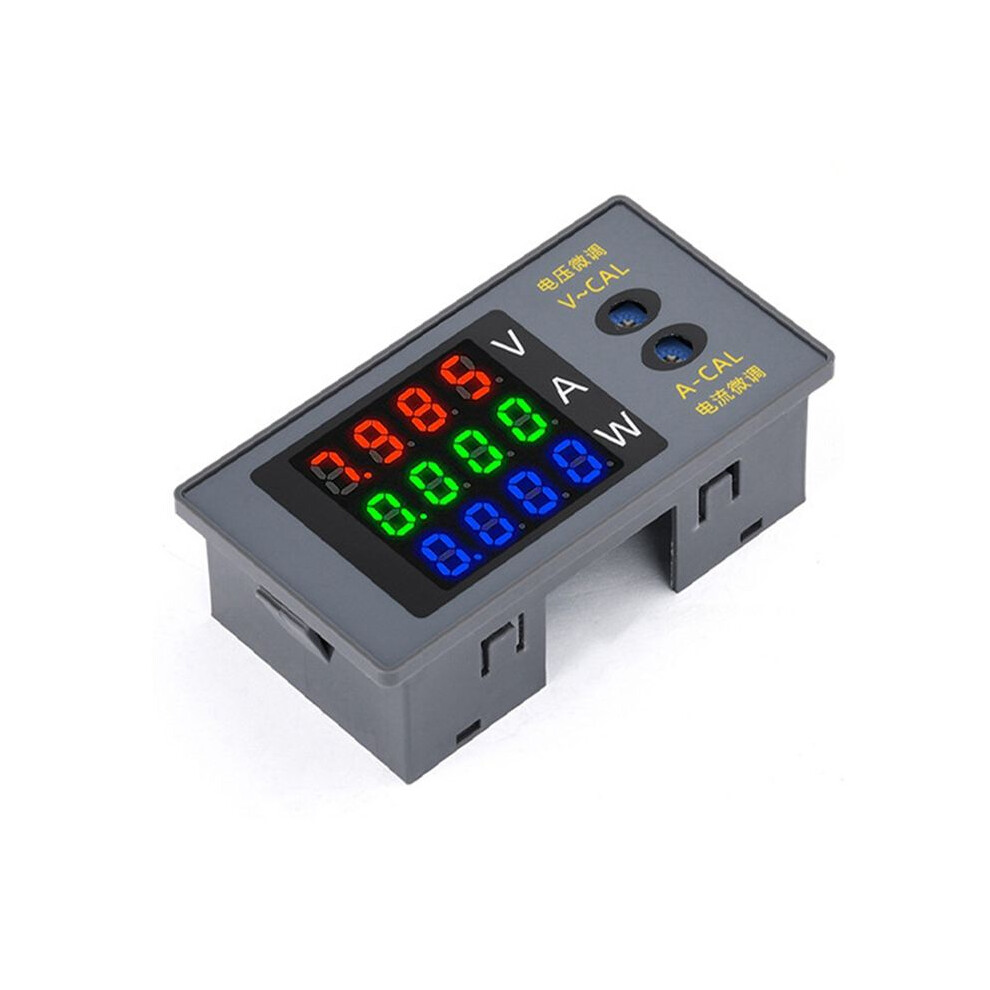

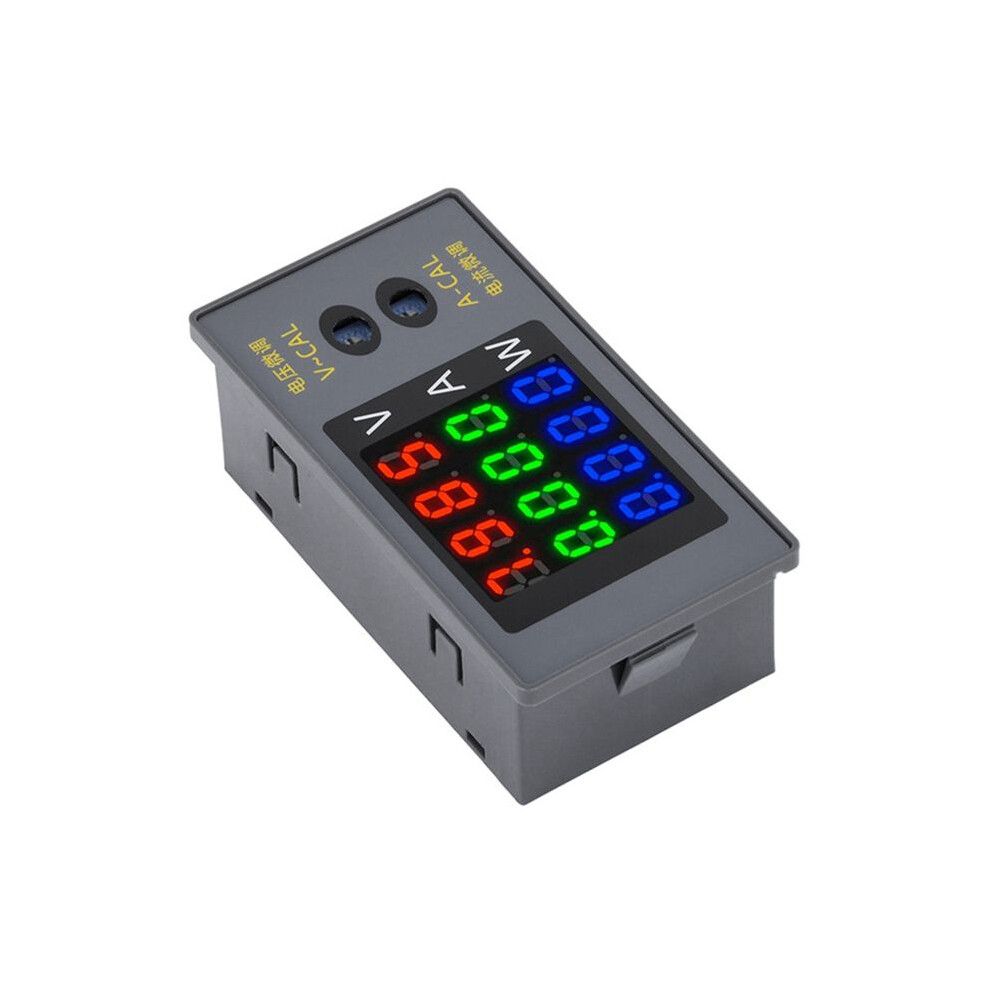

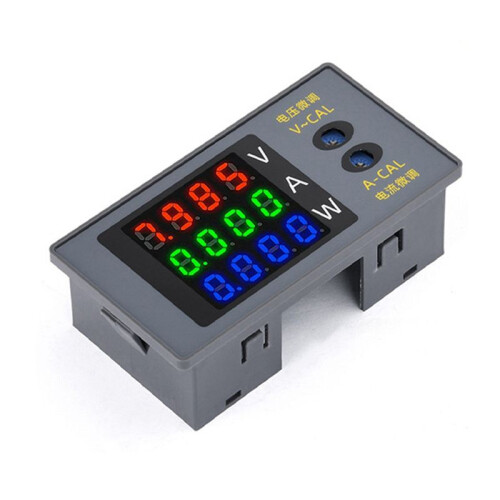

2X DC730 Digital Voltmeter Ammeter Wattmeter 4-Digit Voltage Current Meter Power Meter Voltage Tester Detector 0-100V

2X DC730 Digital Voltmeter Ammeter Wattmeter 4-Digit Voltage Current Meter Power Meter Voltage Tester Detector 0-100V Kuvaus

1.Adopting high quality plastic material, LED digital tube high precision display, stable performance and high efficiency.
2. Voltage measurement range: DC0.000-100.0V Error 1.00V 0.1V jump.
3. Current measurement range: 0.000A-10.00A Error 0.1A 0.03A start.
4. Power measurement range: 0.000-1000W.
5. voltage, current, power real- testing, the same screen display, clearly recognizable.

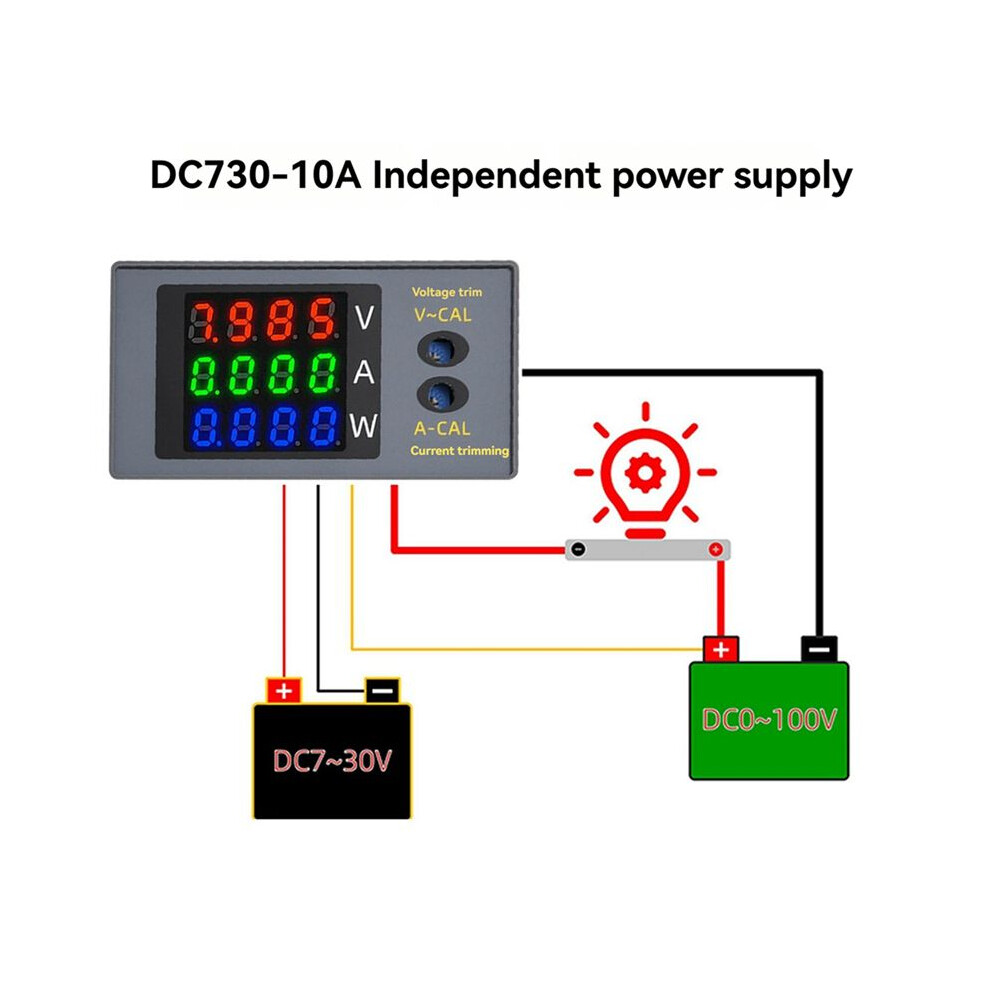

XH-2.54-3P red, black and yellow wire (thin wire Total length: 155mm)
Thin red wire: positive pole of the working power supply, can not be connected to the power supply above 30V.
Thin black wire: negative pole of the working power supply, and thick black wire site, do not need to be connected when sharing power supply.
Thin yellow : voltage test , connected to the positive pole of the test circuit power supply.
VH-3.96-2P Coarse red and black wires (thick wire total length: 165mm) current test
Thick wire parallel shunt resistance, can not be directly connected to the power supply poles, will be short-circuited!
Thick red wire: current test positive pole, string in the negative end of the load, connect the broken after the first break!
Thick black wire: current test negative, connected to the negative terminal of the power supply, connected to the broken first after the break!

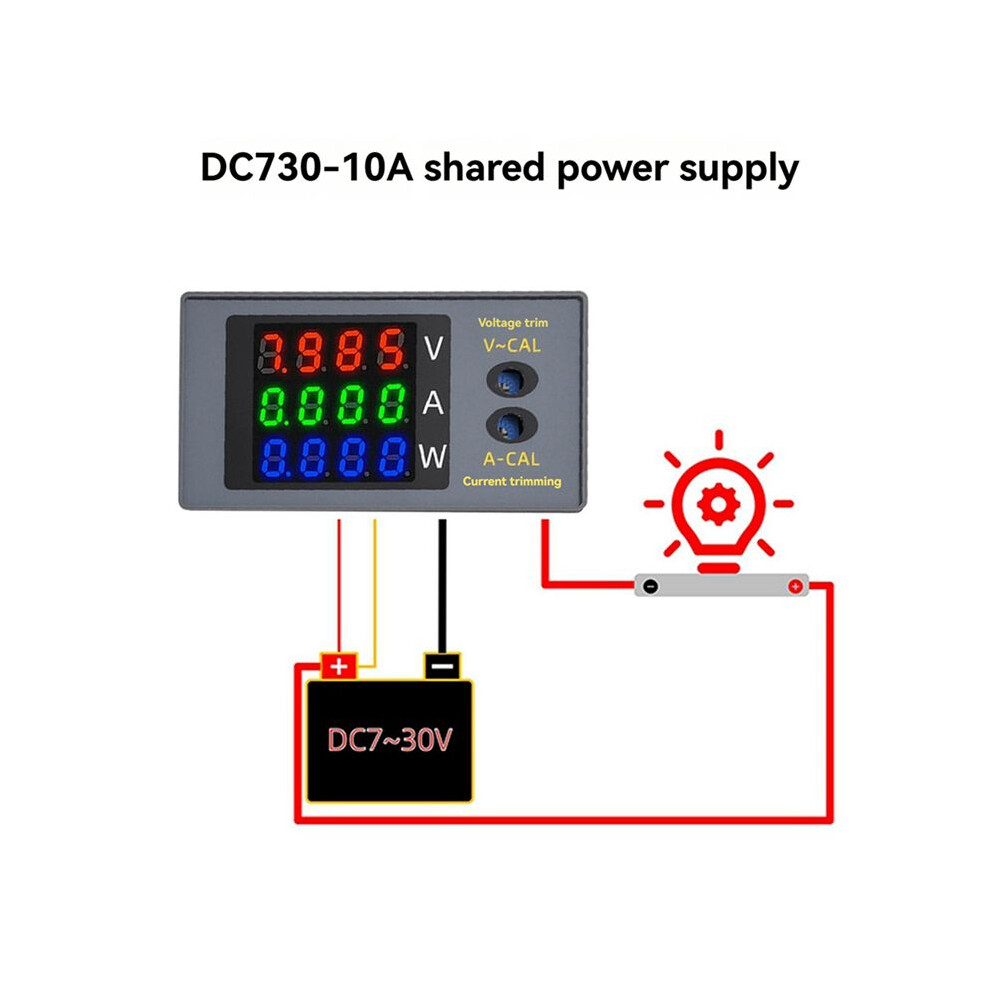

Connect the shunt: -board low temperature drift alloy resistor shunt, according to the wiring diagram, direct wiring can be used!
Note:Please check as much as possible to make sure the item is what you need.
Tips: The product may be updated constantly ,Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use
Colour:Black
Material:plastic

Package Contents:

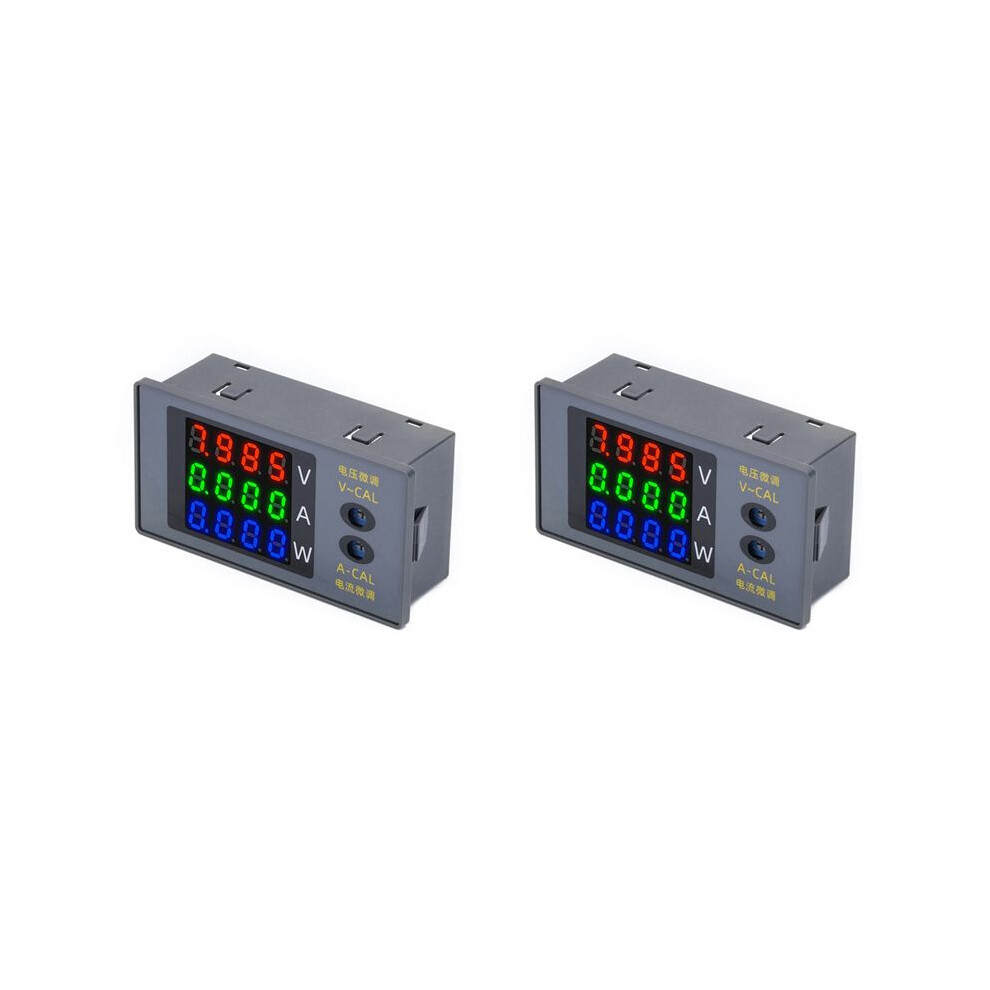

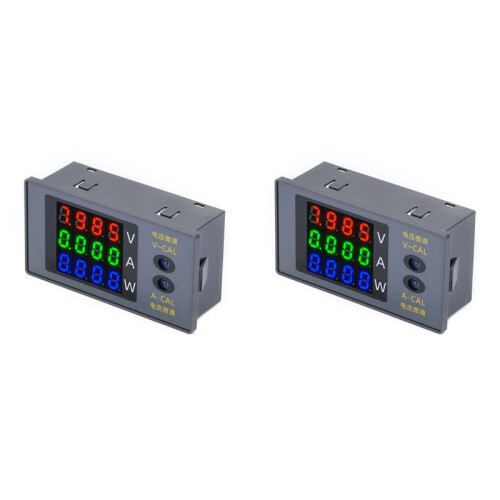

2 x Voltage current power meter
