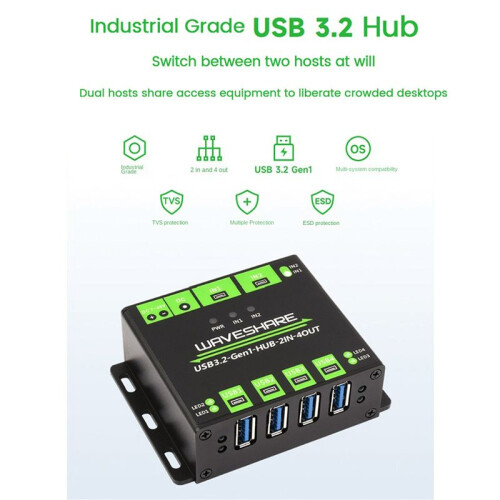

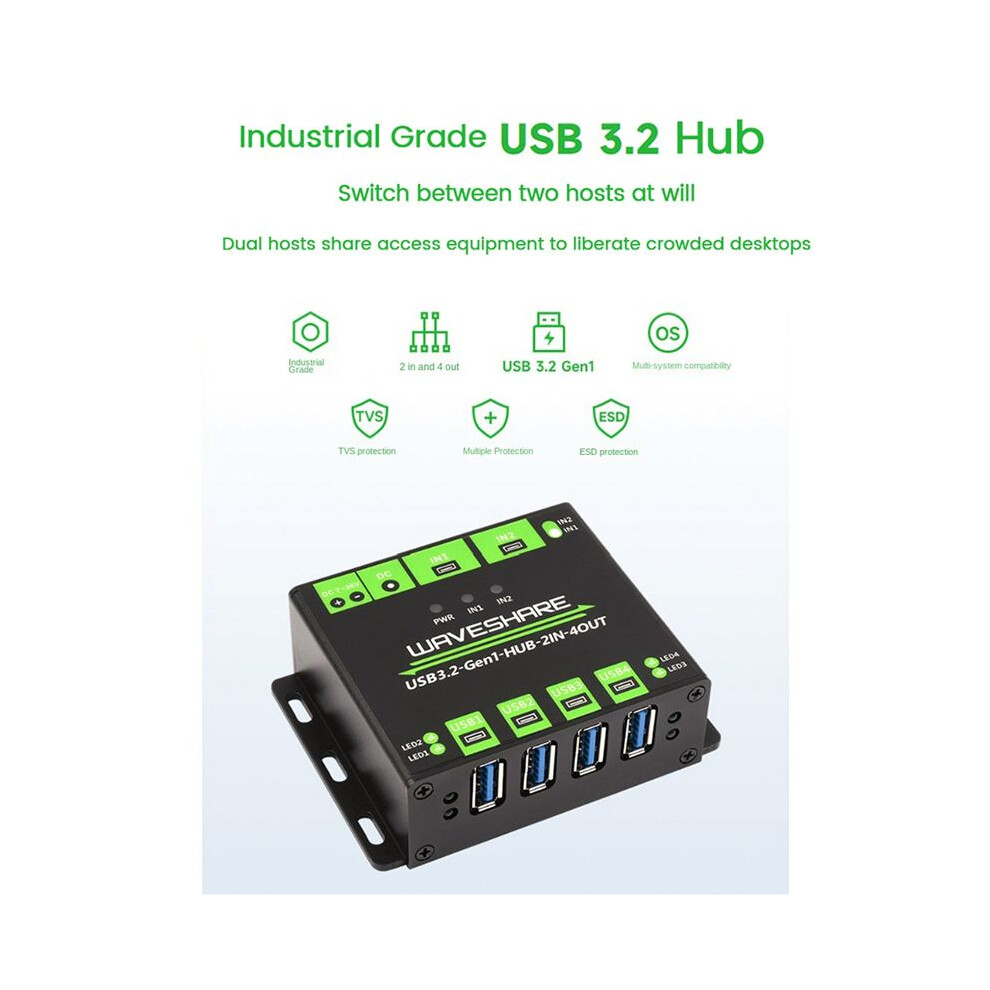

2X Waveshare Industrial 4-Way USB3.2 Gen 1 Hub 2IN-4OUT Dual Host Shared Random Switching Multiple Protection Circuit

2X Waveshare Industrial 4-Way USB3.2 Gen 1 Hub 2IN-4OUT Dual Host Shared Random Switching Multiple Protection Circuit Kuvaus

features:

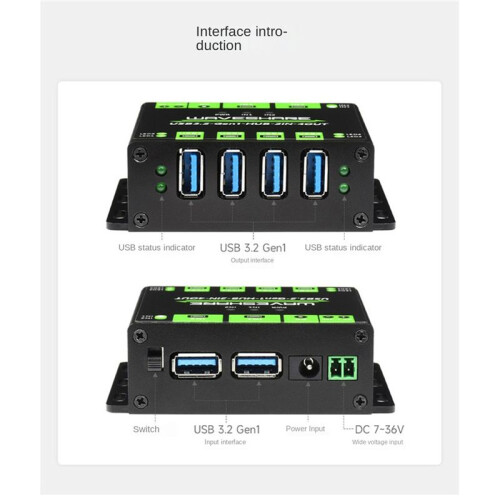

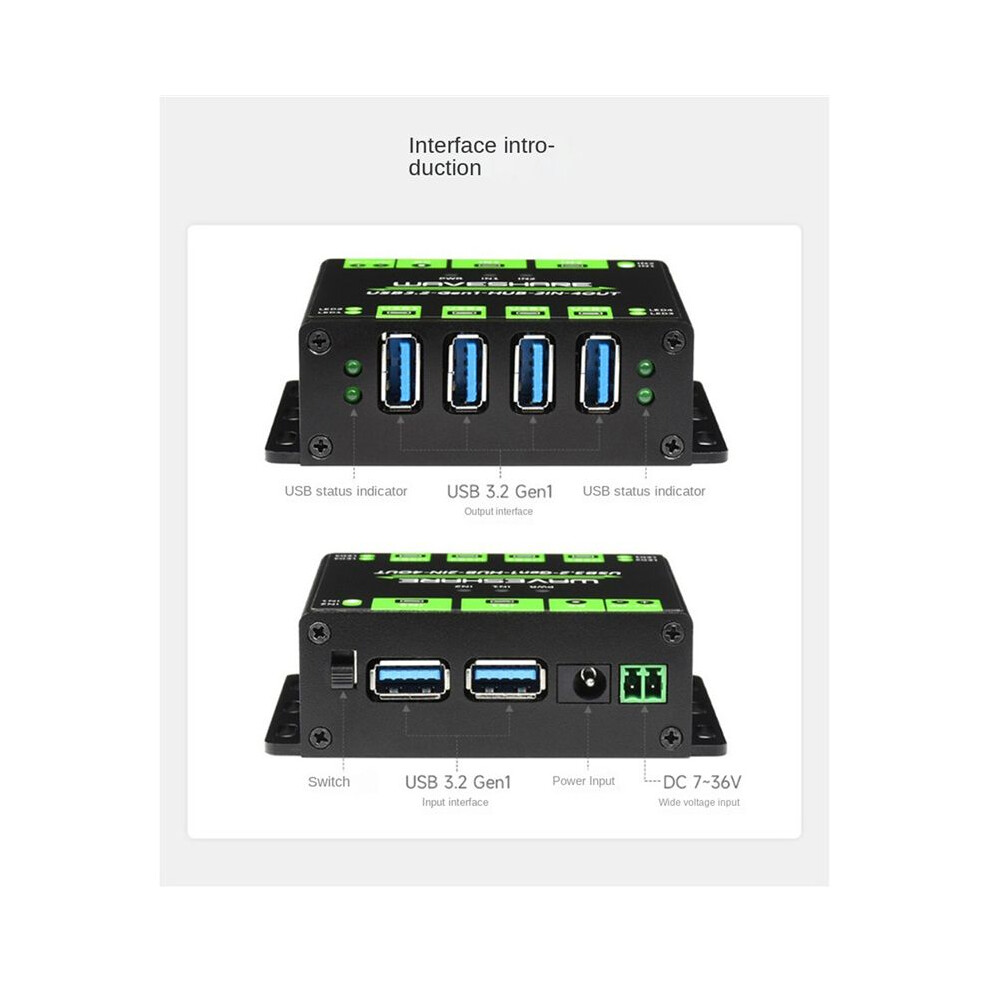

1. board 4-way USB expansion port, two inputs can be switched, and two hosts share USB external devices
2. Industrial grade HUB chip and MTT technology are used to make 4-way USB more stable and smooth
3. Each USB port is equipped with ESD protection, and the device connection is protected from surge damage and data loss
4. board overvoltage protection circuit can effectively prevent equipment damage caused by other high-voltage power supply

board multiple protection circuits: overvoltage protection, overcurrent and short-circuit protection, overtemperature protection, reverse current protection, undervoltage locking, 8KV ESD protection, filtering protection, etc
Industrial grade metal shell, solid and durable, with reserved screw holes for easy installation and fixation
Specifications:
Interface standard: high-speed USB 3.2 Gen 1
Communication rate: to 5Gbps in
USB output: 5V@Imax : 1.2A, USB-A interface
USB HUB input: 5V, two USB-A interfaces (independent power supply, no series connection)
External power supply: power supply terminal 7~36V (additional power supply shall be connected when using high-power equipment)
Operating environment: - 40 ~85
Operating system: compatible: OS (version 8.6 or above), Linux (kernel version 2.4.20 or above), Windows 11/10/8.1/8/7/XP

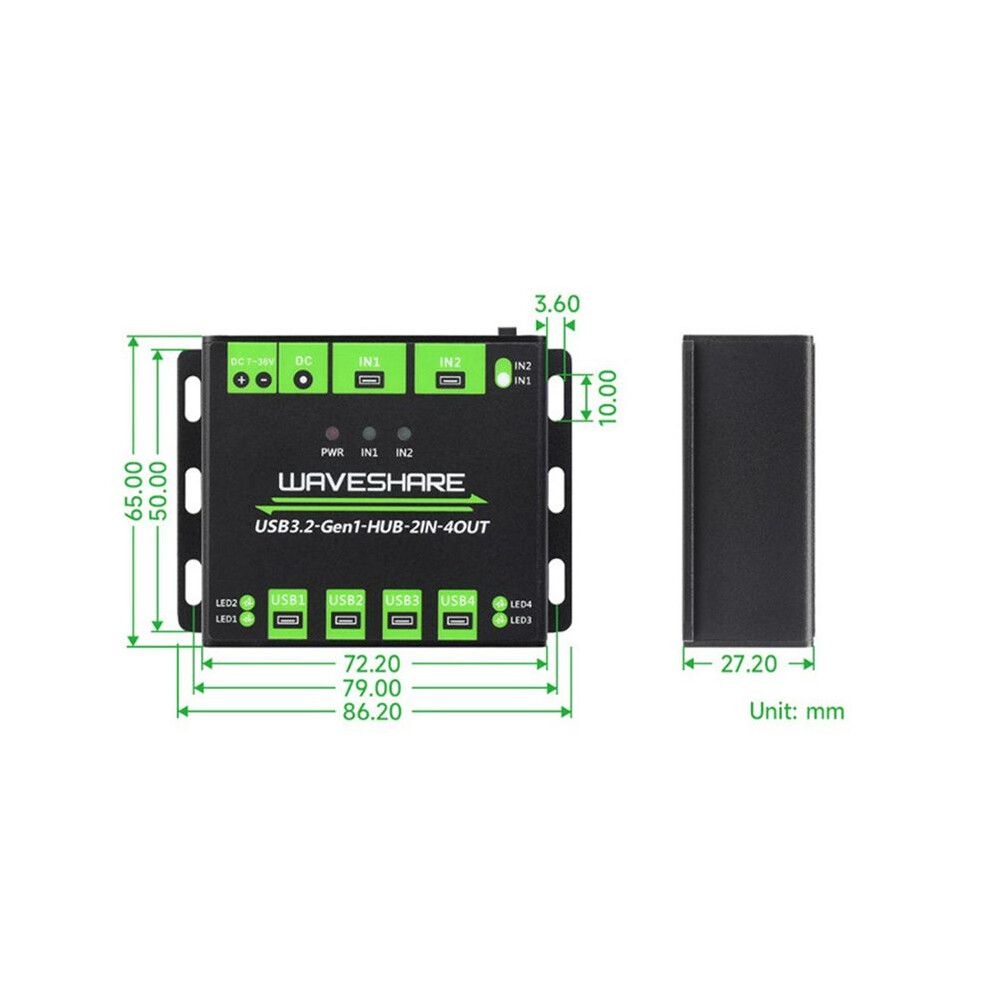

Product size: 86.2 x 65 x 27.2mm
Color: black
Material: metal

Package Contents:

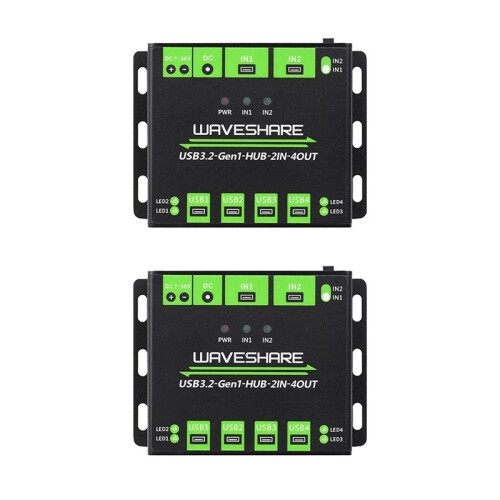

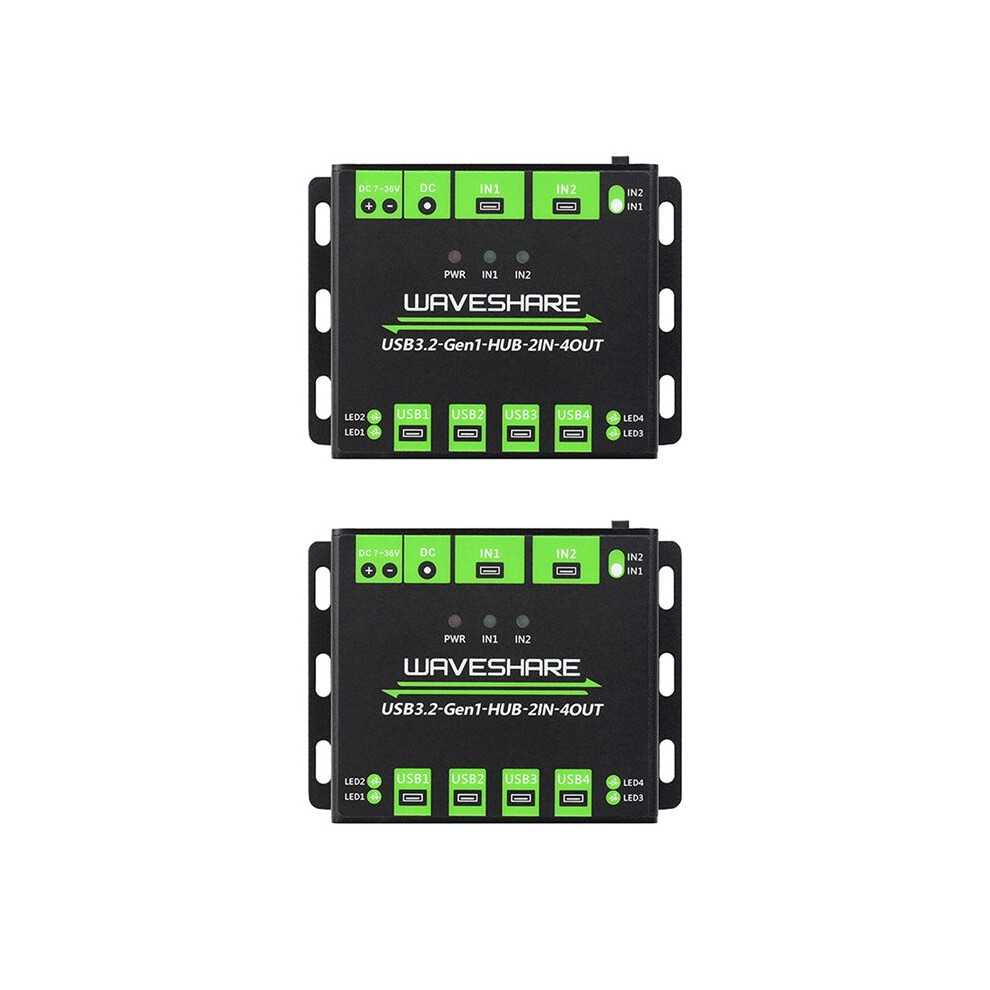

2 x USB3.2-Gen1-HUB-2IN-4OUT
4 x Double male USB 3.0 data cable
