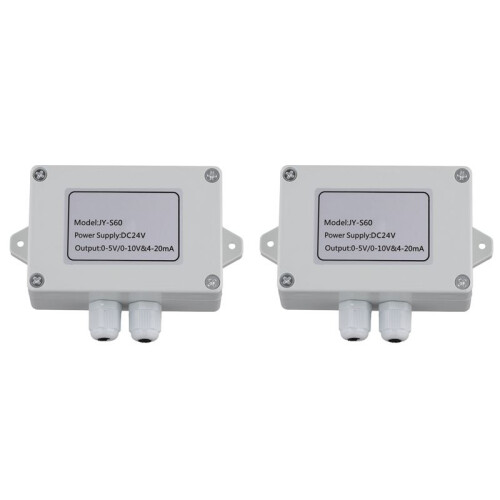

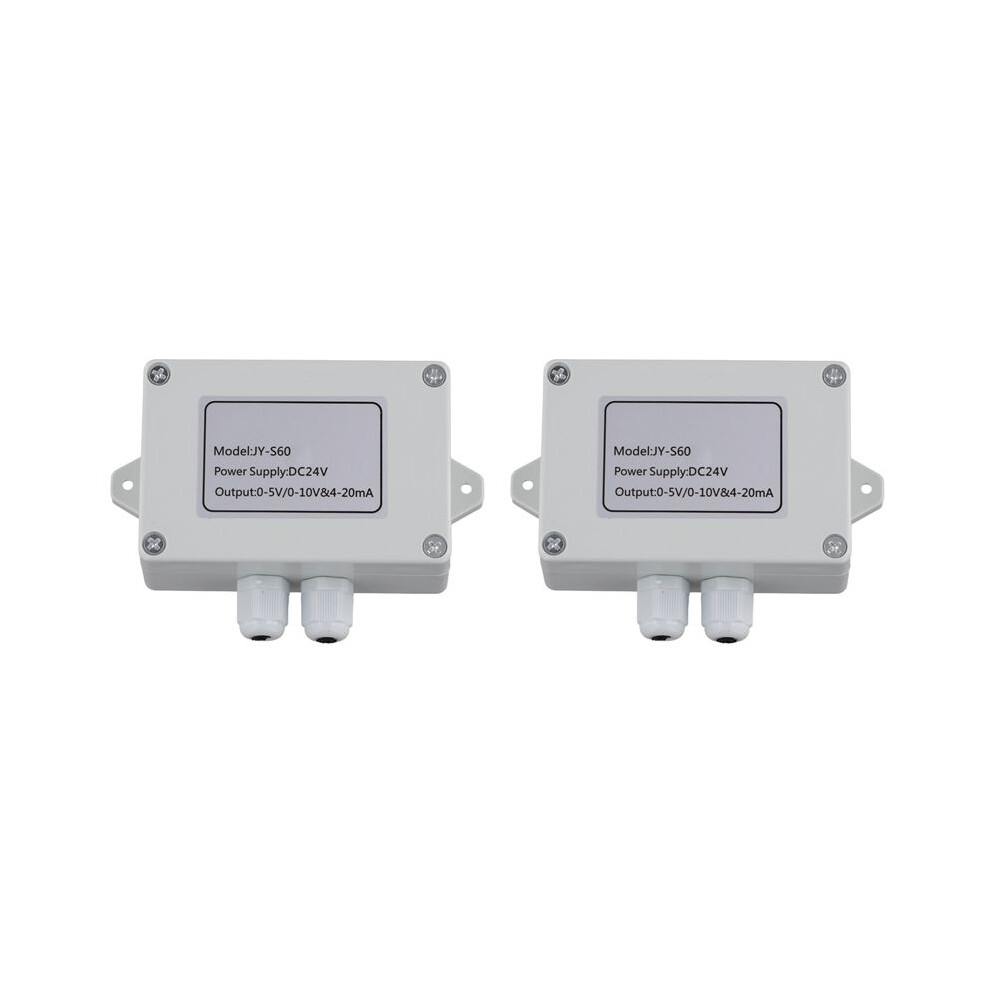

2X Weighing Transmitter Weighing Amplifier Weight Sensor Voltage Current Converter 12-24V 4-20MA Load Cell Amplifier

2X Weighing Transmitter Weighing Amplifier Weight Sensor Voltage Current Converter 12-24V 4-20MA Load Cell Amplifier Kuvaus

Housing and wire connectors are waterproof design, good sealing, suitable for harsh environments. beautiful, durable, anti-jamming performance
Ultra- high-precision op amp circuit, high accuracy, good stability
The power supply has reverse polarity protection, surge protection, overcurrent protection
Suitable for weighing, pull pressure, torque, and other strain sensor.
Sensor excitation voltage:5-10mV/V adjustable. Output signal voltage and current:DC0-5VOR0-10V/4-20mA

Name:Weighing Transmitter
Item model number:JY-S85
Input signal:full bridge strain sensor (weighing force tension pressure sensor)
Working voltage: 12-24V
input signal:sensor sensitivity 2.0MV/V
output incentive:5V(E+)
Operating temperature range:-20 - 80
Operating Humidity:10% RH-90% RH (non-condensing)
Power supply voltage:DC18-26V
Input sensitivity:1-3mV/V
About debugging:
1. zero adjustment
First of all, make the system is in the idle state, adjust the marking "ZERO" potentiometer to adjust the zero offset.The multimeter is used to measure the output voltage or current, let show a value as close as possible to the zero value display. Or change the magnification zero change will become .
2. gain adjustment
The system loading a certain weight value (the recommended range: 80% - FS), the calculation of the output current value according to the load weight and the maximum weighting value relation, using the digital multimeter monitoring output, potentiometer to adjust amplifier gain spin labeled "SPAN".
3. the retest
The system is in the idle state, measuring the zero output; loading a certain weight value, output voltage measurement whether fluoride expectation magnification If not, repeat steps 1, 2 adjust again.
Colour:As Shown
Material:Plastic

Package C
