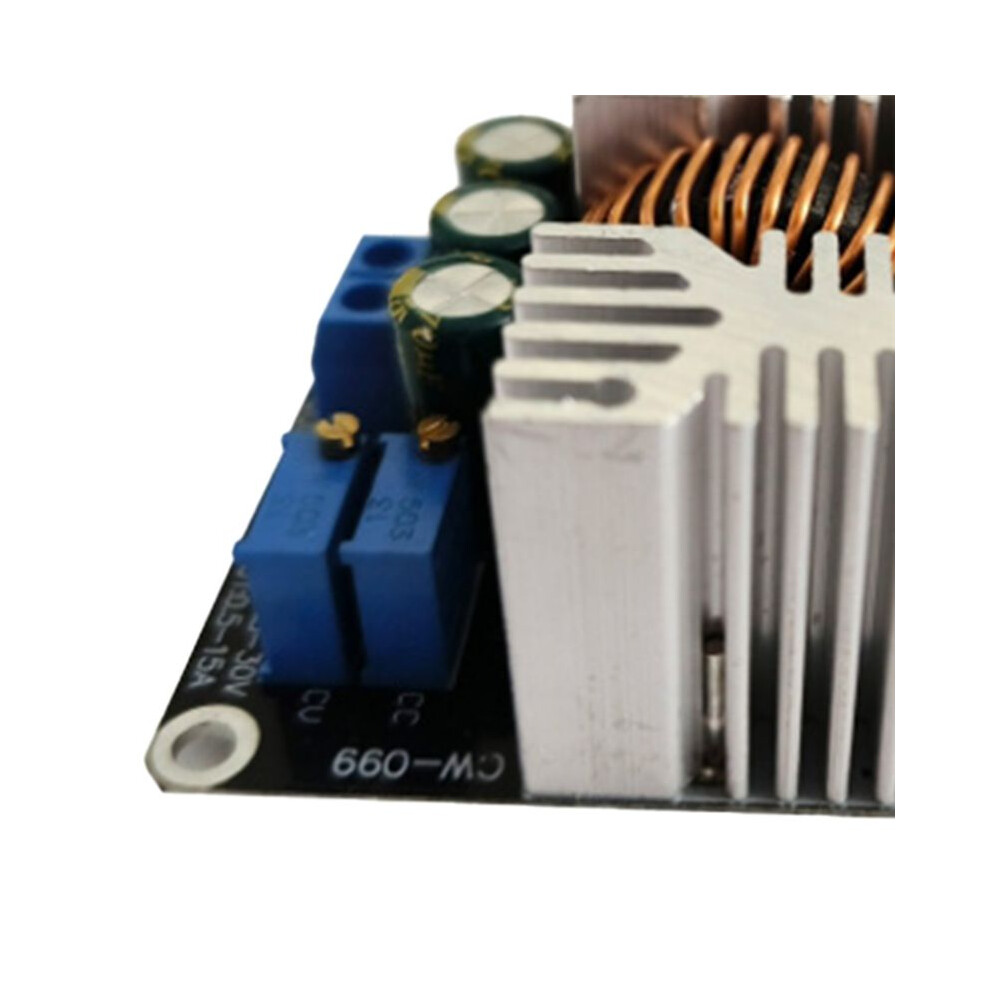

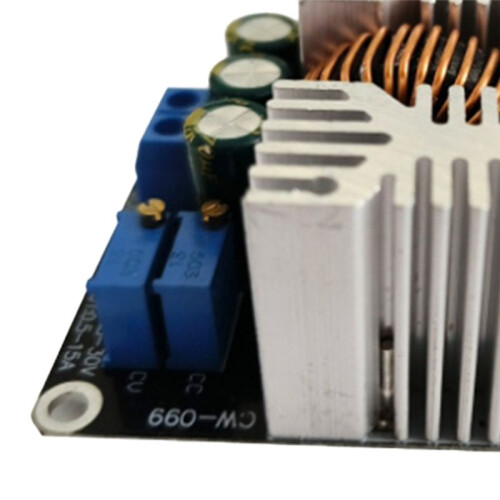

300W 15A - Step-Down Module Constant Voltage Constant Current Adjustable Power Supply 8-35V to 5V-30V

300W 15A - Step-Down Module Constant Voltage Constant Current Adjustable Power Supply 8-35V to 5V-30V Kuvaus

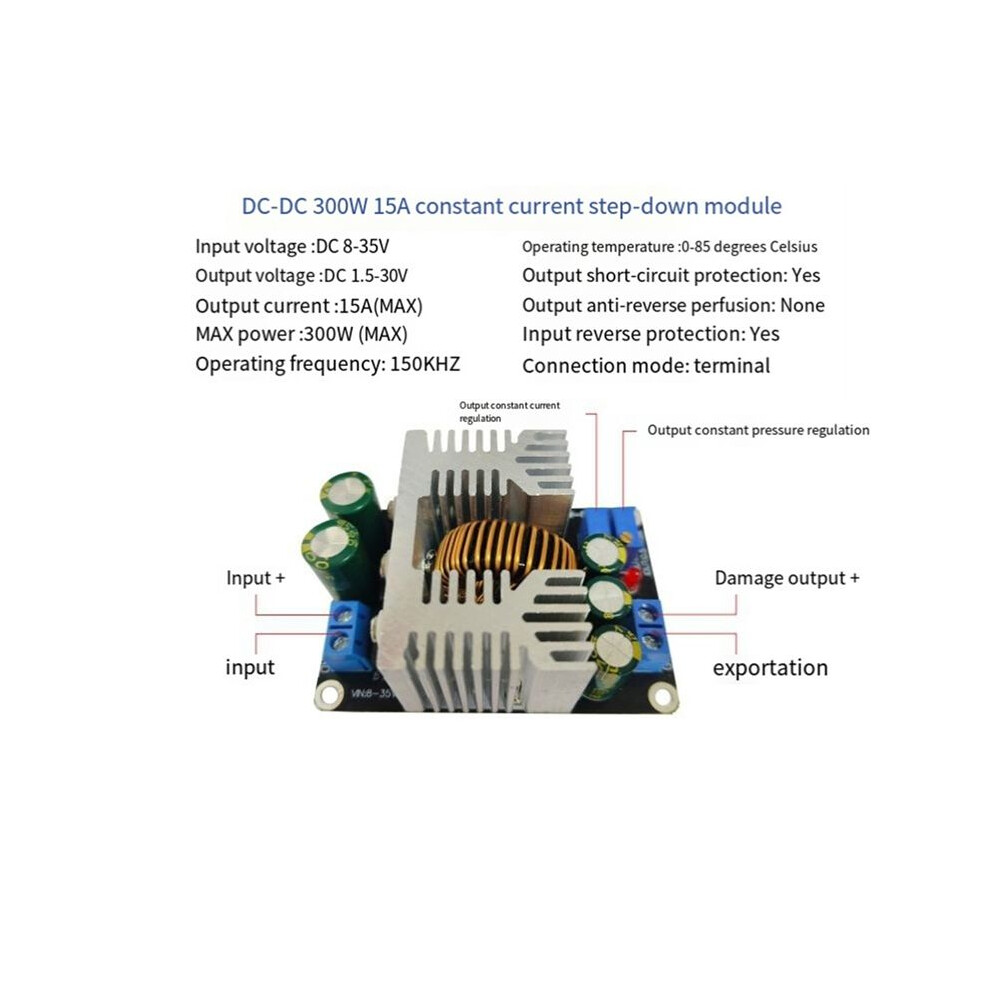

Module nature: Synchronous rectification non-isolated step-down constant voltage and constant current module
Input voltage: DC8-35V
Output voltage: DC1.5-30V (clockwise increase, vice versa)
Output current: 15A (MAX) (If the module exceeds 65 degrees, please strengthen the heat dissipation)
Current limiting range: 0.25A-15A (clockwise increase, vice versa)

Maximum power: 300W (MAX)
Operating frequency: 150KHZ
Conversion efficiency; to about 96% (efficiency is related to the pressure difference and the use environment)
Operating temperature; 0-85 degrees Celsius
Output short-circuit protection: Yes (instantaneous protection) constant current (the current constant current value is set, and it cannot be short-circuited for a long )
Output anti-reverse flow: No (a diode can be connected in series at the output end to prevent reverse flow)
Input reverse connection protection: Yes (MOS tube anti-reverse connection)

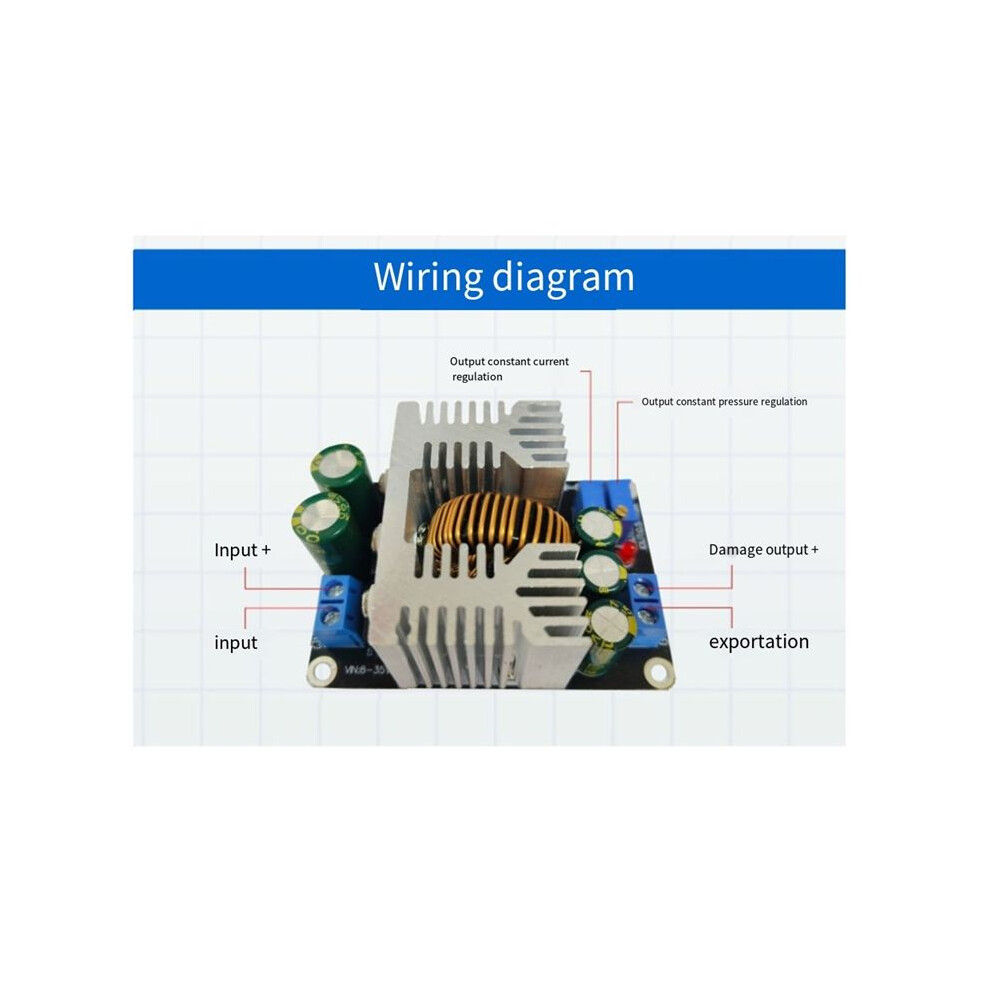

Wiring method: terminal block
Colour:Photo Color
Material:plastic

Package Contents:
1 x Anti -pressure module
