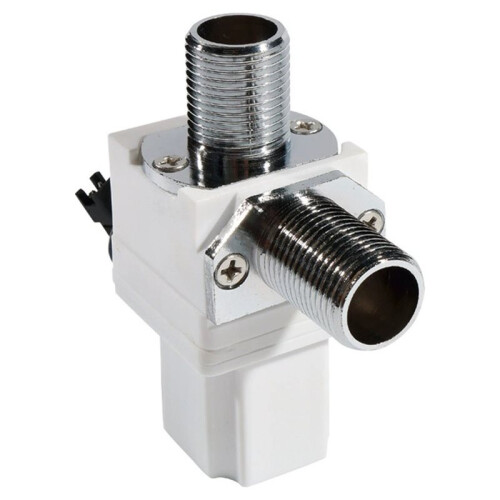

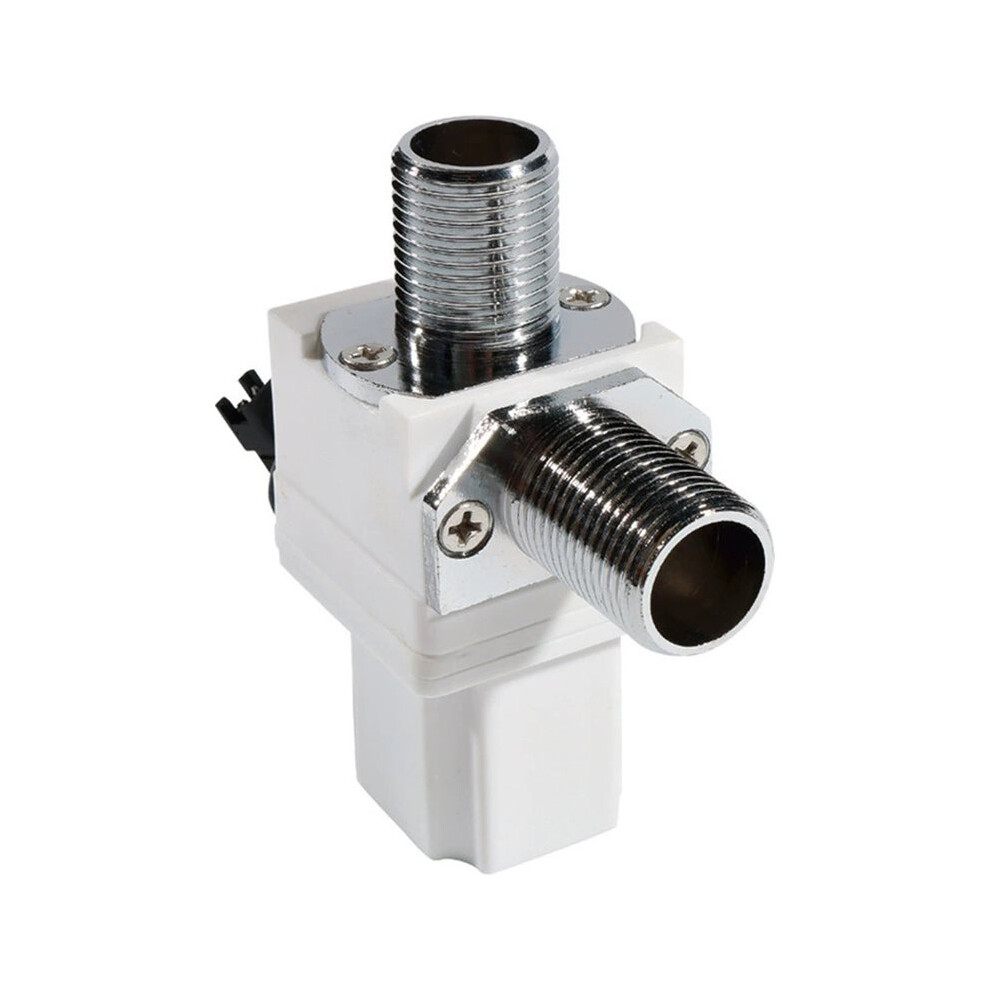

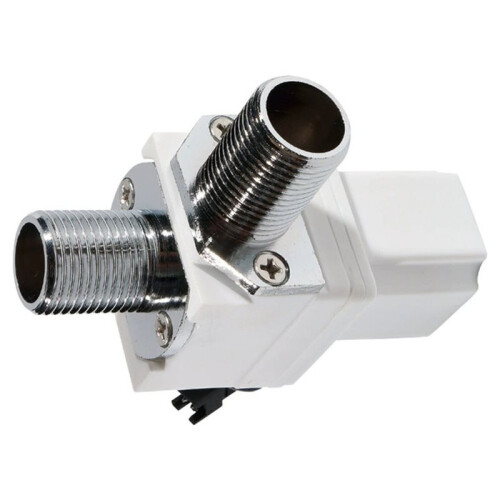

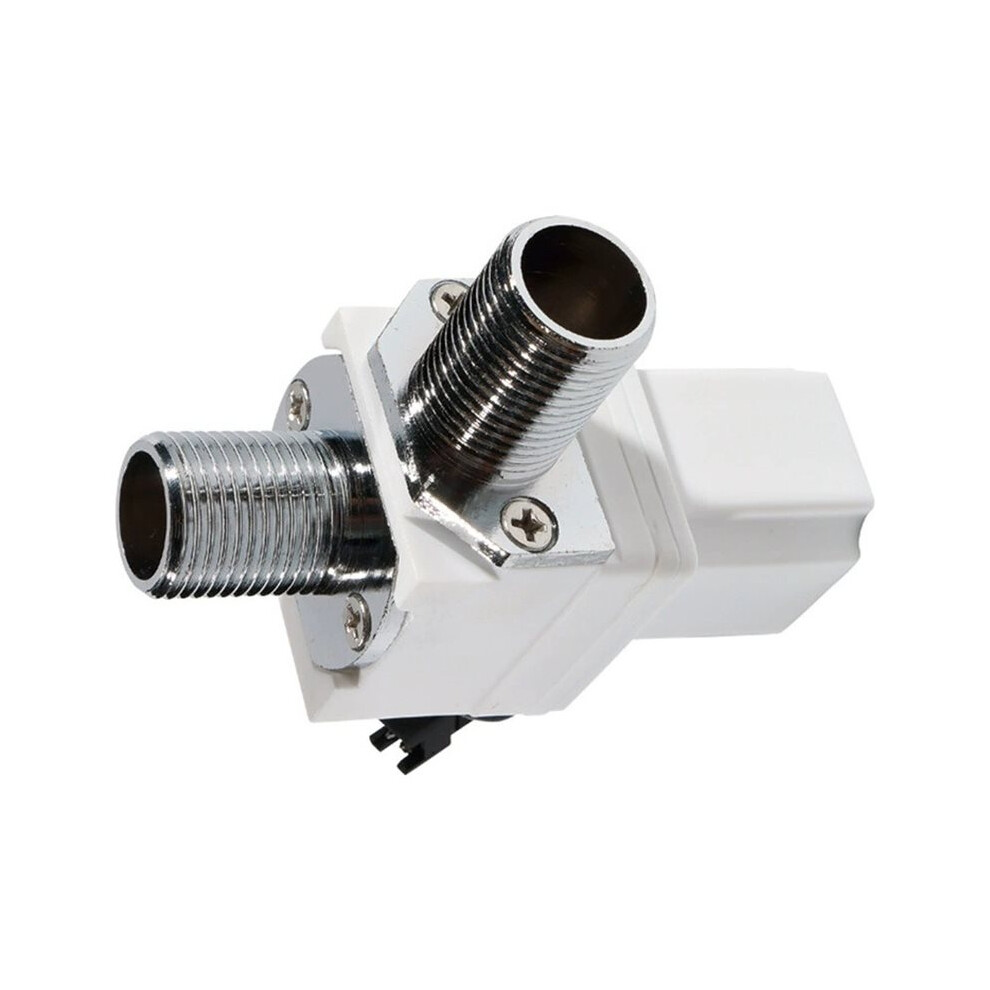

308C4 DC6V G1/2 Pulse Latching Solenoid Valve Automatic Urinal Flush Valve Sensor Water Control Replacement Part

308C4 DC6V G1/2 Pulse Latching Solenoid Valve Automatic Urinal Flush Valve Sensor Water Control Replacement Part Kuvaus

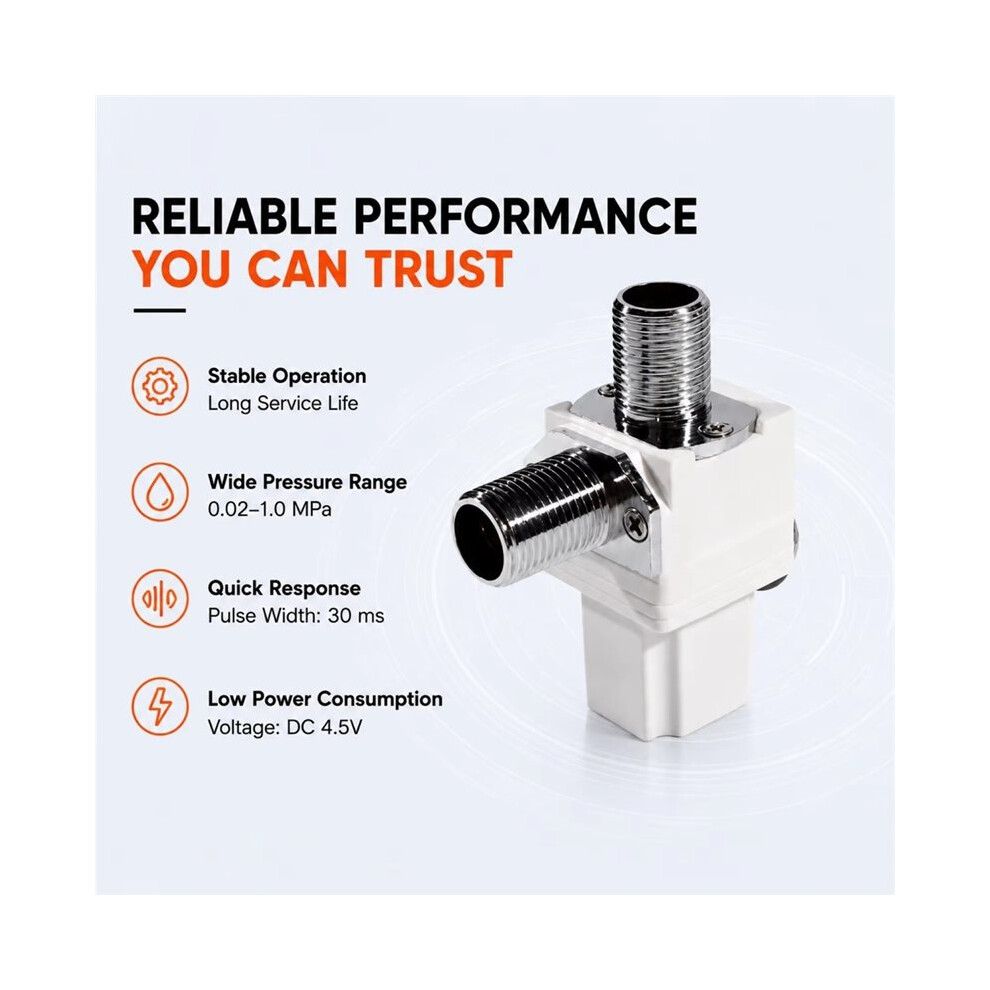

·Low Power Consumption- Operates with a 30 ms pulse, making it ideal for battery-powered devices.

·Latching Pulse Design- Positive pulse opens the valve, while negative pulse closes it without continuous power.
·Stable and Sensitive Operation- Fast response ensures accurate and reliable water flow control.
·Wide Pressure Range- Suitable for working pressures from 0.02 MPa to 1.0 MPa.

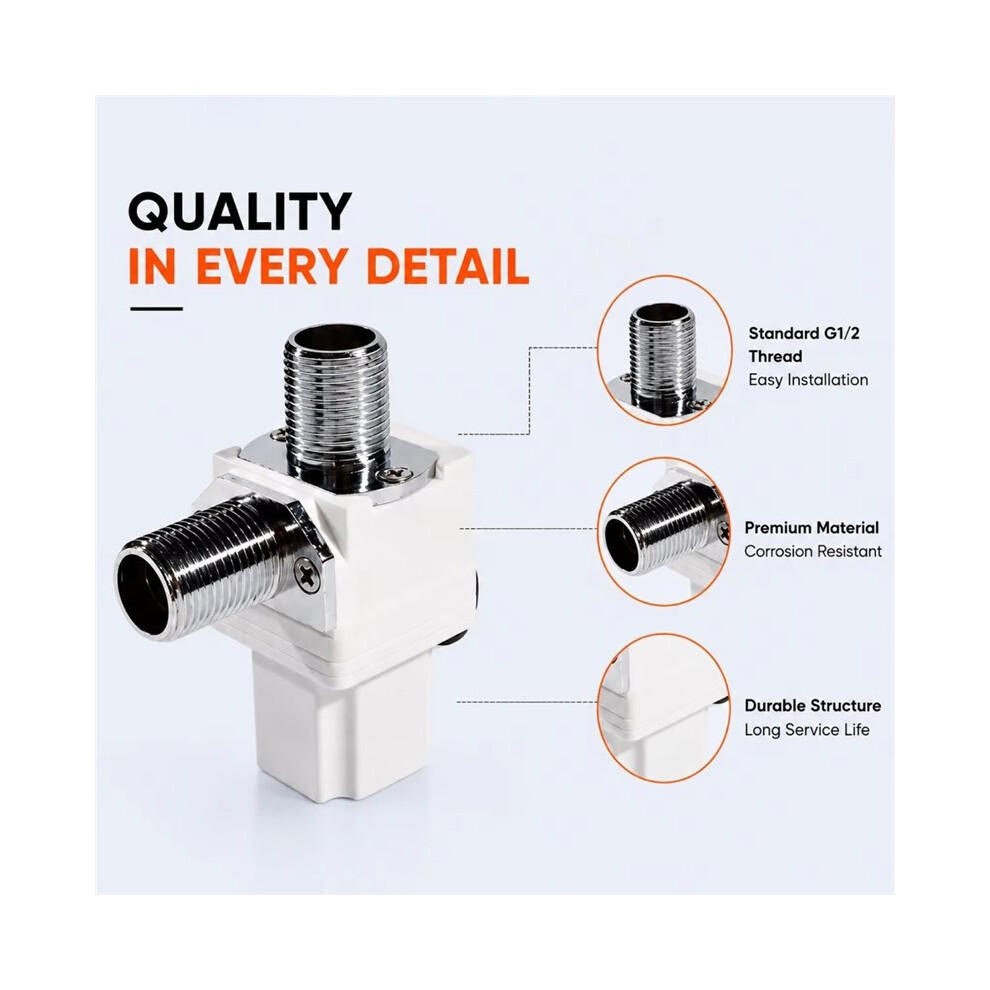

·Durable Construction- Stainless steel and nylon housing provides excellent corrosion resistance and long service life.
·Water Compatible- Designed specifically for clean water applications.
·Supports Pressurized & Non-Pressurized Systems- Suitable for a wide variety of water control systems.

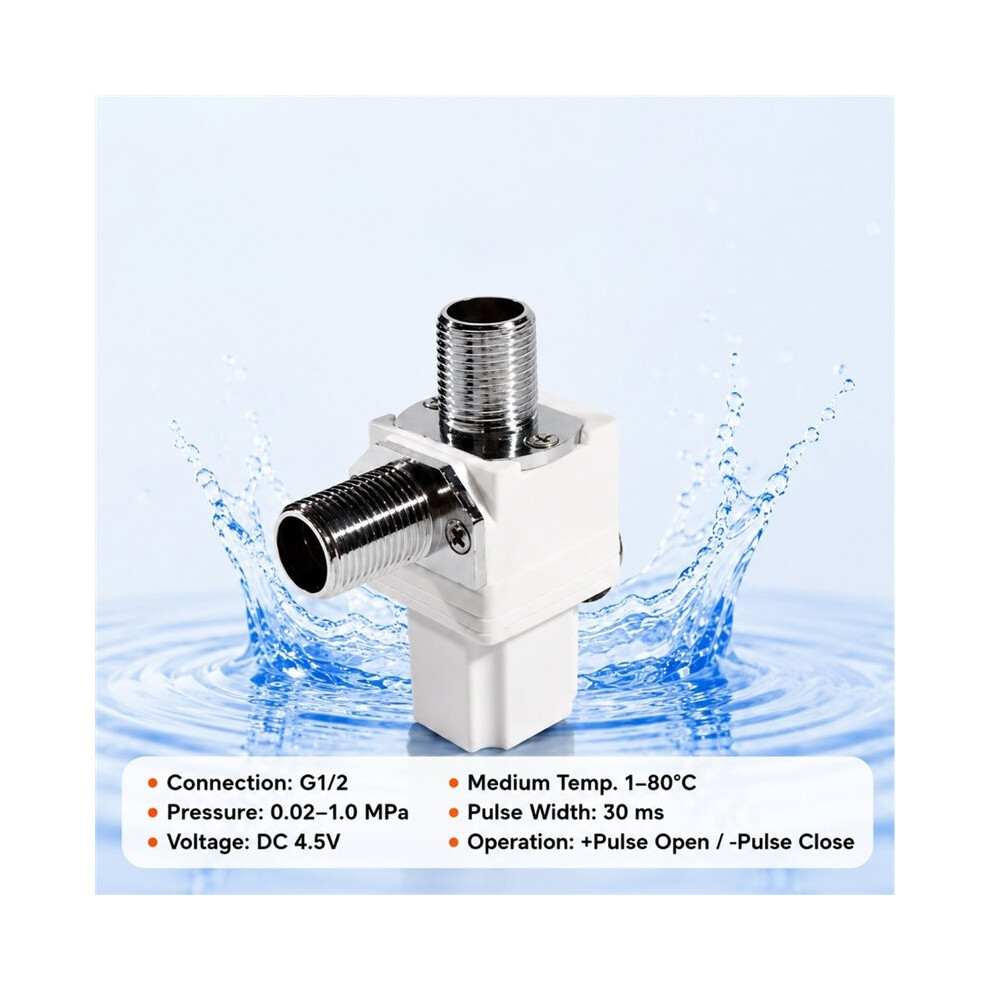

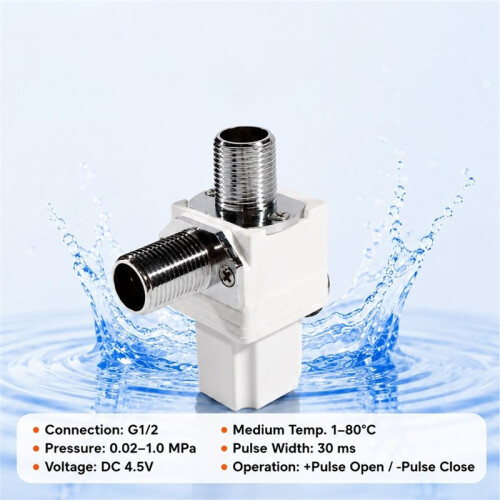

Working Voltage: 4.5V
Inlet Thread:G1/2
Outlet Thread:G1/2
Coil Resistance:15Ω 5% (at 20C)
Pulse Width:30 ms
Working Pressure:0.02-1.0 MPa
Medium Temperature:1-80C
Operating Mode:Positive Pulse: Open / Negative Pulse: Close
Inner Diameter:15.6 mm
Outer Diameter:20.5 mm
Thread Length:Inlet: 15.5 mm / Outlet: 27.6 mm
Color: As Shown
Material: Plastic+Metal

Package Contents:
1*Pulse solenoid valve
