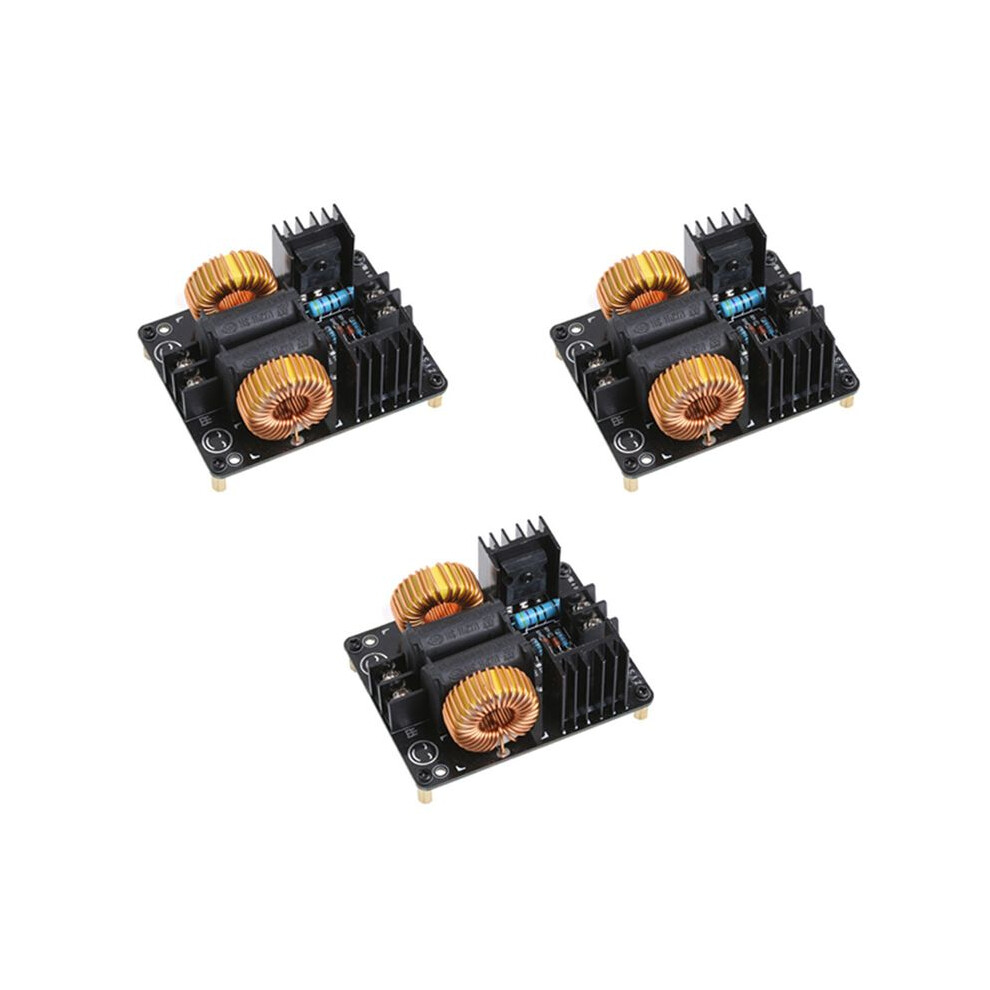

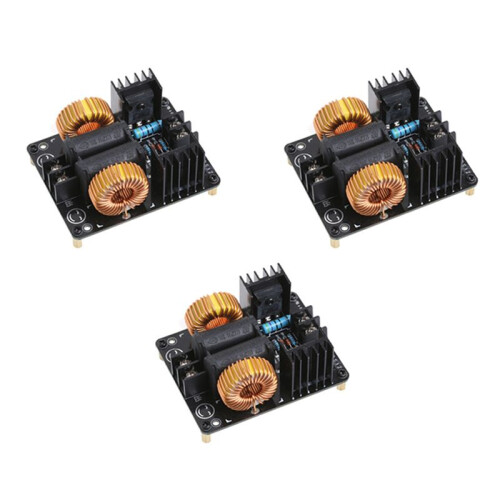

3X 1000W 20A ZVS Low Voltage Induction Heating Coil Module Flyback Driver Heater

3X 1000W 20A ZVS Low Voltage Induction Heating Coil Module Flyback Driver Heater Kuvaus

This section of induction heating using low-voltage power supply 12-48V. Maximum current 20A, maximum power 1000W.
This circuit can not only do the induction heating, the copper tube into the high-frequency transformer, is a powerful inverter. To increase the heat sink using a customized substrate as thick as 8.5mm!Cooling capacity is very powerful.
Tested 53V power supply when working properly.
Because of its moderate power, can be used for small parts DIY players do hardening, annealing and other heat treatment, Also can be used with a graphite crucible melting gold, silver, copper, aluminum and other metals
Uniform heating fast, very convenient. Using the M4 pillars, fever smaller, more efficient. Although this circuit can tolerate 20-30A input current moment, but do not exceed 15A when safe work, you can easily add an ammeter between the power supply and heating driver board but always monitor the current overload.

Notes:

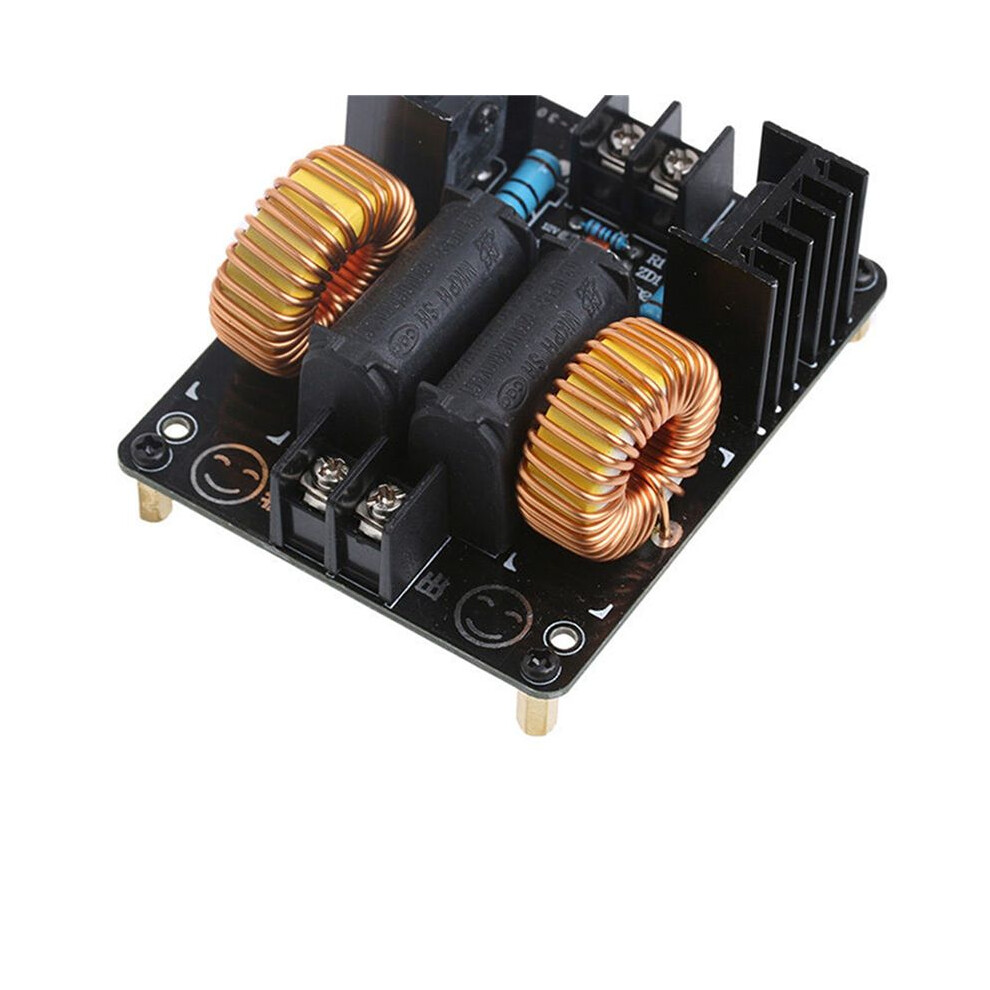

The kit contains a full set of driving circuit elements and brass
Buyers need to bring their own power and cooling unit.

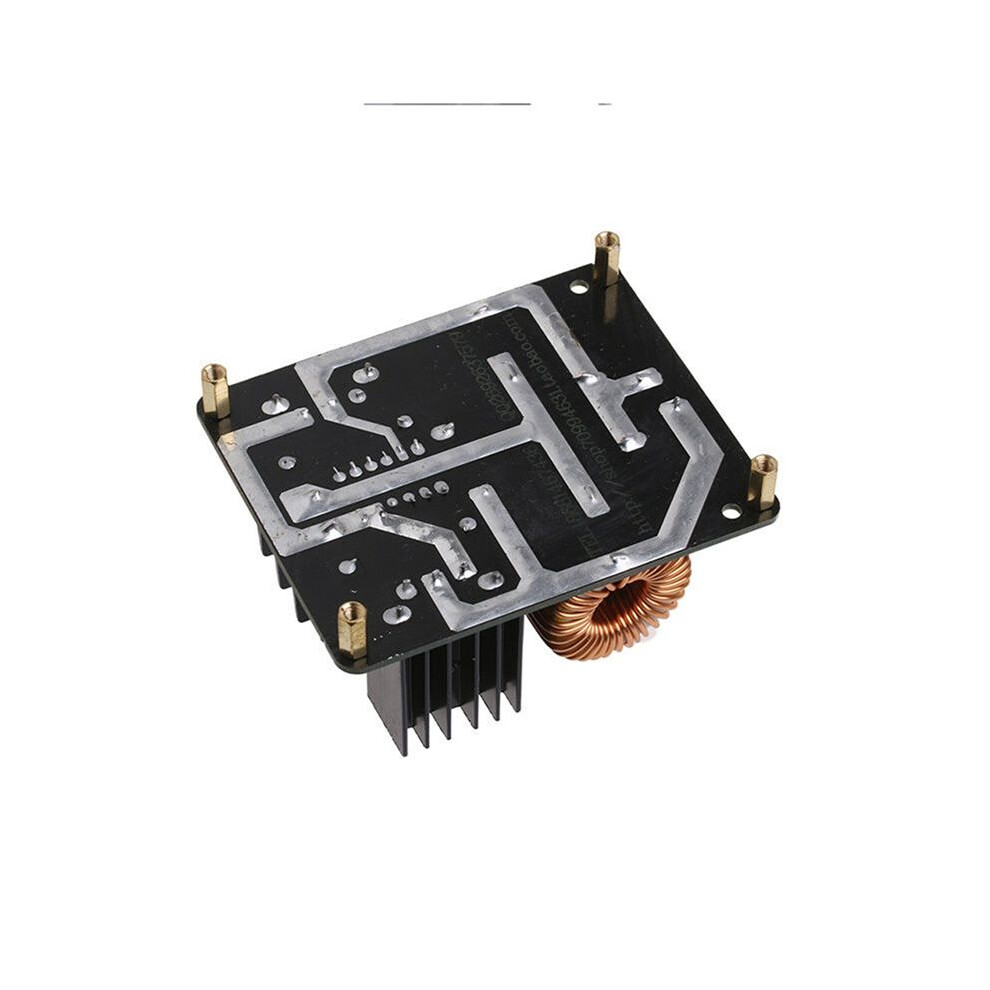

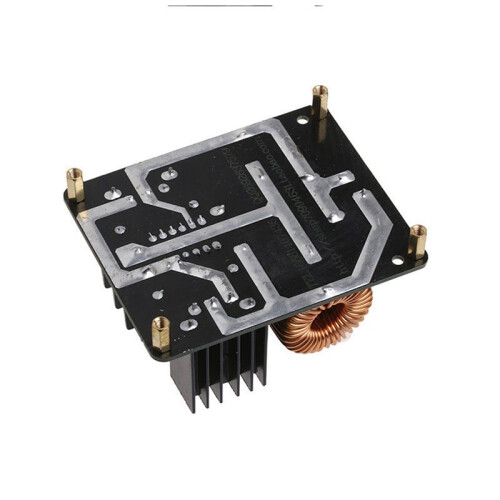

The circuit board using double-sided fiberglass board, mainly copper traces are used to widen
Use the entire back surface of the resonant circuit common,
Continuous work, please add a fan to blow down from above,
To the resonance capacitors and other components cool.
The use of switching power supply Please note that due to high power are generally slow start function,
which just opened machine output voltage is slowly rising,while it is turned before the induction heating circuit if the voltage rises to 12V,because start insufficient voltage can not afford to vibration,resulting in two simultaneous conduction mos tube so burned components.
So the first will start switching power supply voltage reaches 12V above and then access the induction heati
