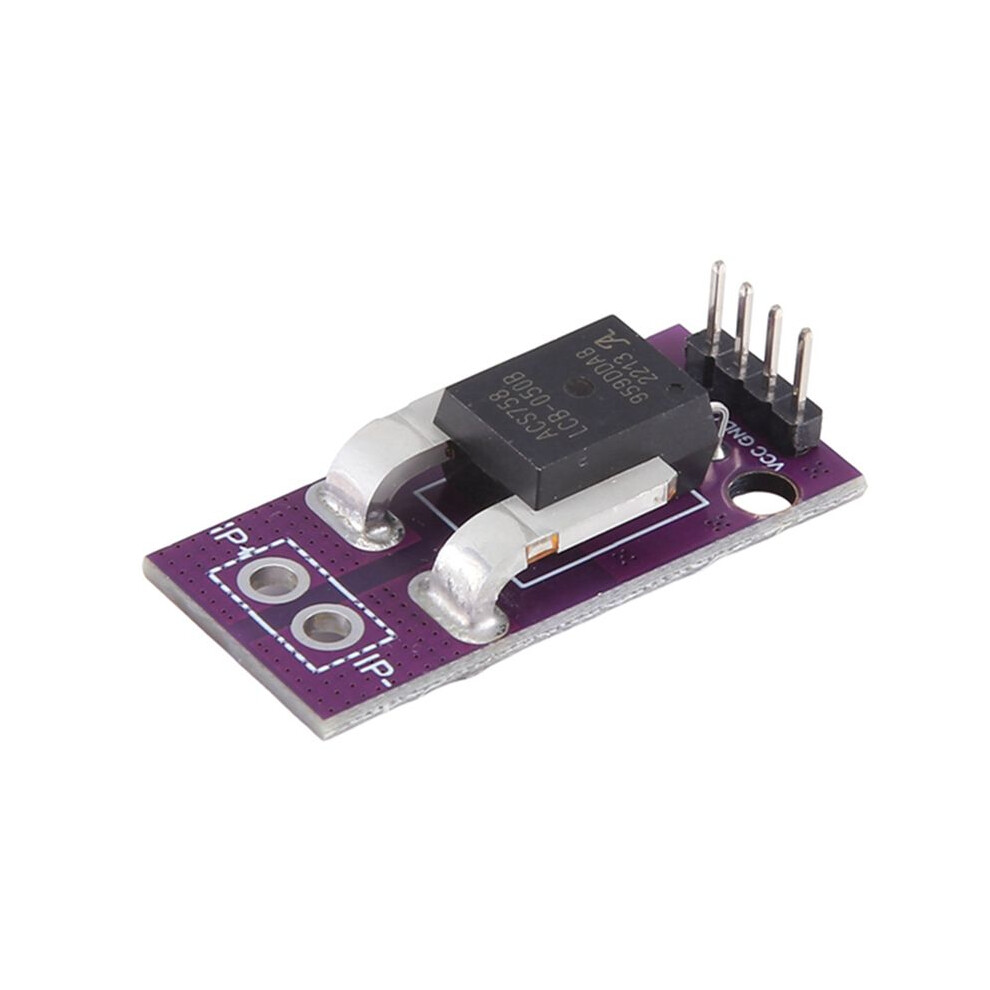

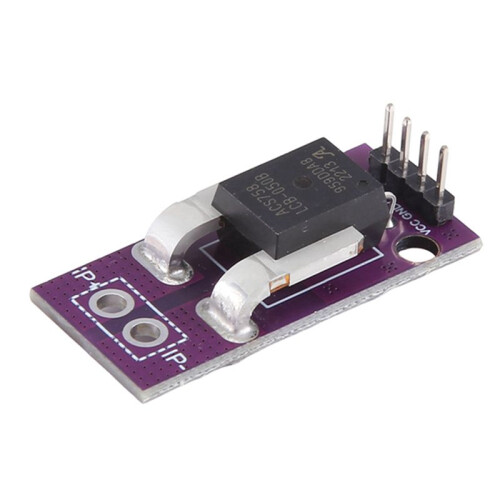

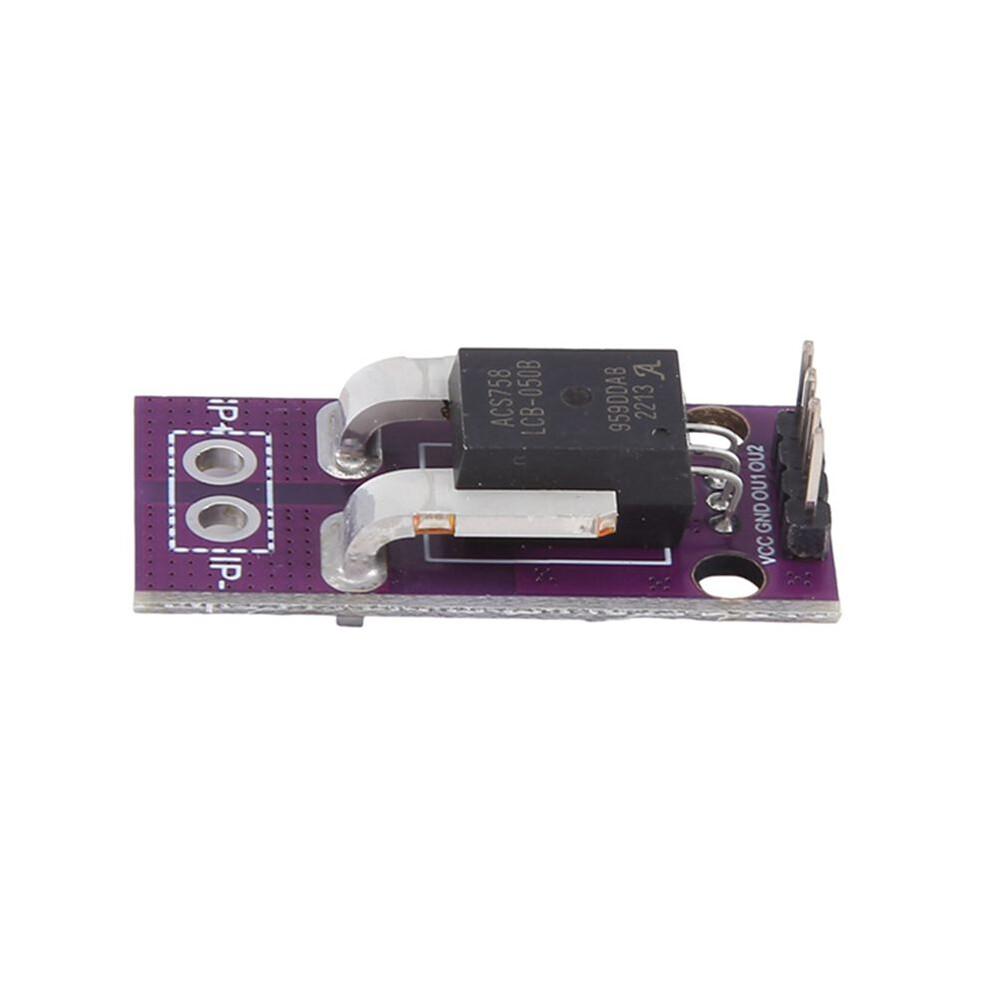

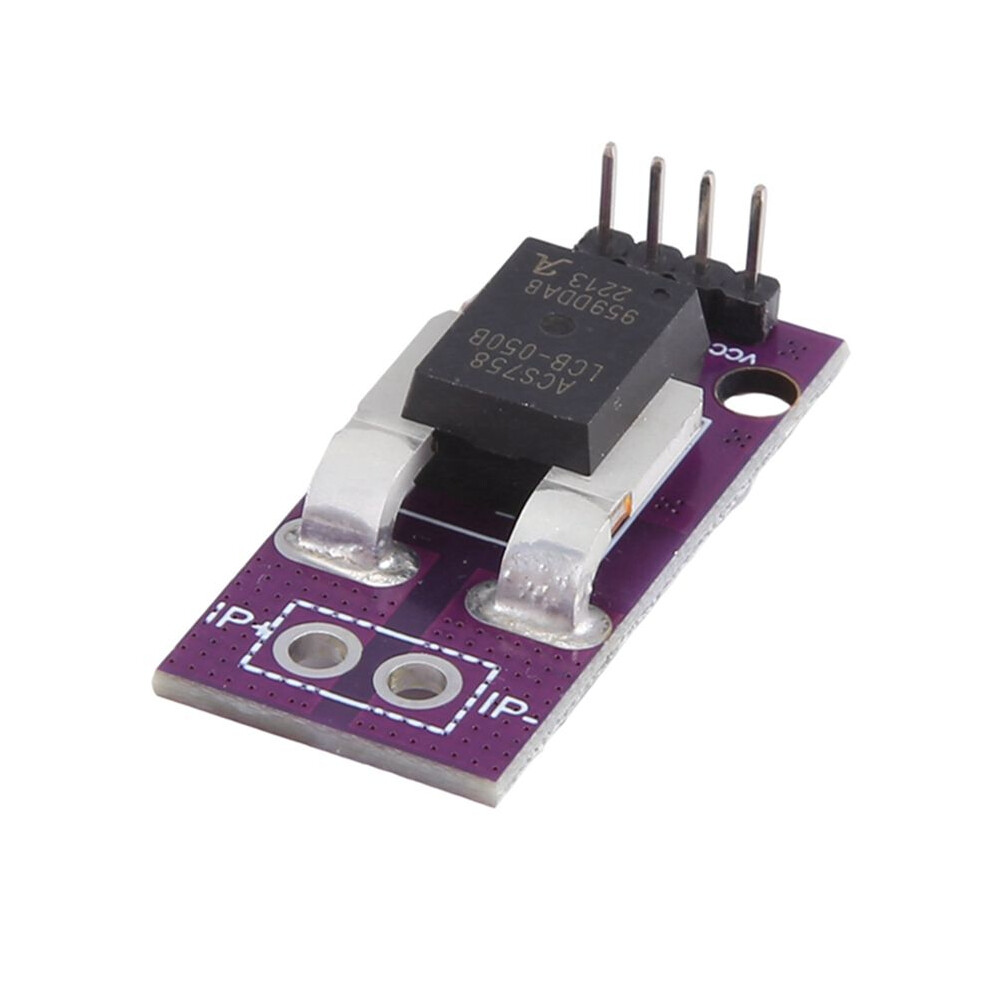

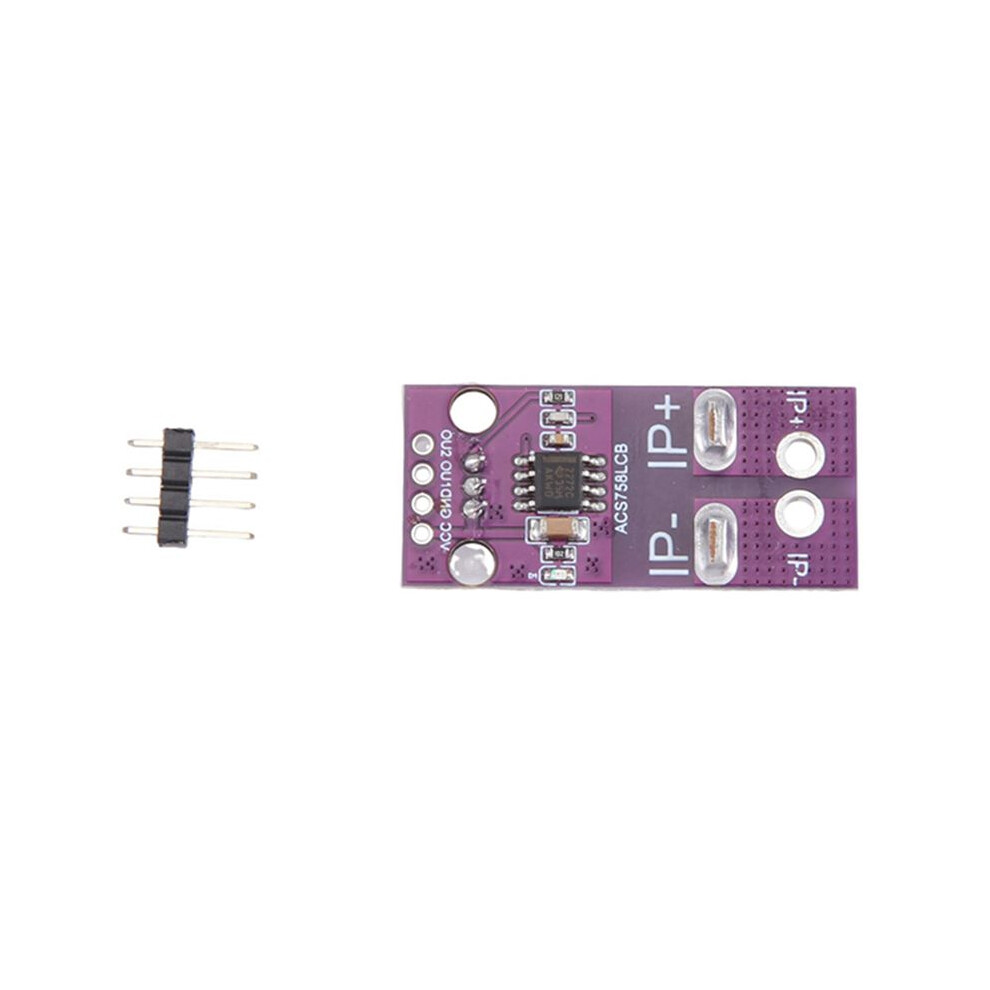

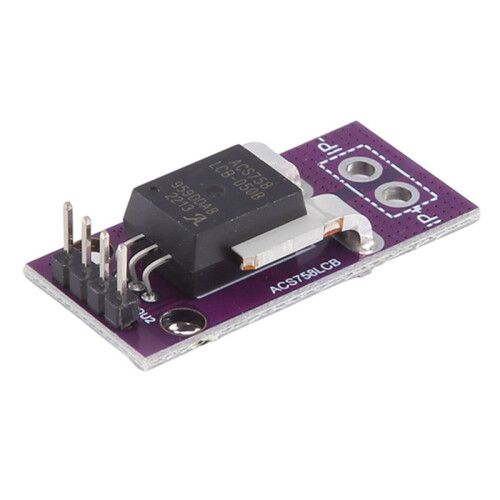

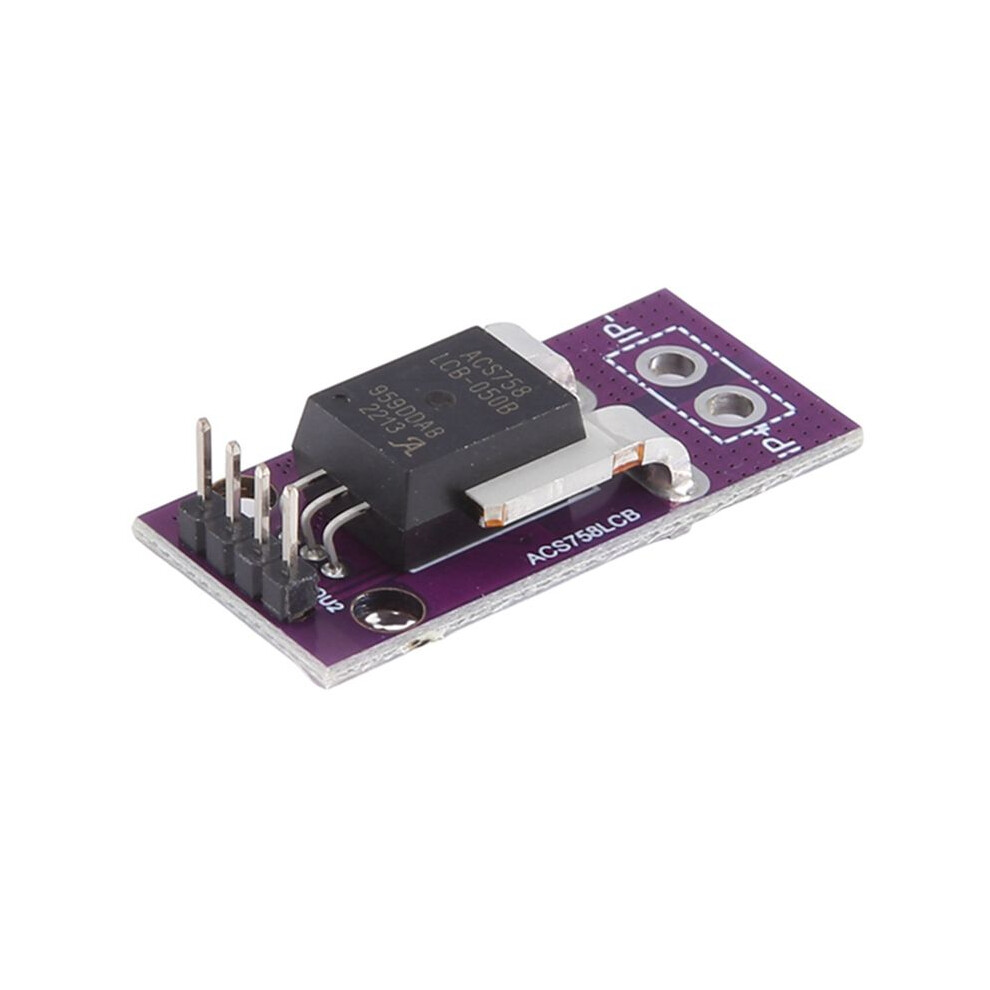

3X ACS758 ACS758LCB-050B Current Module Linear Hall Current Sensor PFF-T Current Detection 3-5V 50A

3X ACS758 ACS758LCB-050B Current Module Linear Hall Current Sensor PFF-T Current Detection 3-5V 50A Kuvaus

Description/Features: Industry-leading noise performance through proprietary
amplifier and filter design techniques
Integrated shield greatly reduces capacitive coupling from
current conductor to die due to high dV/dt signals, and
prevents offset drift in high-side, high voltage applications

Total output error improvement through gain and offset
trim over temperature
Small package size, with easy mounting capability
Monolithic Hall IC for high reliability
Ultra-low power loss: 100 μΩ internal conductor resistance
Galvanic isolation allows use in economical, high-side
current sensing in high voltage systems
3.0 to 5.5 V, single supply operation
120 kHz typical bandwidth
3 μs output rise in response to step input current
Output voltage proportional to AC or currents
Factory-trimmed for accuracy
Extremely stable output offset voltage
Nearly zero magnetic hysteresis
Specifications:
type: 50A
Due to different batches, there may be differences in product appearance and printed text, which will not affect use.
Material: abs
colour:

Package Contents:
3 x ACS758 Current Module
