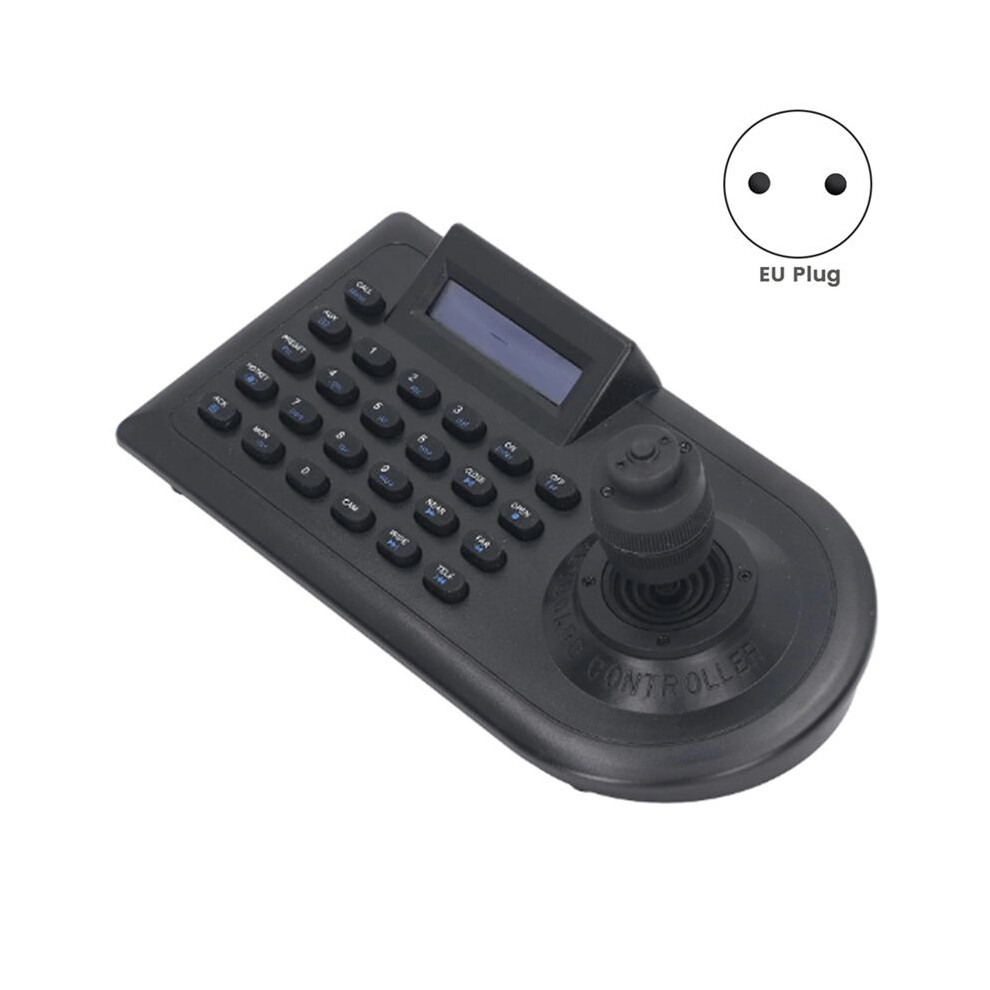

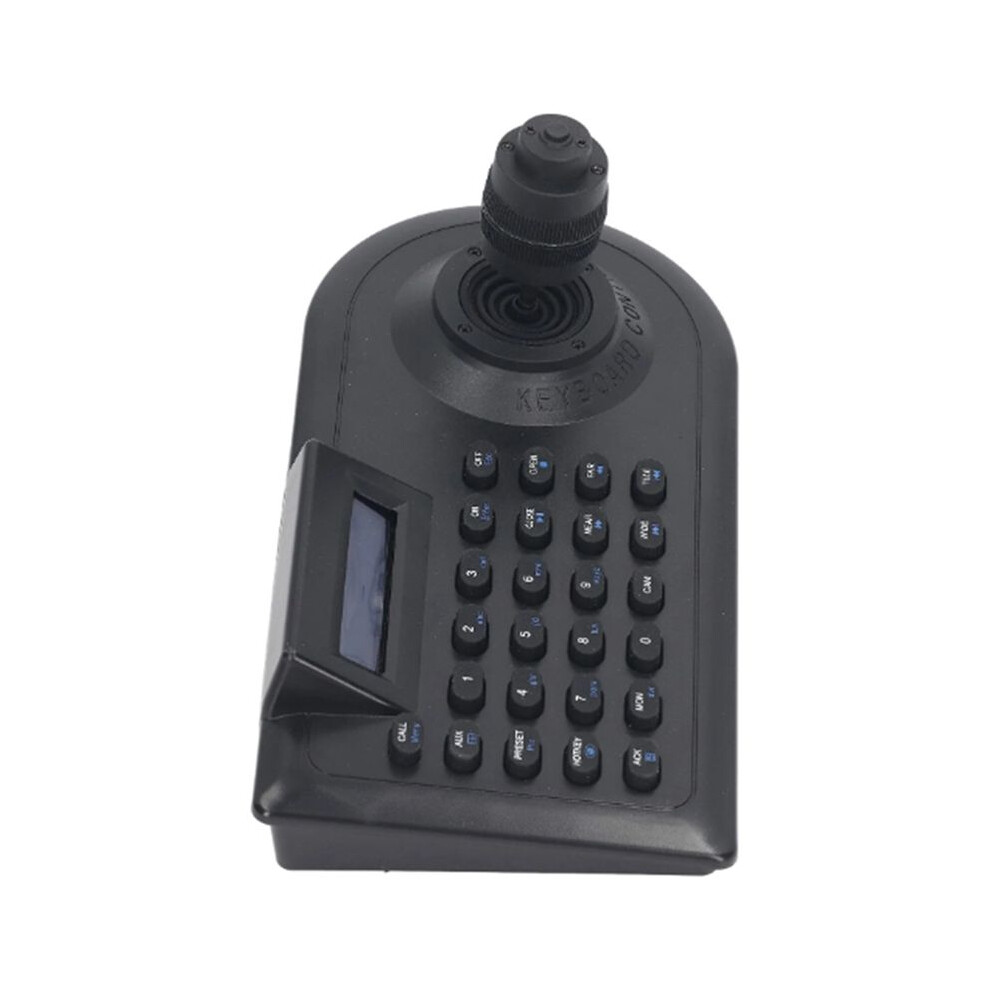

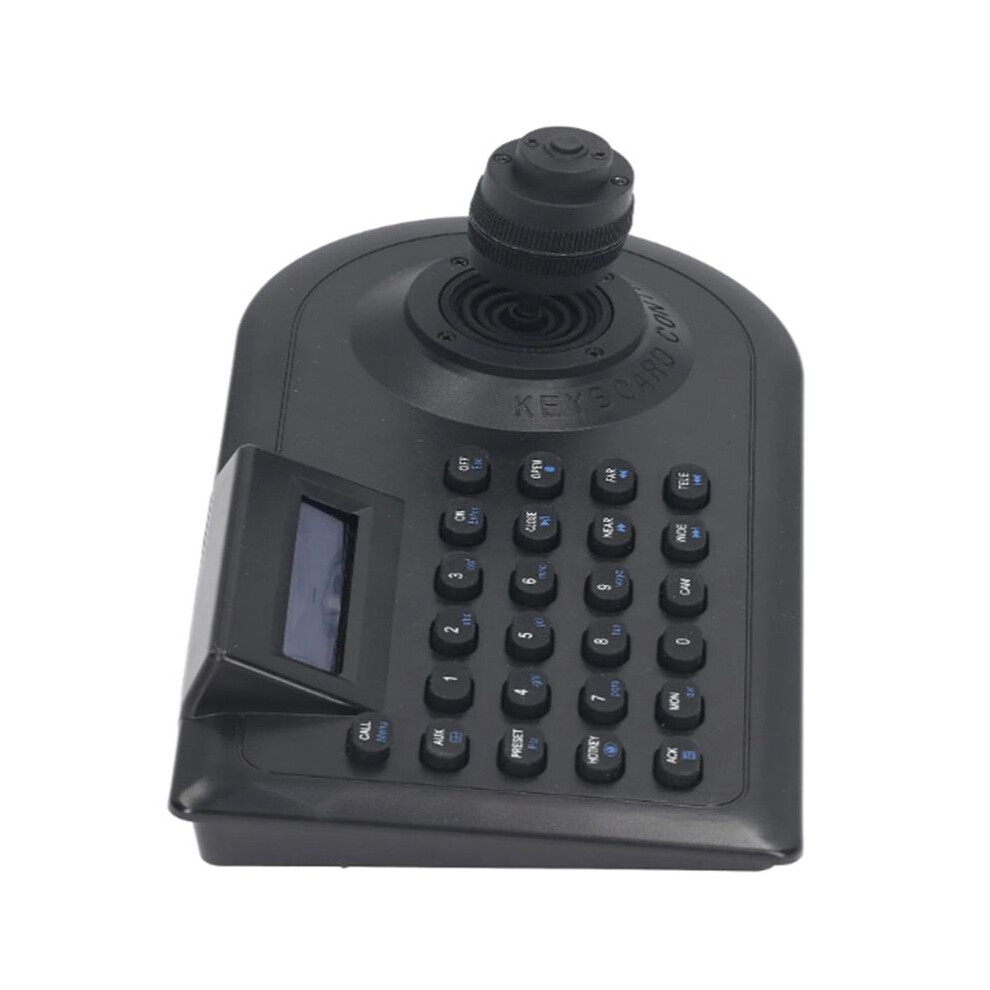

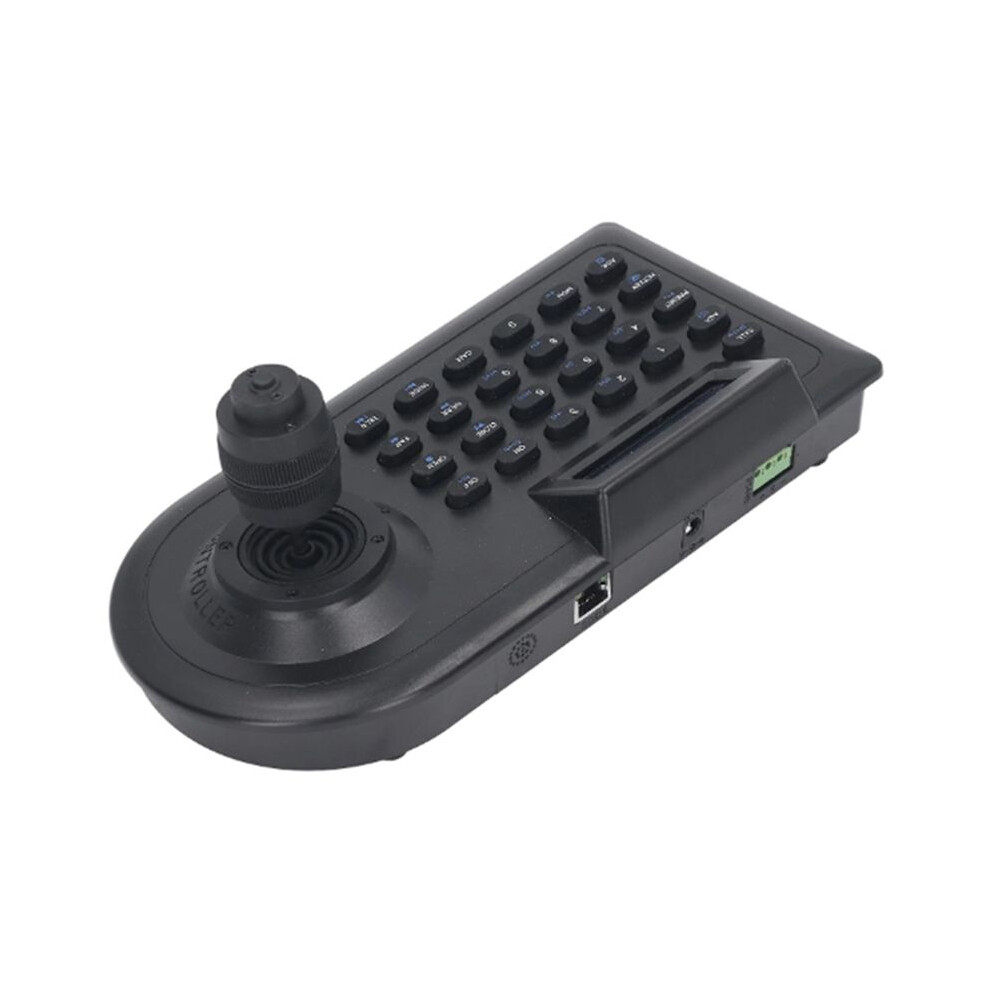

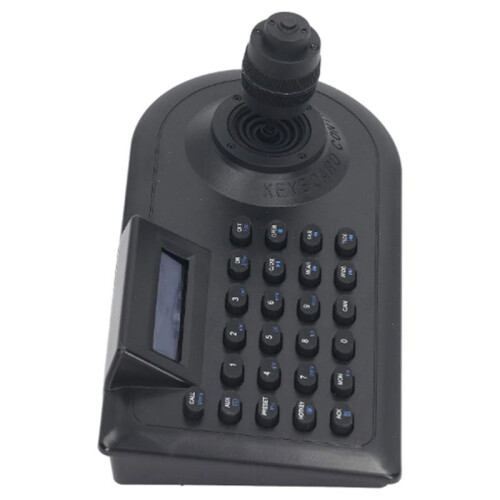

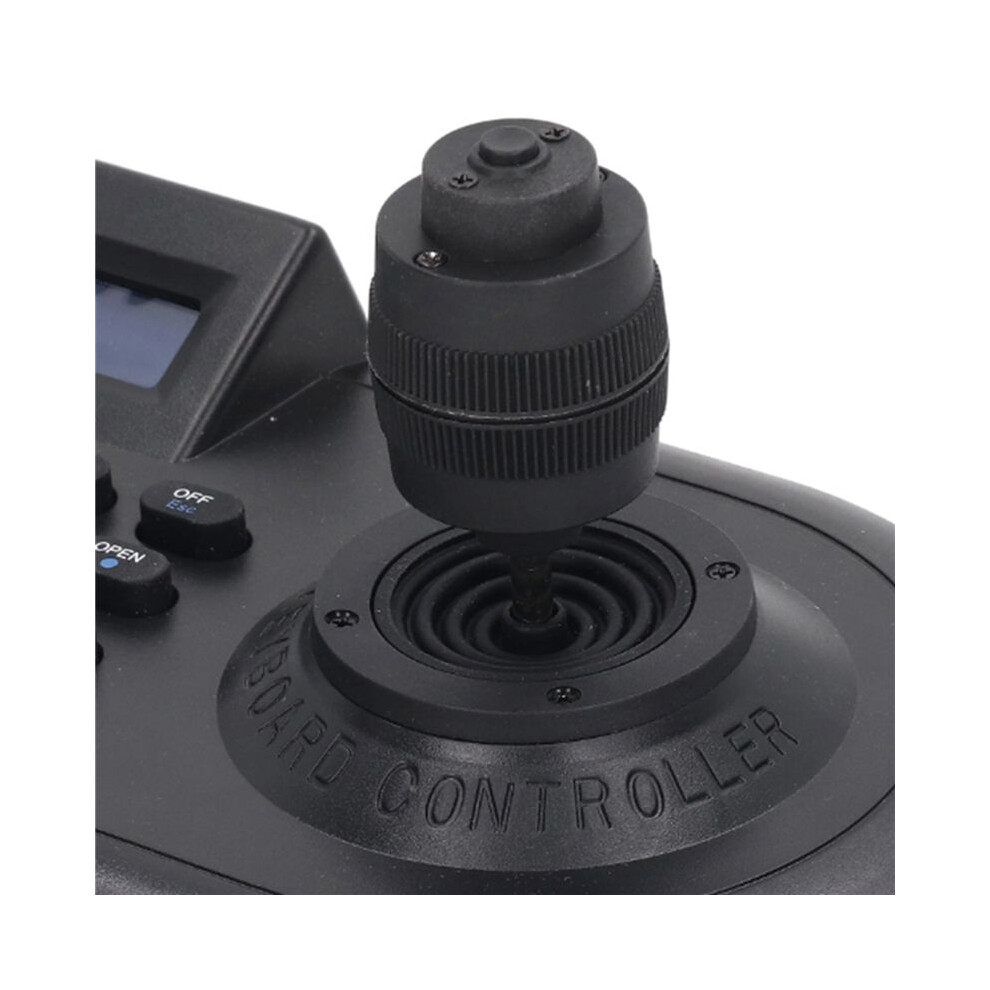

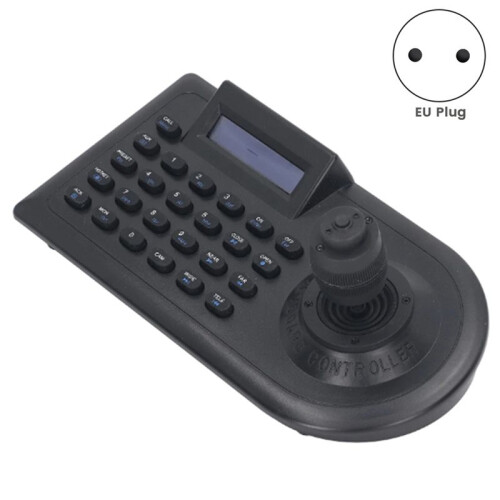

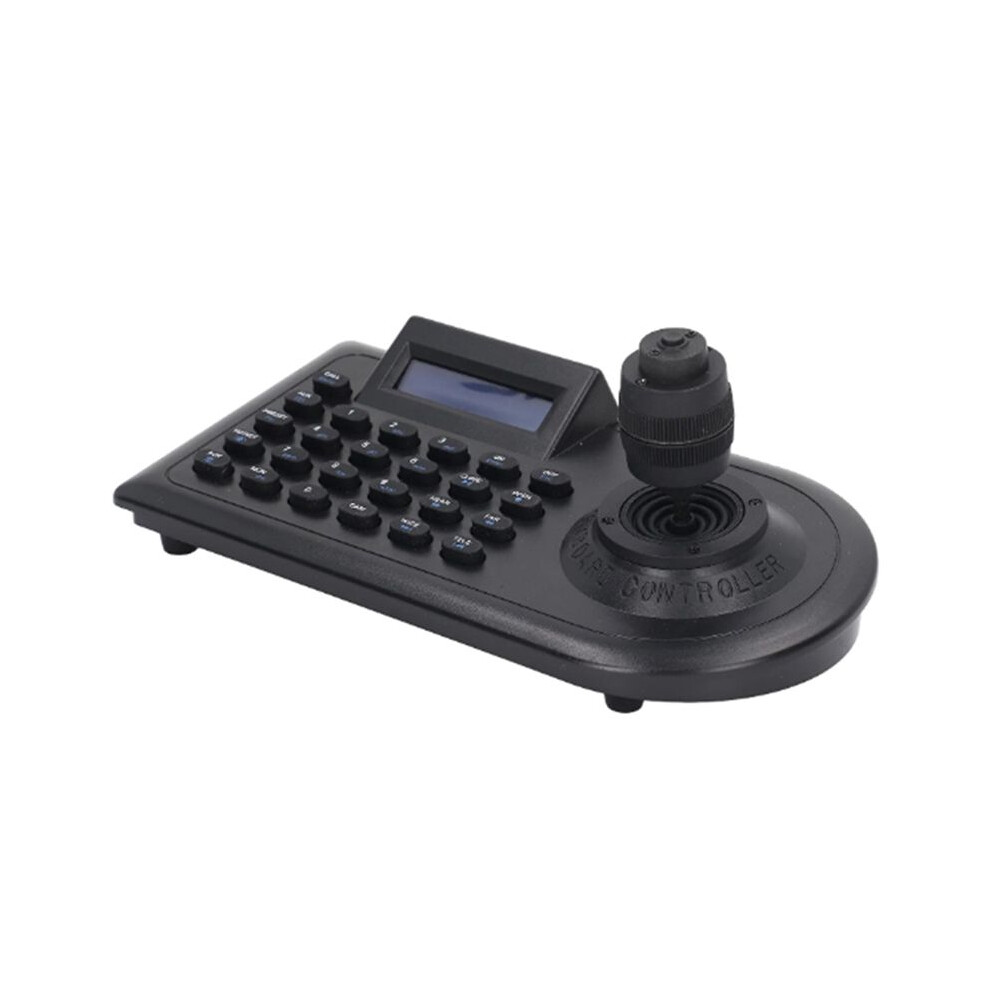

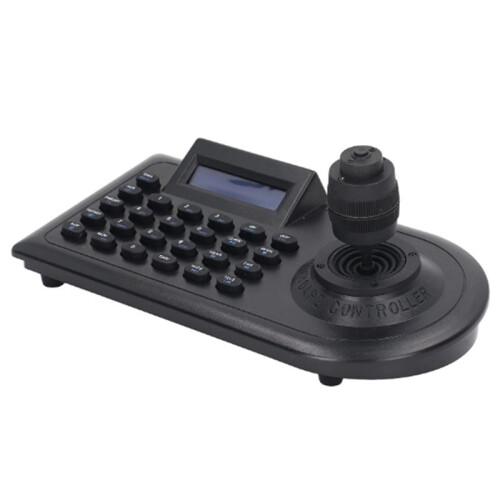

4D 4 Axis Joystick PTZ Keyboard Controller RS485 for PTZ Camera DVR XVR Recorder EU Plug

4D 4 Axis Joystick PTZ Keyboard Controller RS485 for PTZ Camera DVR XVR Recorder EU Plug Kuvaus

Photoelectric in sulated RS485 controlling mode,strong anti-jamming and long-distance trasmission (Max 1.5km)
Control to 128 units, each unit can be set 1-255 addresses
Variable speed orperation can be applied to the built-in Pan/tilt of camera
Easy to set and run the preset positions and tour group
Easy to set the left and right limiting positions and run the scan between them.

Home (default) position can be set , activated and closed by the controller.
LCD display, as -machine interface, LCD display board is more intuitionist, convenient, each to understand, plentiful information.
Communication: -485
Protocol: Pelco-D, Pelco-P
Baud Rate: 1200 / 2400 / 4800 / 9600 / 19200
Communication Distance: 1500M (4900ft) twisted-pair
control functionup,down,left,right,zoom in,zoom out
Max controllable Cameras: 128 units
Camera ID from: 1 - 255
Ambient Temperature: -10C ~ 60C
Relative Humidity: 90% RH
Power Supply Adaptor
Input: 100 - 240V AC
Output: 12V, 200mA
Plug Type :EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so .
Colour:Black
Material:plastic
Voltage: 110-220V

Package Contents:
1 x Keyboard Controller
1 x Power Supply Adapter
