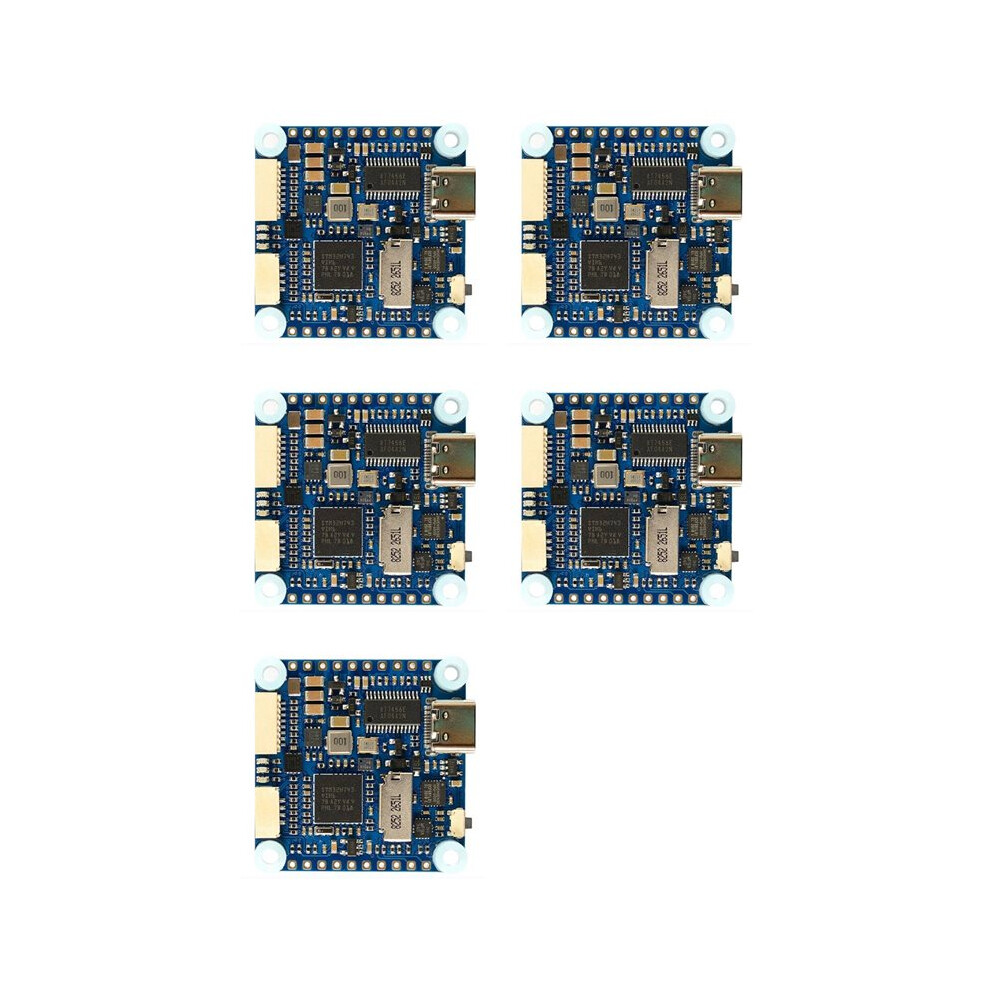

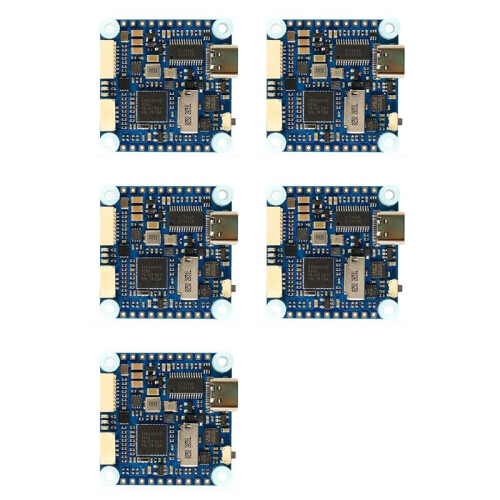

5X for MATEK H743-SLIM V3 FPV Controller Module Built-in No Current Sensor for RC Racing Drone Airplane

5X for MATEK H743-SLIM V3 FPV Controller Module Built-in No Current Sensor for RC Racing Drone Airplane Kuvaus

FC Specifications
MCU: STM32H743VIH6, 480MHz , 1MB RAM, 2MB Flash
IMU: MPU6000 (SPI1) & ICM20602 (SPI4)
Baro: Infineon DPS310 (I2C2)
OSD: AT7456E (SPI2)

: Micro- card socket (SDIO)
7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
13x PWM outputs(including "LED" pad)
2x I2C
1x CAN
6x ADC (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2)
3x LEDs for FC STATUS (, Red) and 3.3V indicator(Red)
1x SPI3 breakout
USB Type-C(USB2.0)
1x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
1x JST-GH1.25_4pin connector (5V/CAN-H/CAN-L/G)
Dual Camera Inputs
5V/Vbat filtered power /OFF
for FPV OSD is supported by any spare UART
Power
Vbat Input: 6~36V (2~8S LiPo)
BEC: 5V 2A cont. (Max.3A)
LDO 3.3V: Max.200mA
No Current Sensor built-in
ADC Vbat2 pad supports Max. 69V (voltage divider: 1K:20K)
Static power: 200mA@5V with Betaflight, 150mA@5V with ArduPilot
FC Firmware
ArduPilot(ChiBiOS): MATEKH743
BetaFlight: MATEKH743
INAV: MATEKH743 (To be supported soon)
Due to different batches, the appearance, color and printed words of the product may vary, which will not affect the use.
Material: plastic
colour:

Package Contents:
5 x Module
