6-Digit DIY Electronic Clock Kit 4.5V-5.5V Circuit Board for Soldering Practice Learning Crafting Clock Electronics

6-Digit DIY Electronic Clock Kit 4.5V-5.5V Circuit Board for Soldering Practice Learning Crafting Clock Electronics Kuvaus

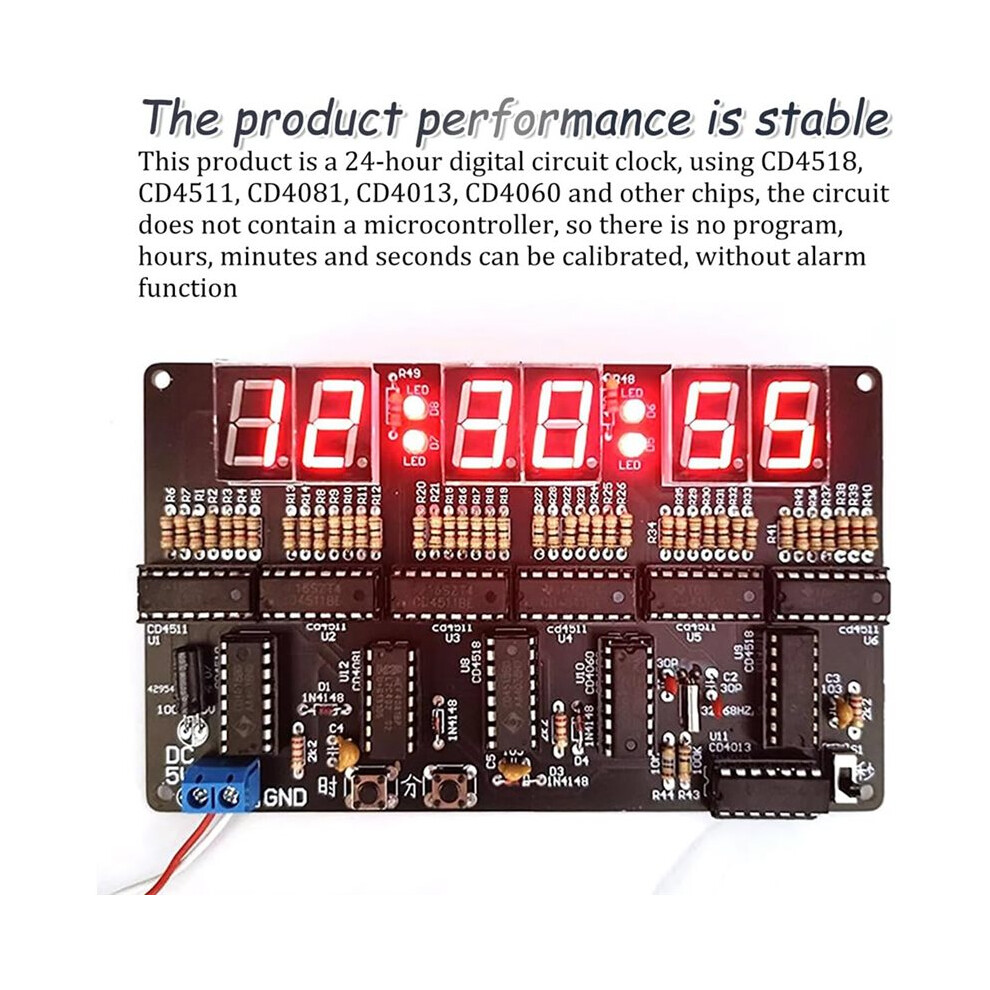

Dive into the realm of DIY electronics with our digital clock circuit kit, designed for stable performance. Powered by DC4.5V-5.5V, this DIY clock kit does not incorporate a microcontroller, eliminating the need for programming while ensuring that timekeeping is both precise and reliable

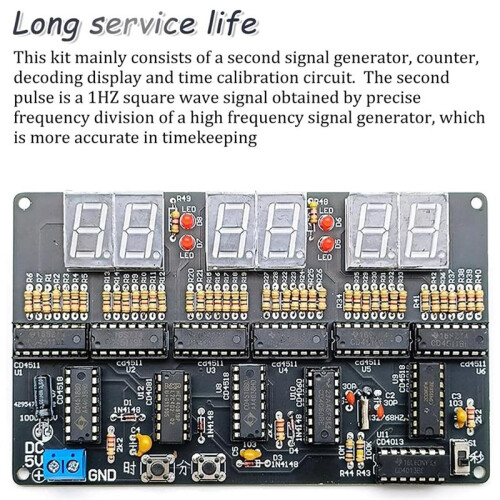

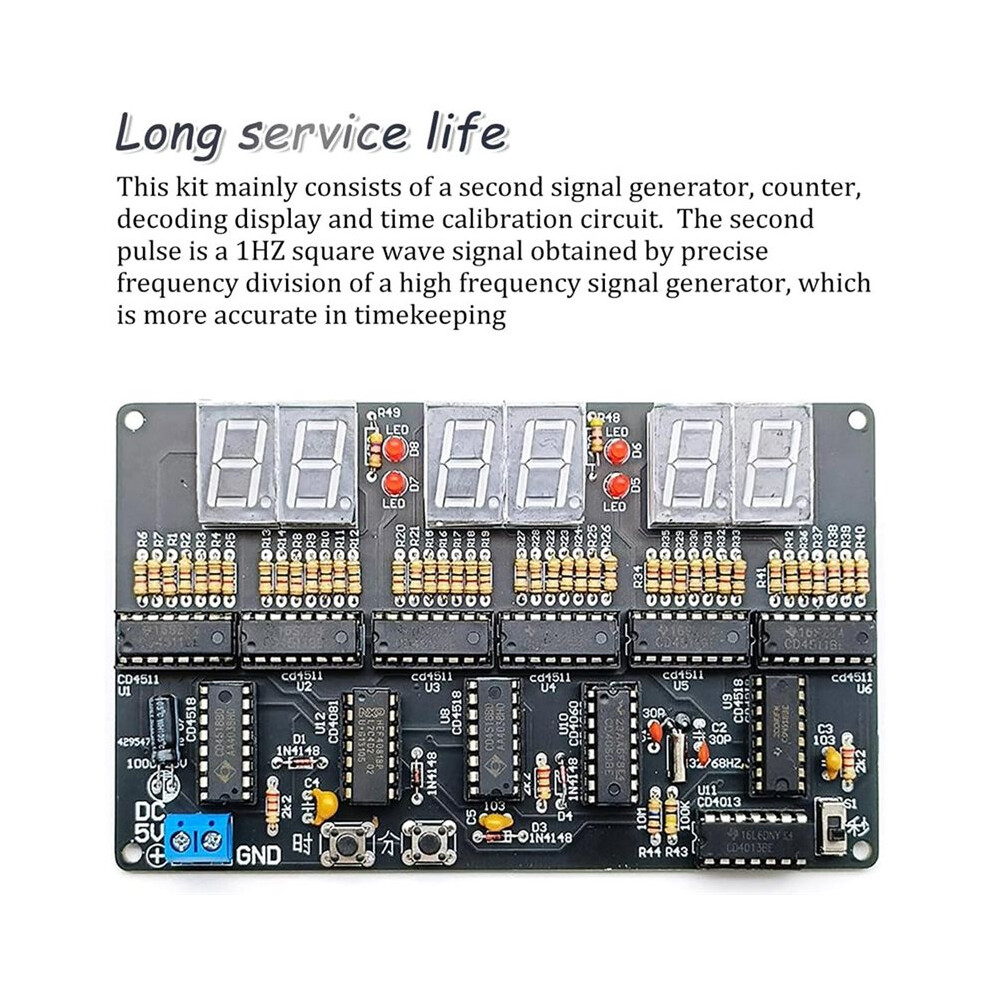

Our clock parts and electronic kit comes complete with a second signal generator, counter, decoding display, and adjustment circuit. The second pulse is accurately divided by a high-frequency signal generator to obtain a 1HZ square wave signal, making measurement remarkably accurate
CD4060 is a 14-level binary frequency divider/oscillator. It consists of a 32768HZ oscillator with external resistors R44, R43, C1, C2 and Y1. After 14 levels of binary frequency divider, the frequency of 2HZ square wave signal is obtained at pin 3. CD4013 contains two independent D flip-flops, take one of the flip-flops through the configured as a binary counter, binary counting of the input 2HZ square wave signal can be obtained from the second signal
Color: As Shown
Material: Electronic Component

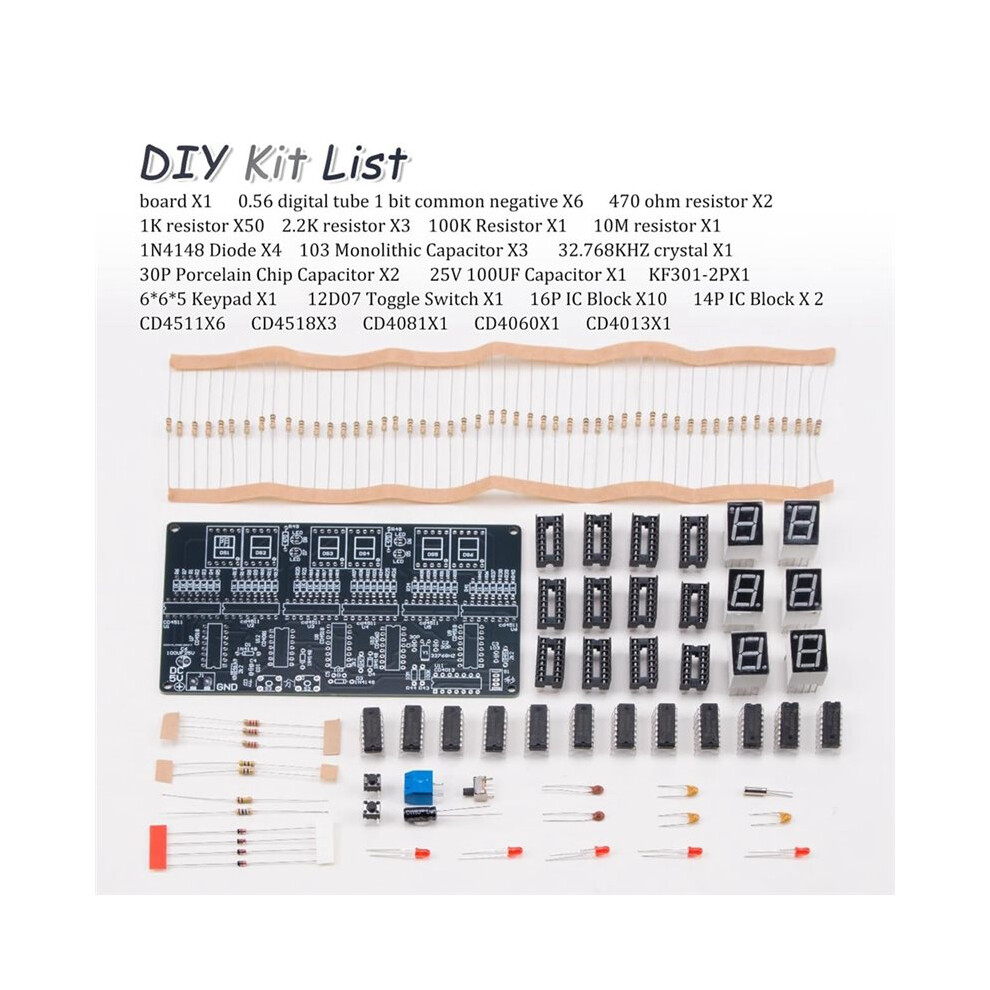

Package Contents:

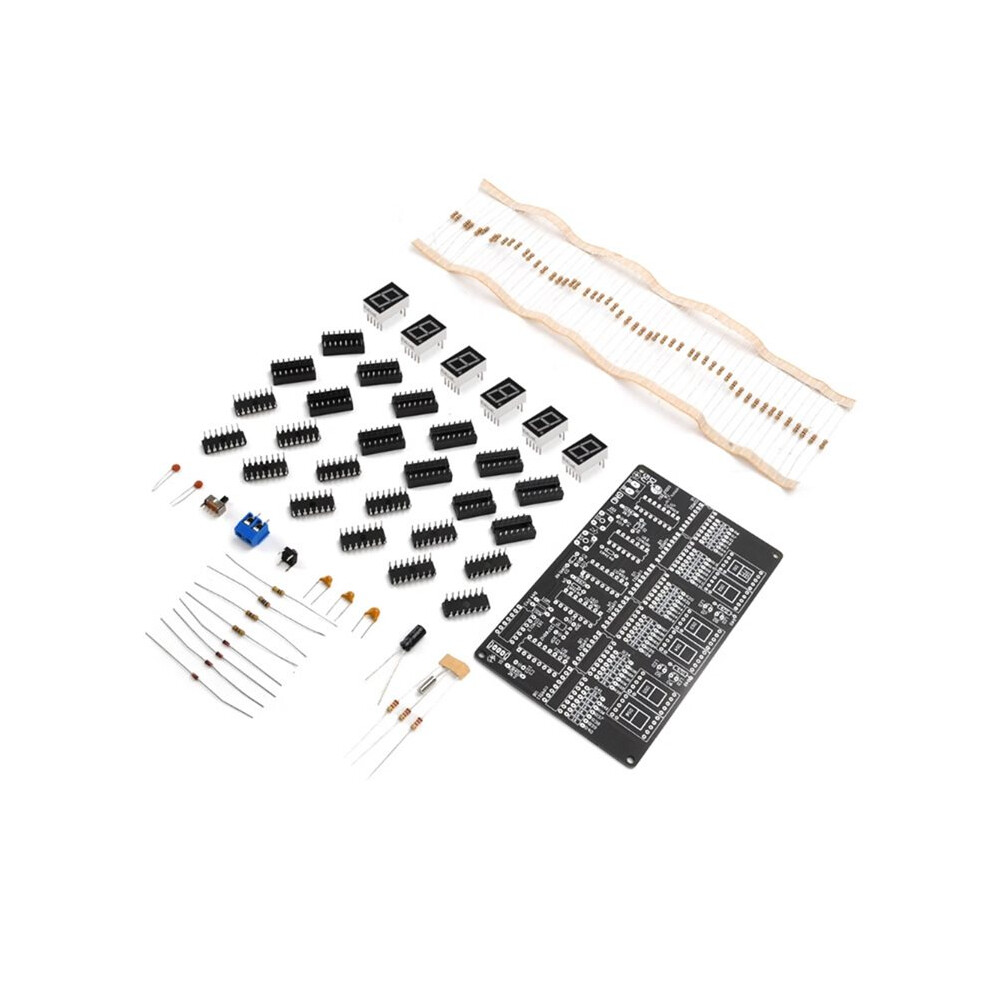

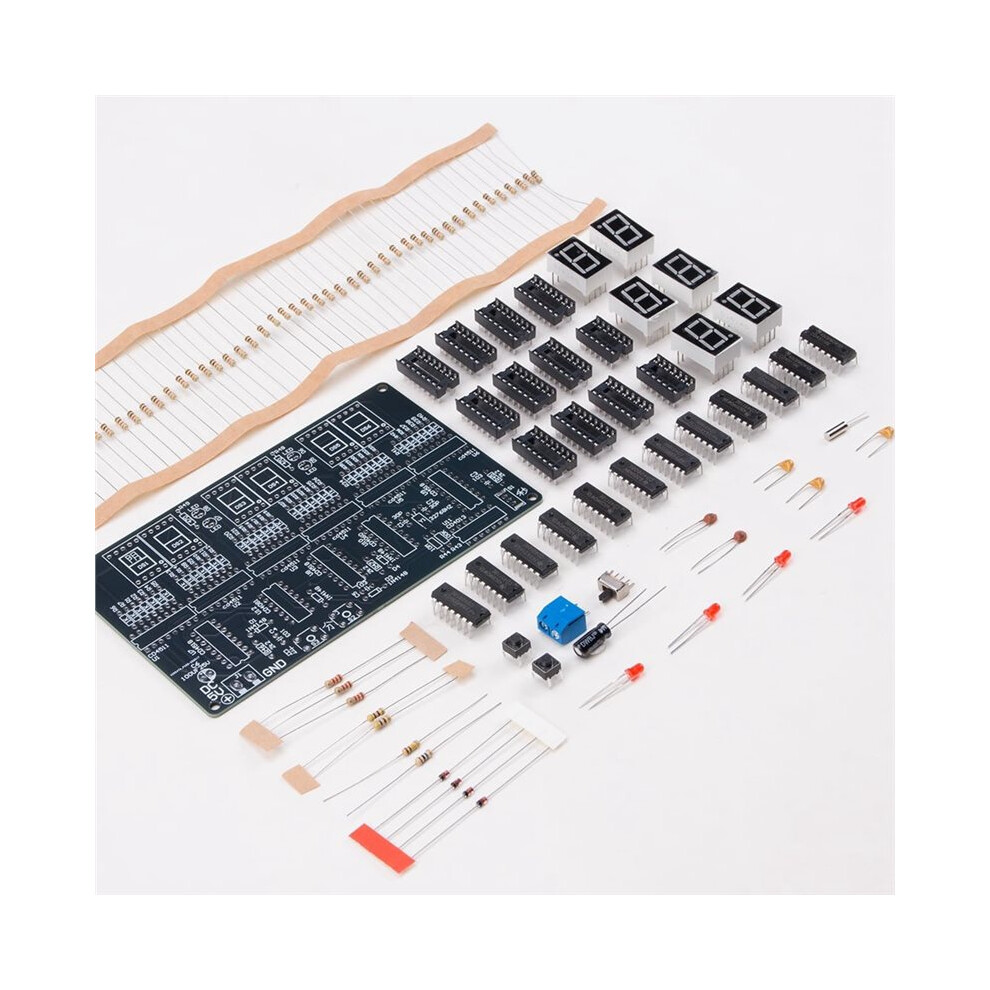

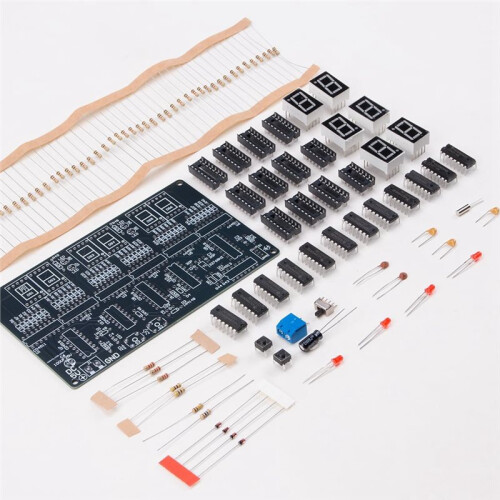

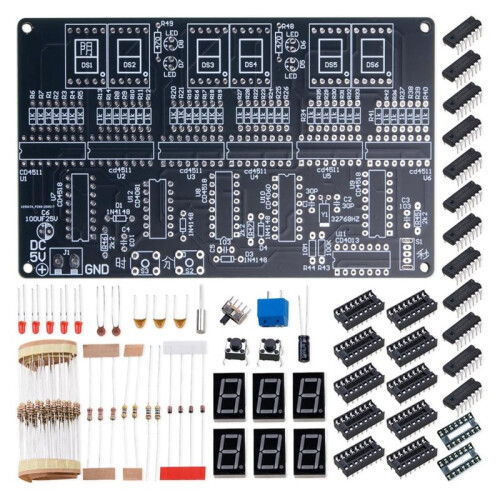

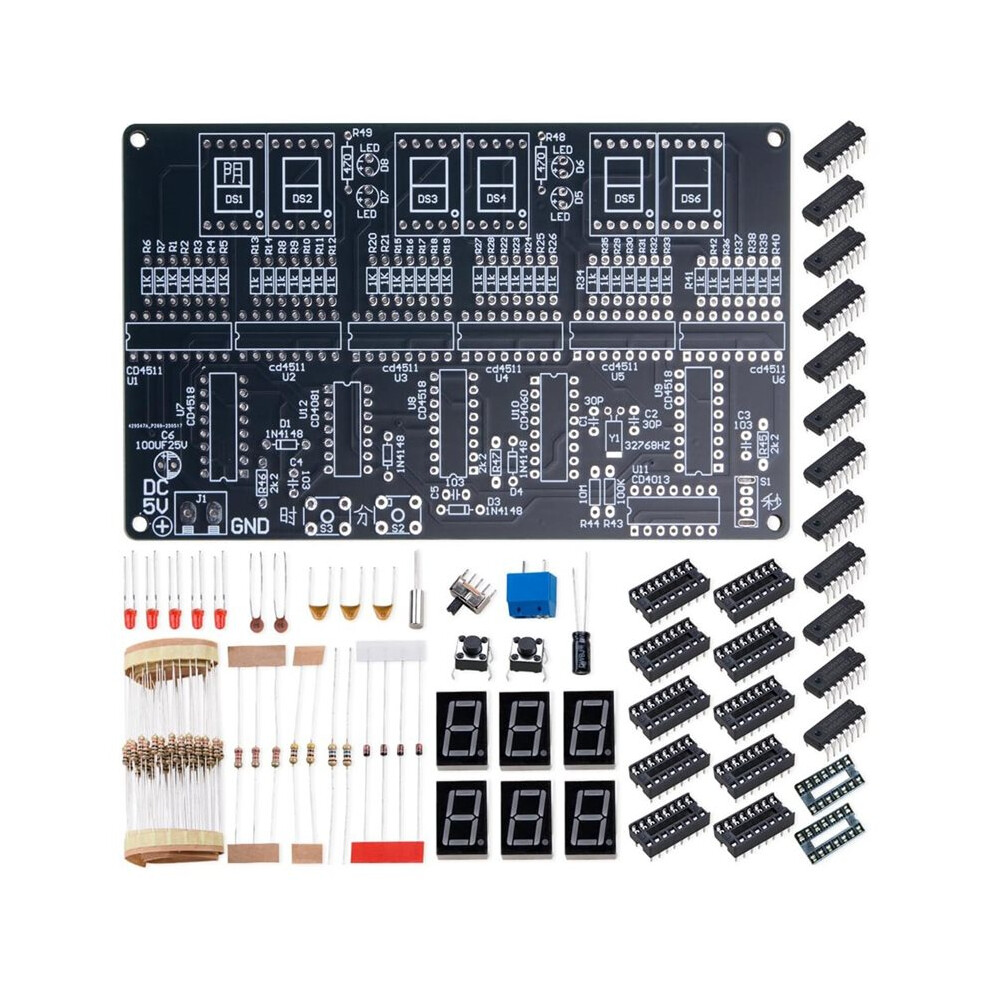

1*6-Digit DIY Electronic Clock Kit
