7801A Incubation Temperature and Humidity Controller Digital Thermostat Moisture Control Temp Sensor Control Incubator

7801A Incubation Temperature and Humidity Controller Digital Thermostat Moisture Control Temp Sensor Control Incubator Kuvaus

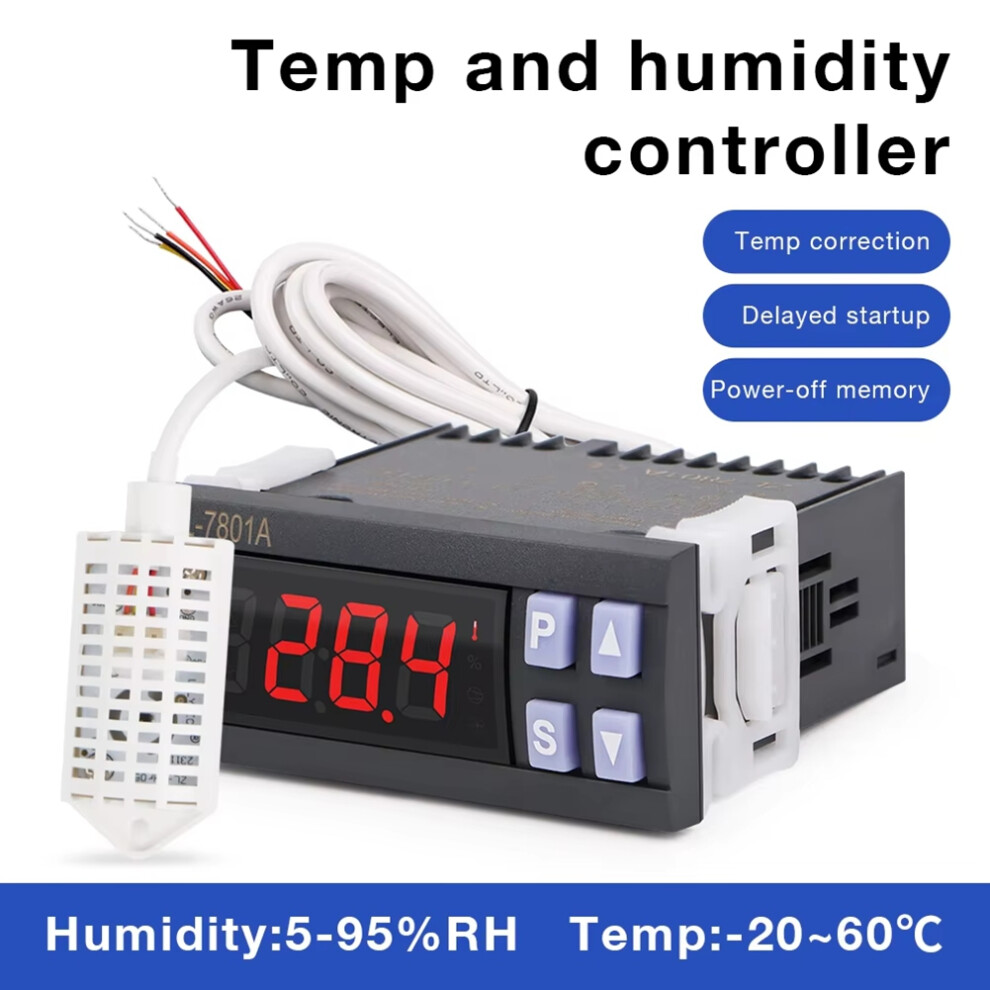

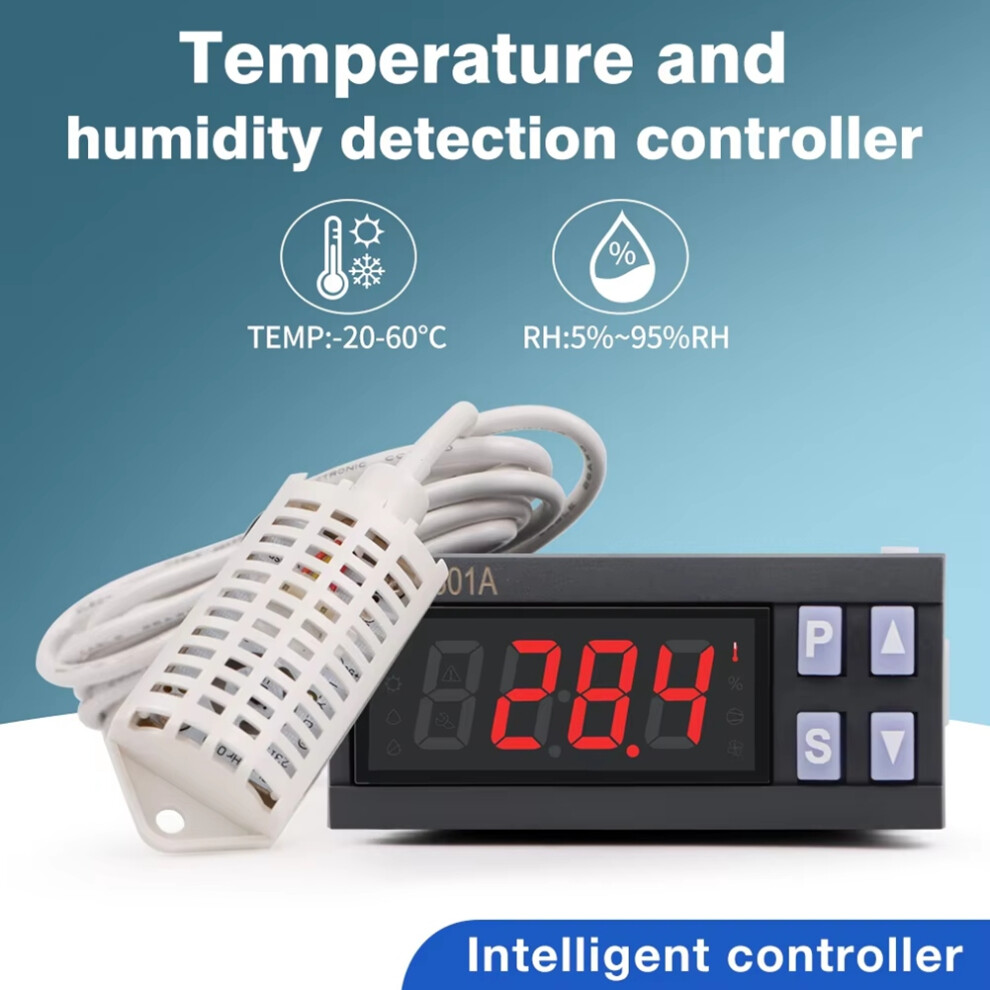

ZL-7801A is a temperature and humidity controller. IP65 level front panel protection, convenient operation and easy installation. Suitable for control of incubator, climate chamber, greenhouse, warehouse, and so .
Power supply: 100 ~ 240Vac, 50/60Hz
Input Signal: One humidity and temperature sensor(ZL-SHR05A), Wire length 2.0 meter. It could be extended.The length limit is 5 meters.
Output load: (Resistive parameter) R1 load,5A/250Vac; R4 and R5 load,3A/250Vac; R2 and R3 load,16A/250Vac

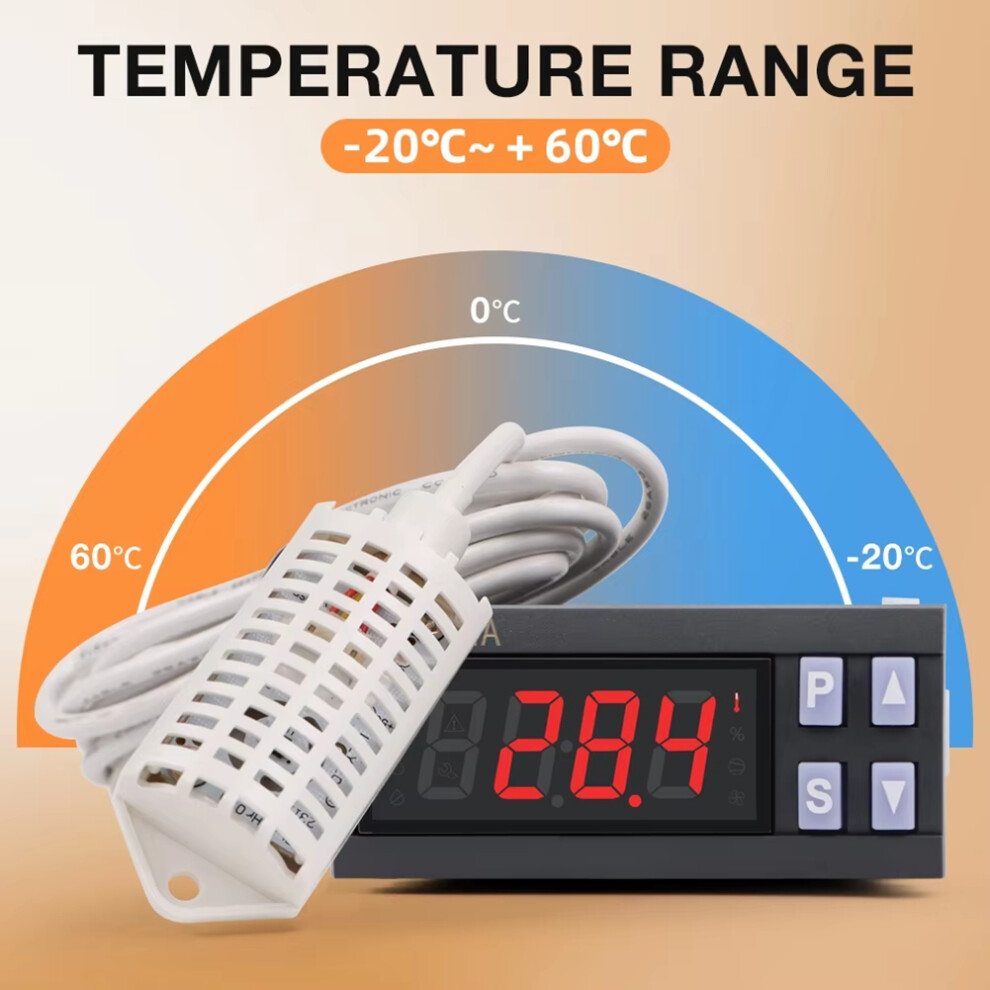

Setting Range: Humidity 5.0 ~ 95.0% RH; Temperature -20.0 ~ 60.0

Sensor accuracy: Humidity 3%; Temperature 2%; 0.1 absolute accuracy after calibrated.
Working environment: Humidity 10 ~ 90% RH without dew; Temperature -20 ~ 45

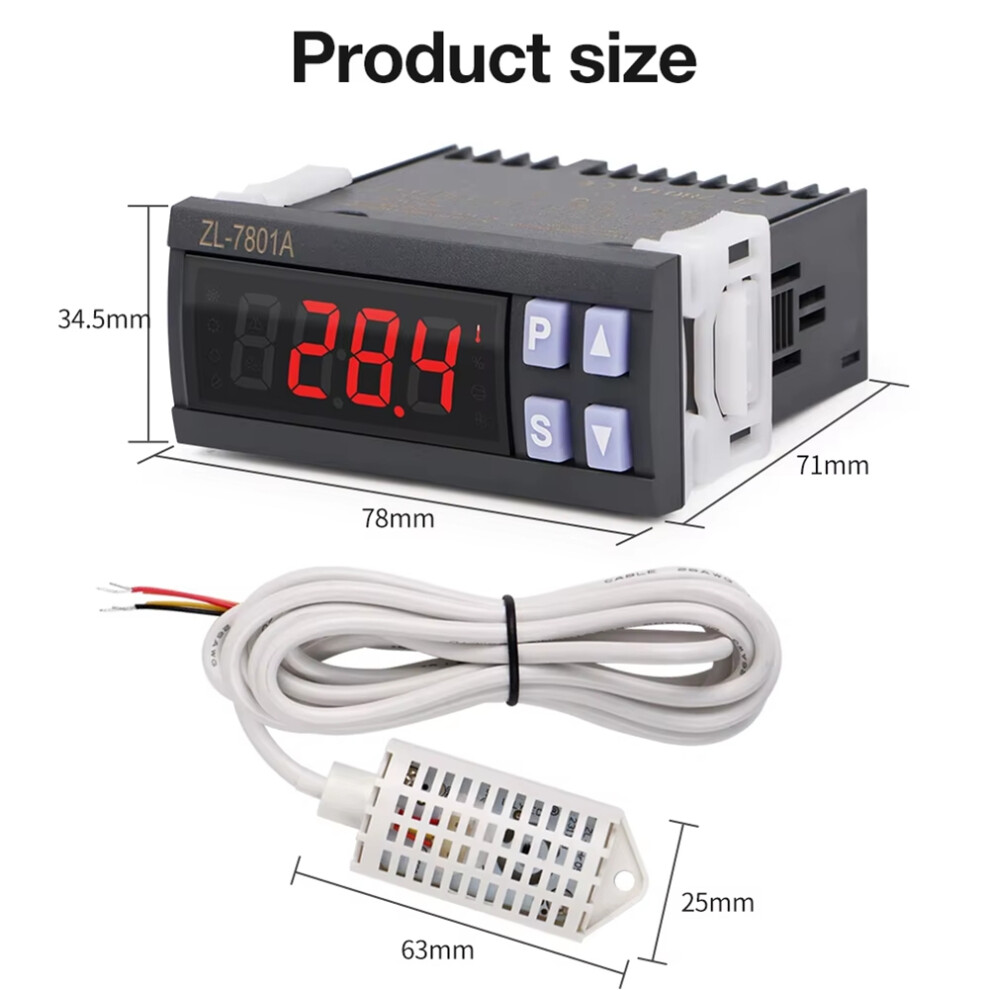

Device dimension: W78 x H34.5 x D71 mm
Drilling size: W71 x H29 mm

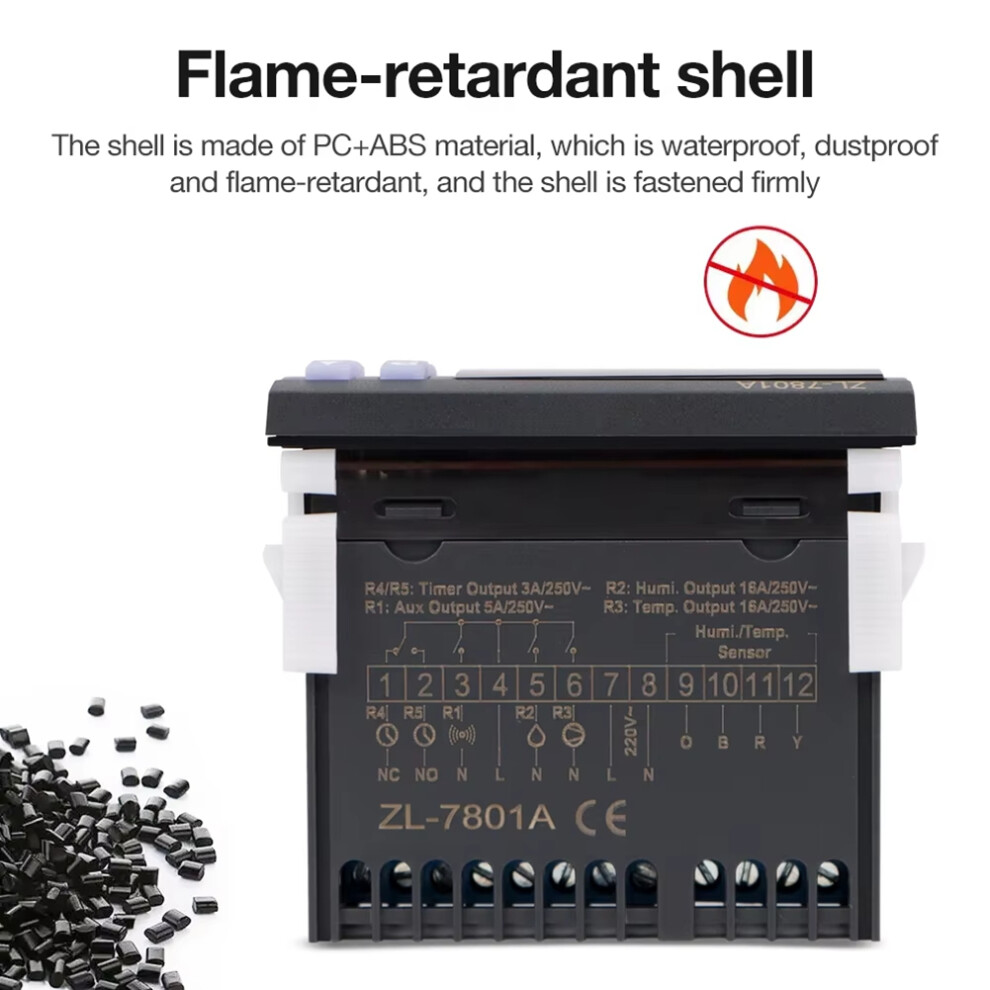

Case materials:PC + ABS, fireproof
Protection level: IP65 (front panel only)
1. Heating control (R3)
2. Dehumidify control/ Humidify control (R2)
3. Humidity load (R2) delay protection
4. Timer 1 control (R4 R5) (egg left-turning, egg right-turning)
5. Timer 2 control (R1) (Ventilation)
6. Temperature and humidity measurement and display
7. Temperature and humidity calibration
8. Sensor failure warning
Color: As Shown
Material: plastic

Package Contents:
1 * Temp Humidity Controller Incubator
1 * Sensor
