AC Current Transformer / Transformer-Type Current Sensor (0-5A) / Current Monitoring Sensor Module 3P Interface

AC Current Transformer / Transformer-Type Current Sensor (0-5A) / Current Monitoring Sensor Module 3P Interface Kuvaus

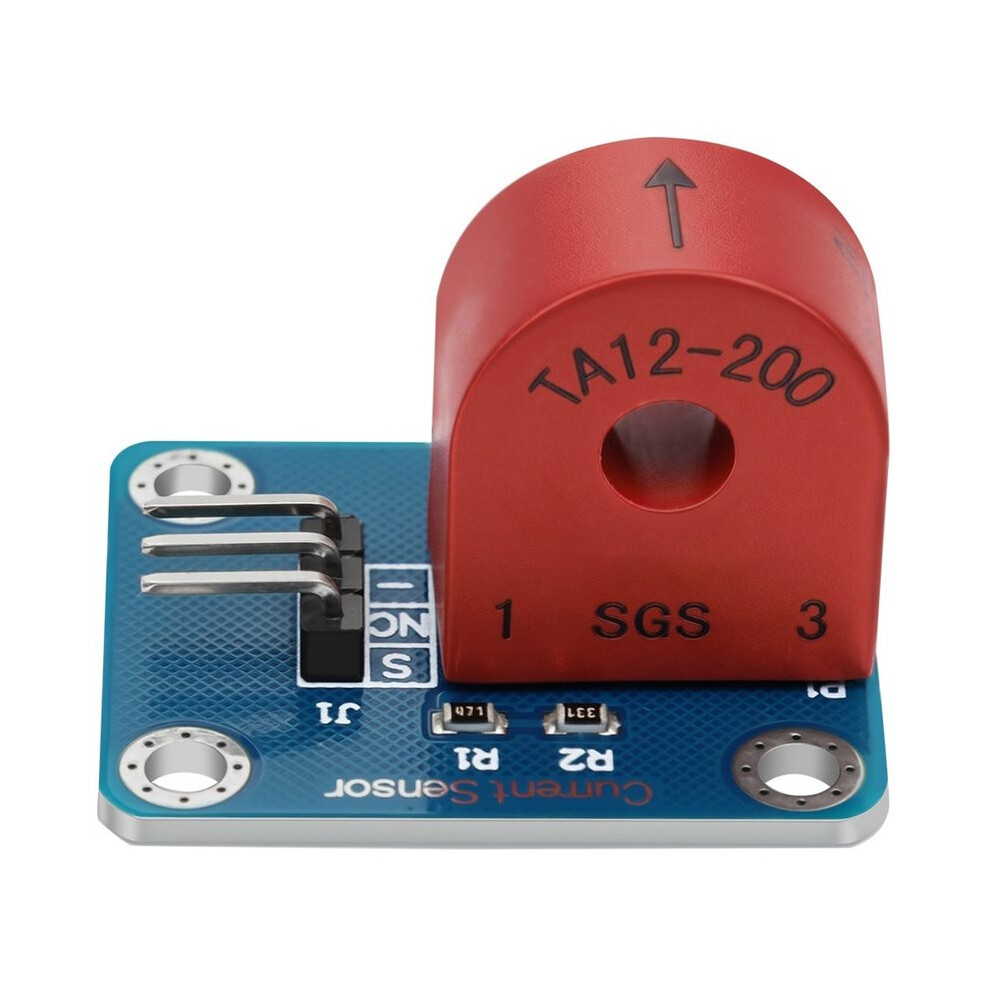

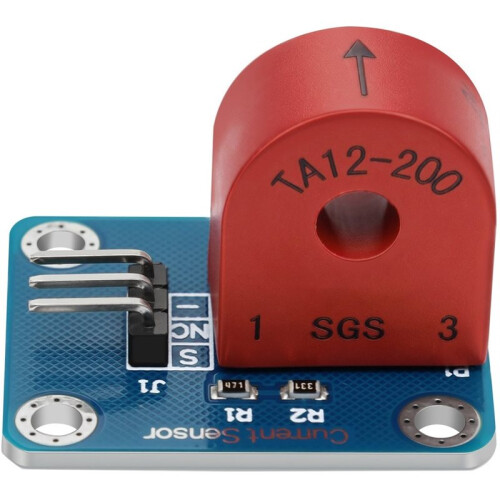

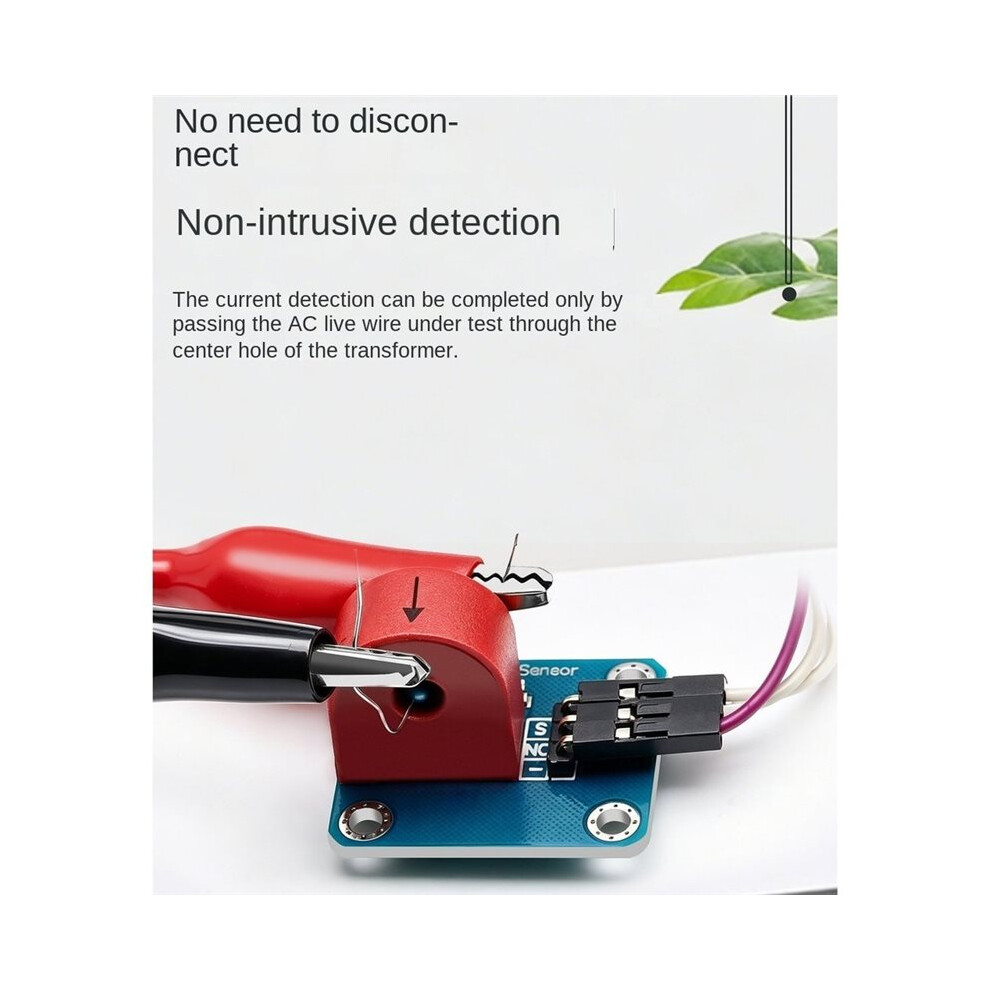

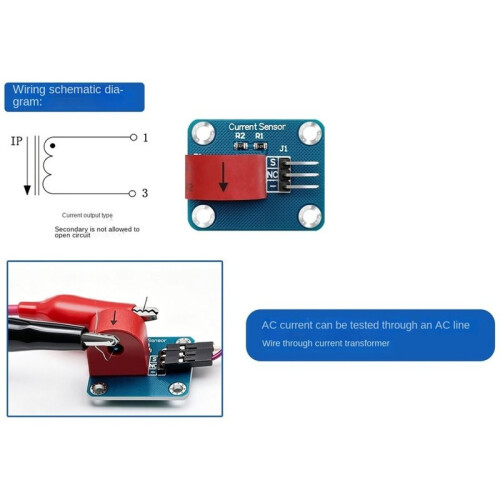

This product utilizes the TA12-200 current sensor, which converts high-magnitude currents into low-amplitude voltage outputs. It is designed for AC current detection, with a maximum detectable current of 5A.

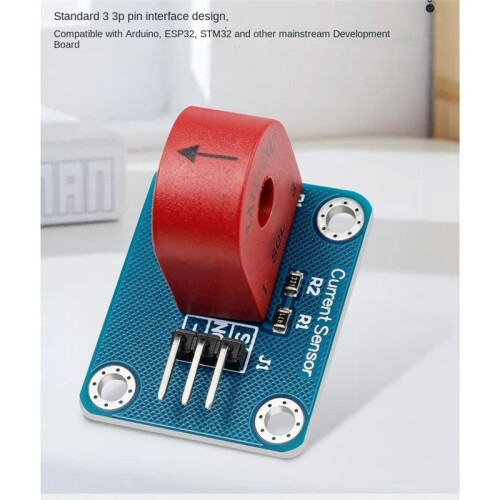

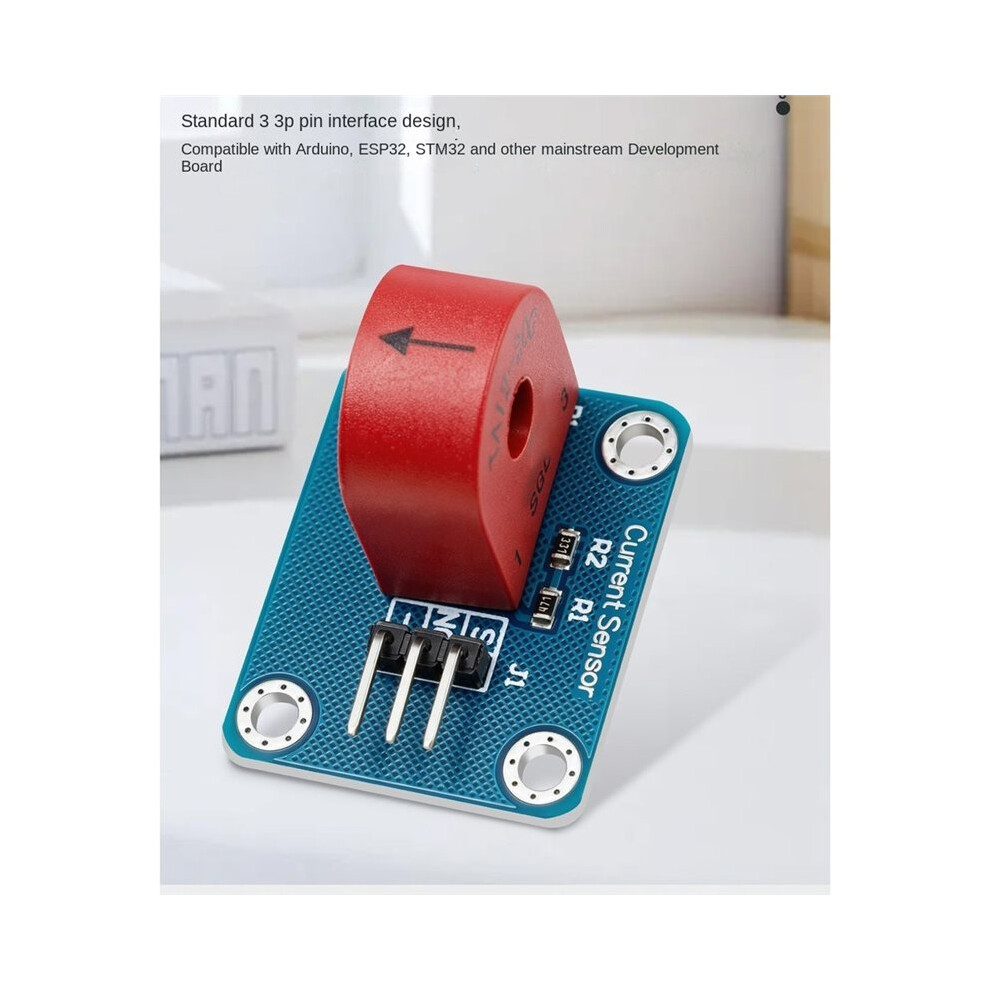

The sensor is compatible with various microcontroller platforms and is particularly easy to use with for controllers; by connecting it to a dedicated for sensor expansion board via a 3-pin sensor cable (not included), users can readily create interactive projects involving environmental sensing.

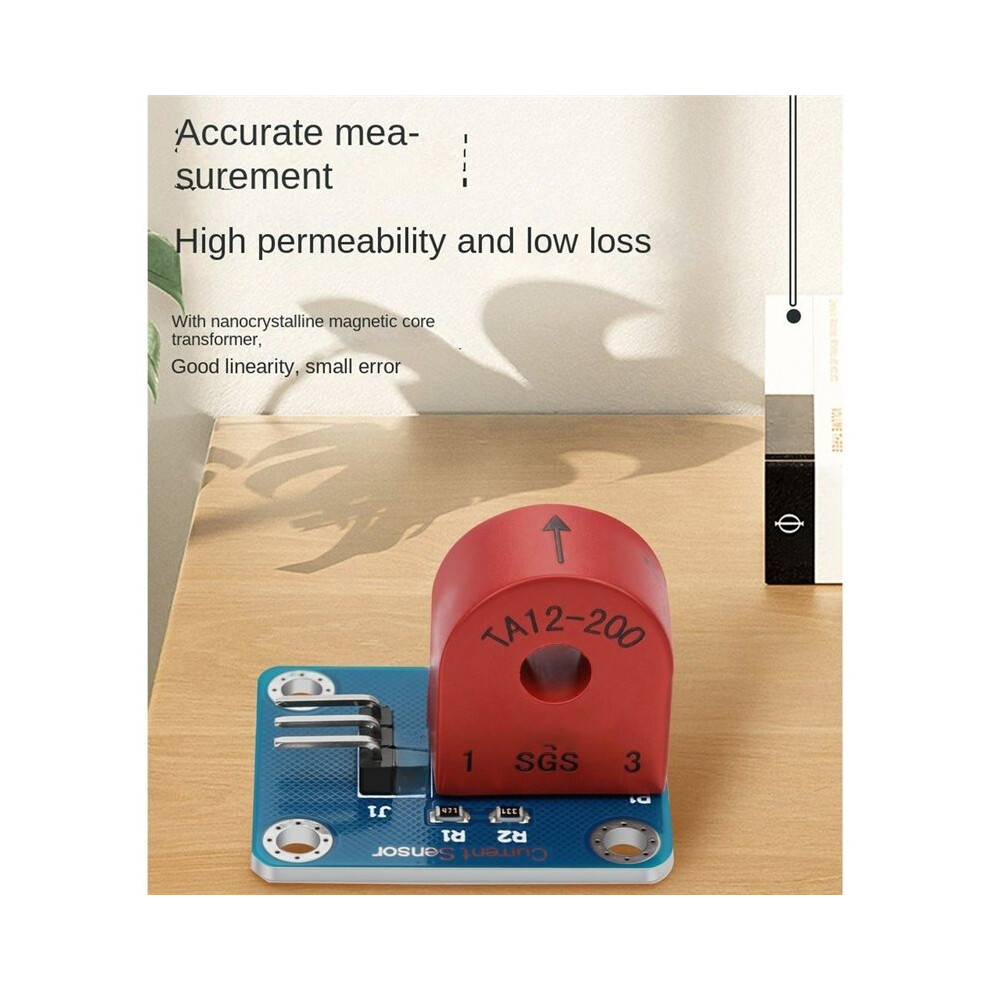

Epoxy resin encapsulation, nanocrystalline core, compact dimensions. Fully enclosed design; suitable for remote monitoring of electrical loads.
Functions as an input signal for electronic control systems; supports phase-loss indication, power metering, and motor operating status monitoring.
Applications: Household electrical appliances, AC current measurement, current surge monitoring, ground fault detection, etc.

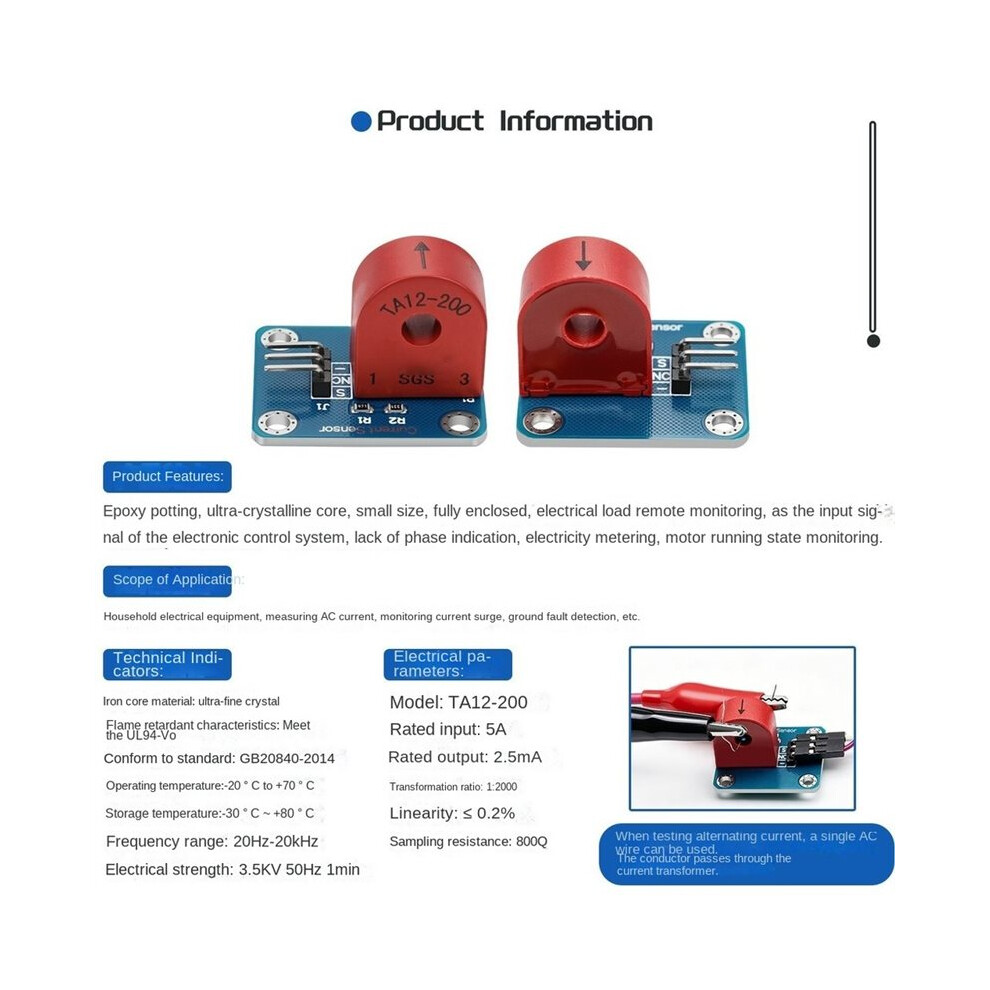

Technical Specifications:
Flame retardancy: Complies with UL94-V0
Standards compliance: GB20840-2014
Operating temperature: -20C to +70C
Storage temperature: -30C to +80C
Frequency range: 20Hz-20kHz
Electrical Parameters:
Sensor model: TA12-200
Rated input: 5A
Rated output: 2.5mA
Transformation ratio: 1:2000
Linearity: 0.2%
Sampling resistor: 800Ω
Dielectric strength: 3.5kV, 50Hz, 1 min
Color: & Red
Material: PCB+PBT

Package Contents:
1 * AC Current Transformer

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
