ATOMS3R CAM Camera Development Board ESP32-S3 Programmable Controller Pre-Installed UVC Firmware

ATOMS3R CAM Camera Development Board ESP32-S3 Programmable Controller Pre-Installed UVC Firmware Kuvaus

ATOMS3R Cam is a programmable controller integrated with a camera, featuring the ESP32-S3--1-N8R8 main controller with built-in WiFi, 8MB onboard FLASH, and 8MB PSRAM. It includes a power management circuit that converts 5V to 3.3V, along with a built-in three-axis BMM150 geomagnetic sensor and six-axis BMI270 attitude sensor.

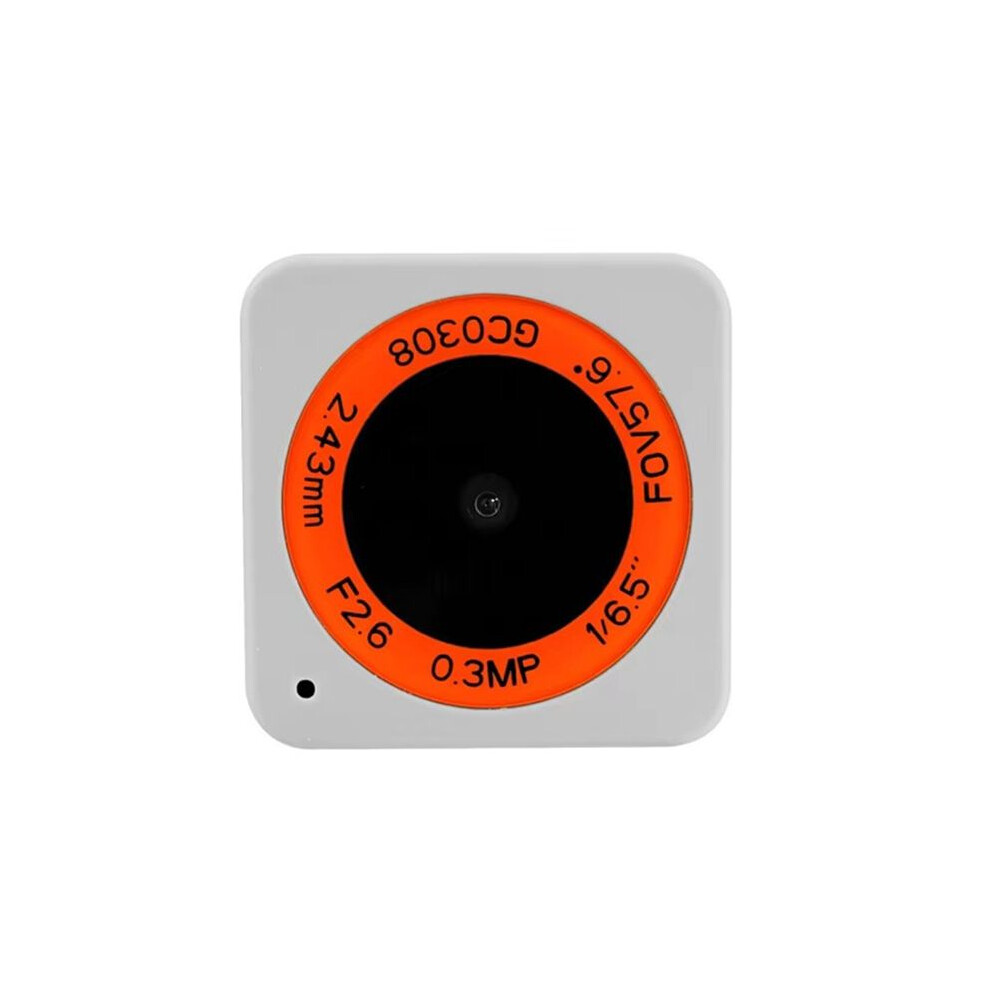

Additionally, the product is equipped with a 0.3MP GC0308 camera, supporting image capture and infrared transmission control. Compared to previous products, the 3D antenna of the AtomS3R Cam has been enhanced, offering improved performance and greater stability.
The product comes pre-installed with UVC (USB Video Class) firmware, allowing it to function as a driver-free USB camera. Users can use the camera directly via the USB interface without installing any drivers.

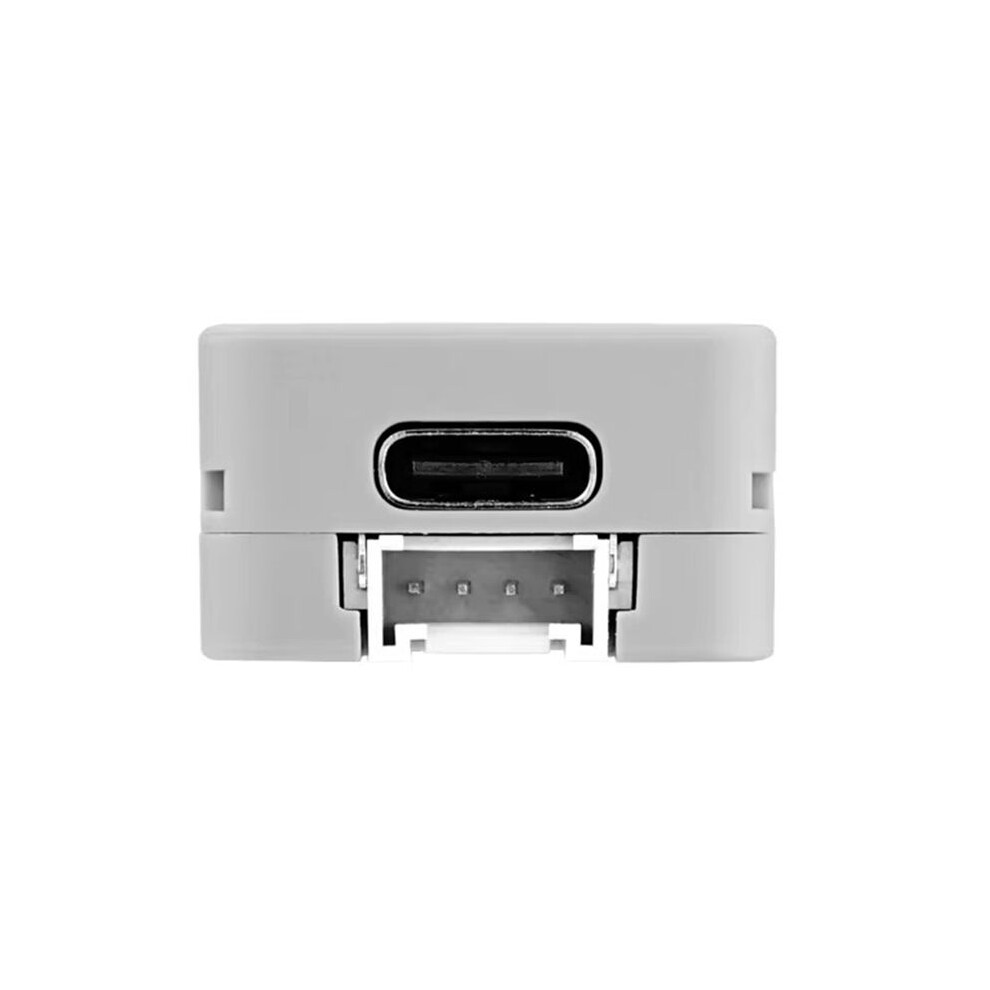

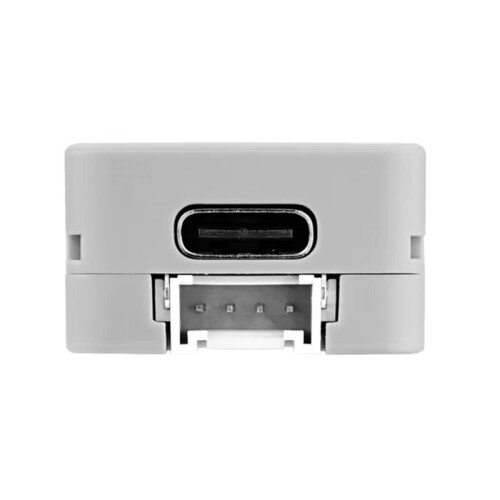

The product also includes a Type-C interface for power supply and firmware downloads, and features a HY2.0-4P expansion port. Six GPIO and power pins are reserved at the bottom for easy expansion. With a compact size, it is suitable for embedded scenarios such as IoT device monitoring and educational development tools.

Integrated ESP32-S3--1-N8R8 main controller
300,000-pixel GC0308 camera
Nine-axis sensor system (six-axis BMI270 + three-axis BMM150 geomagnetic sensor)
8MB Flash and 8MB PSRAM
Supports infrared control
Expandable pins and interfaces
Development platforms: for , for UIFlow, for Micropython
Applications:
Driver-free USB camera
Motion detection and direction sensing
Wearable devices
device control
IoT applications
Note:Due to different production batches, there are differences in printing/appearance, which does not affect use.
Colour:As Shown
Material:Plastic+Components

Package Contents:
1 * ATOMS3R Camera
