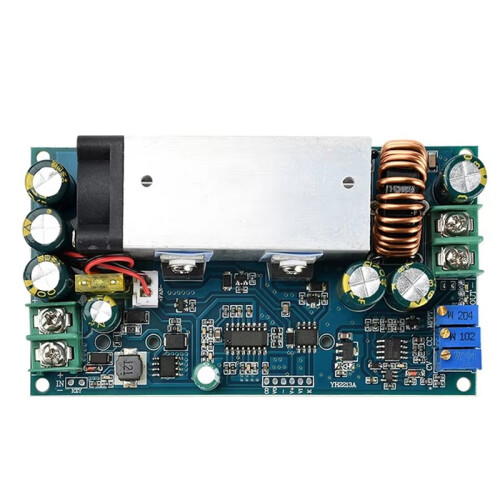

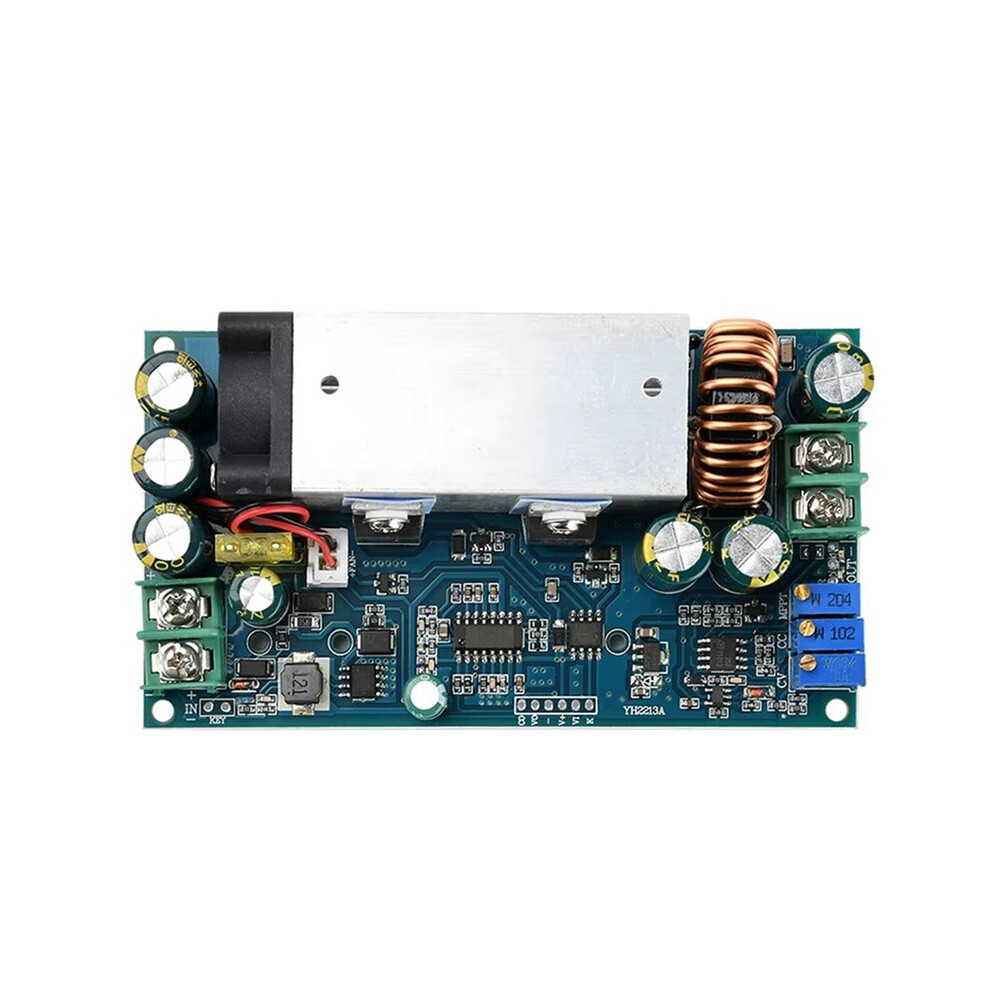

- Buck Converter Module 10-75V to 2-60V 20A Adjustable Step-Down MPPT Solar Charging Module CC CV

- Buck Converter Module 10-75V to 2-60V 20A Adjustable Step-Down MPPT Solar Charging Module CC CV Kuvaus

1. Wide input voltage range, suitable for a variety of solar panels and other power systems.
2. Built-in MPPT technology intelligently tracks the maximum power point, significantly improving conversion efficiency.
3. Supports constant voltage and constant current output modes to meet the precise charging needs of different battery packs.
4. Equipped with an intuitive display, it monitors key parameters such as voltage, current, and power in real .
5. With a maximum output current of to 20A, it is suitable for industrial equipment, outdoor storage, and DIY electronics projects.

Parameters:
Module Type: Non-isolated Synchronous Rectifier Step-Down Module
Input Voltage Range: 10-75V
Output Voltage Range: 2-60V (Voltage is random at the factory; please adjust upon receipt)
Adjustable Output Current Range: 0.1-20A (Maximum 25A)
Minimum Input/Output Voltage Difference: Input Voltage * 0.2 (The higher the output current, the greater the voltage difference)
MPPT Voltage Setting Range: 9-70V (MPPT function can be used as input undervoltage protection)
Operating Frequency: 120kHz
Overcurrent Protection: 26A
Color:
Material:PCB

Package Contents:
1 * MPPT Buck Module
