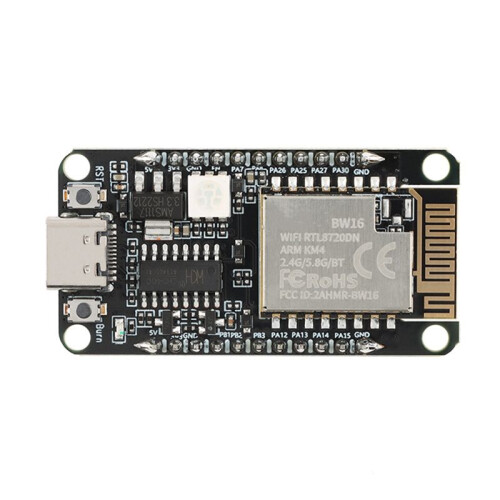

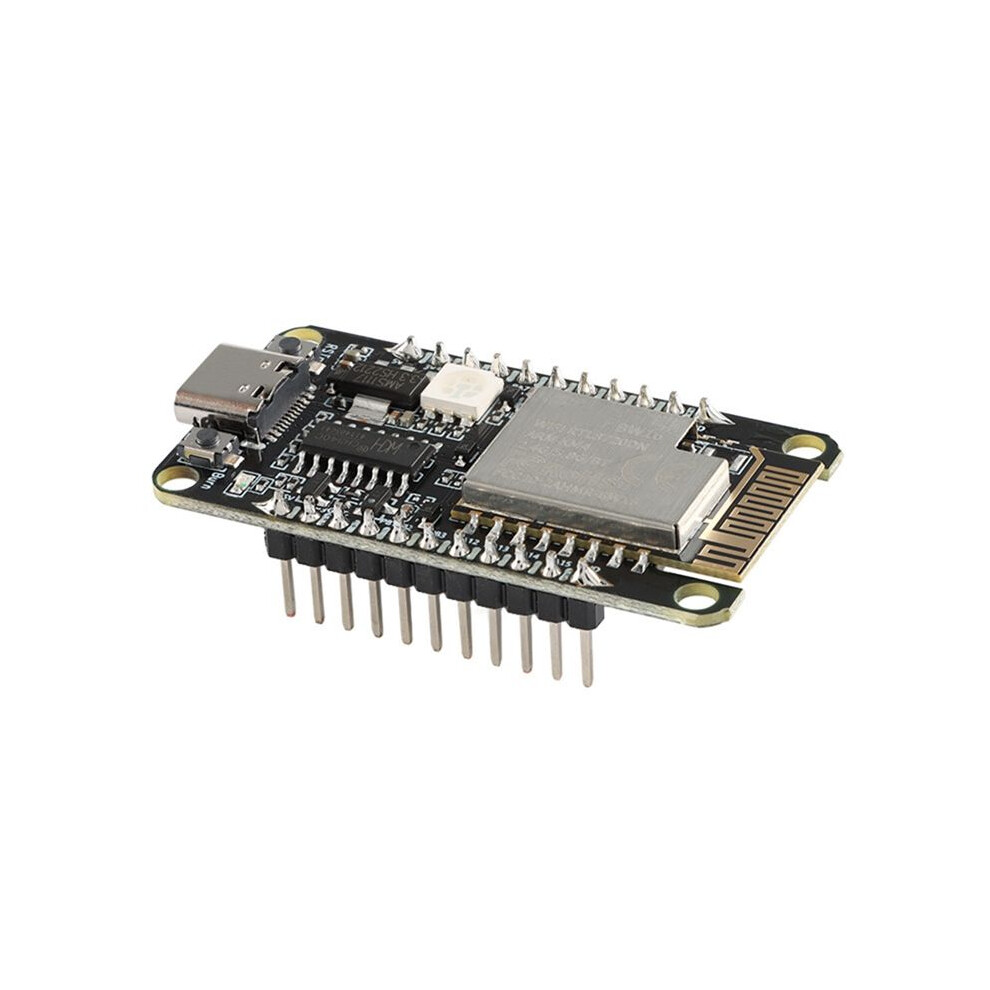

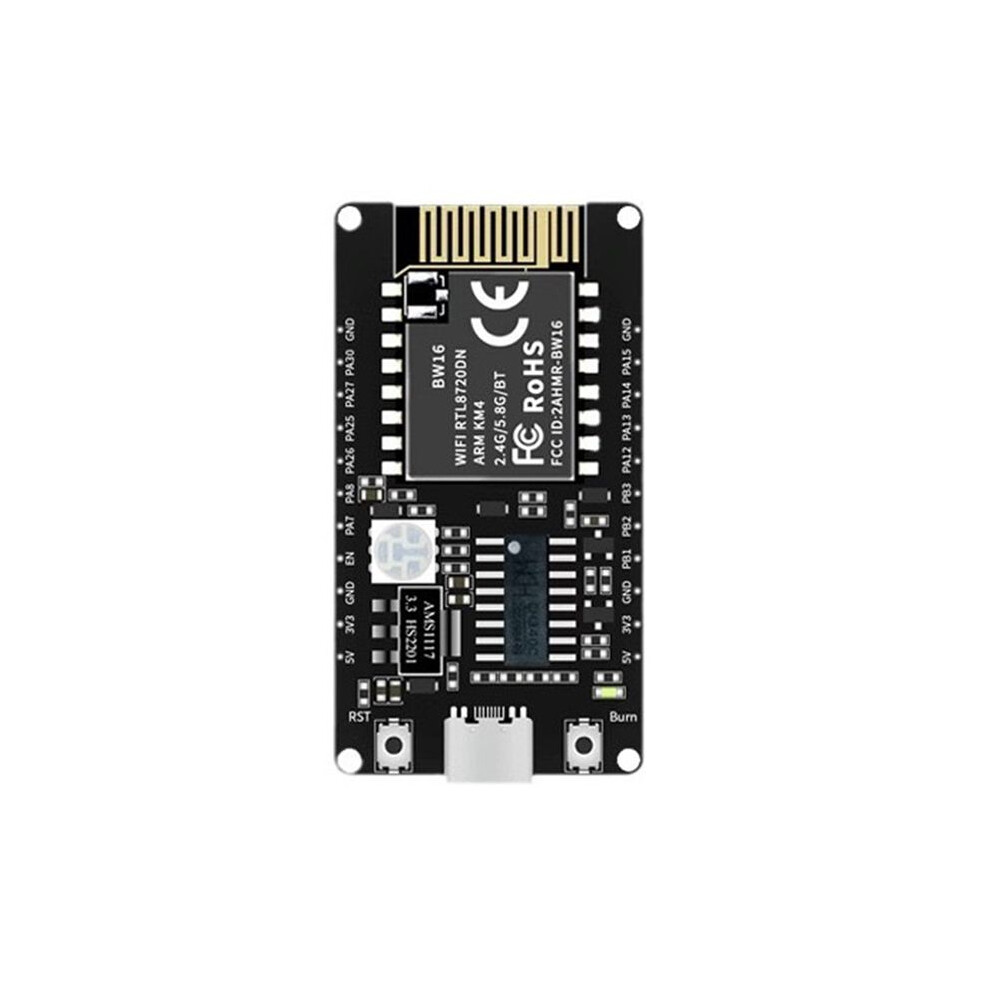

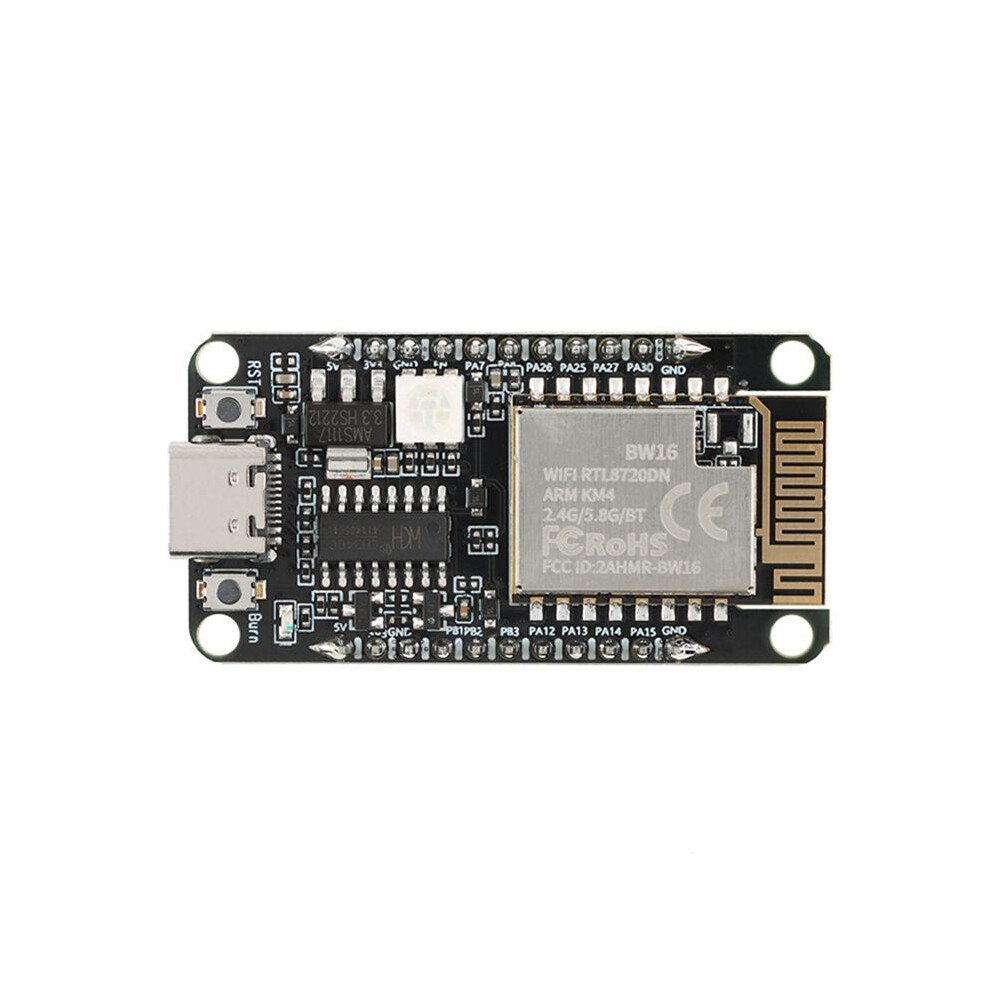

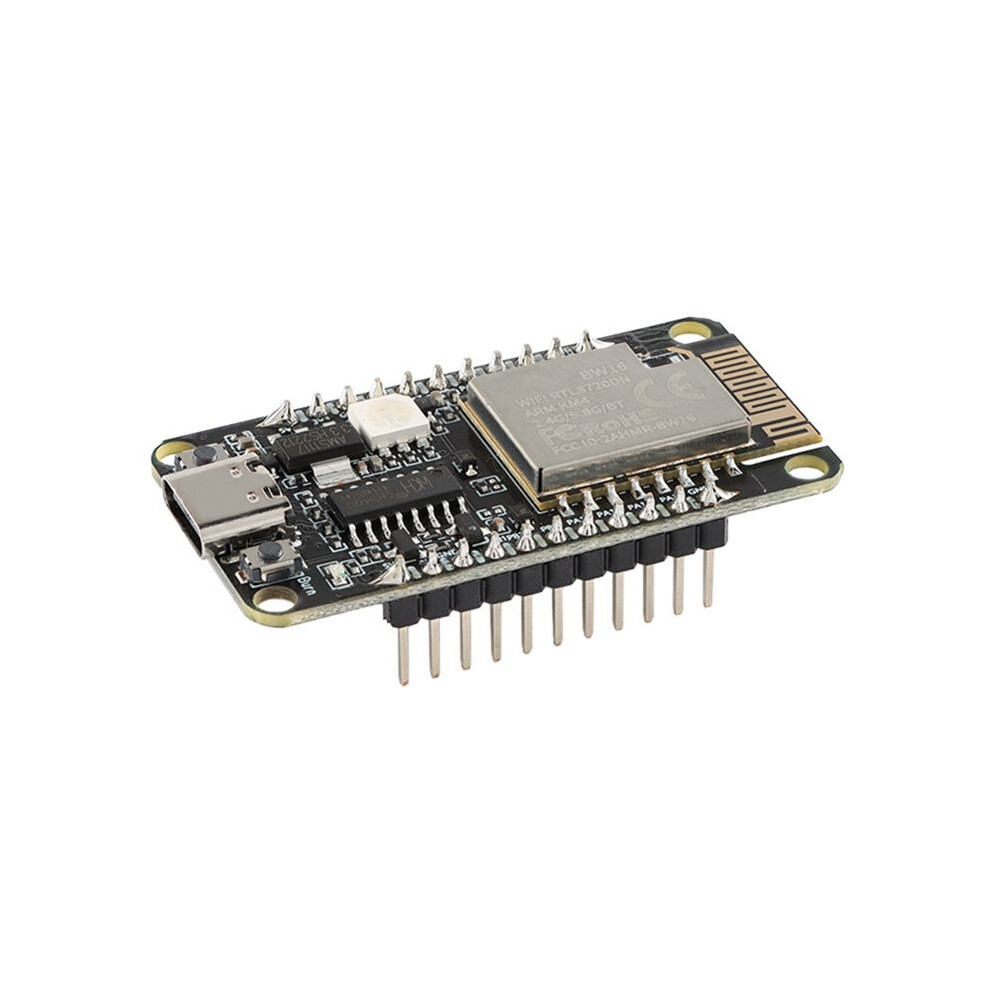

BW16-Kit Development Board RTL8720DN Dual-Band Wi-Fi Low-Power BLE Module Type-C Interface

BW16-Kit Development Board RTL8720DN Dual-Band Wi-Fi Low-Power BLE Module Type-C Interface Kuvaus

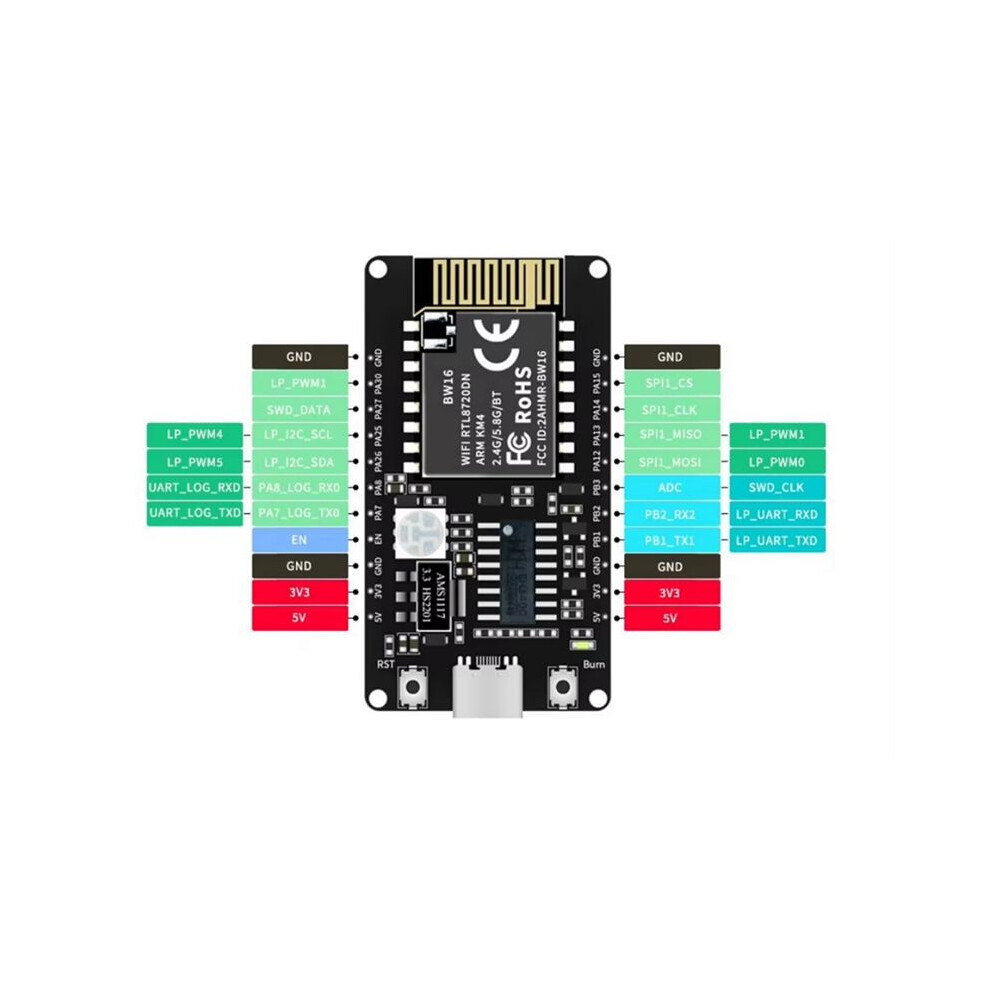

BW16-Kit is a development board designed for the BW16 module. BW16 is a dual-frequency Wi-Fi + SoC module developed by B&T based RTL8720DN chip.
BW16 supports dual-frequency (2.4GHz or 5GHz) WLAN and low-power 5.0, integrates ARM V8 (compatible with for Cortex-M4F) high-performance MCU, ARM V8M (compatible with for Cortex-M0) low-power MCU, WLAN (802.11 a/B/g/ n), , baseband and RF baseband, and provides a set of configurable GPlO for the control of different peripheral devices.

Supports for 802.11a/B/g/n,2.4GHz or 5GHz.
Support for HT20 and HT40 mode.
Supports for low-power Beacon listening mode, low-power receiver mode, and low-power suspension mode.
Built-in AES /DES / SHA hardware engine.
Supports for TrustZone-M and secure startup.
Support for SWD to debug port access protection and disable mode.
BLE 5.0 is supported.
supports high power mode (7dBm, sharing the same PA with Wi-Fi).
Wi-Fi and share the same antenna.
Supports for the STAAP/STA + AP operation mode.
Simple Config (apps) that support for Android and for IOS Wi-Fi one-click Network allocation.
Supports for -assisted network distribution.
Supports for local serial port upgrades and remote firmware upgrades (FOTA).
Supports for secondary development and programming in Linux and Window environments.
Supports for development.
Colour:Black
Material:PCB+Plastic+Metal

Package Contents:
1 x BW16-kit Development Board
