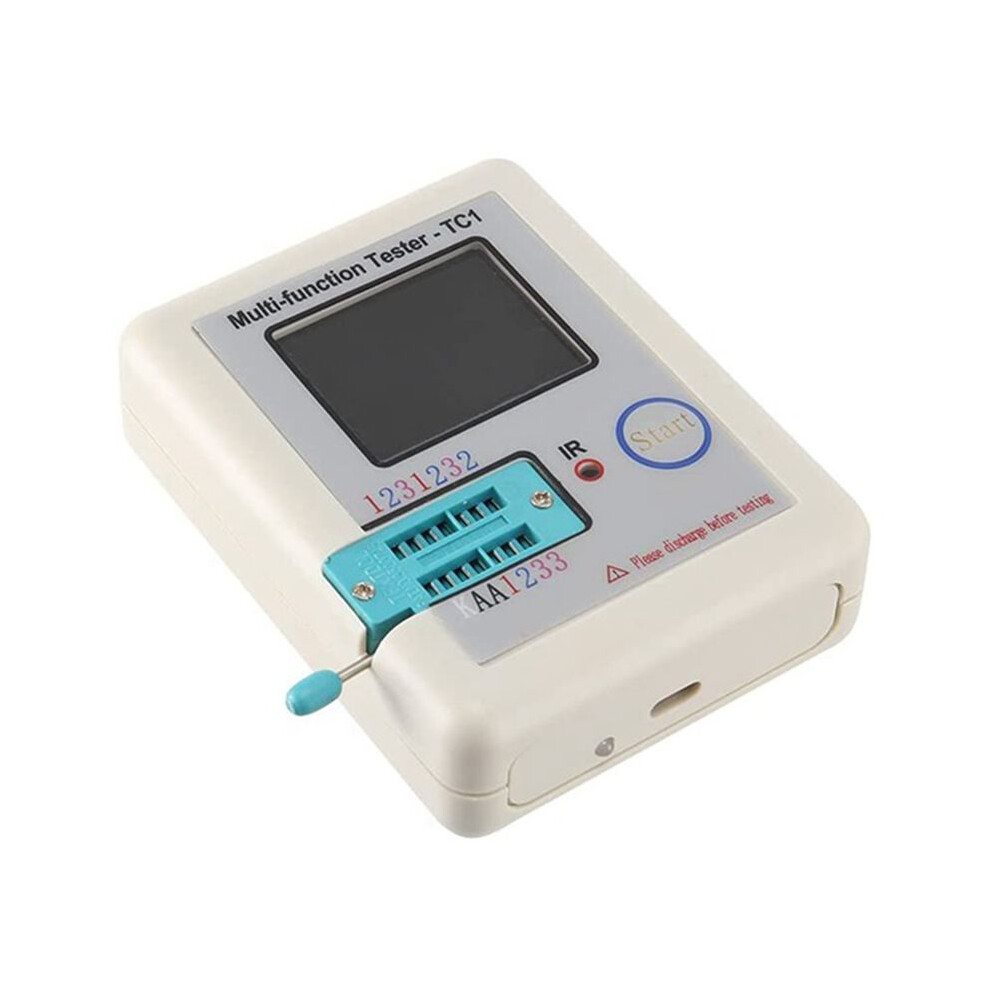

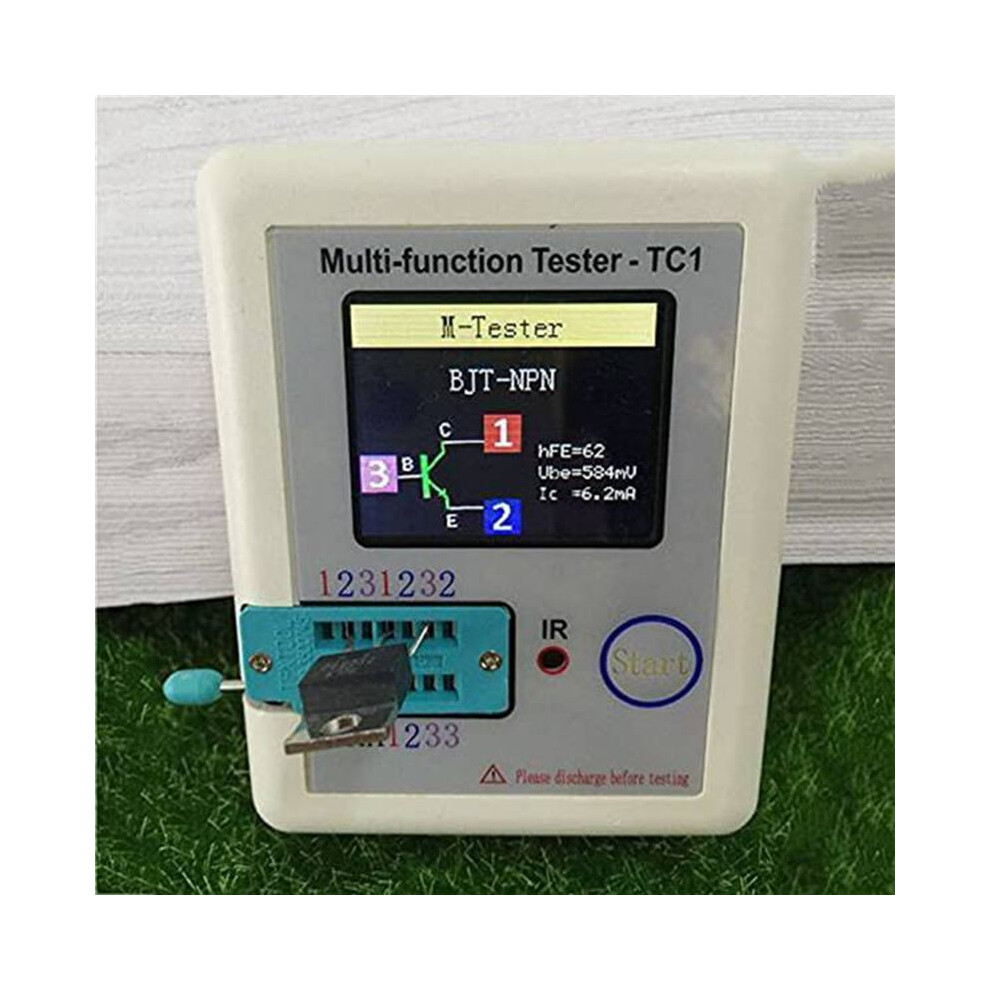

Colorful Display Multi-Functional TFT Backlight Transistor -TC1 Tester for Diode Triode Capacitor Resistor

Colorful Display Multi-Functional TFT Backlight Transistor -TC1 Tester for Diode Triode Capacitor Resistor Kuvaus

It can be widely used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc.
It can also be used to detect infrared wave forms. It also can detect zener diode and has the function of self-calibration. After detection, align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.
One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector too.

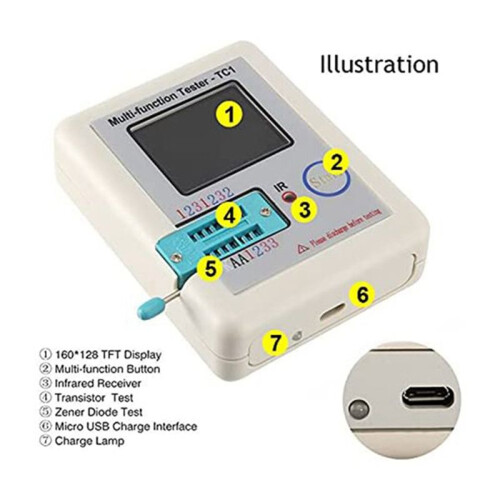

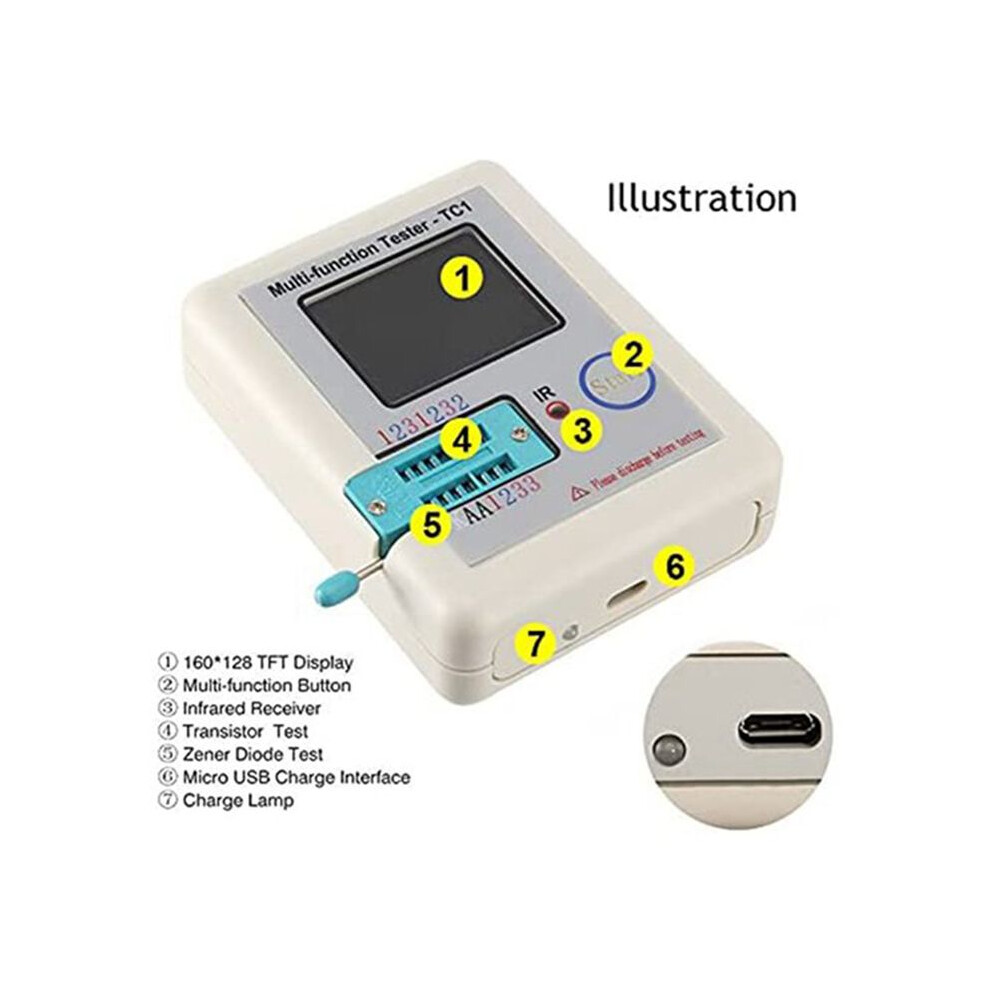

Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display the backlight TFT screen clearly.
Not like the usual black and white display, this detector will show results in color.

Display: 160*128 TFT Screen
Diode Range: Less than 4.5V
Zener Diode:Transistor Detect Area: 0.01-4.5V
Zener Diode Detect Area: 0.01-30V
Triac Range: IGT Less than 6mA
Capacitance: 25pF-100mF
Resistor: 0.01-50MΩ
Inductance: 0.01mH-20H
Battery: 0.1-4.5V
Power Mode: Rechargeable Lithium Battery(INCLUDED)
Operating Instructions:
1. Multi-function key has two actions:
Short press: Press the key and not less than 10 ms, release key within 1.5 seconds
Long press: Press the key more than 1.5 seconds
2. Power :
In the power off state, short press the multifunction key, the tester is turned and automatically measured.
Name:Transistor tester
Colour:White
Material:ABS

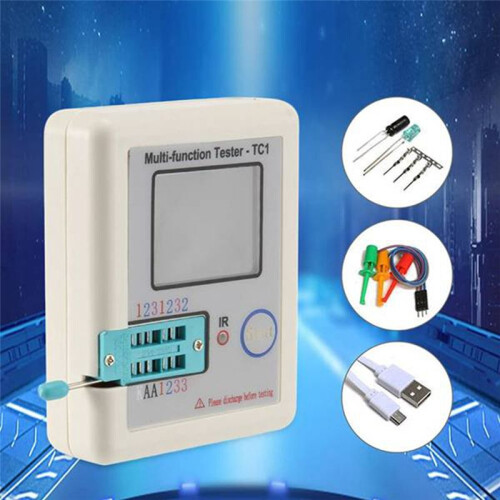

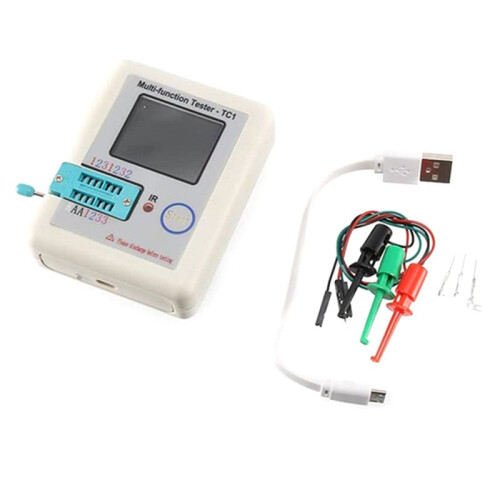

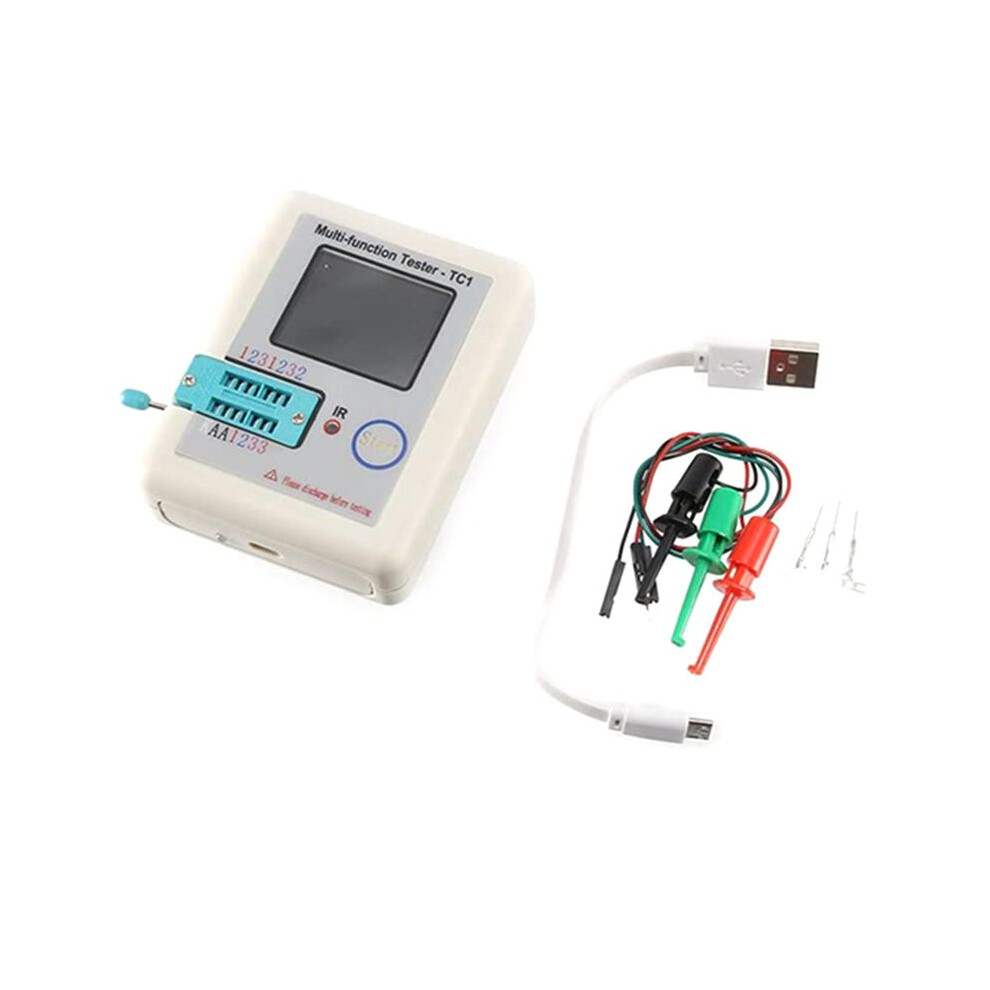

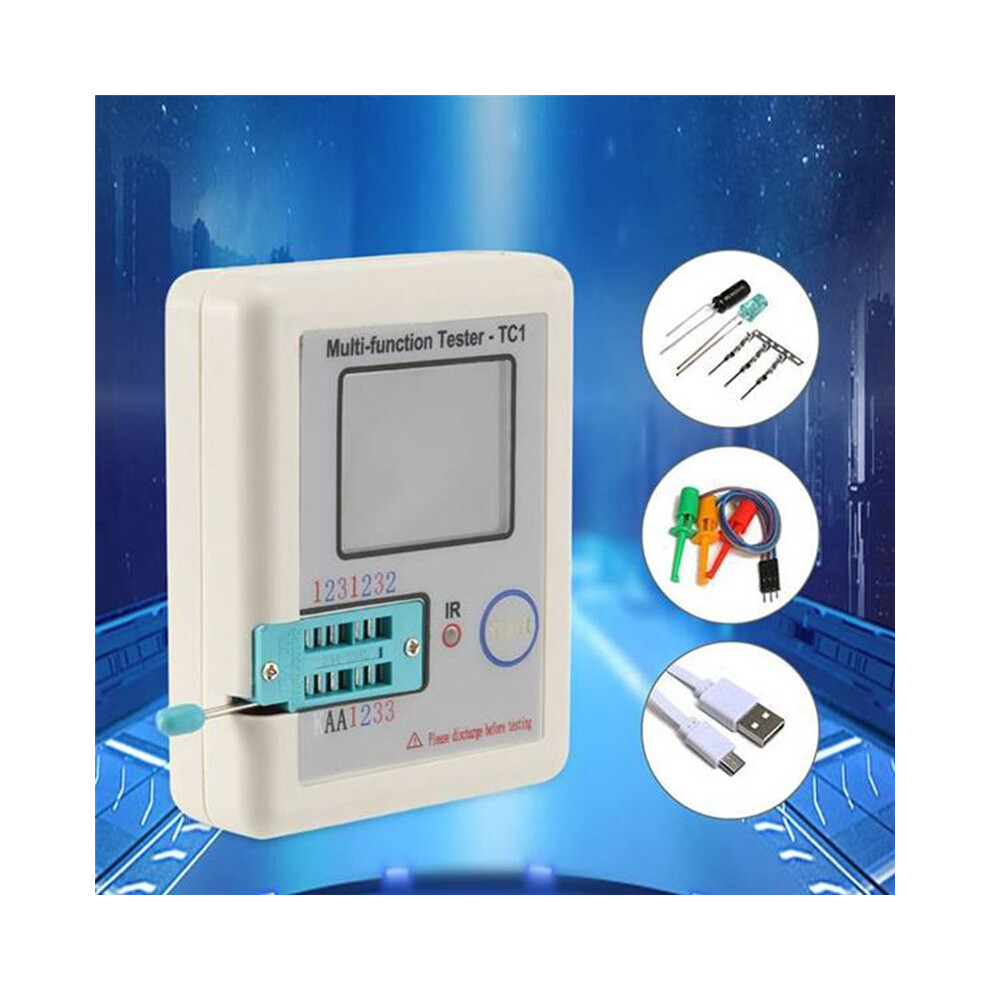

Package Contents:
1 x TFT Transistor tester
1 x Electronic component set (with or without it is random and does not accept the designation)
3 x Test hooks
1 x Cable
