Core2 V1.1 ESP32 Touch Screen Development Kit WiFi Graphical Programming Control

Core2 V1.1 ESP32 Touch Screen Development Kit WiFi Graphical Programming Control Kuvaus

Core2 V1.1 is an iterative version of Core, with upgraded power IC and a continuation of the classic design of Core2. It is a powerful and user-friendly development board.

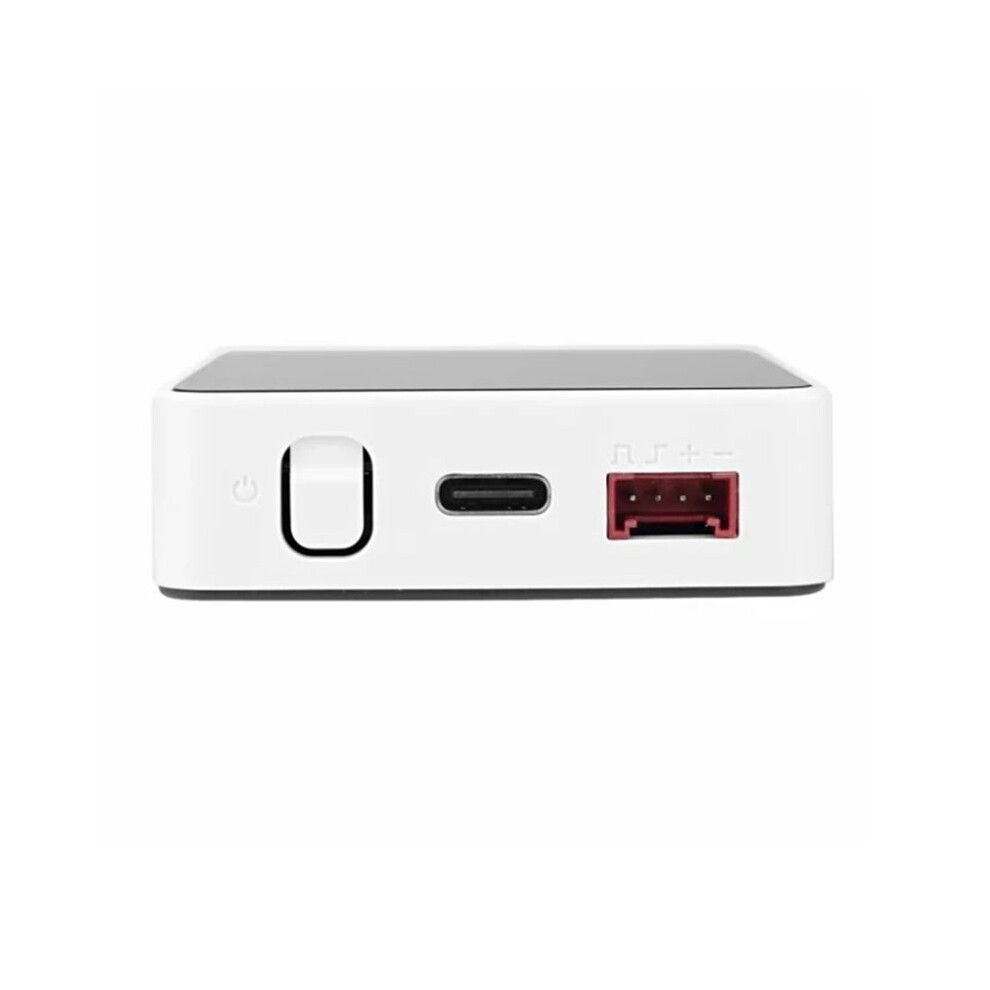

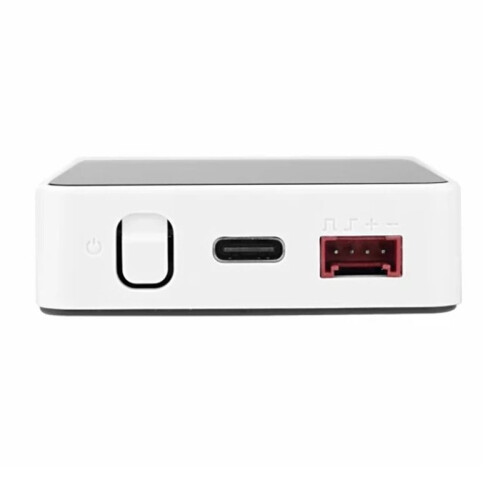

Core2 V1.1 is equipped with ESP32-D0WDQ6-V3, featuring two independent Xtensa 32-bit LX6 processors with a clock frequency of to 240MHz. It supports WiFi and has onboard 16MB Flash and 8MB PSRAM, and supports program downloading via the TYPE-C interface.

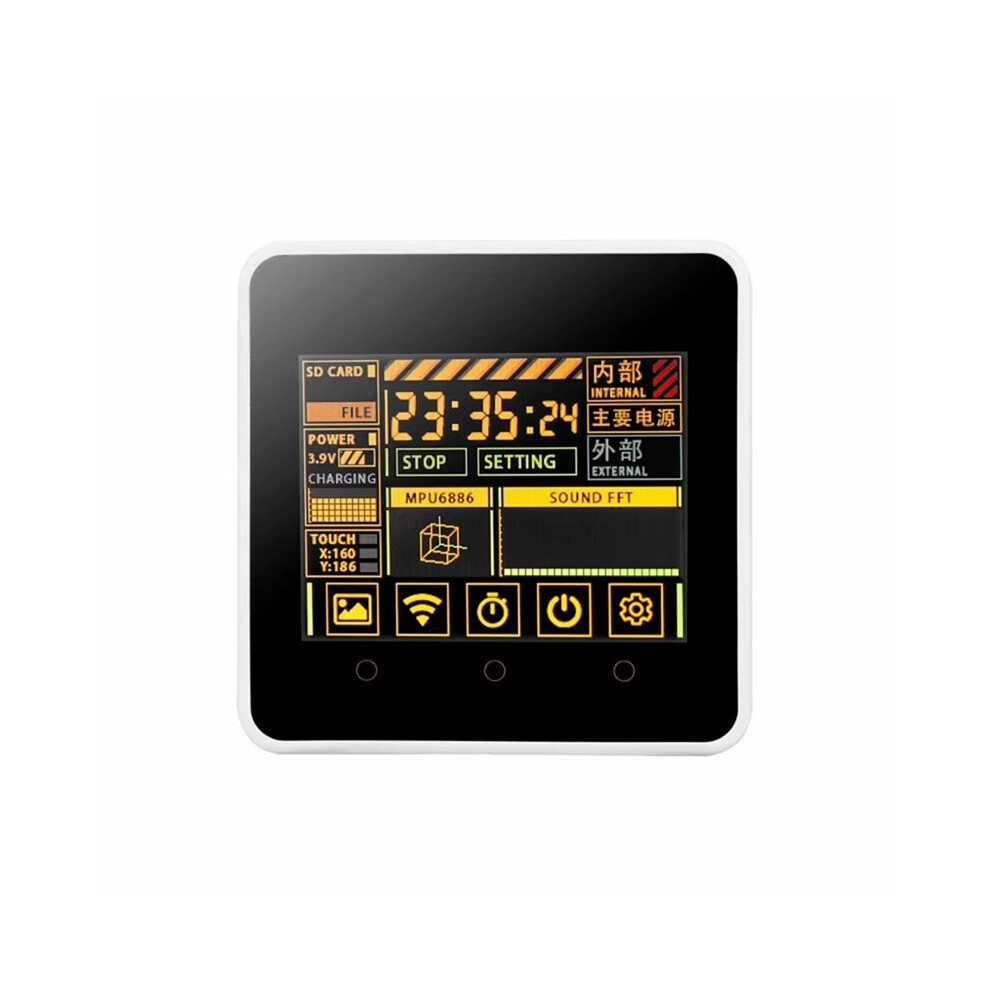

Core2 V1.1 is equipped with a 2.0-inch integrated capacitive touch screen. The three dots the front of the screen are part of the touch screen. Users can set the hot zone mapping as three virtual buttons through programming, enabling diverse human-machine interaction experiences. Additionally, Core2 V1.1 has a built-in vibration motor for haptic feedback and vibration alert functionality.
Core2 V1.1 has an integrated RTC module and a dedicated battery for RTC power supply, providing accurate timing functionality. Furthermore, the AXP2101 power management chip effectively controls the power consumption of the device. Core2 V1.1 also has a built-in power indicator light.
Core2 V1.1 is also equipped with a Micro- card slot, speaker, and a high-quality I2S digital audio interface power amplifier chip. The expansion board the back of the device integrates a 6-axis IMU sensor and a microphone, providing additional functionality and possibilities.

NOTE:
This product contains batteries that are non-replaceable.
TF card slot (16G Maximum size)
Compatible with multi-platform development:
for UIFlow
for MicroPython
for
for NET nanoFramework
Operating System (RTOS):zephyr
Applications:
Internet of things terminal controller
Stem education product
DIY creation
home equipment
Note:Due to different production batches, there are differences in printing/appearance, which does not affect use.
Colour:Black & White
Material:Plas
