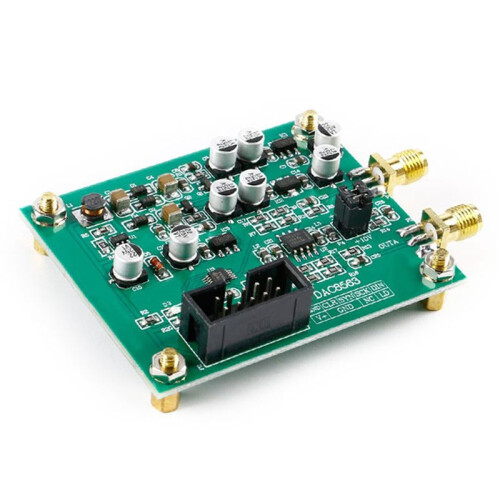

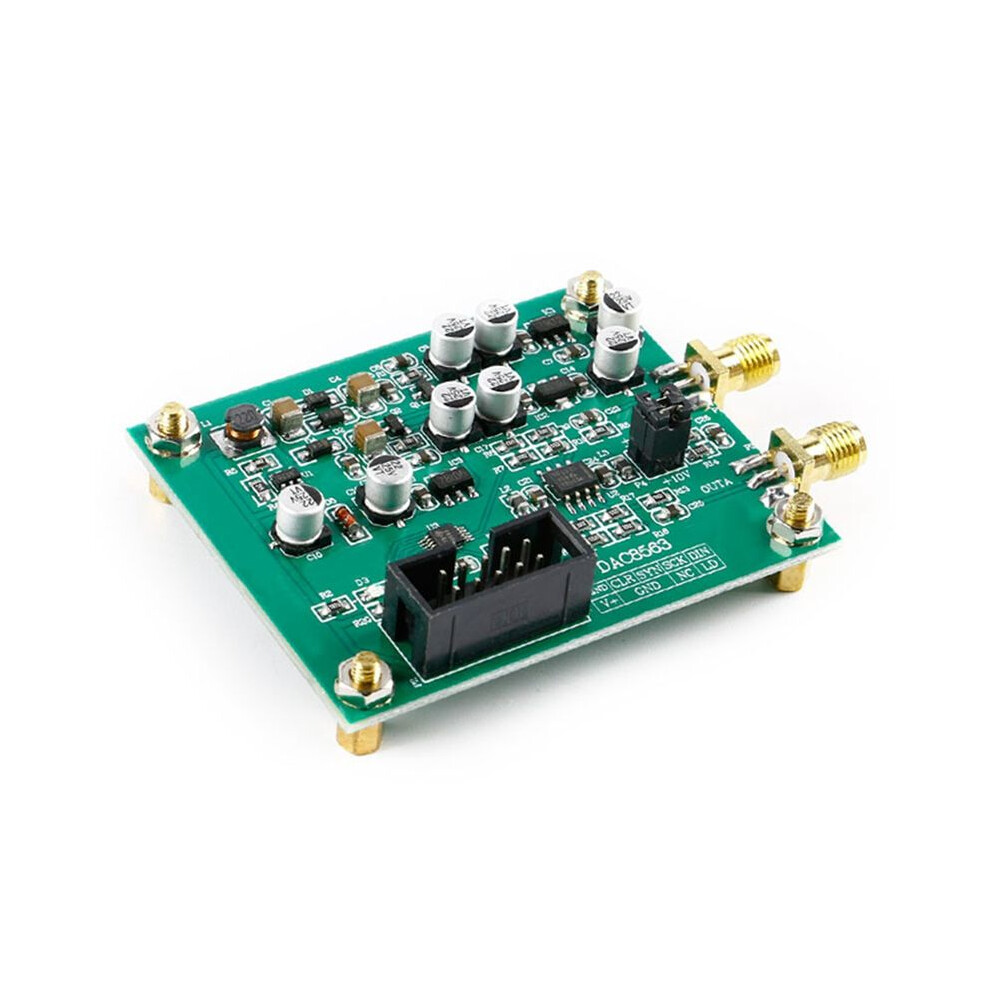

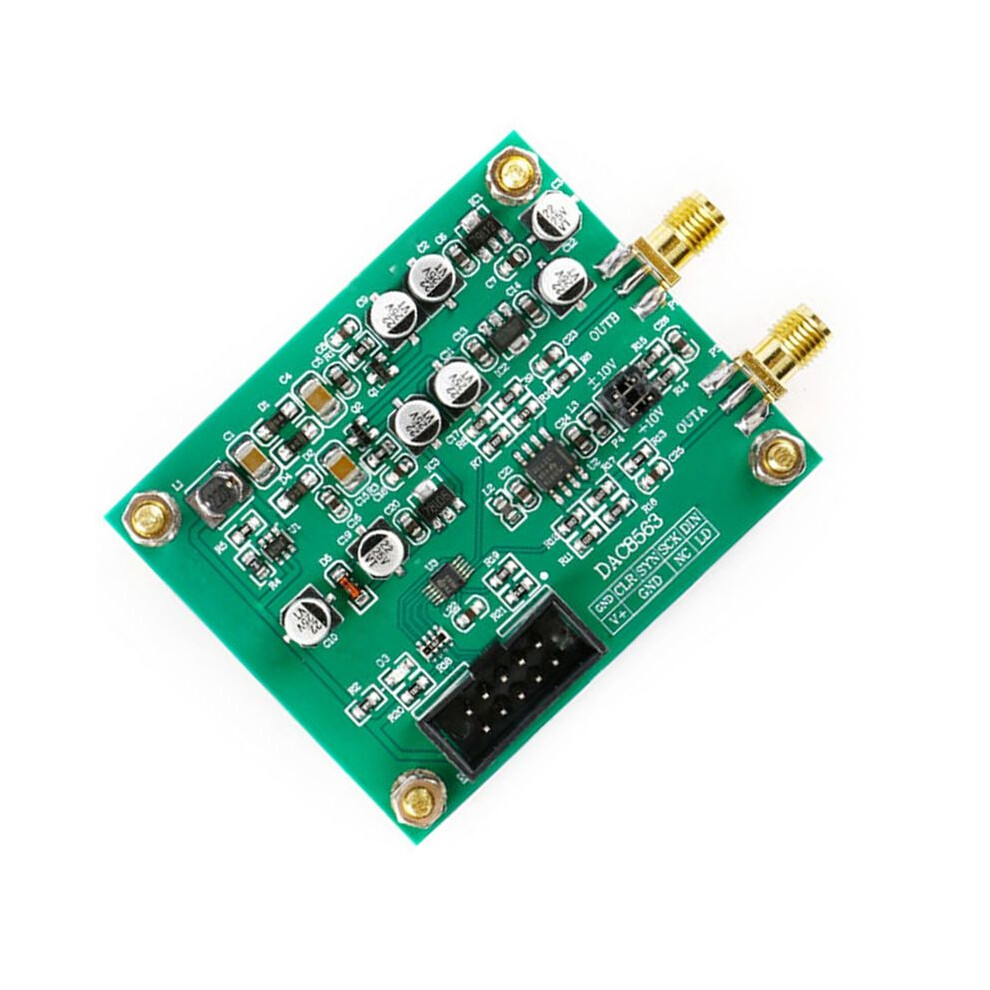

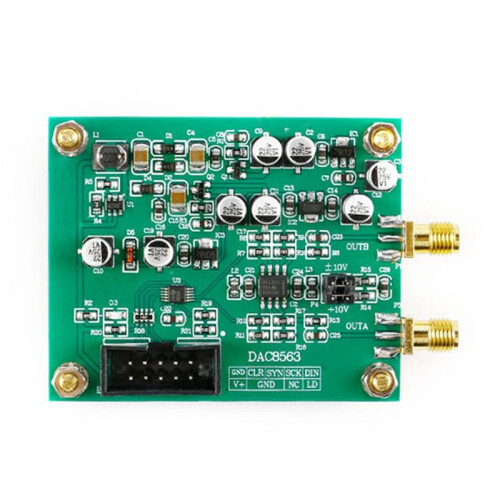

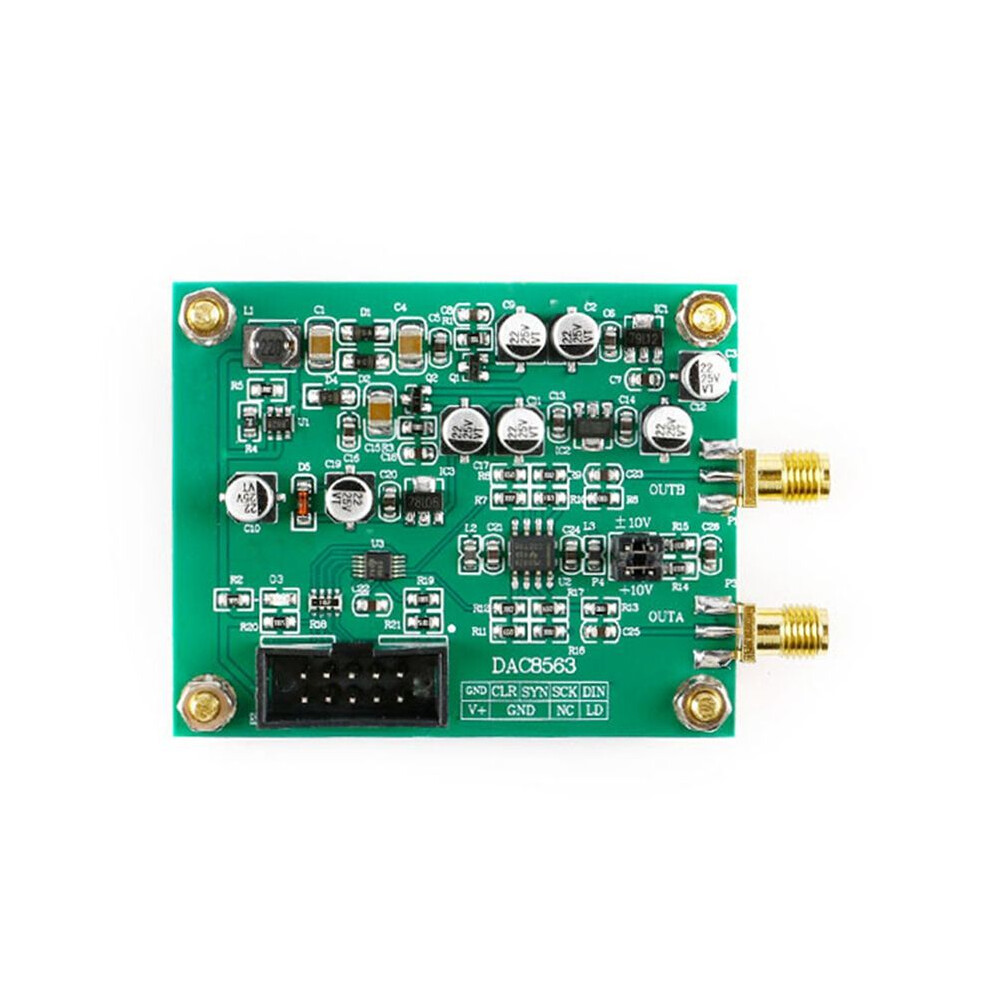

DAC8563 Digital to Analog Conversion Module DAC Data Acquisition Module Dual 16-Bit Adjustable 10V Voltage Board

DAC8563 Digital to Analog Conversion Module DAC Data Acquisition Module Dual 16-Bit Adjustable 10V Voltage Board Kuvaus

Module model: DAC8563
Module type: digital-to-analog conversion module
Module power supply: DC3V-5V
Module current: 100mA (MAX)
Module communication protocol: SPI serial

Module provides routines: STM32F103RBT6
Routine platform: STM32F103X-M3; KEIL5 version source code

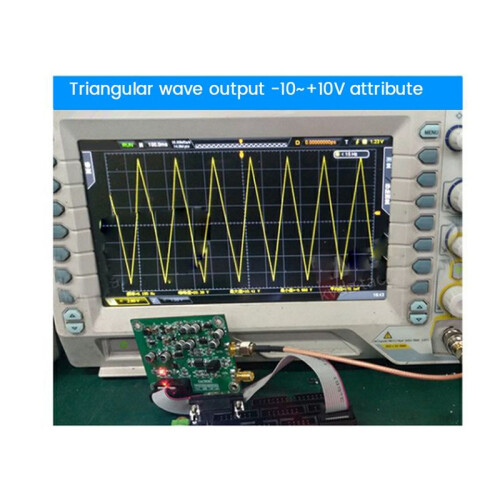

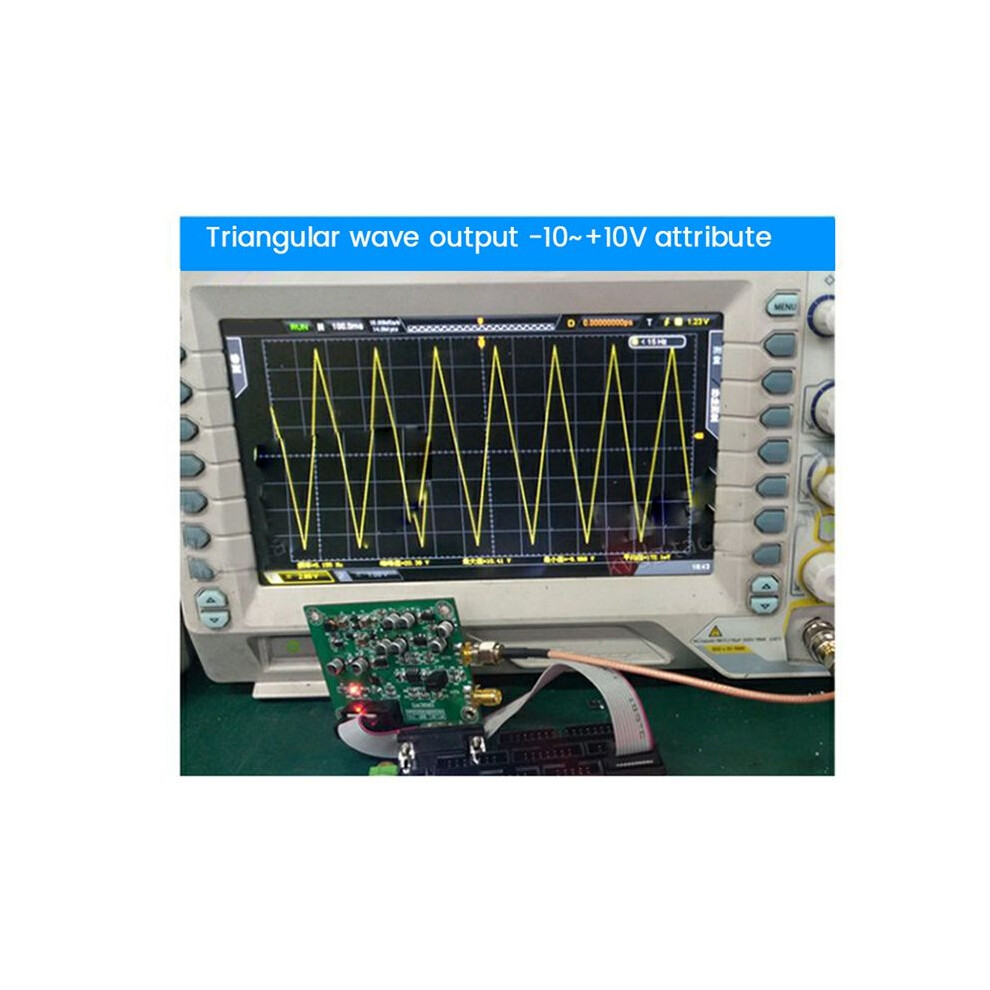

Module output voltage range: 10V or 0-10V
DAC resolution digits: 16
Number of output channels: 2 channels independent
Module output interface: SMA; 24-hour salt spray anti-oxidation
Module output signal: voltage; OPA1602 chip output, with a certain driving capacity, within 20mA
Reference voltage: 2.5V; internal 2.5V reference
Voltage settling : 10uS
DAC output analog bandwidth: 100KHz
Module features: multiple; with output buffer amplifier, ultra-low AC crosstalk, fast settling
Module application: multiple; programmable voltage source, instrument and control system, sensor excitation, motion process control
Module interface type: SMA signal output and external reference input, DC5.5 power socket
XH2.54 pin data interface.
Colour:Green
Material:ABS

Package Contents:
1x Digital to Analog Conversion Module
