DLT645 to Network Modbus RTU Protocol Converter DL Protocol Centralized Meter Reader Electricity to Ethernet

DLT645 to Network Modbus RTU Protocol Converter DL Protocol Centralized Meter Reader Electricity to Ethernet Kuvaus

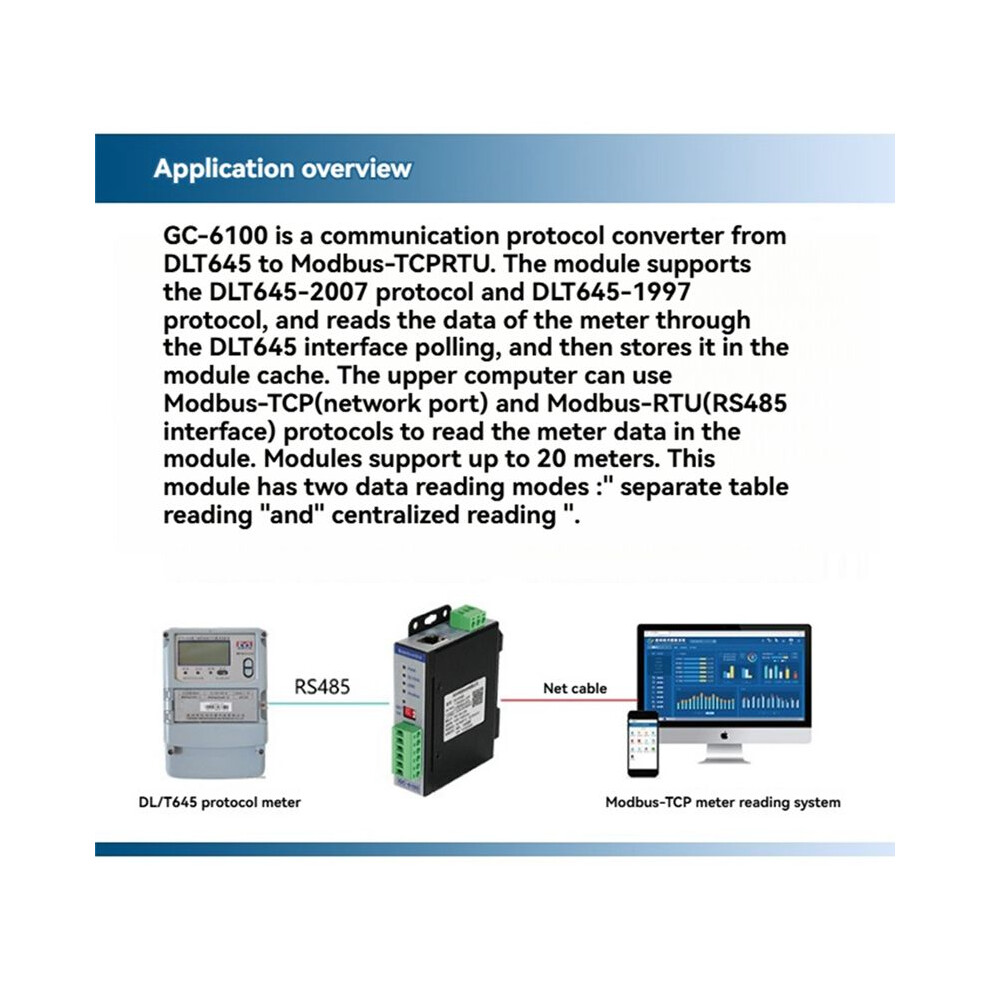

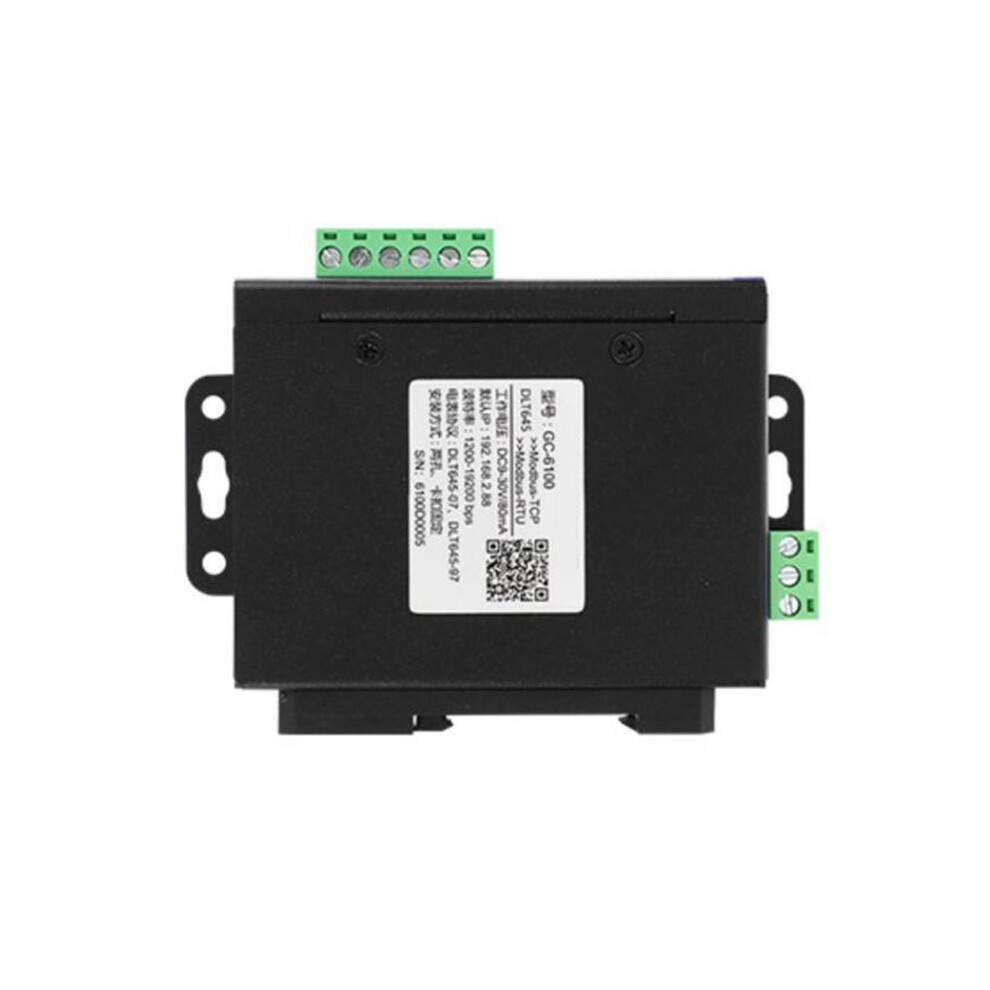

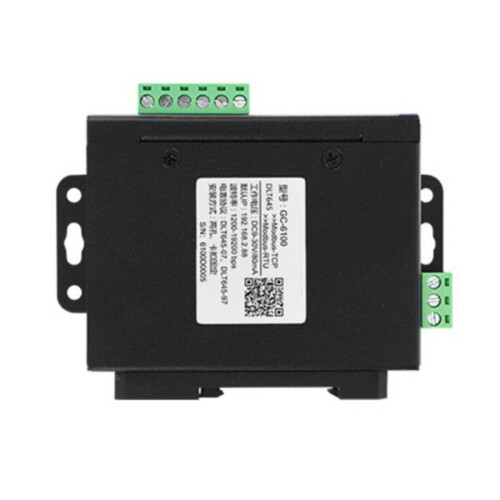

GC-6100 is a communication protocol converter from DLT645 to Modbus-TCP&RTU.

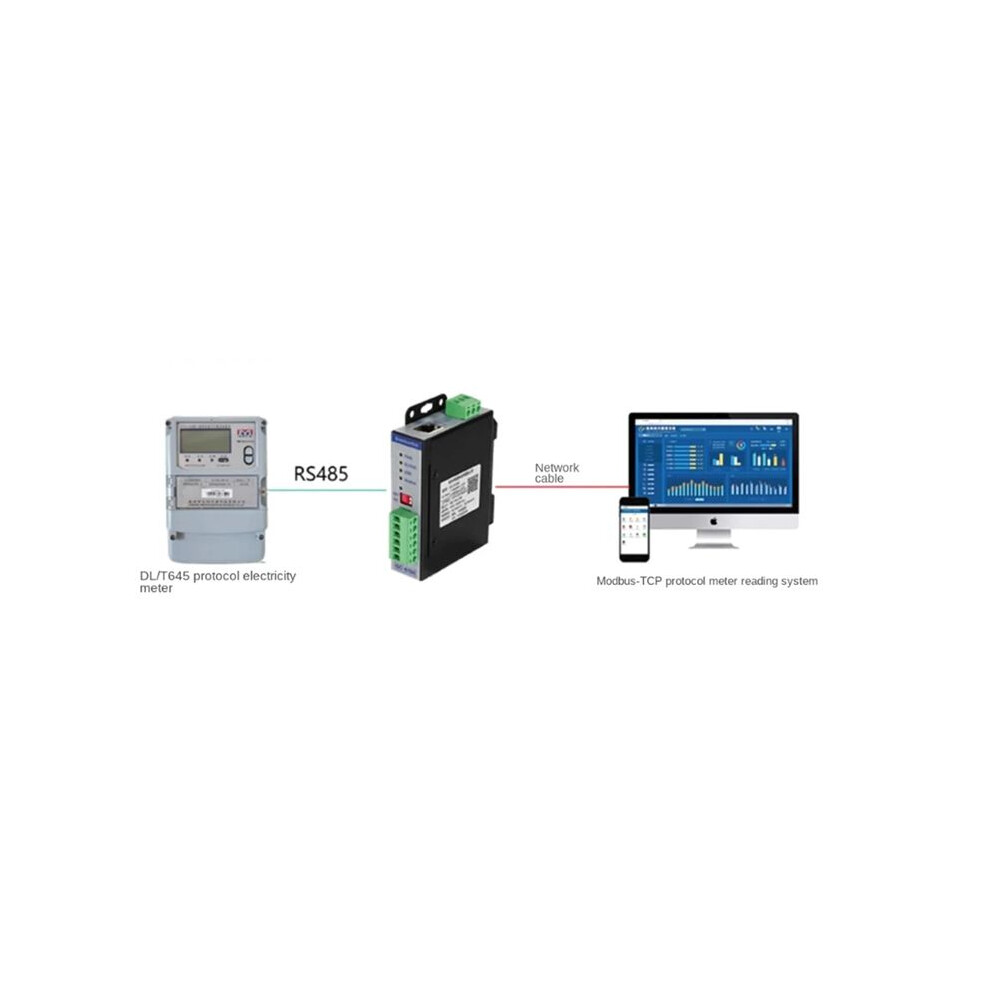

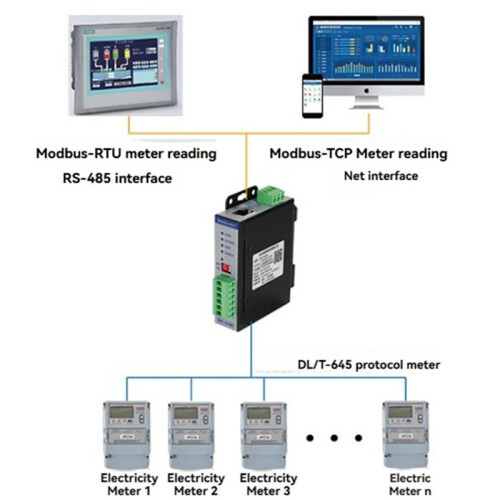

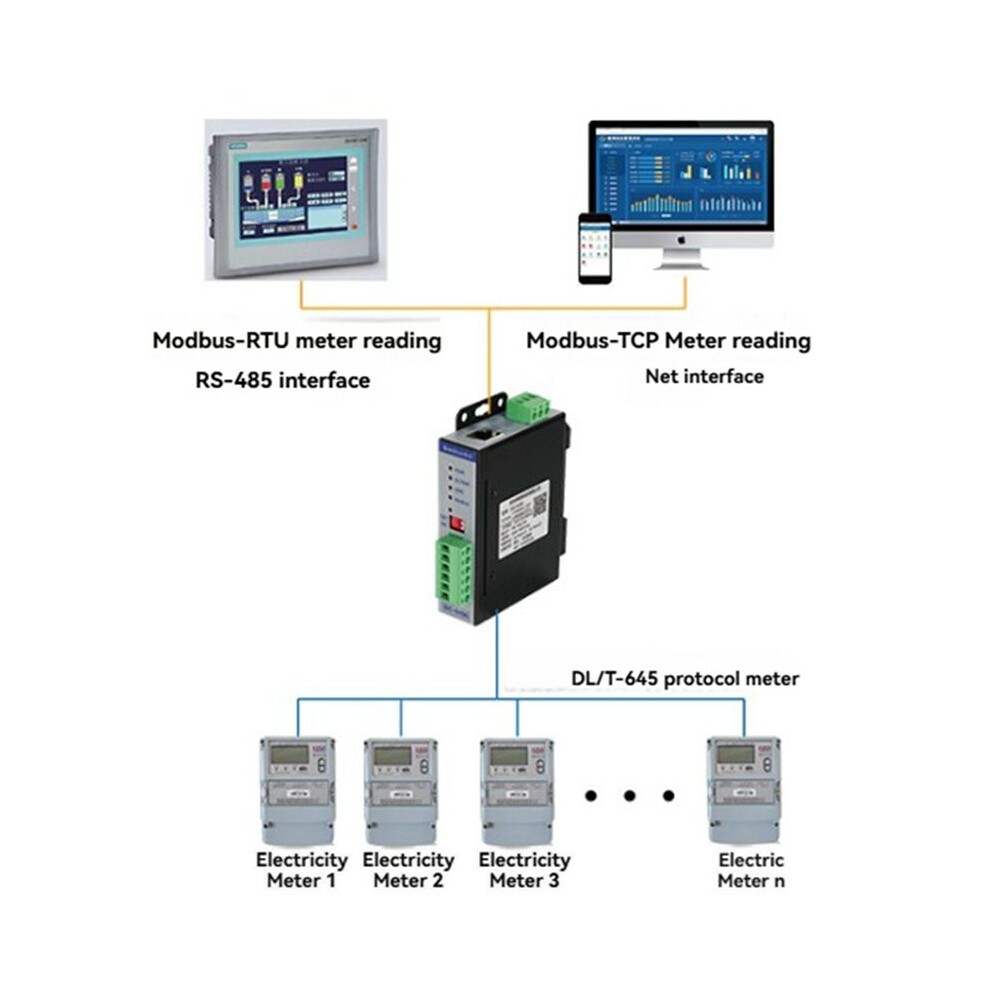

The module supports DLT645-2007 protocol and DLT645-1997 protocol. It reads the data of the meter through the DLT645 interface polling and then stores it in the module cache. The host computer can use Modbus-TCP (network port) and Modbus-RTU (RS485 interface) protocols to read the meter data in the module.
The module supports to 20 meters.
This module has 2 data reading modes: "reading from separate meters" and "centralized reading"

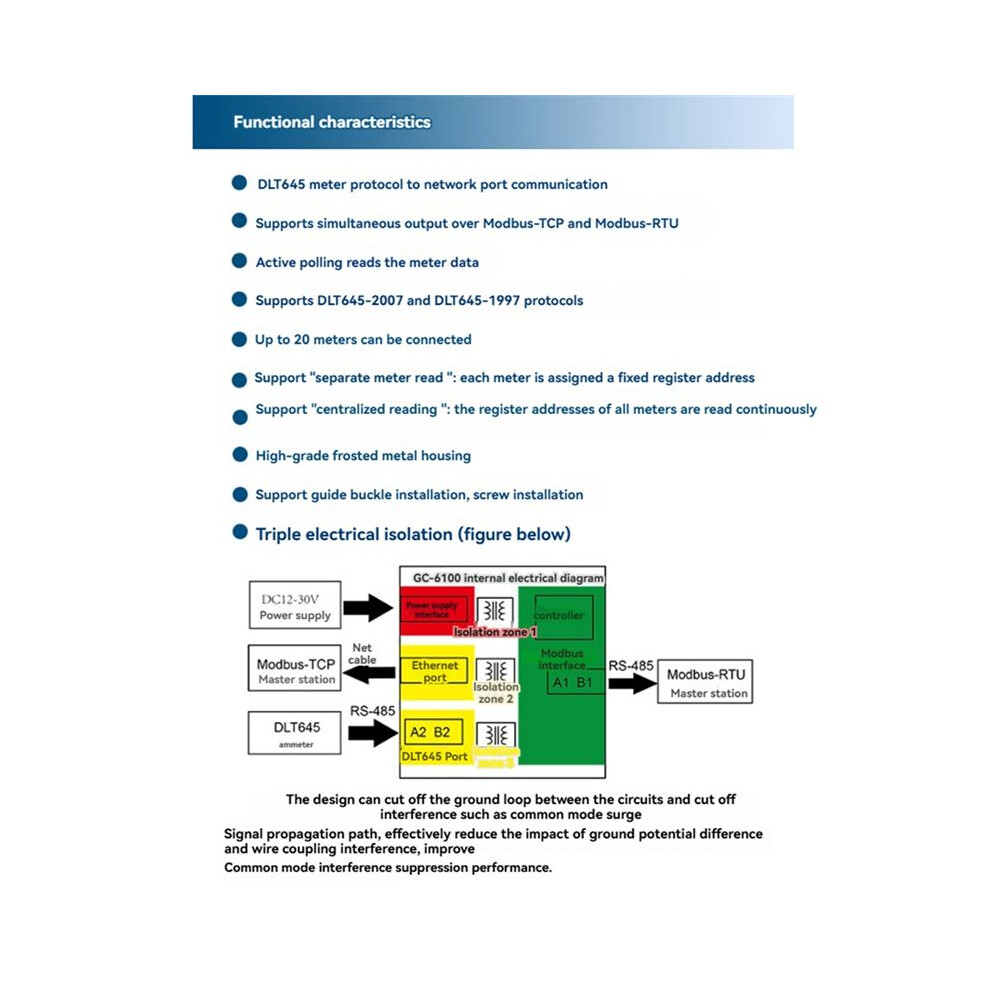

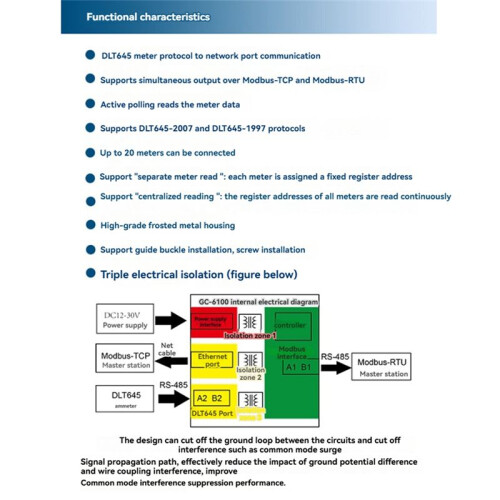

Functional features:
DLT645 meter protocol to network port communication
Support Modbus-TCP and Modbus-RTU simultaneous output
Active polling to read meter data
Support DLT645-2007 protocol and DLT645-1997 protocol
Can connect to 20 meters
Support "reading from separate meters": each meter is assigned a fixed register address
Support "centralized reading": the register addresses of all meters are read continuously
Support rail clip installation and screw fixed installation
Note:Due to different factory batches, if there is slight difference in appearance, it will not affect the use.
Colour:Black
Material:ABS

Package Contents:
1 * DLT645 module
