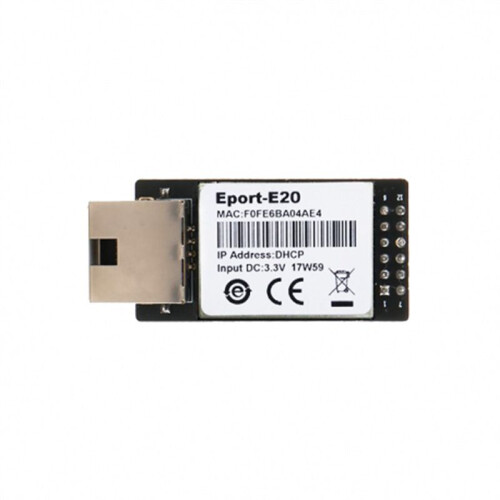

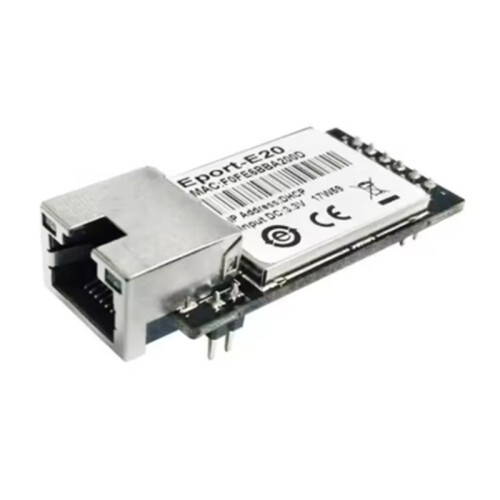

Eport-E20 Network Server Port FreeRTOS TTL Serial to Ethernet Embedded Module DHCP 3.3V IP Telnet Wifi

Eport-E20 Network Server Port FreeRTOS TTL Serial to Ethernet Embedded Module DHCP 3.3V IP Telnet Wifi Kuvaus

Using Cortex-M3 MCU (128KB ) and 2MB Flash
Using FreeRTOS real- operating system
Support TCP/IP/Telnet /Modbus TCP protocol

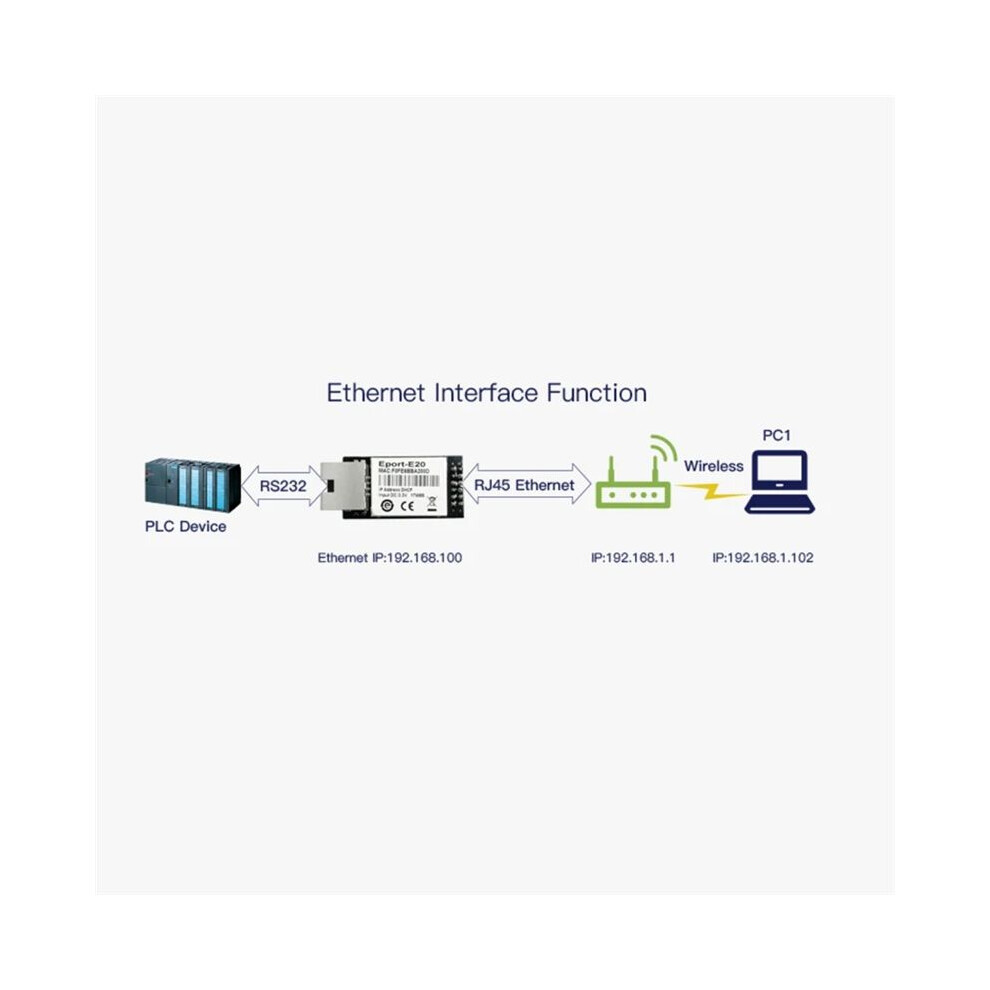

Support serial port to 10/100M Ethernet data transmission, serial port rate to 921600 bps
Support 10/100M Ethernet self-adaptation

Support simple configuration via web page
Support web page OTA wireless upgrade
Single power supply +3.3V
Processor/main frequency Cortex-M3/96MHz
Flash/SDRAM 2MB/128KB
Ethernet
Number of 1 RJ45 with LED
Interface standard 10/100 Fast Ethernet automatic negotiation
Protection measures 2KV isolation
Network transformer integrated
Network protocol: IP, TCP, UDP, DHCP, DNS, HTTP Server/Client, ARP, BOOTP, AutoIP, ICMP, Web socket, Telnet, FTP, TFTP, uPNP, NTP, SNMP, Modbus TCP
Security protocol: TLS, AES 128Bit, DES3
Serial port:
Number of : 1 + 1 debug port
Interface standard TTL: 2 wire (TX, RX)
Data bit: 5, 6, 7, 8
Parity bit: None, Even, Odd, Space, Mark
Baud rate TTL: 600 bps-921600 bps
Flow control: RTS/CTS, DSR/DTR, X / X off, NONE
Software
Web page HTTP web page configuration Custom HTML web page Interactive web page
PC configuration software Support
SDK development kit
Basic parameters:
Operating temperature: -45C - 85C
Storage temperature: -45C - 105C, 5 - 95% RH (non-condensing)
Input voltage: 3.3V
Operating current: -100mA
Power consumption: Less than 400mW
The appearance may be slightly different due to different factory batches, but it will not affect the use
Colour:White
Material:ABS

Package Contents:
1 x embedded module
