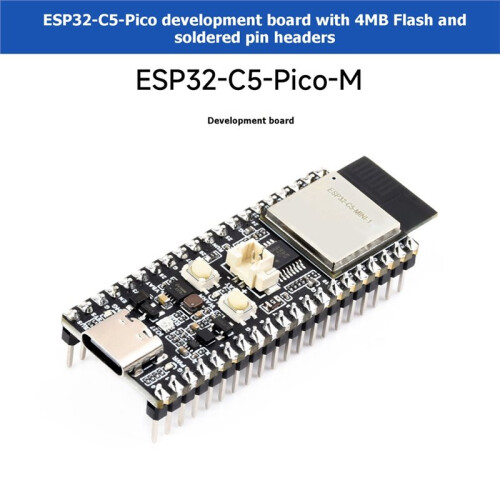

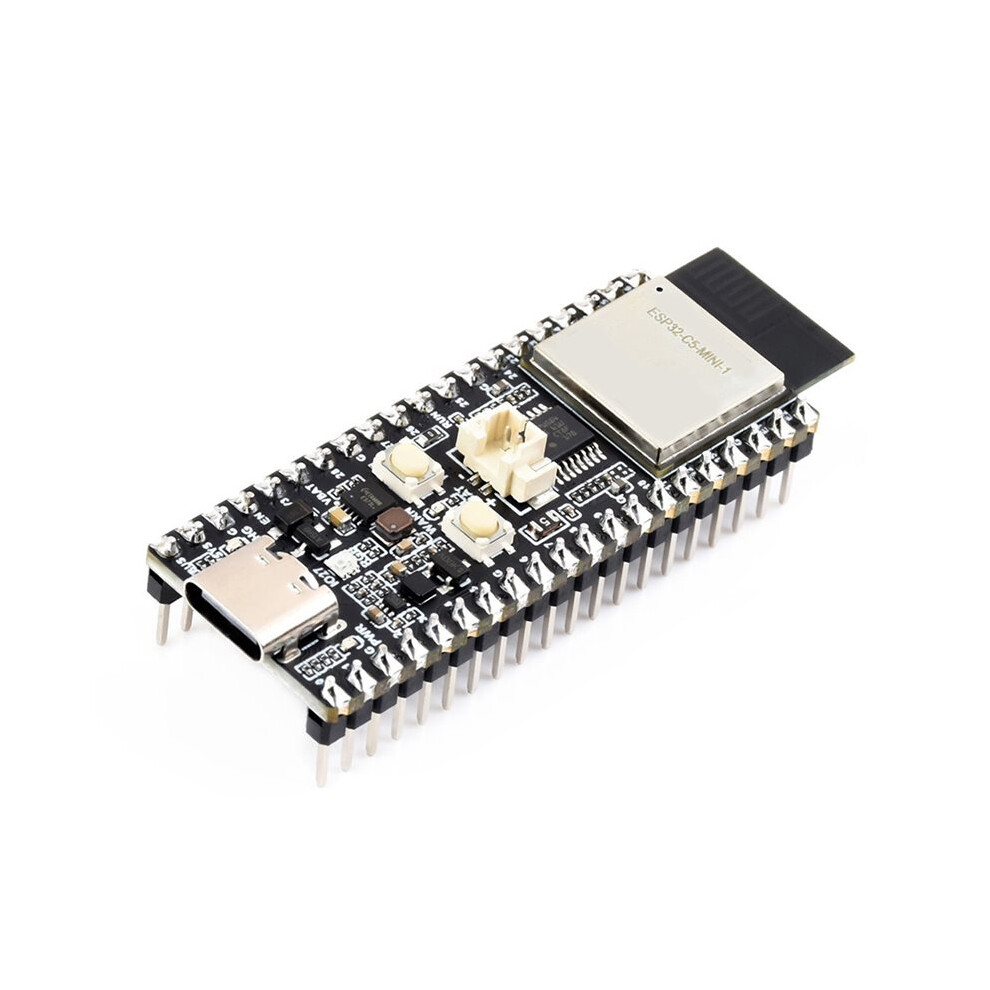

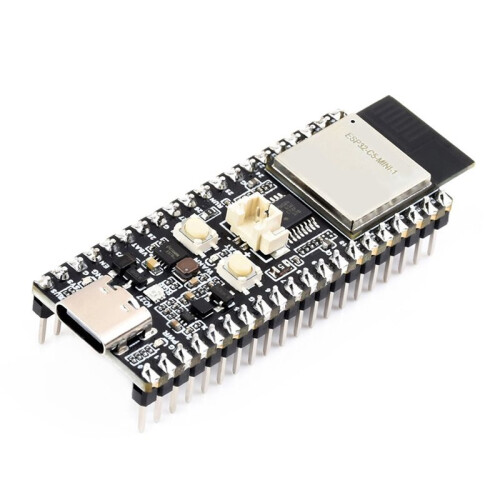

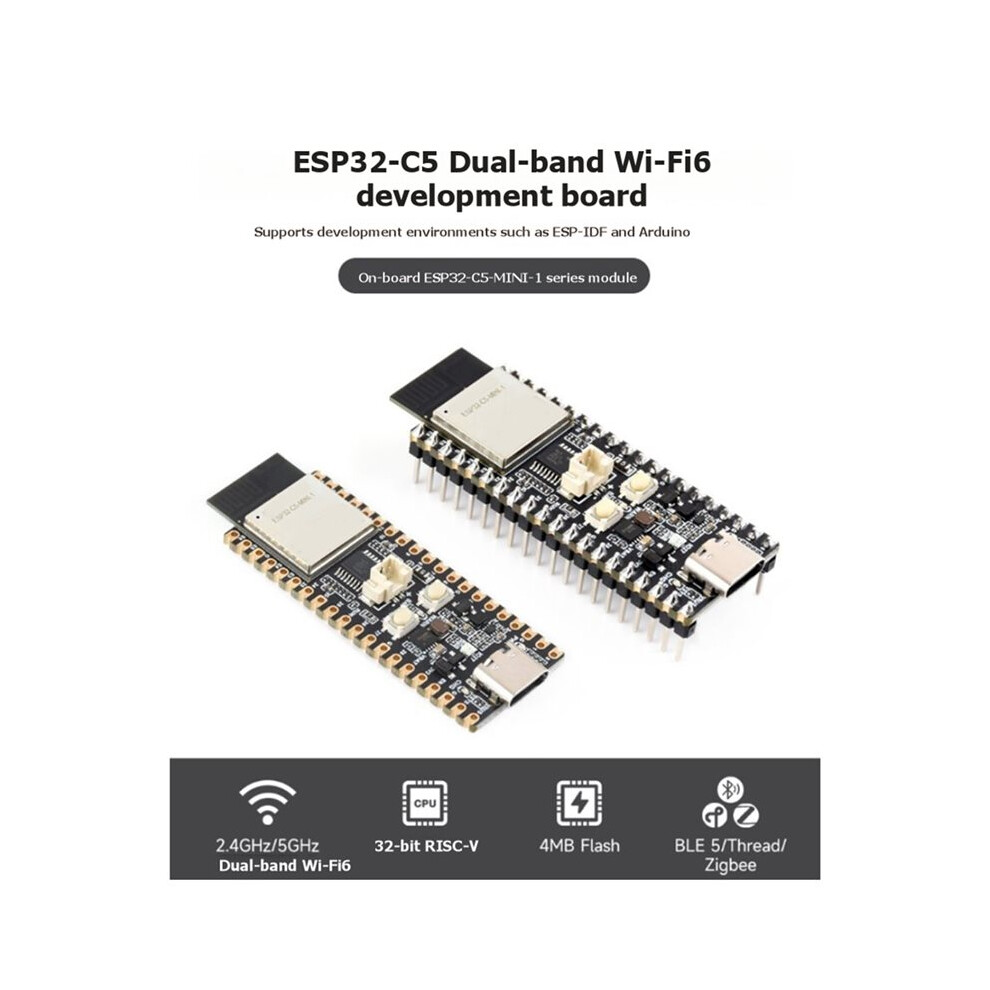

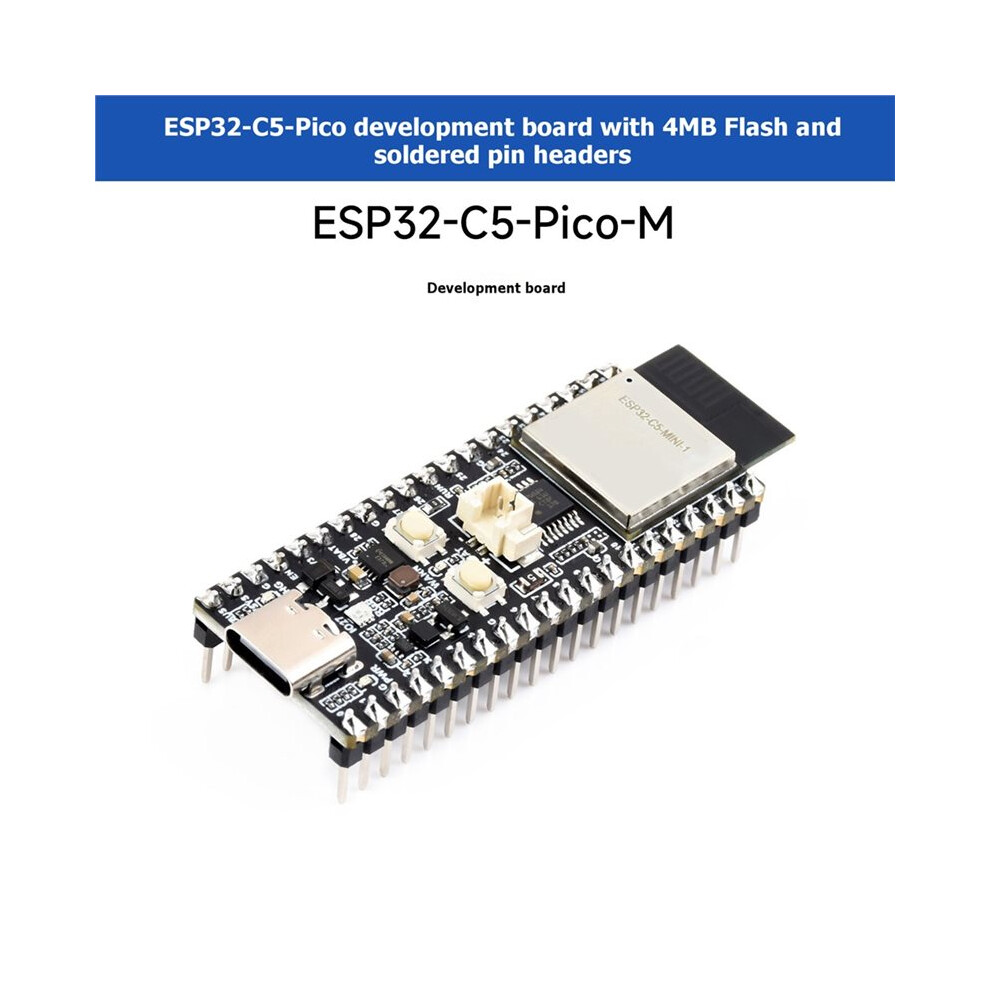

ESP32-C5--M Dual-Band Development Board Onboard Antenna Version WiFi 6 BLE5 ESP32-C5--1 Module Soldered Headers

ESP32-C5--M Dual-Band Development Board Onboard Antenna Version WiFi 6 BLE5 ESP32-C5--1 Module Soldered Headers Kuvaus

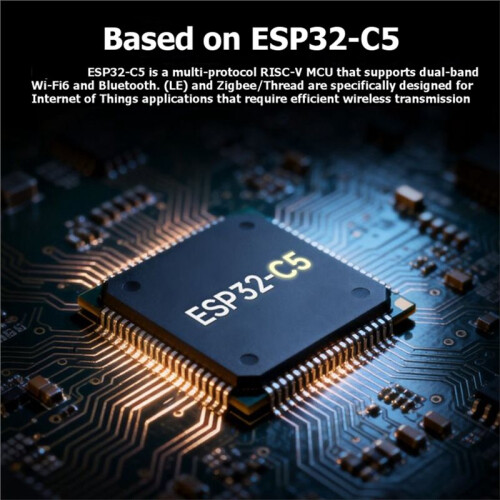

It uses the ESP32-C5--1 series module as the main controller, equipped with a RISC-V 32-bit single-core processor with a maximum clock speed of 240MHz.
It also features an onboard ETA6098 power management circuit, supporting lithium battery power supply, charging status indication, and battery voltage sampling.

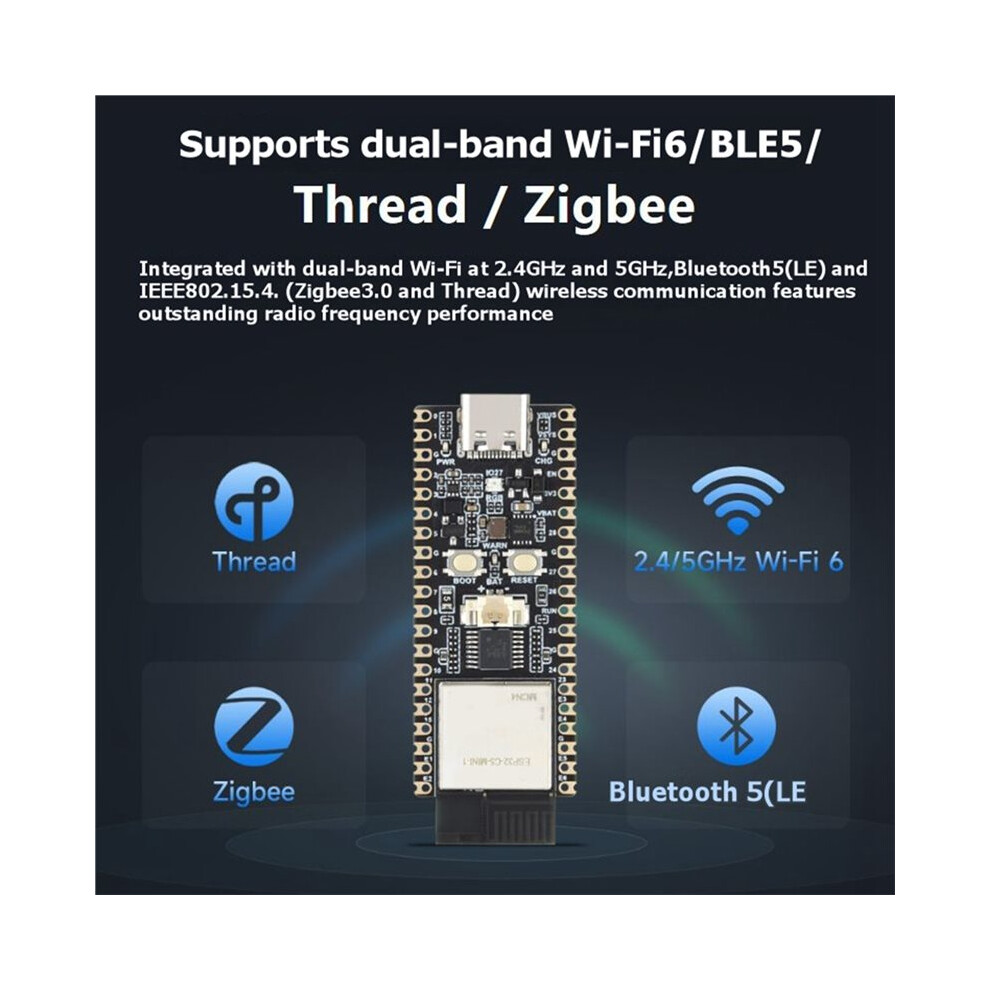

It supports dual-band Wi-Fi 6 (2.4GHz and 5GHz), BLE 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, boasting excellent RF performance.
It uses a USB Type-C interface, eliminating the need for reversible insertion and supporting convenient power supply and development debugging.
It features an onboard MP1605GTF-Z high-efficiency - power supply chip with a maximum load current of 2A.

Features:

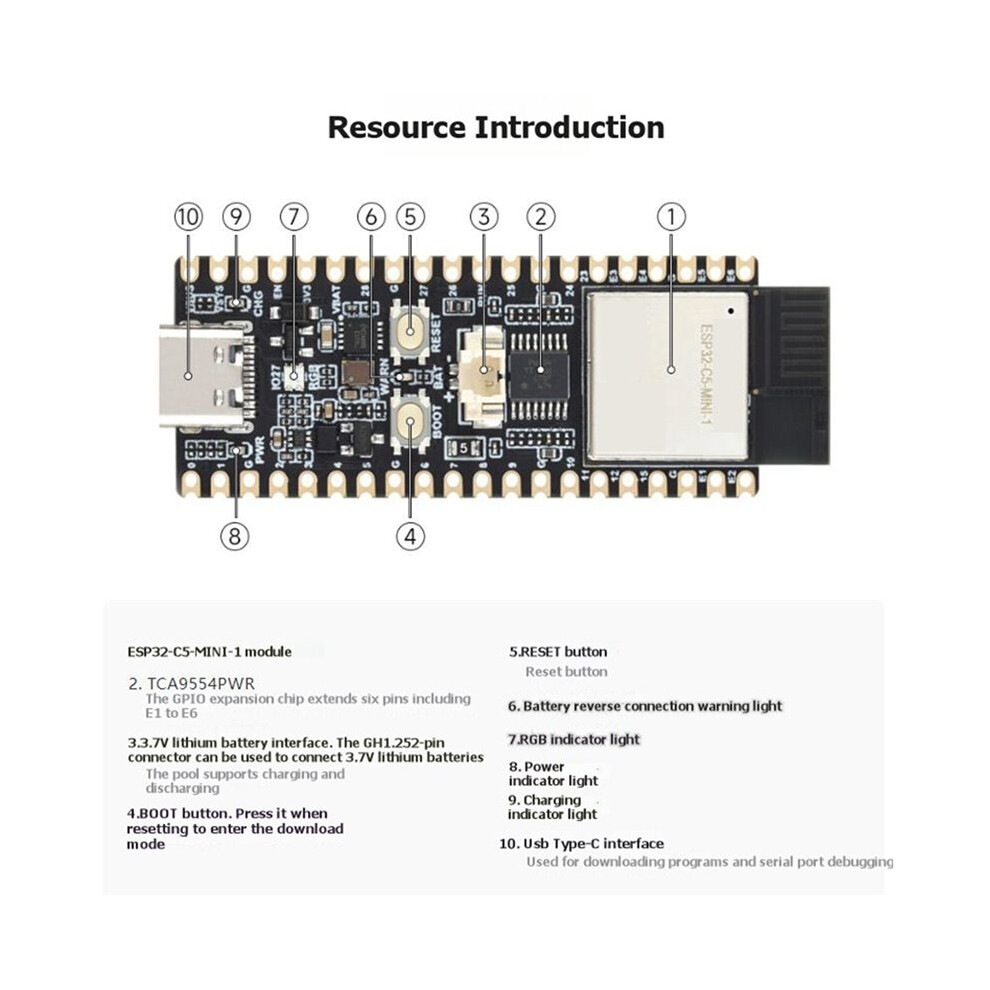

Multiple GPIOs are provided, and the TCA9554 is used for... Expands to 6-channel 10-channel for easy connection of more peripherals.
Features a rich array of peripheral interfaces, including USB, UART, I2C, SPI, ADC, PWM, etc., enabling flexible implementation of various functions.
Stamp hole design allows for direct soldering integration onto user-designed baseboards.
Supports multiple low-power operating modes, adjusting the balance between communication distance, data rate, and power consumption to meet the power consumption requirements of various application scenarios.
Specifications:
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Color: As Shown
Material: PCB

Package Contents:
1*ESP32-C5--M Development Board Kit
