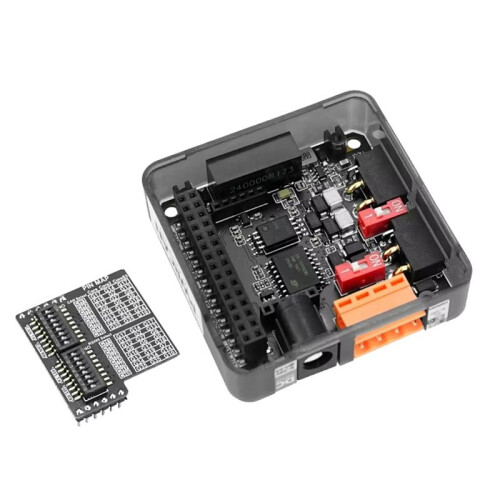

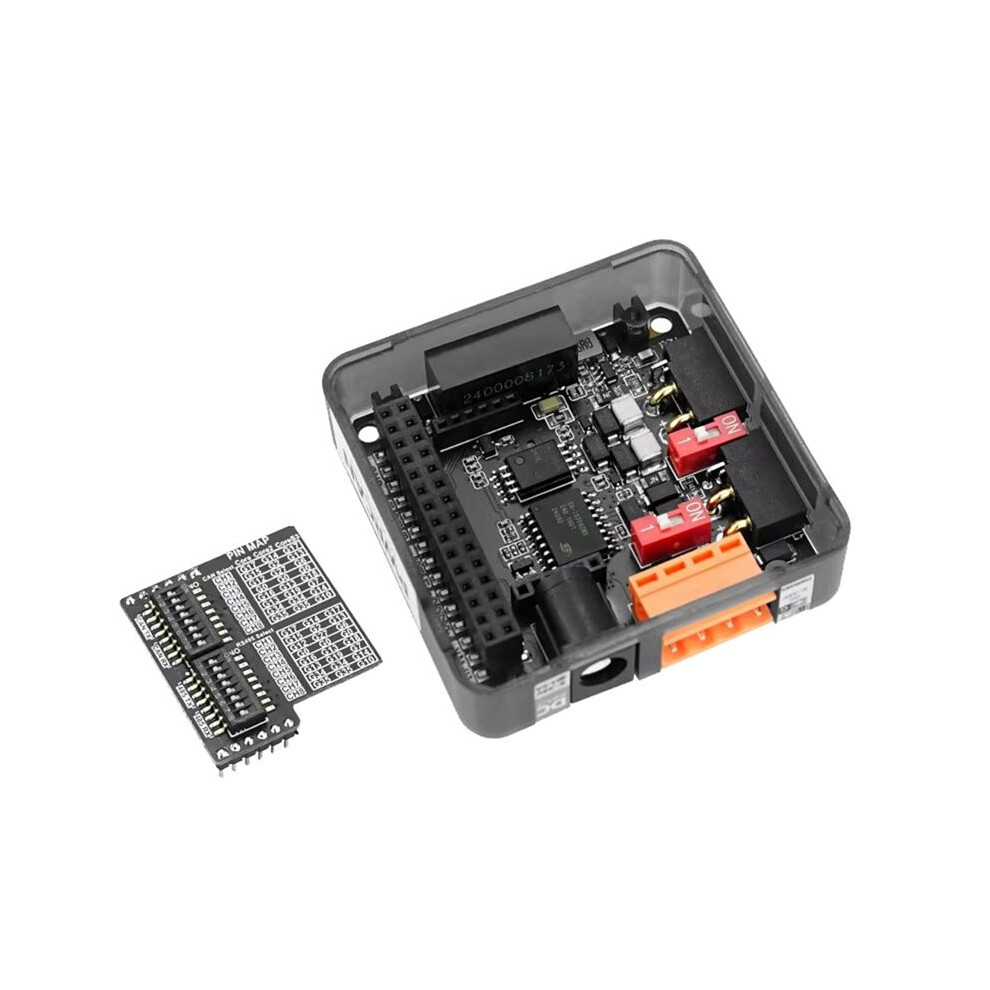

For M5Stack PwrCAN Module13.2 Multi-Function Communication Module Dual CAN and One RS485

For M5Stack PwrCAN Module13.2 Multi-Function Communication Module Dual CAN and One RS485 Kuvaus

PwrCAN Module 13.2 is a multifunctional module designed for the PwrCAN bus, integrating isolated CAN communication and 9-24V power bus. The module also includes Pwr485 (with isolation) bus functionality and can provide isolated 5V power supply to the M5 host.
The CAN communication part uses the CA-IS3050G isolated transceiver, and the RS485 part uses the CA-IS3082W isolated transceiver. The GPIOs related to CAN and RS485 communication can be selected through dip switches, and the 120-ohm terminal resistance at the CAN and RS485 outputs can also be selected through dip switches.
The module's power bus supports 9-24V wide voltage input, with the socket directly connected to the HT3.96 and XT30 power parts. The built-in isolated power module F0505S-2WR3 provides power to the M5 host.
This module is suitable for fields such as robot control, protocol conversion, industrial automation, automotive communication systems, intelligent transportation, and building automation.

Features
Isolated CAN bus (dual channel)
Isolated RS485 bus
Signal isolation
Power isolation supply
Multiple power interfaces
Wide voltage input range (9-24V)
CAN/RS485 communication pin switching dip
Color: black
Material: ABS

Package Contents:
1 x for M5Stack PwrCAN Module
