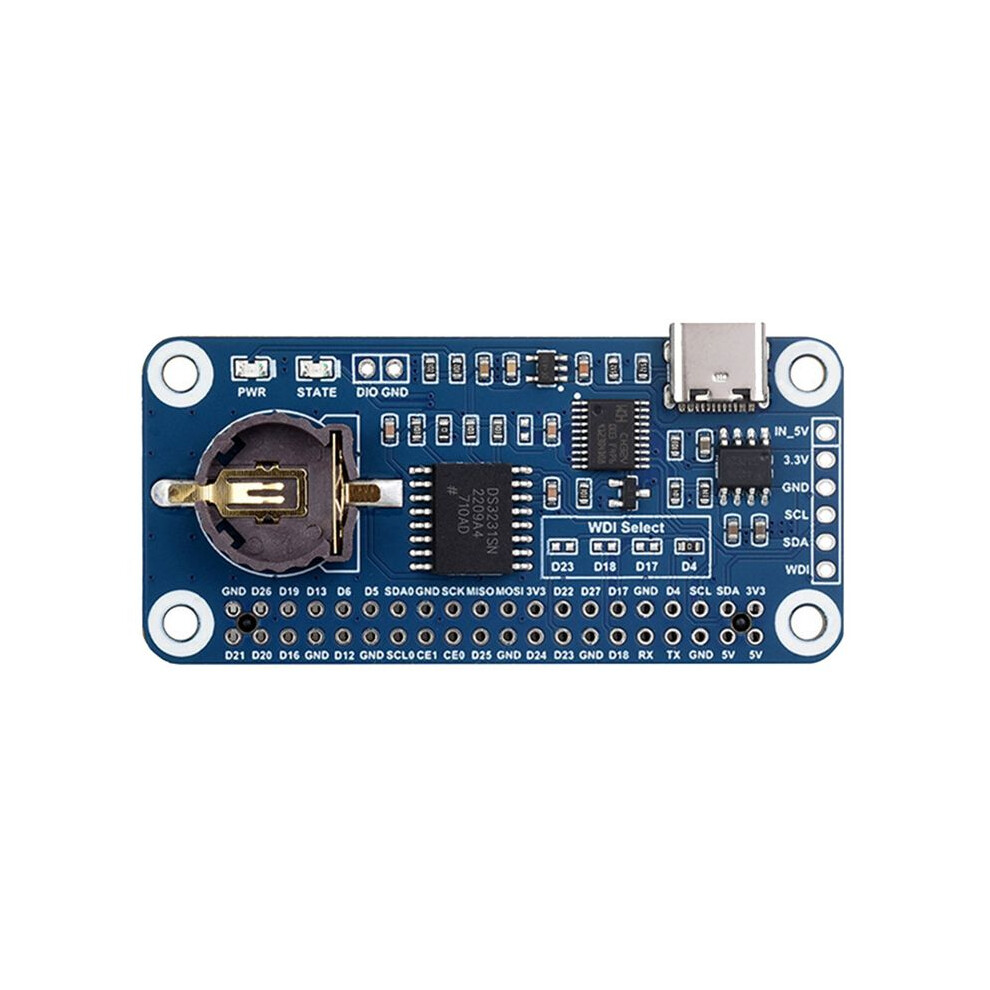

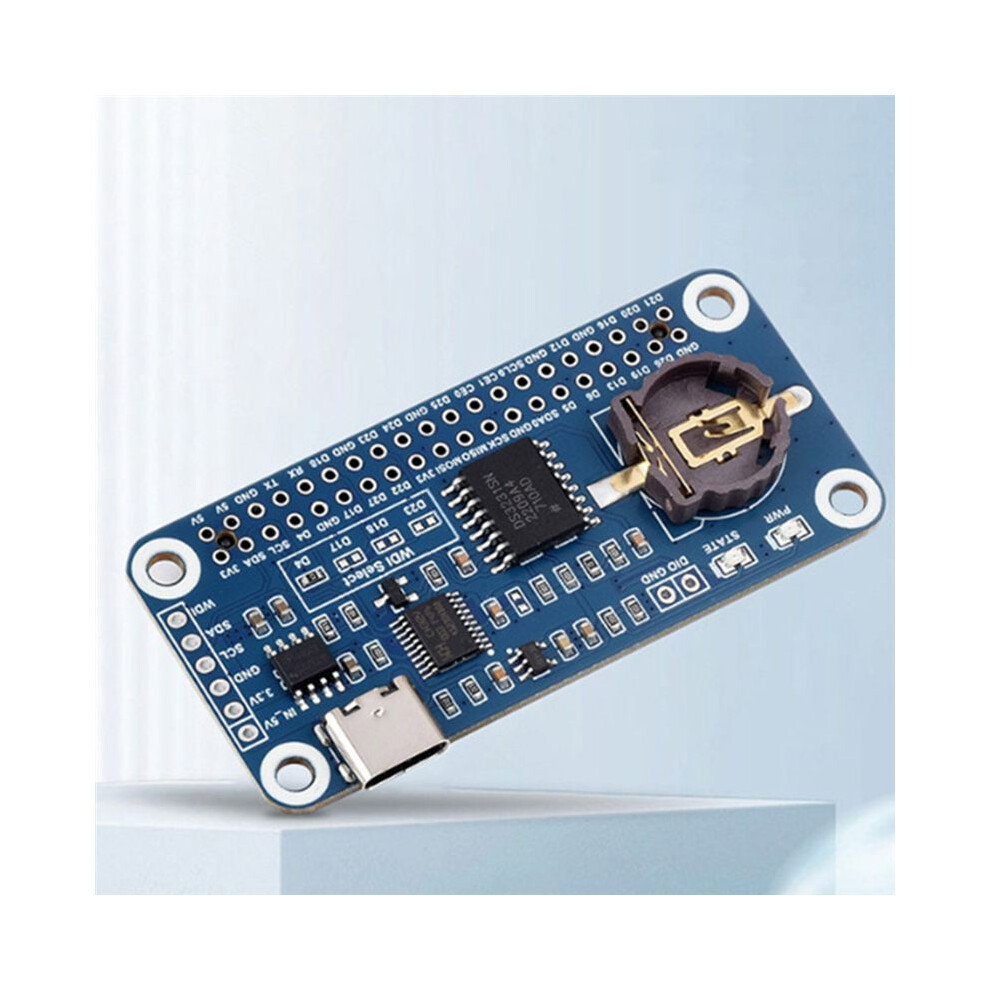

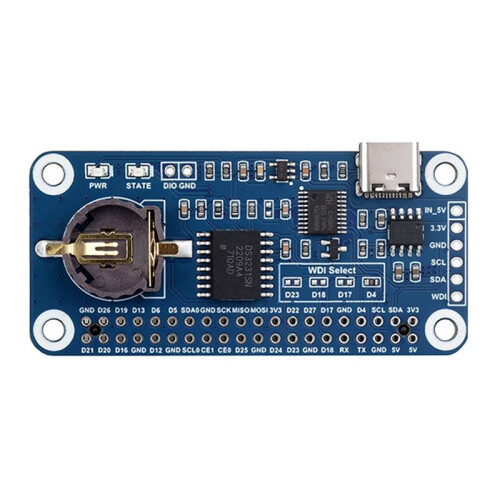

For Raspberry Pi RTC WatchDog HAT(B) Expansion Board Real Clock Onboard DS3231SN RTC Chip for Jetson

For Raspberry Pi RTC WatchDog HAT(B) Expansion Board Real Clock Onboard DS3231SN RTC Chip for Jetson Kuvaus

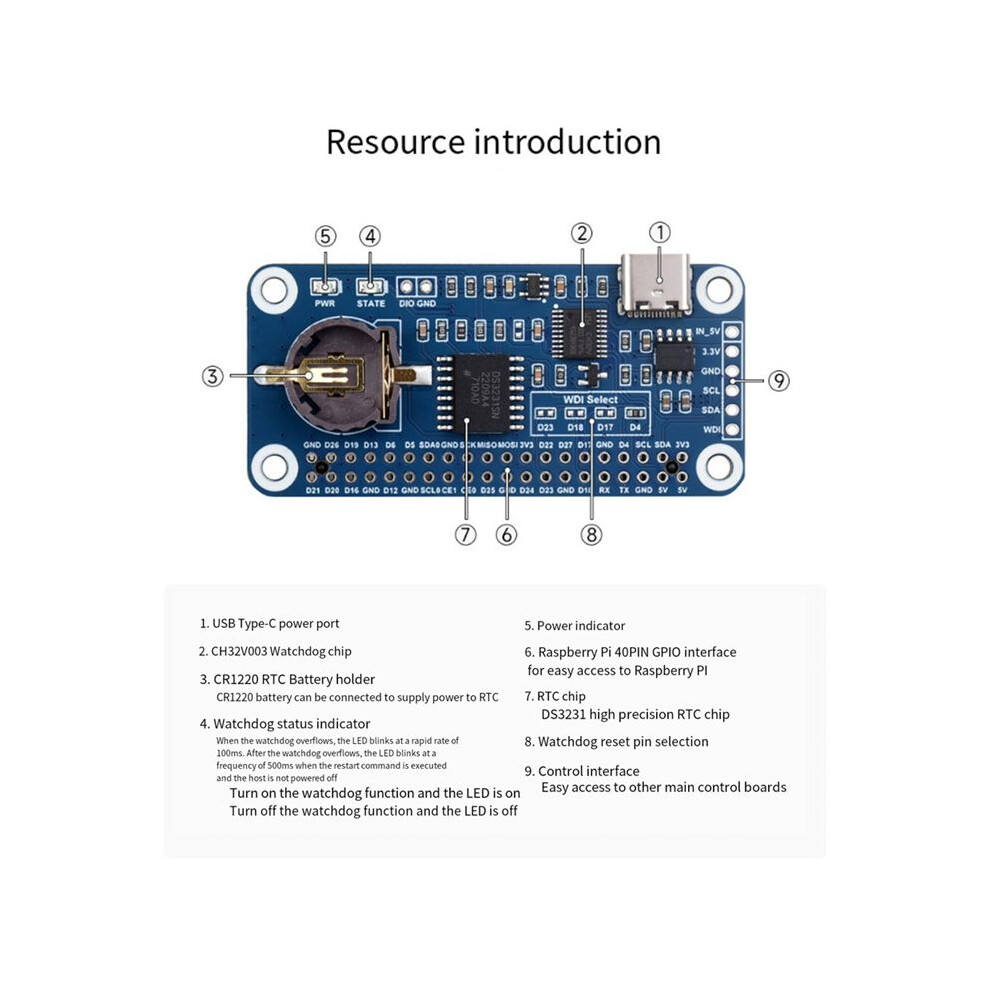

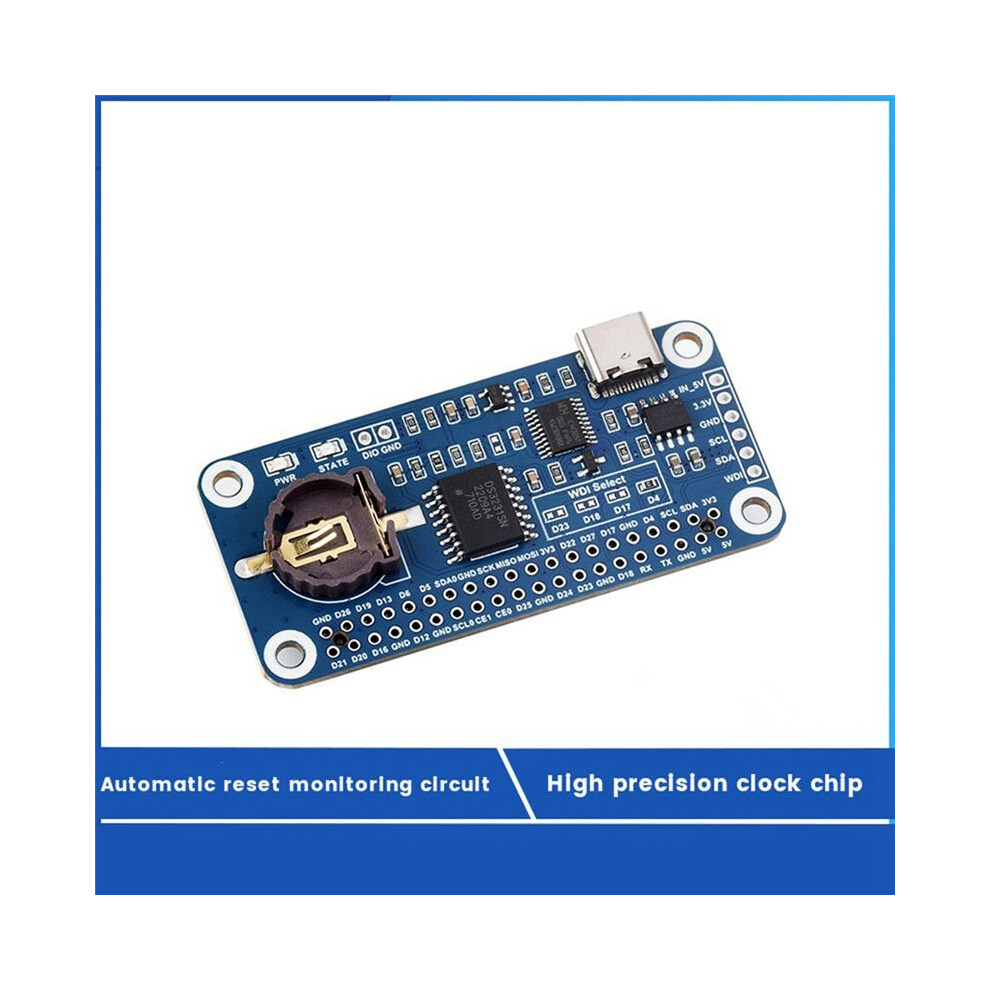

Onboard auto reset monitoring circuit.

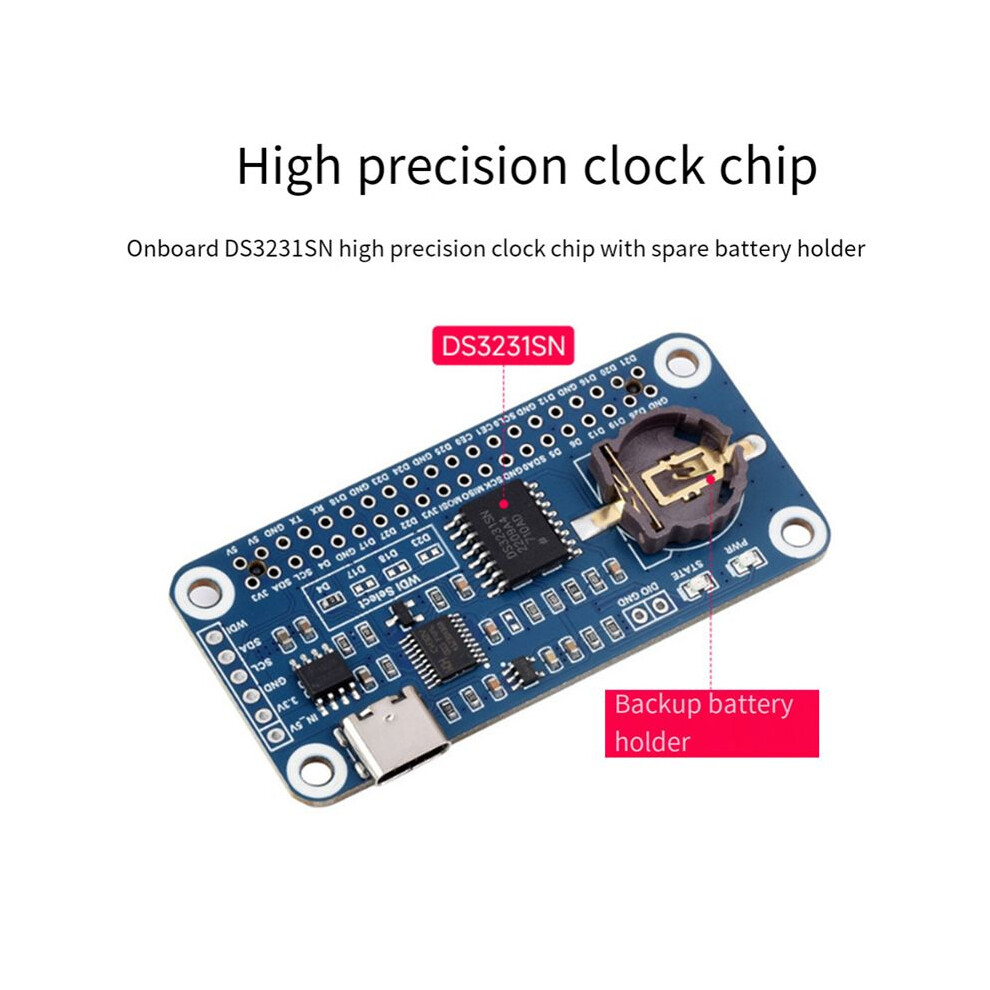

Onboard high-precision clock chip (DS3231SN) for providing accurate timing control.
Support I2C communication and a 16-bit counter.
Onboard the watchdog status indicator to warn the watchdog timeout.

[Note]
Do not include Raspberry Pi
[Overview]
This is an RTC WatchDog HAT (B) designed for Raspberry Pi with high-precision RTC and watchdog HAT, which refreshes and counts at a limited and the watchdog circuit can reset the system.
[Parameters]
Communication interface: I2C
RTC chip: DS3231
Watchdog chip: CH32V003
Power supply: 5V
Dimensions: 30.5mm x 65mm
Fixed hole diameter: 3.0mm
[Designed For Raspberry Pi Series]

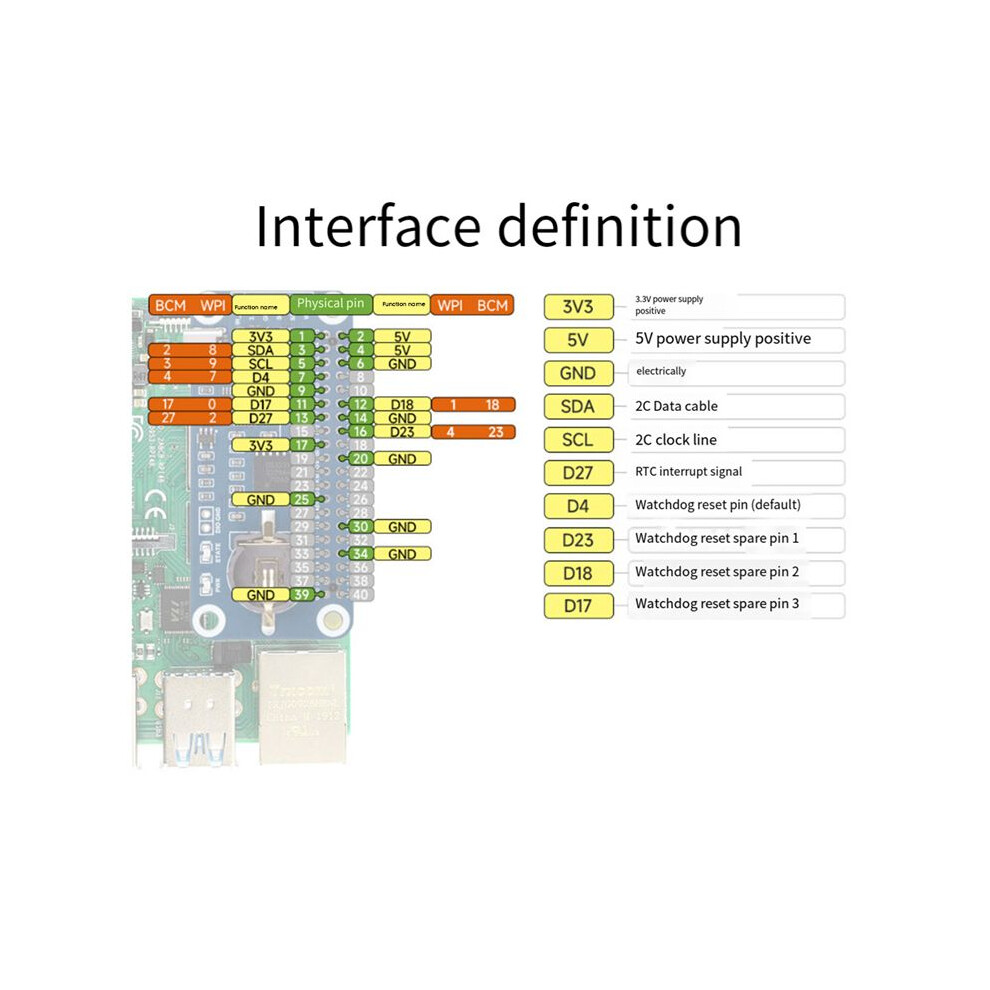

Standard Raspberry Pi 40PIN GPIO Header, For Raspberry Pi Series Boards, Jetson
[]for reference ONLY, the Raspberry Pi boards and Jetson are NOT included.
Due to different batches, the appearance, color and printed words of the product may vary, which will not affect the use.
Colour:
Material:PCB

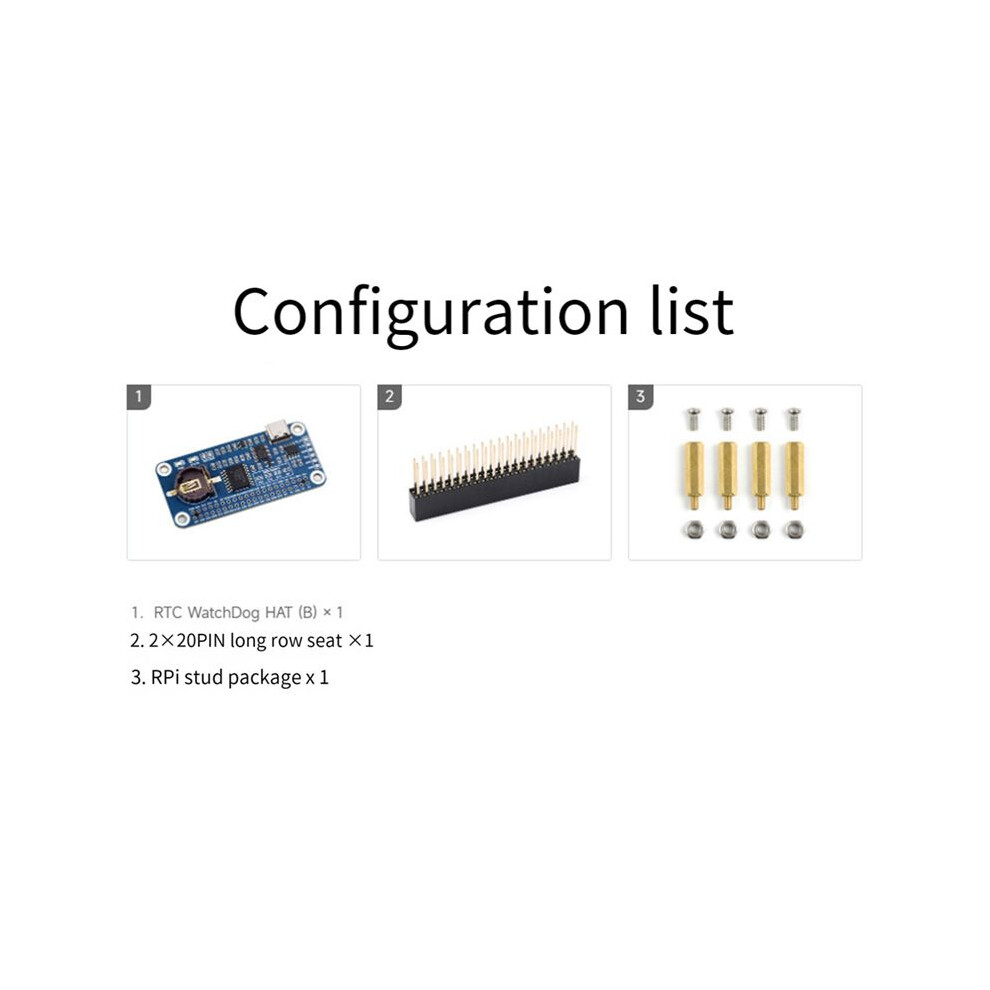

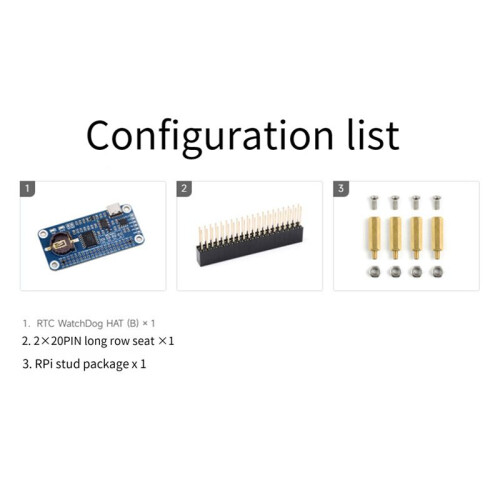

Package Contents:
1 x RTC WatchDog HAT (B)
1 x 2x20PIN long row of seats
1 x Stud Pack
