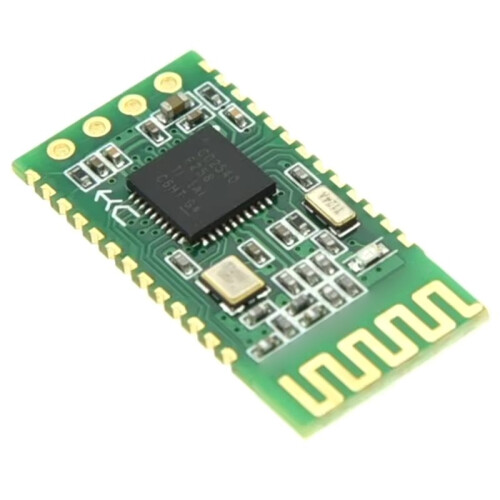

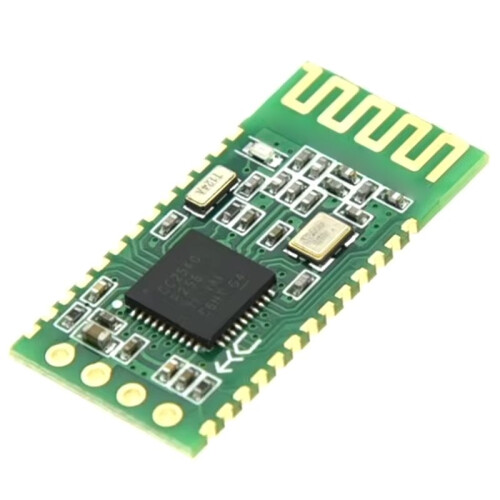

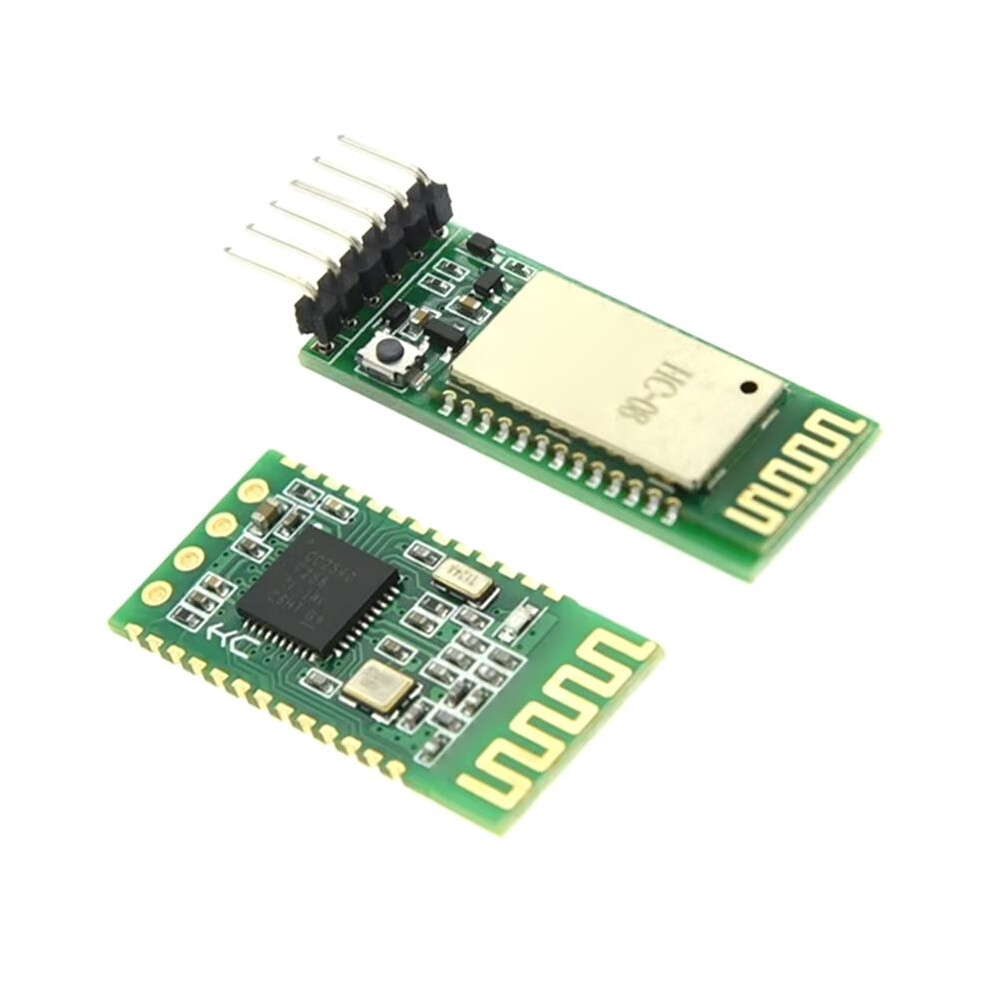

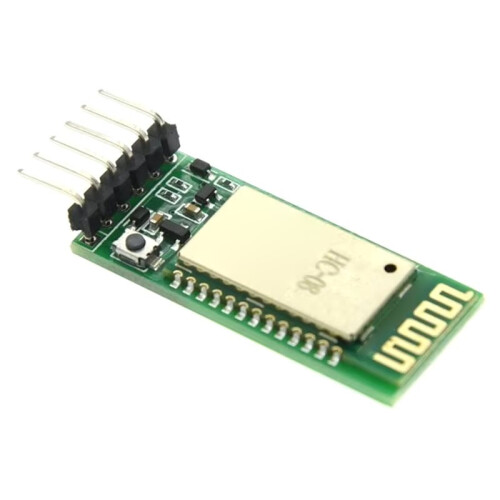

HC-08 HC08 Serial Port Module Wireless 4.0 RF Transceiver Support 9600bps Low Power Microcontroller No Board

HC-08 HC08 Serial Port Module Wireless 4.0 RF Transceiver Support 9600bps Low Power Microcontroller No Board Kuvaus

Module is sensitive to static electricity, please reduce the touch to the module chip parts, so as to avoid loss of procedures
Module antenna part of the following can not be deposited copper, can not be traced, otherwise it will affect the signal,
Suggest that the antenna part of the floor hollowed out, the antenna as close as possible to the of the board, or insert the way
Module power loss memory, parameters and matching information will not be lost, so if you want to connect a new device, please clear the module pairing memory.

Product Parameters:

Model: HC-08

Working frequency band: 2.4G

Communication interface: UART3.3VTTL level

Working voltage: 2.0 ~ 3.6v

RSSI support: not supported

Communication level: 3.3v

Transmit power: 4dBm (max)

Transmission distance: 80 meters

Emission current: 31.6mA

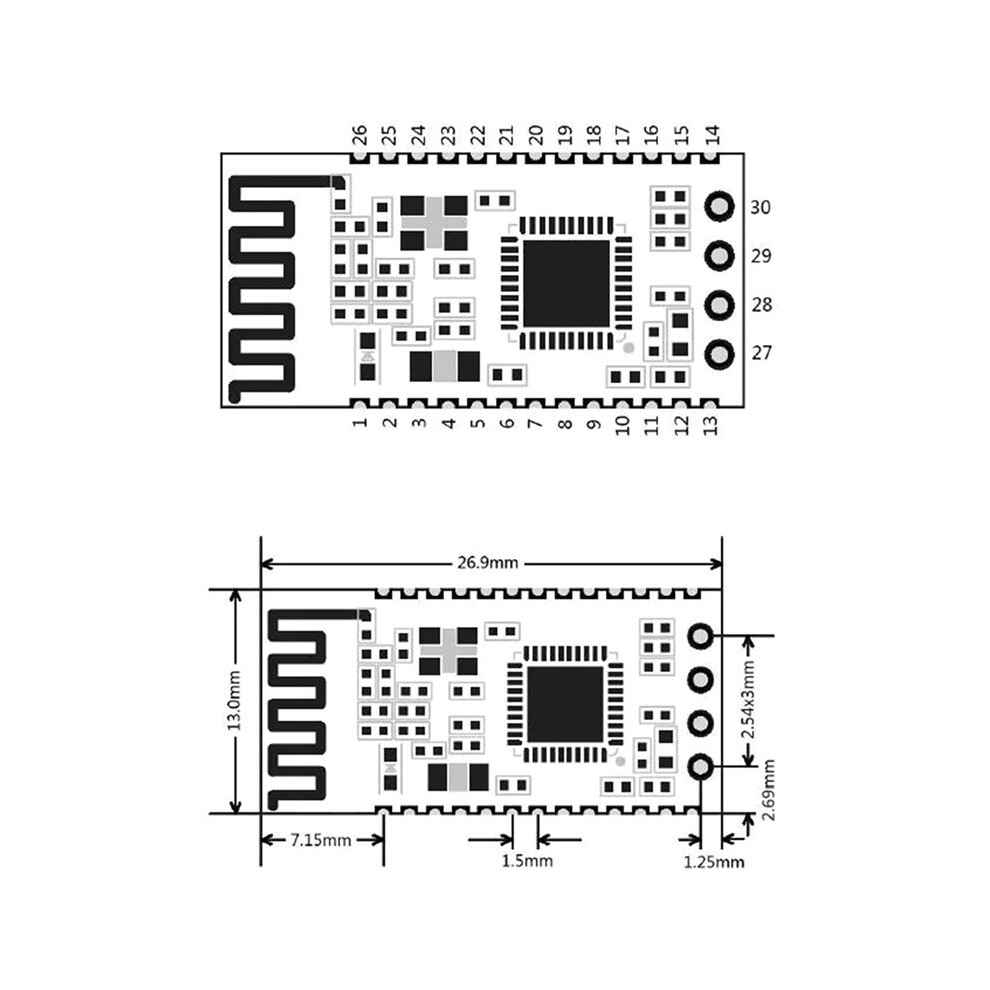

Module size: 26.9 * 13mm

Air speed: 1Mbps

Antenna interface: built-in PCB antenna

Sleep current: 0.4uA

Receiver sensitivity: -93dBm @ 1Mbps

Working humidity: 10% to 90%

Storage temperature: -40 ~ 85

Working temperature: -25 ~ 75

Received current: 15.8mA
Color: Green
Material: plastic

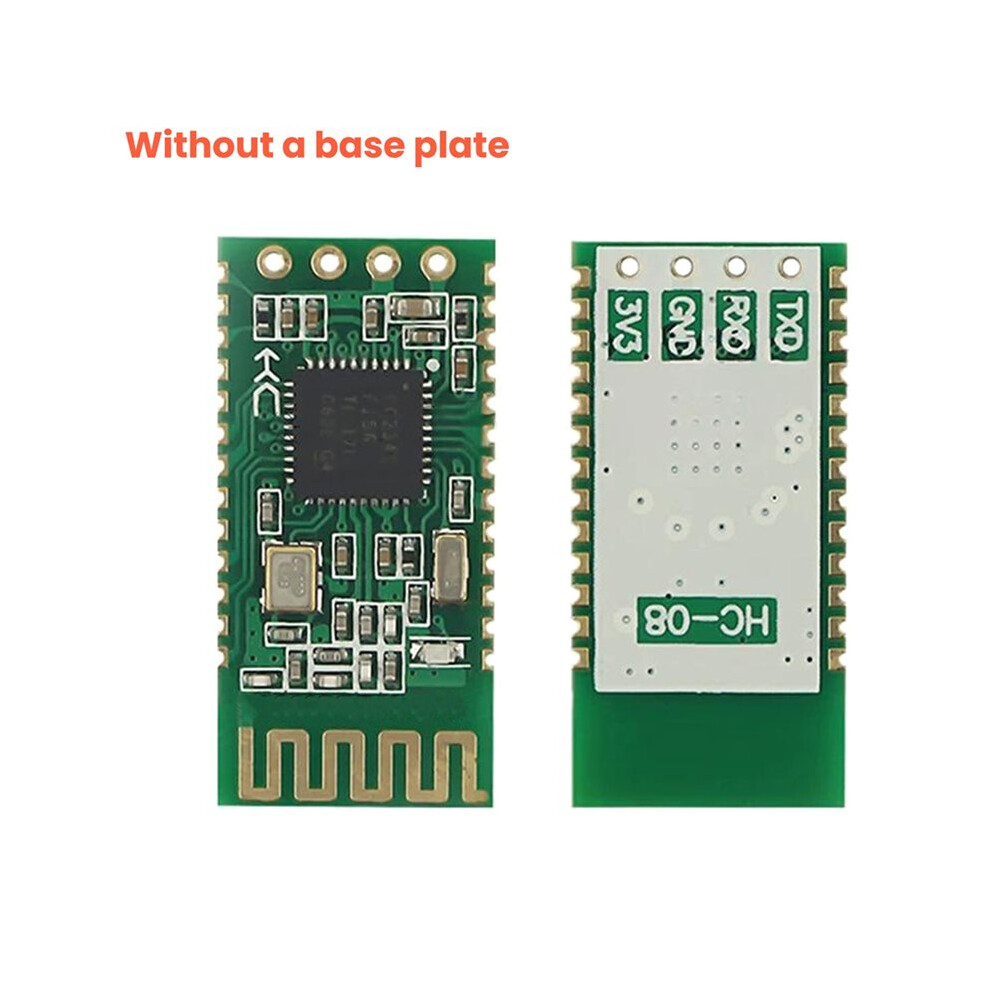

Specification: Without base plate.

Package Contents:
1*HC08 Serial Port Module
