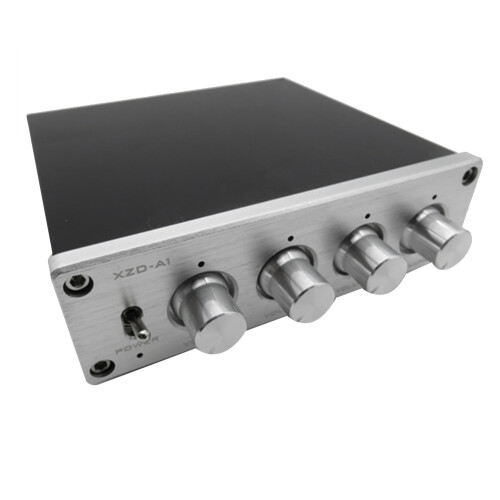

HIFI Lossless 1 Input 4 Output RCA HUB Audio Distributor Signal Selector Source Switcher Volume Amplifier(Silver)

HIFI Lossless 1 Input 4 Output RCA HUB Audio Distributor Signal Selector Source Switcher Volume Amplifier(Silver) Kuvaus

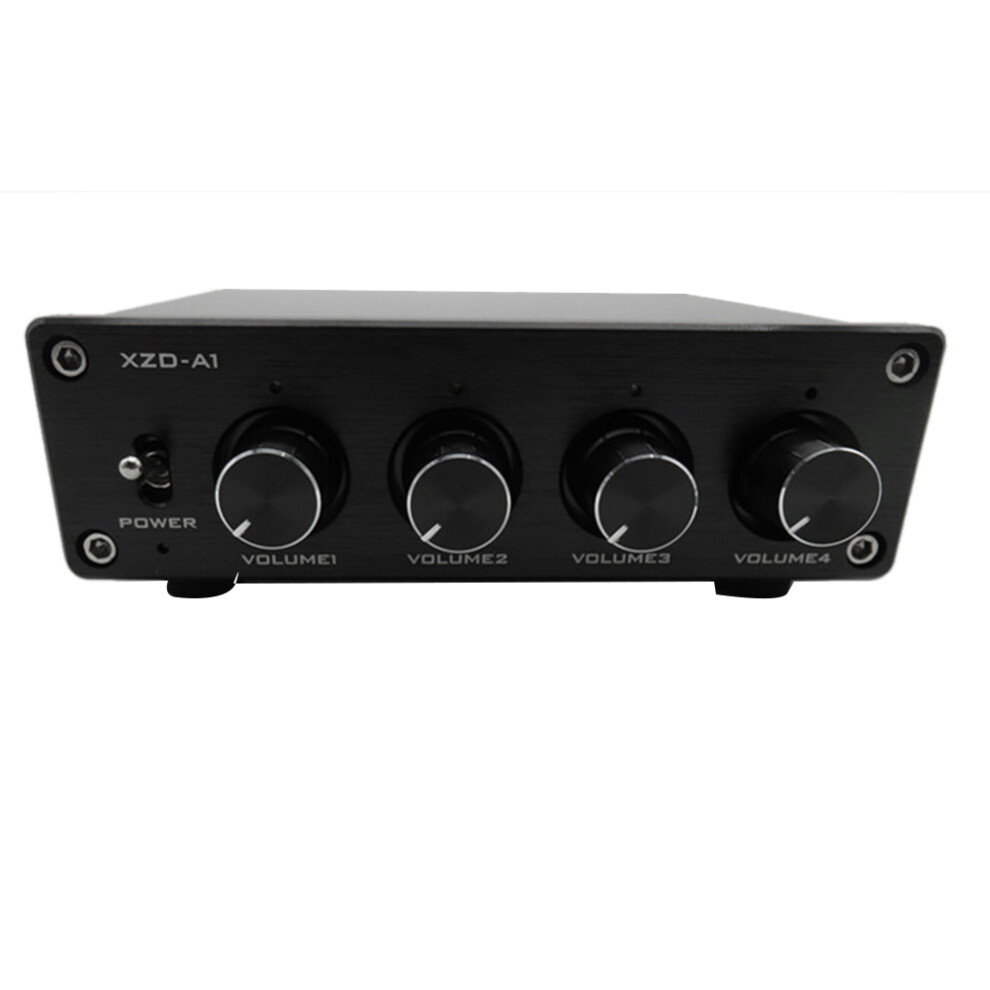

One input and four output, each output volume is independently controlled.
Built-in mcu control circuit, perfect control of the impact sound of the power-off, static effect of the .
With a 10dB, gain , you can increase the following volume, add the level to the device with lower output level, increase the volume
Frequency response 20-20kHz +/- 0.1dB, distortion 0.0001% output phase and input phase are the same

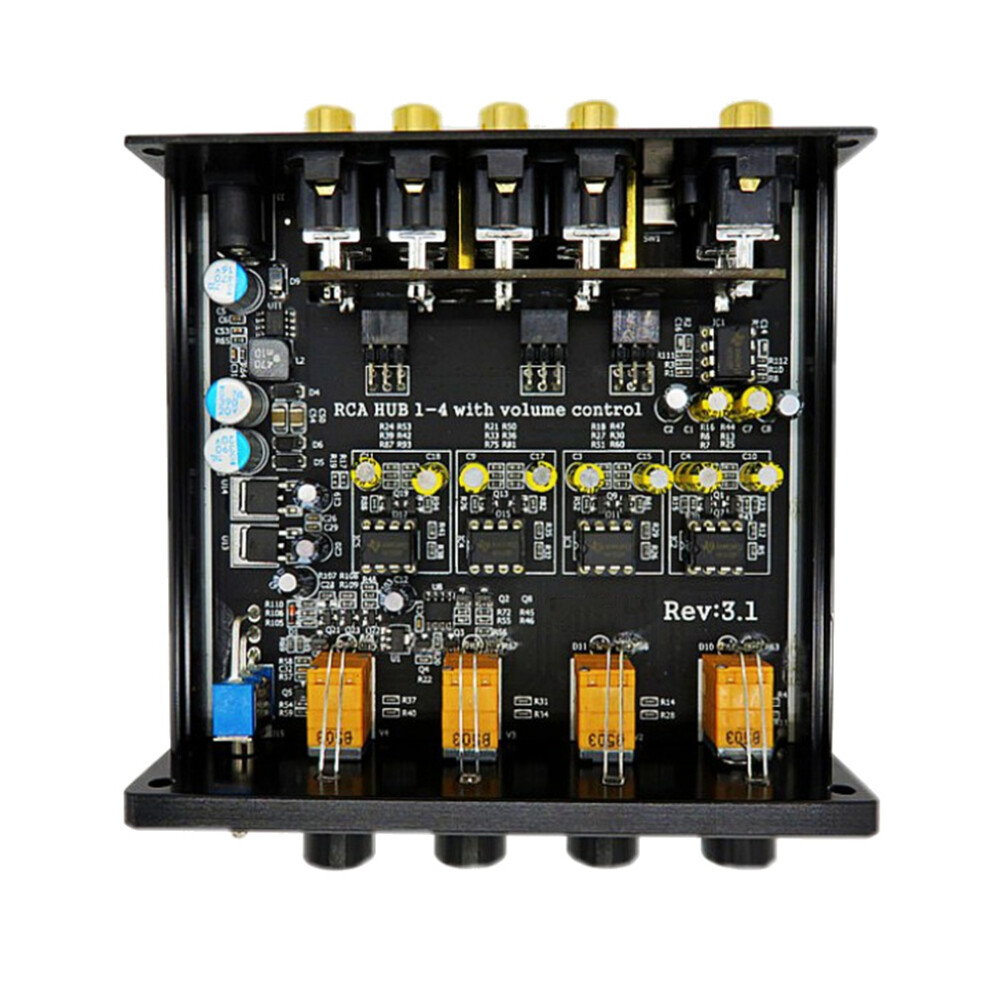

Each channel is independently processed by an op amp, and does not interfere with each other. The machine is equipped with TI's NE5532. The Buyer can replace different op amps according to their own preferences. The op amp supply voltage is +/- 12v; the op amp is positive. Ling Jinggong produces gold-plated sockets with good contact and resistance to plugging

Solid-state filter capacitor, stepless audio coupling capacitor, Tk audio audio coupling, extremely fever

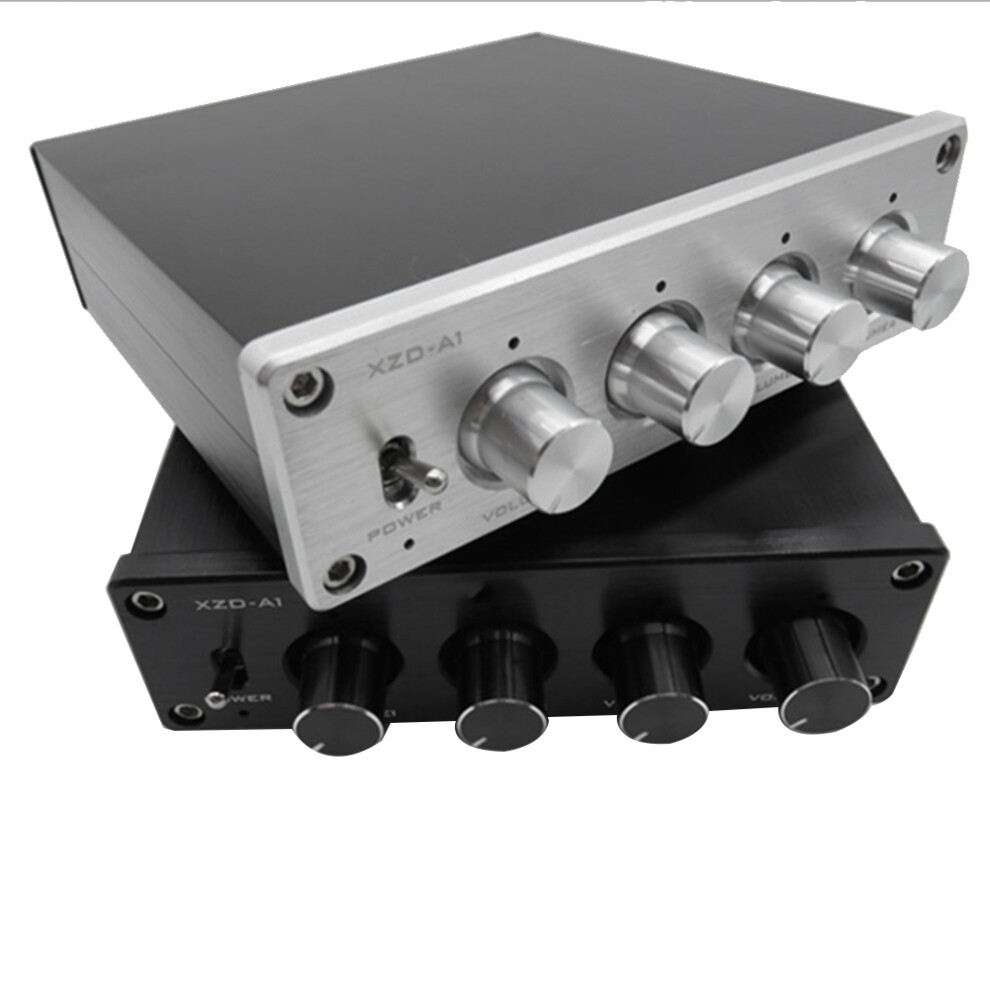

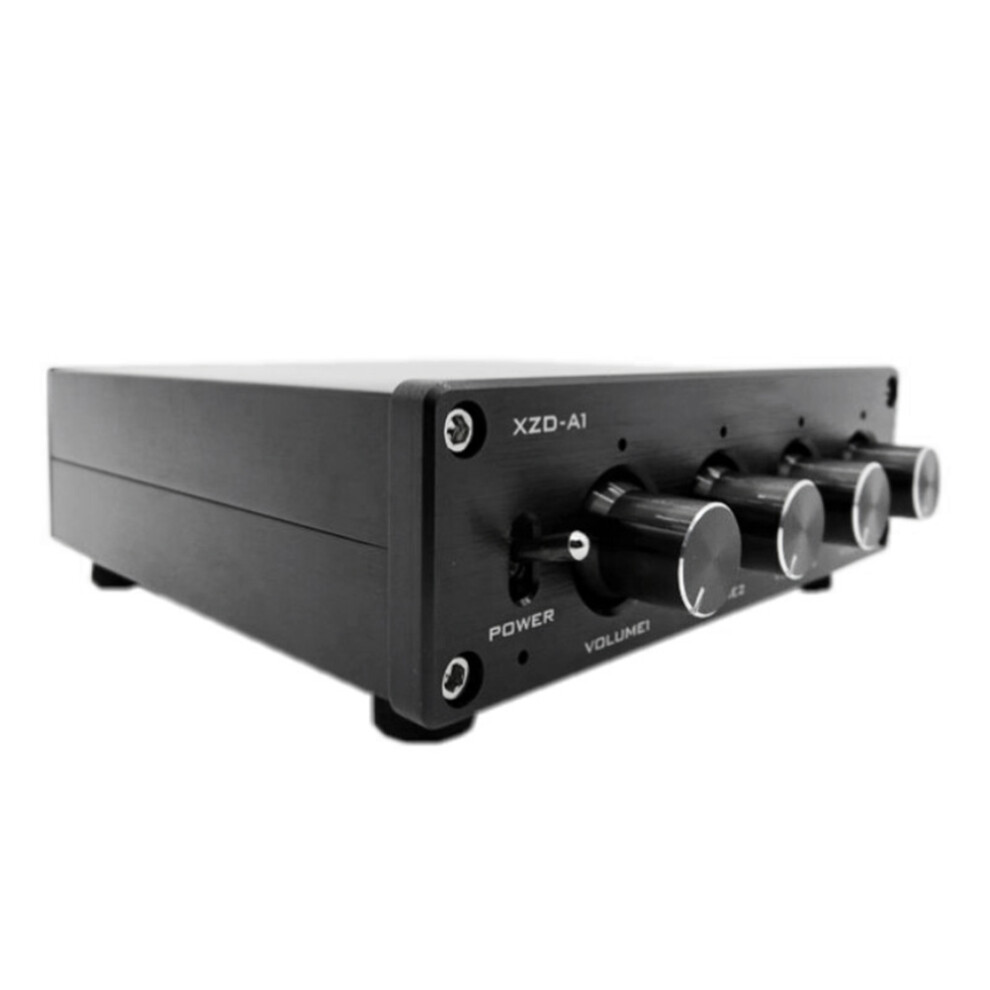

Gold-plated RCA socket, good contact, brushed aluminum casing, laser-engraving, high-grade, beautiful, atmospheric
Power supply voltage: DC12V, current: 1A or more than 1A (Not include the power supply)
Colour: Silver
Material: aluminum
Size: 11.7 x 10.7 x 3.5cm

Package Contents:
1 x RCA HUB Audio Distributor
