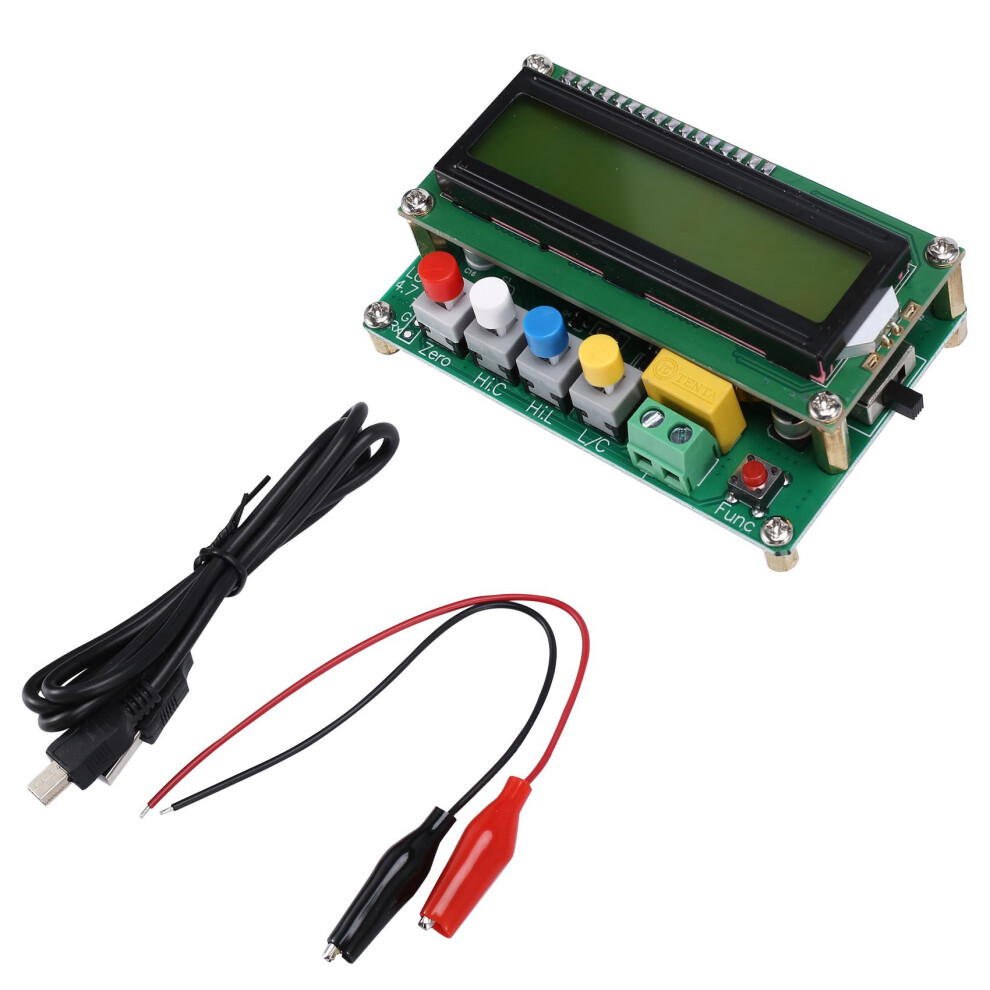

Inductance Capacitance L/C Meter Digital Capacitor Meter LCD Capacitance Meter Tester USB Interface with USB Cable

Inductance Capacitance L/C Meter Digital Capacitor Meter LCD Capacitance Meter Tester USB Interface with USB Cable Kuvaus

This meter, the base of LC resonance principle, adds precise measurement of high-speed micro-controller so that it can measure small inductance and small capacitance precisely
It can measure capacitance(1pF-100mF) and inductance(1uH-100H)
It has an advantage over small value testing with precision and minimum resolution
Flexible online calibration can always maintain measurement accuracy
The calibrated parameters are completely stored in the FLASH inside of micro-controller, wouldn't lost when power-off

Description:
Adds precise measurement of high-speed micro-controller, suitable for microwave and switching mode power supply transformer.
It has advantage over small value testing with precision minimum resolution.
Specifications:
Color: Green.
Material:PCB
Capacitance Measurement(C): Accuracy: 1pF~1uF 1%; 1uF~10uF 5%.
Resolution: 0.01pF.
Inductance Measurement(L): Accuracy: 1uH~100mH 1%.
Resolution: 0.001uH.
Large Inductance Measurement(Hi.L): Accuracy: 100mH~1H 1%; 1H~100H 5%.
Resolution: 0.001mH.
Large Capacitance Measurement(Hi.C): Accuracy: 1uF~100mF 5%.
Resolution: 0.01uF.
Test Frequency: L/C: 500KHz; Hi.L: 500Hz~50KHz.
Measurement Mode of Inductance/Capacitance/Large Inductance: LC Resonance.
Measurement Mode of Large Capacitance: Charging and Discharging.
Display: 1602 LCD.
Effective Display Digits: 4.
Power Supply: USB Interface and Dia. 5.5 Plug.
Power Voltage: 5V.

Package Contents:
1 x High Precision L/C Meter
1 x USB Cable
