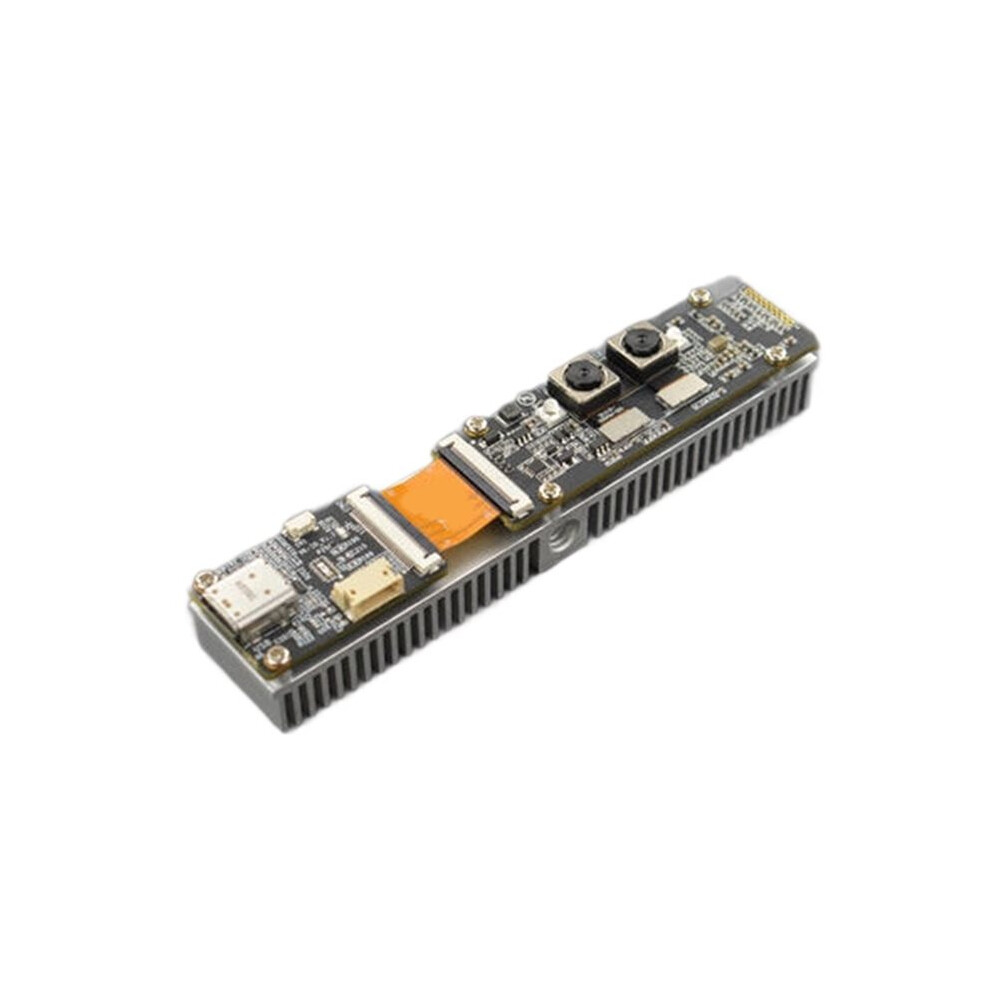

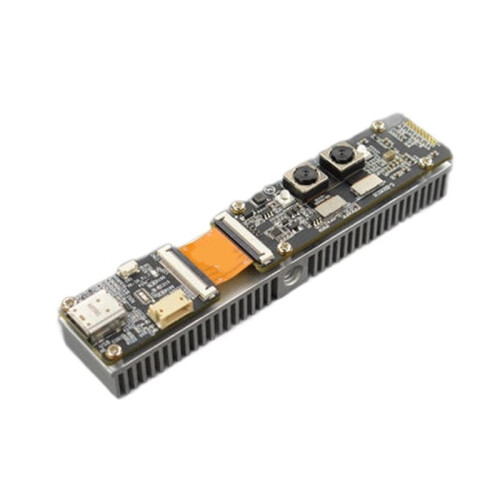

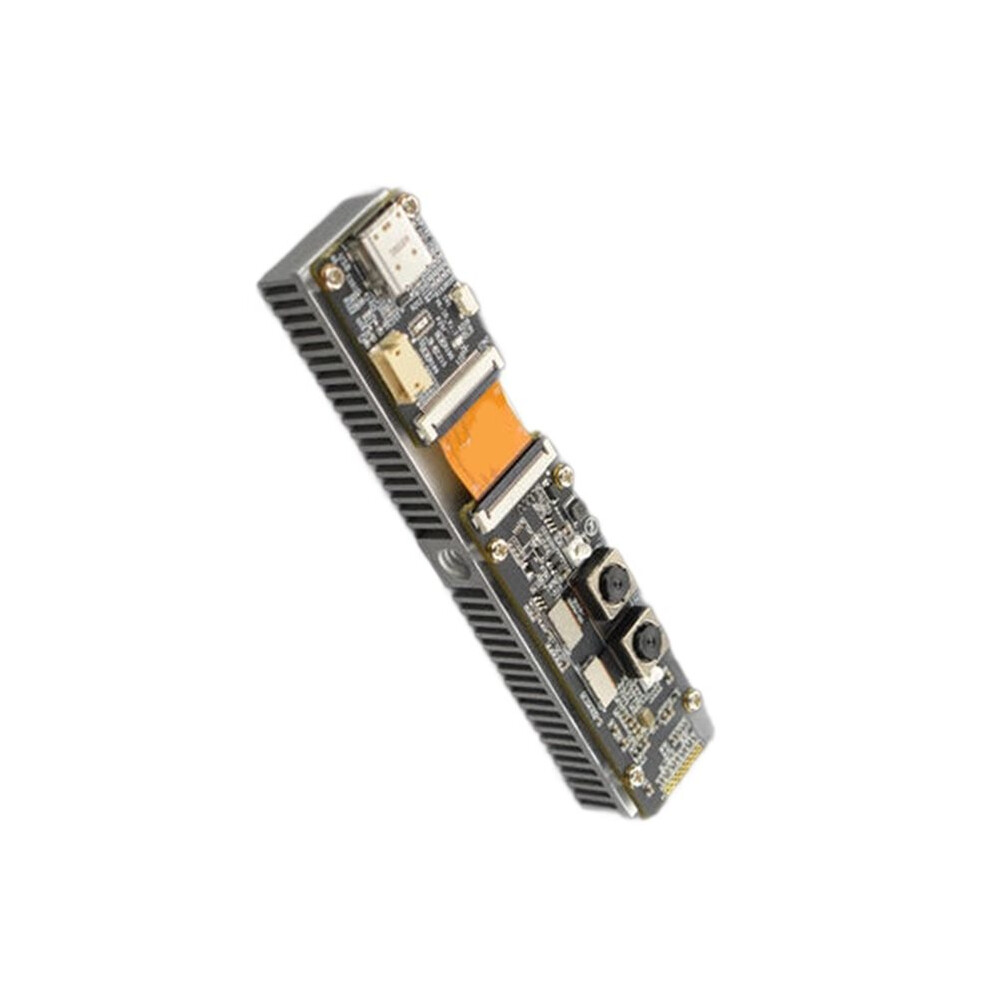

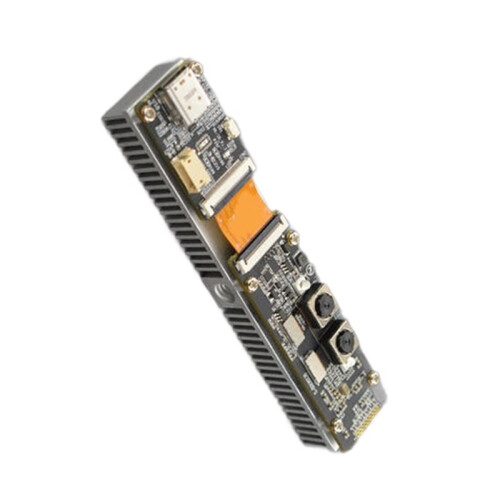

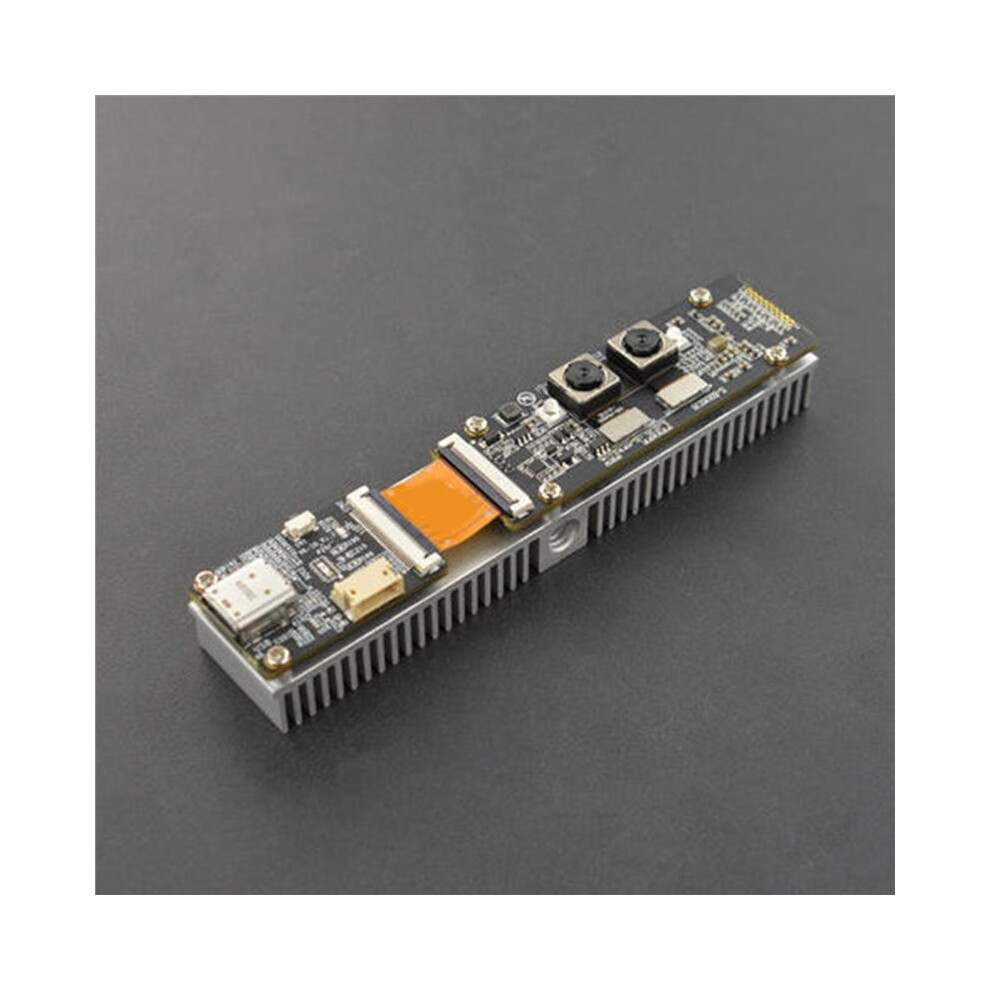

Intelligent Vision Module Can Be Connected to Realize Face Detection and Face Attribute Recognition

Intelligent Vision Module Can Be Connected to Realize Face Detection and Face Attribute Recognition Kuvaus

Recognition is an AI development board focused face recognition. It is equipped with an Movidius Myriad
Using, you can quickly have powerful AI functions: built-in face recognition algorithm, access to the main control can realize face detection, face attribute recognition, face posture detection, etc.

Features
1. Compatible with a variety of main control boards, such as for , microcontroller (requires RAM Greater than 20Kbytes), for Raspberry Pi, and Android tablets
2. Built-in AI algorithm, AI acceleration capability 1Tops (FP16)
3.90 facial information registration points to achieve accurate recognition
4. A maximum of 8 faces can be detected in the same frame, and 4 face registration point information can be output.
5. Track ID can be obtained
6. 1:N recognition results can be obtained
7. Attitude angle can be obtained
8. Face frame available

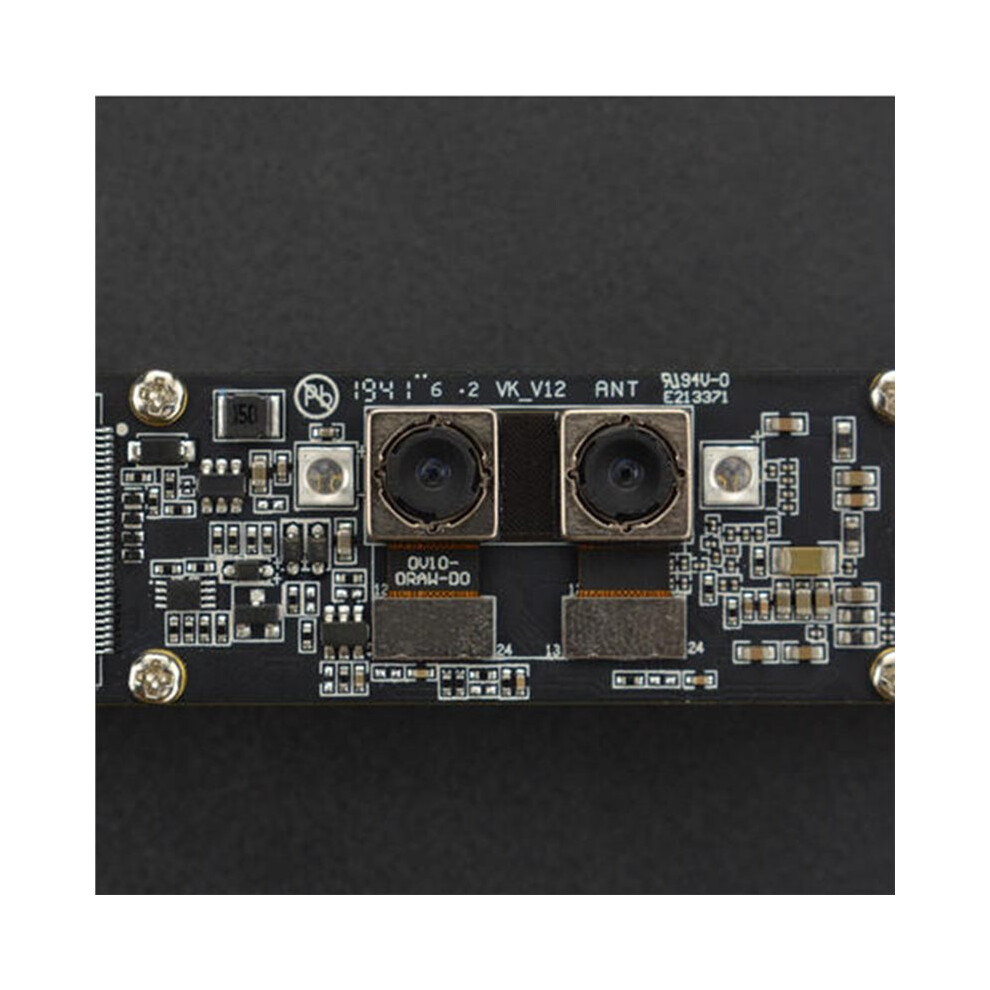

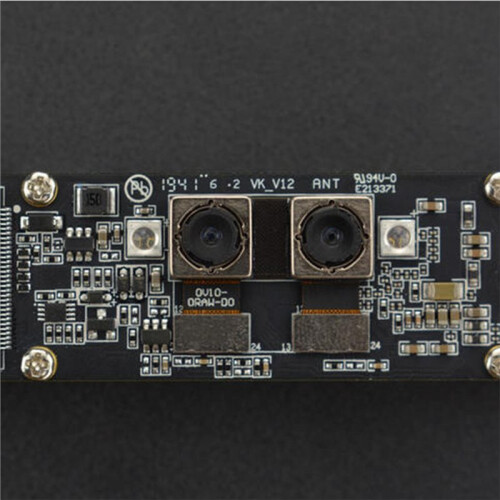

9.Has 720P RGB camera and 720P IR camera @30FPS
10.Camera exposure is adjustable
11.IR fill light adjustable
Technical specifications
Working voltage: 5V
Working current: 1.5A
Processor: Movidius Myriad X
Hardware interface: USB2.0, UART
Software interface: UVC, YTDataLink
Camera pixels: 1 million

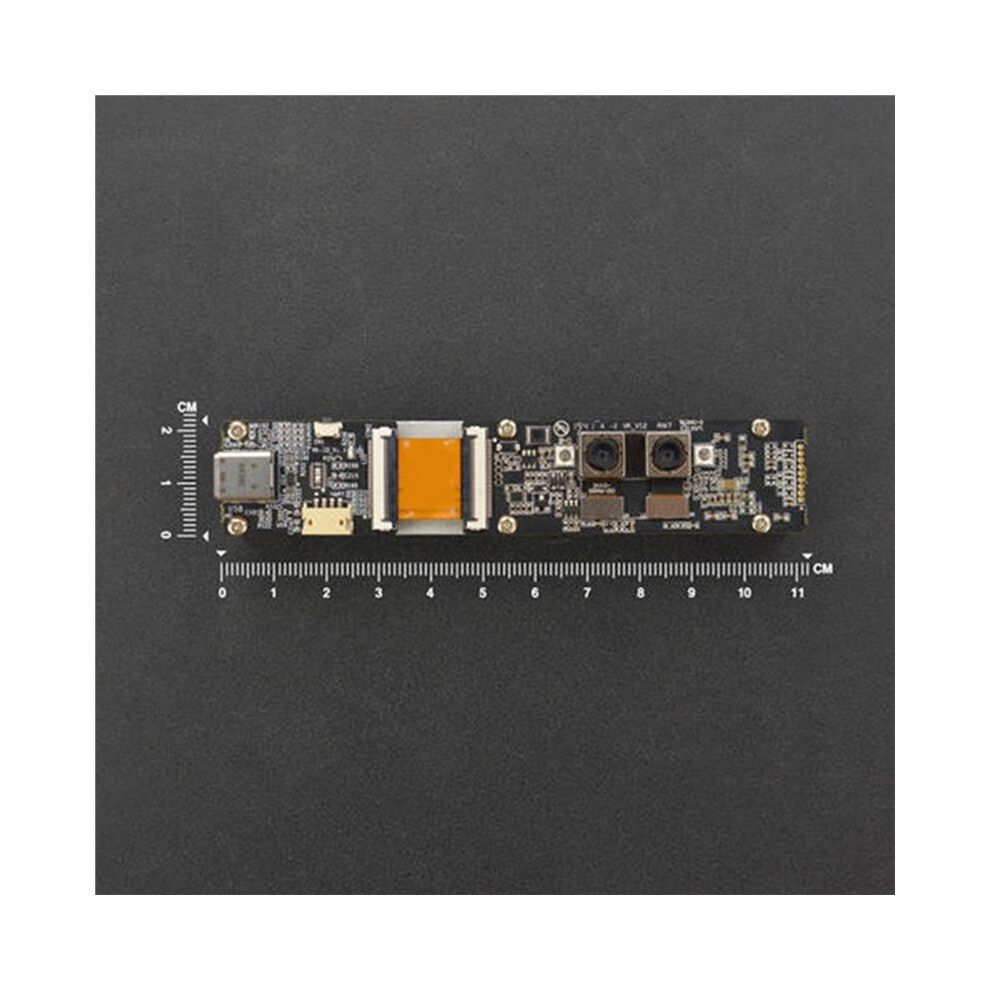

Product size: 112 x 22 x 15mm
Color: As Shown
Material: PCB

Package Contents:
1 x Module
1 x Data cable
