KCD2-7 Rocker Panel - Automotive Modification - 4-Pin Double Momentary (-DOWN),Reverse-Polarity Toggle

KCD2-7 Rocker Panel - Automotive Modification - 4-Pin Double Momentary (-DOWN),Reverse-Polarity Toggle Kuvaus

Polarity Reversing - This momentary rocker is designed for easy polarity reversing, using the included dual jump bars to change motor direction without rewiring. Just press or DOWN to reverse current flow, ideal for RV power jacks, tongue jacks, stabilizers and other 12V motor applications.
DOWN Momentary Operation - Featuring a clearly printed /DOWN legend, this momentary /OFF/ rocker requires you to press and hold to keep the circuit energized, automatically returning to the center OFF position when released. This design increases safety and helps prevent accidental continuous operation of RV jacks or lift systems.
High Current Rating - Rated 30A at 12V and 15A at 250V AC, this DPDT momentary supports both and AC loads, making it versatile for RV jack controls, winches, slide-outs, motors and other heavy-duty equipment. Stable performance and robust contacts help ensure reliable switching for frequent, long-term use.

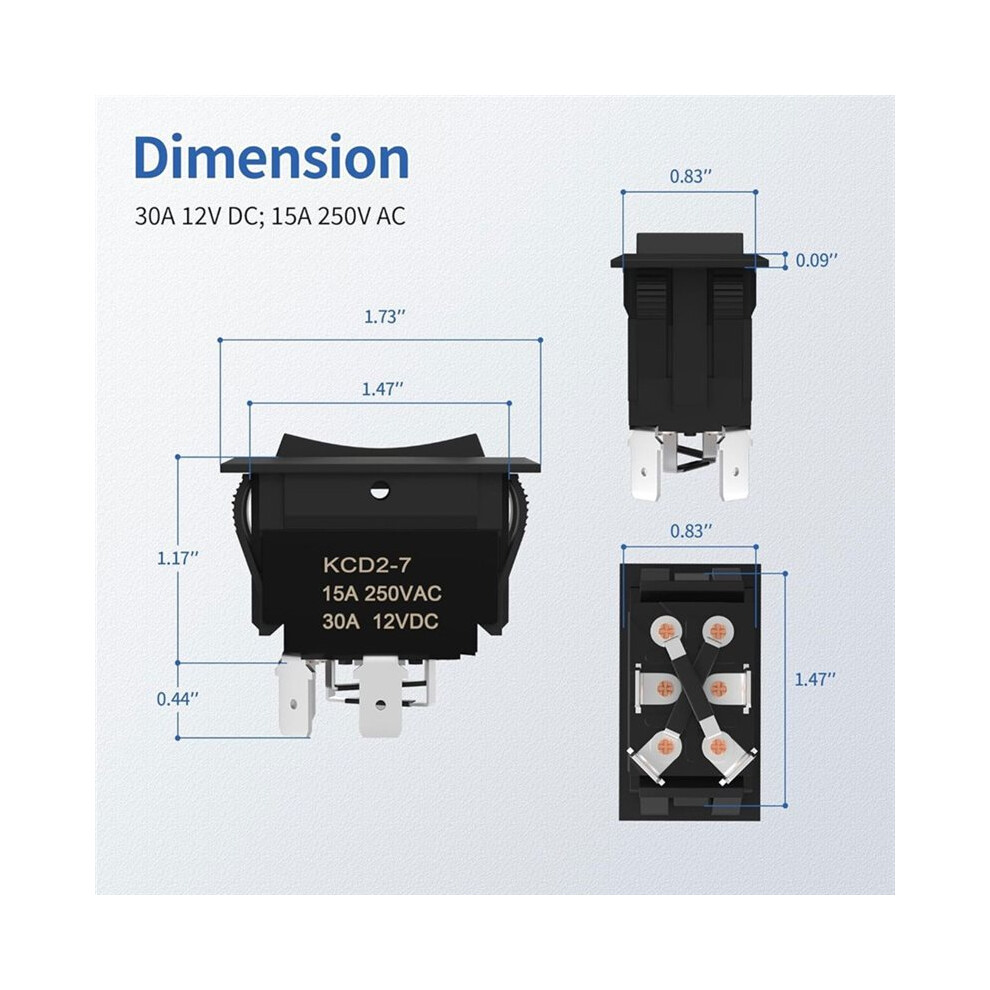

Flexible Mounting Plate - The included mounting plate allows the 12V polarity reversing to adapt to various panel cutouts RVs, trailers and control boxes. The rocker hole size is 37.4 x 21 mm (0.83 x 1.47"), with a mounting plate screw distance of 30 x 48 mm (1.18 x 1.89"), ensuring a secure and neat installation.
With Terminal Connectors - This RV jack comes with 4 terminal connectors to simplify wiring and provide a solid electrical connection. You can select suitable wire gauge for your specific tongue jack or stabilizer system, making installation faster, cleaner and more reliable for 5th wheel and travel trailer owners.

Color: As Shown
Material: PPA

Package Contents:
1*
