MASTECH MS5908C LCD Circuit Breaker Analyzer RCD Tester with Voltage GFCI Meter Mastech Socket Tester EU Plug

MASTECH MS5908C LCD Circuit Breaker Analyzer RCD Tester with Voltage GFCI Meter Mastech Socket Tester EU Plug Kuvaus

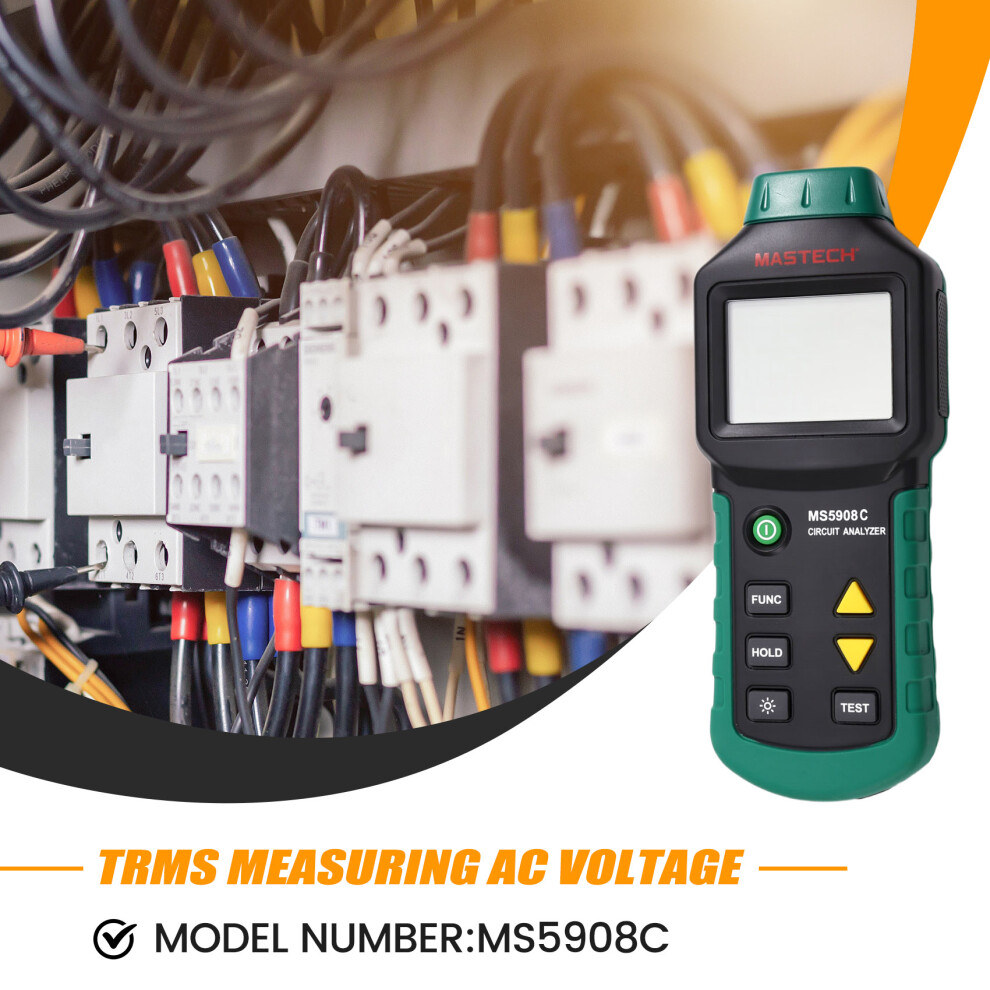

TRMS measuring AC Voltage
Artificial load 12A,15A, 20A measuring wire drop(MS5908A)/Artificial load 5A,8A,10A measuring wire drop(MS5908C)
Measuring phase voltage, neutral wire, voltage to earth, voltage, frequency
Measuring phase(live wire), neutral wire, earth wire conductor impedance

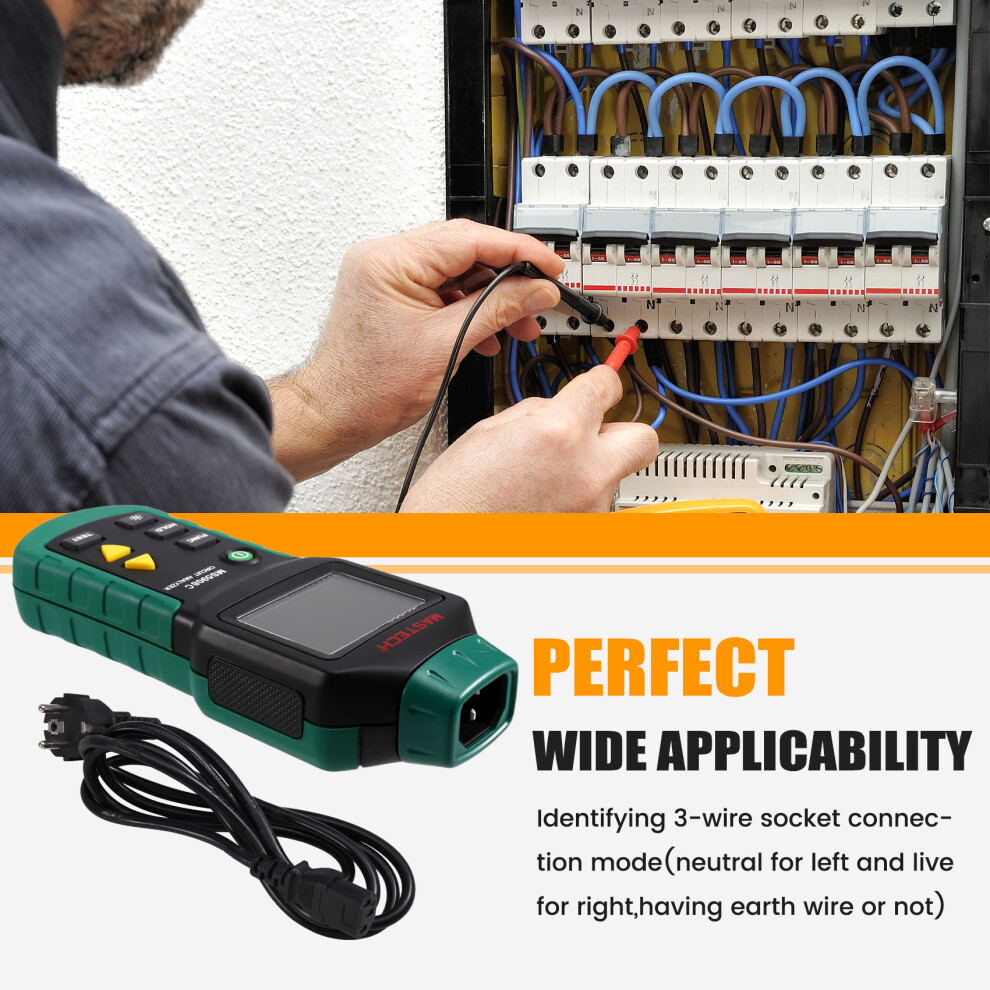

Identifying 3-wire socket connection mode(neutral for left and live for right,having earth wire or not)

Test the reliability of residual current device(RCD) and response action .

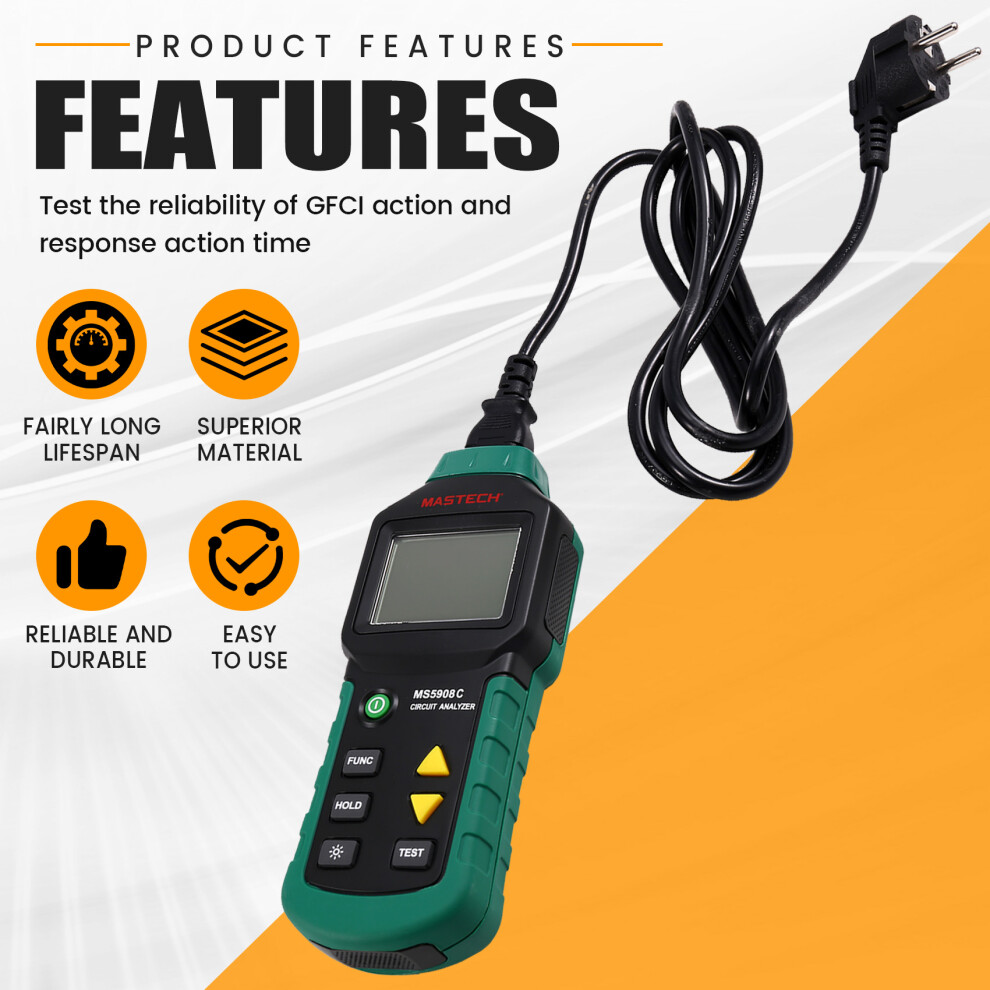

Test the reliability of GFCI action and response action .
Backlight function and data hold function.

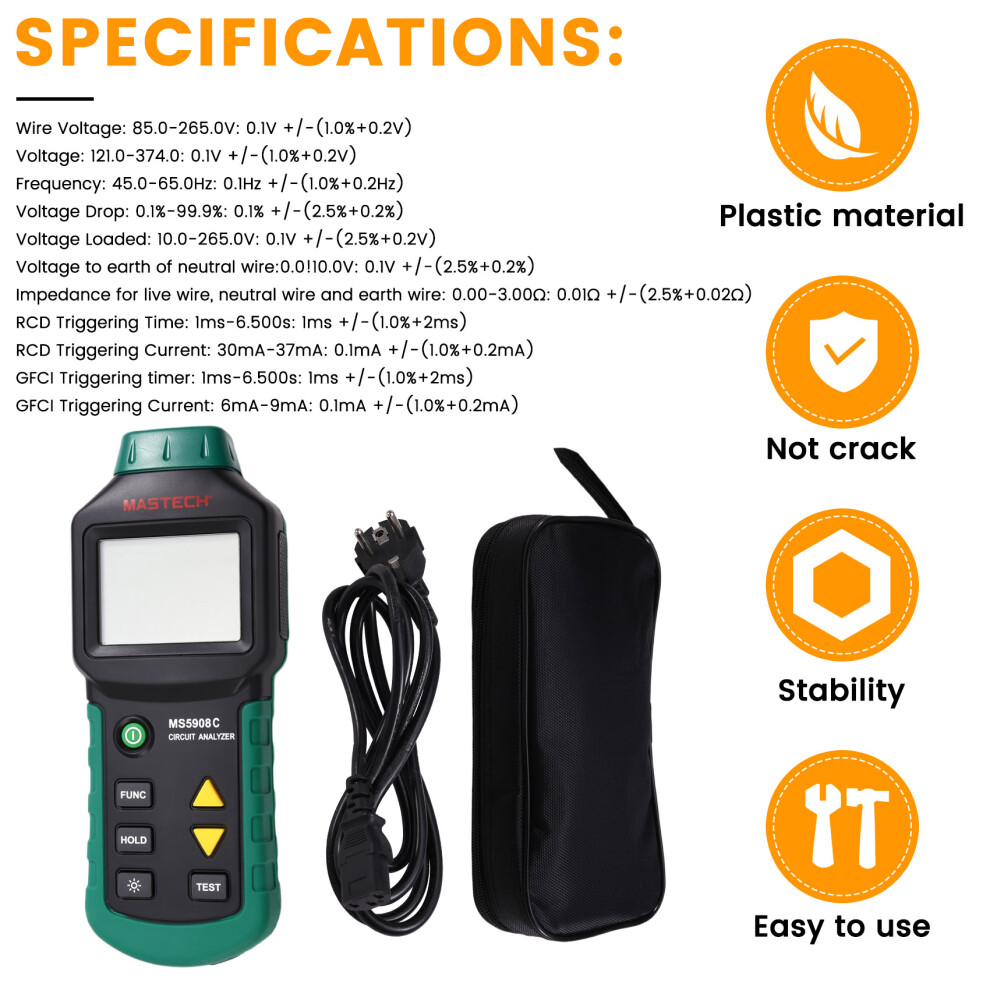

Specifications:
Wire Voltage: 85.0-265.0V: 0.1V +/-(1.0%+0.2V)
Voltage: 121.0-374.0: 0.1V +/-(1.0%+0.2V)
Frequency: 45.0-65.0Hz: 0.1Hz +/-(1.0%+0.2Hz)
Voltage Drop: 0.1%-99.9%: 0.1% +/-(2.5%+0.2%)
Voltage Loaded: 10.0-265.0V: 0.1V +/-(2.5%+0.2V)
Voltage to earth of neutral wire:0.0!10.0V: 0.1V +/-(2.5%+0.2%)
Impedance for live wire, neutral wire and earth wire: 0.00-3.00Ω: 0.01Ω +/-(2.5%+0.02Ω)
RCD Triggering : 1ms-6.500s: 1ms +/-(1.0%+2ms)
RCD Triggering Current: 30mA-37mA: 0.1mA +/-(1.0%+0.2mA)
GFCI Triggering timer: 1ms-6.500s: 1ms +/-(1.0%+2ms)
GFCI Triggering Current: 6mA-9mA: 0.1mA +/-(1.0%+0.2mA)
Power Supply: 1.5 AAA * 6(Not included batteries)
Model Number:MS5908C
name:Circuit Analyzer Tester
Notes:Shipping company does not accept liquids and powders and dry batteries
Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so .
Voltage:AC220V
Colour:Green & Black
Material:plastic

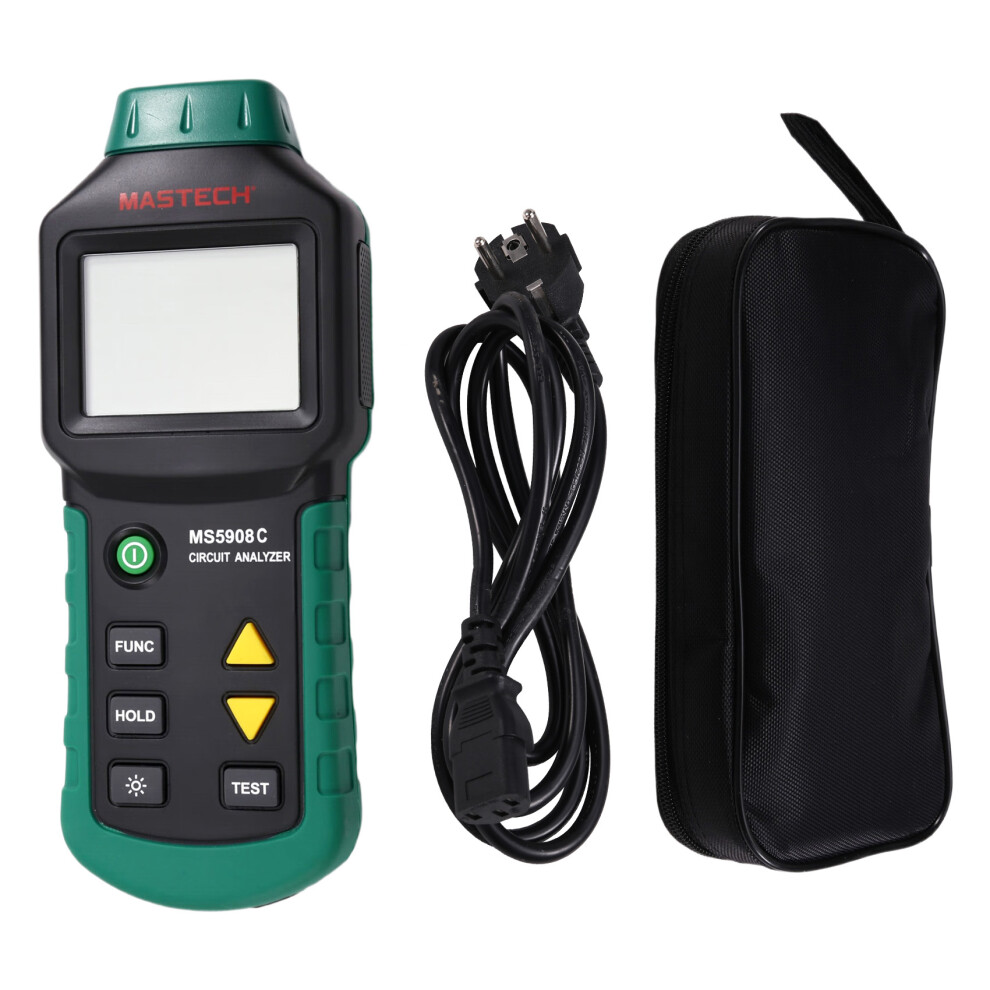

Package Contents:
1 * Circuit Analyzer Tester

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
