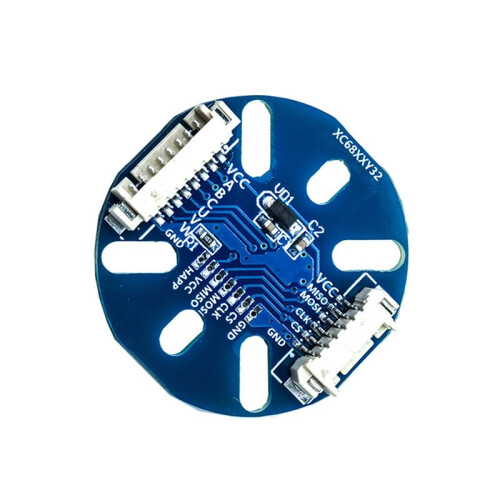

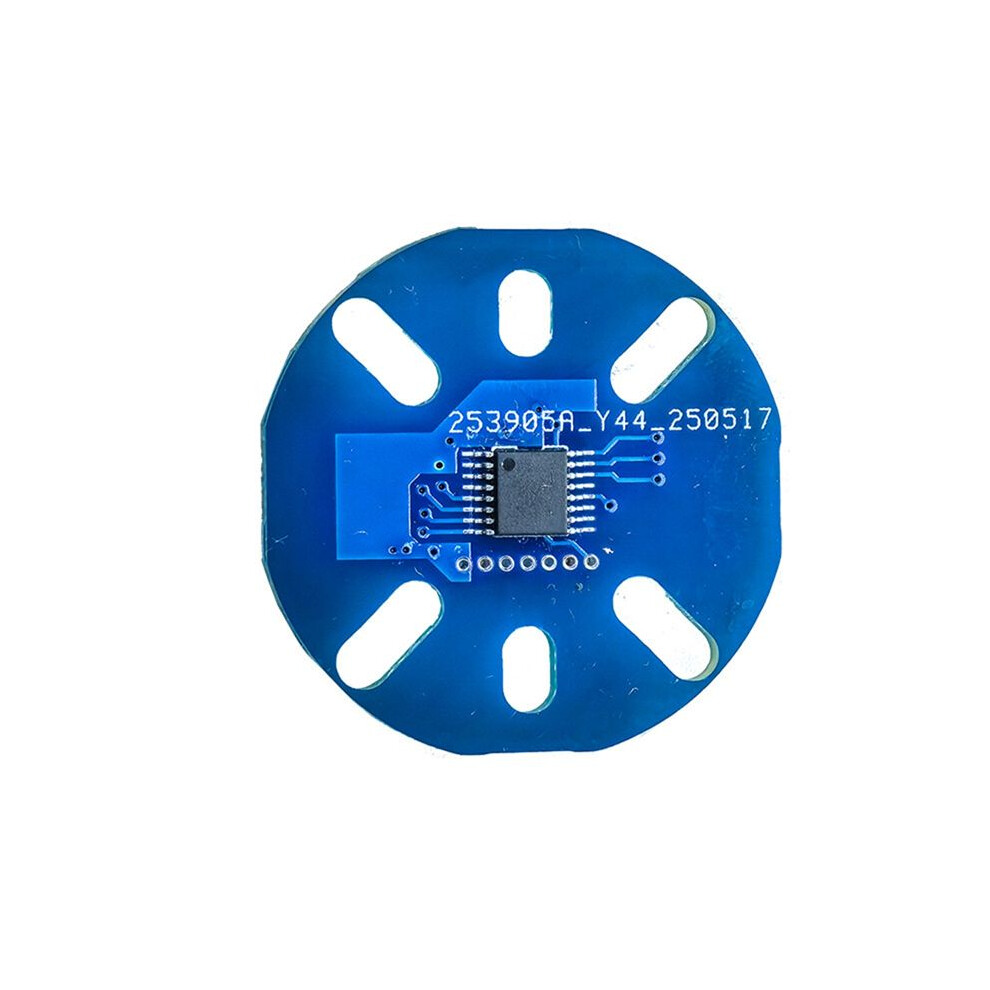

MT6826S Magnetic Encoder 15bit High Precision 4-Wire SPI AB4096 Pulse SPI ABZ Mode for Stepper Brushless Motor

MT6826S Magnetic Encoder 15bit High Precision 4-Wire SPI AB4096 Pulse SPI ABZ Mode for Stepper Brushless Motor Kuvaus

The MT6826S provides an incremental ABZ output interface to replace traditional optical encoders. The maximum resolution of the incremental output is 4,096 pulses/revolution, or 16.384 steps. The MT6826S also provides an incremental UVW output with a resolution of 1 to 16 pole pairs/revolution.
The MT6826S provides a 4-wire SPI interface for a host computer or MCU to read the 15-bit absolute angle value within the chip. The single-wire PWM output also provides absolute angle data with 12-bit resolution.
The MT6826S's core performance improvement lies in its convenient self-calibration mode. This mode compensates for various nonlinearities caused by imperfect magnets and structural installation deviations, significantly improving INL characteristics.

Operating Voltage: 3.3V-5.0V
Maximum Supported Speed: Less than 120,000 RPM
PWM Output: 12-bit
Operating Temperature: -40C-125C
ABZ Incremental Output: 1-4096 lines (programmable)
UVW Incremental Output: 1-16 poles (programmable)
Absolute Angle Resolution: 15-bit
System Delay (Constant Speed): 2us-10us
Communication Interface: 4-wire SPI
Color:
Material: PCB

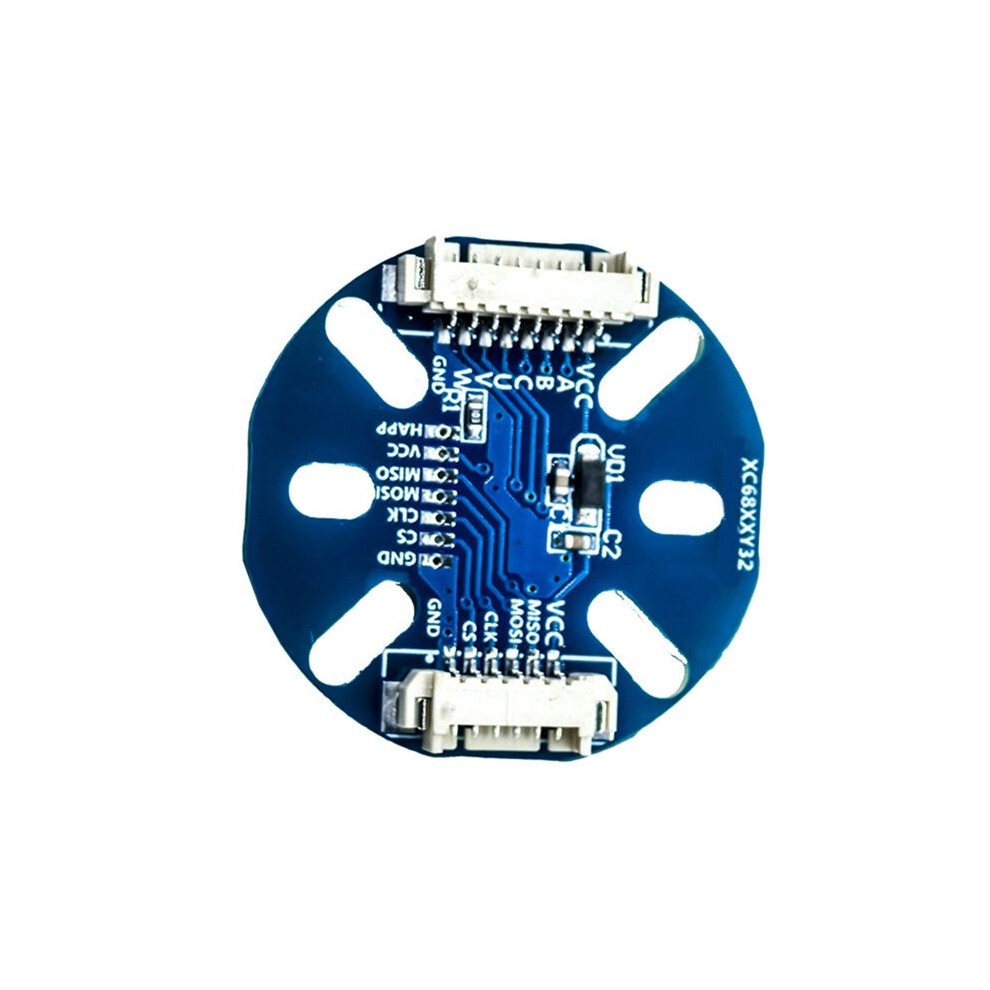

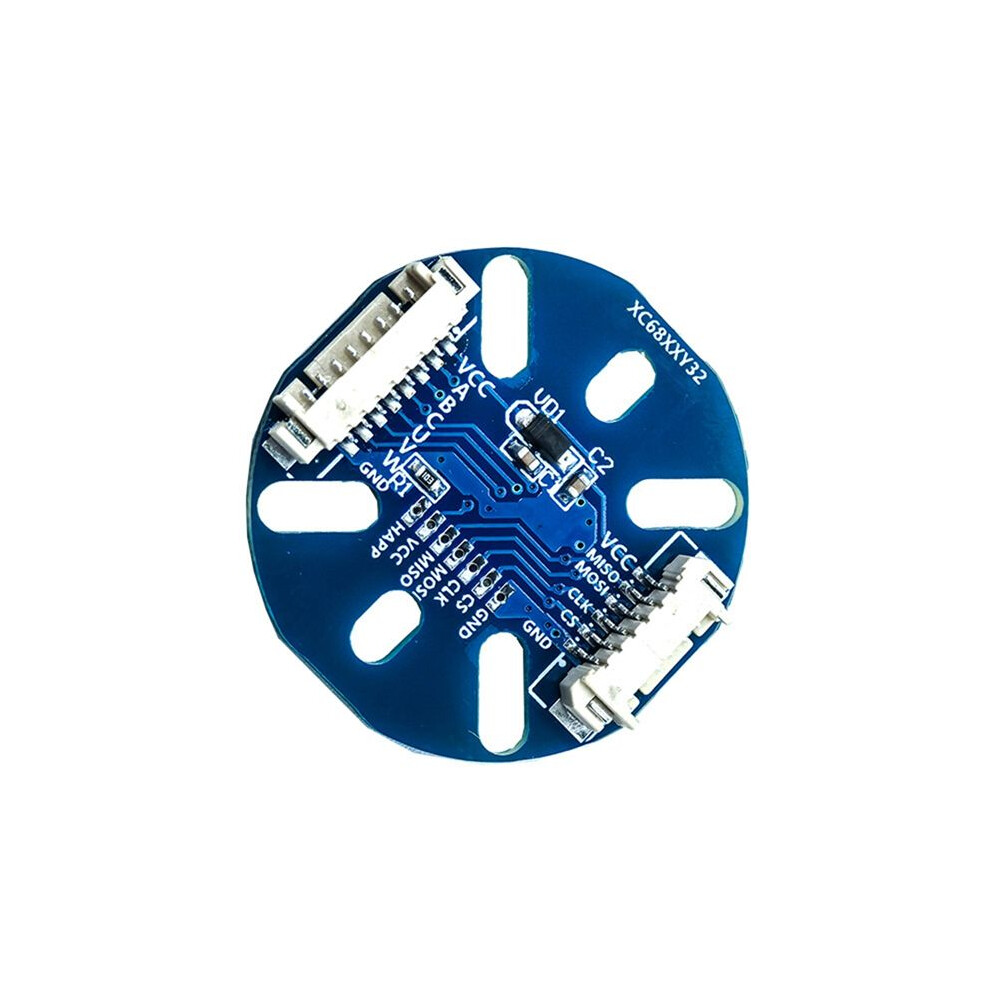

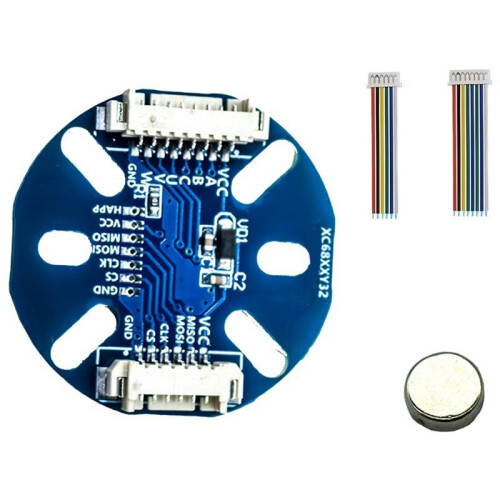

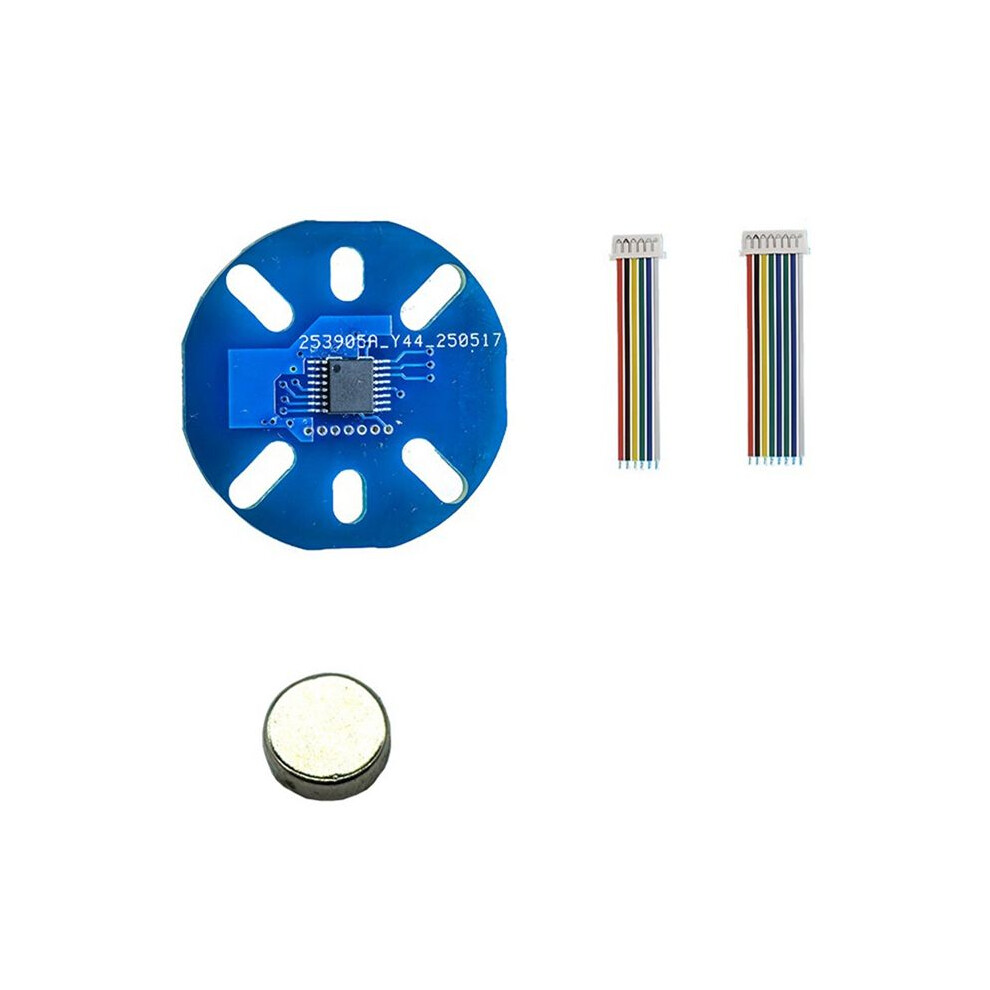

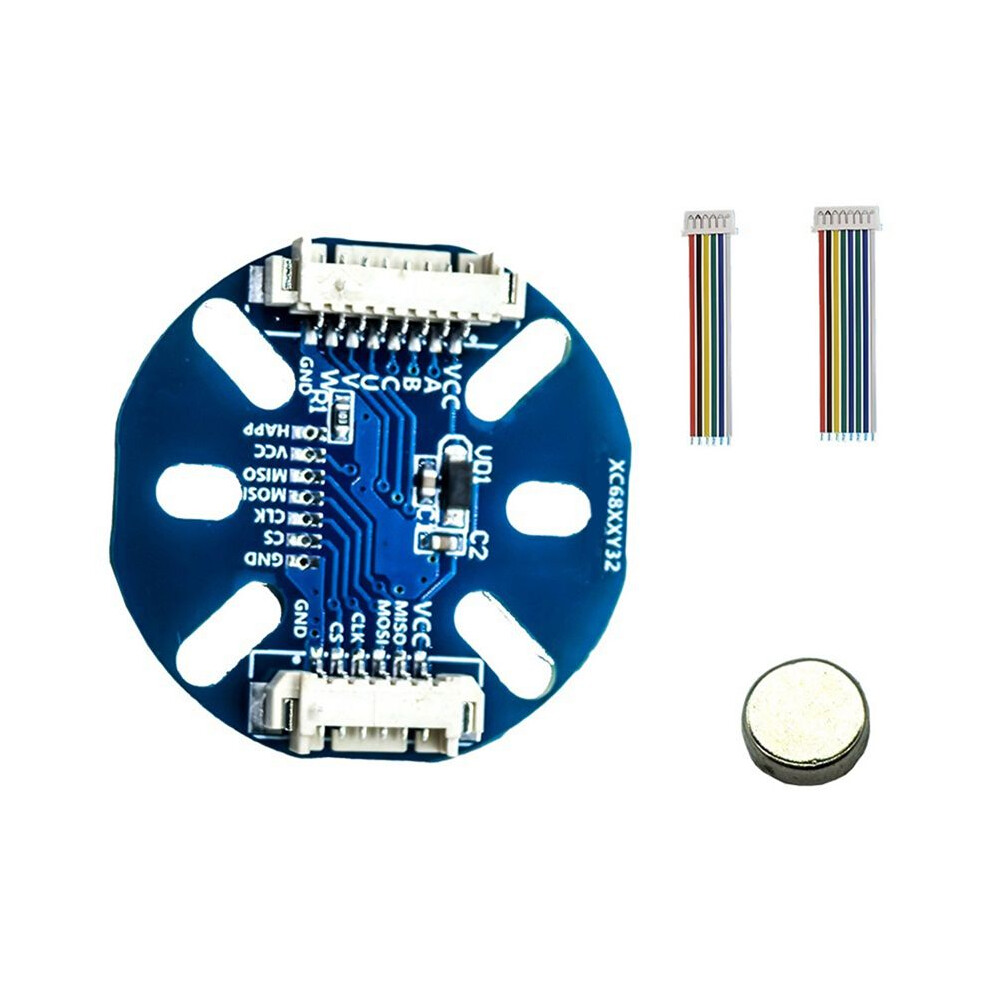

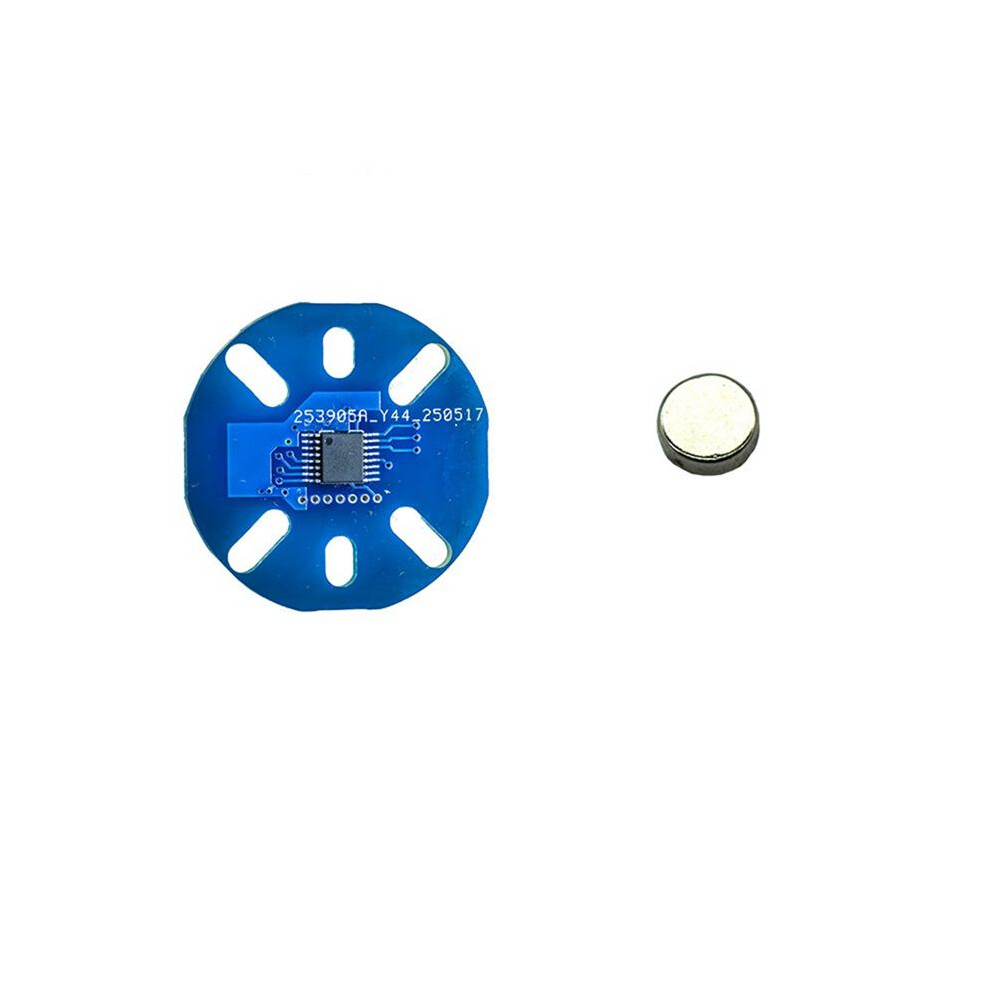

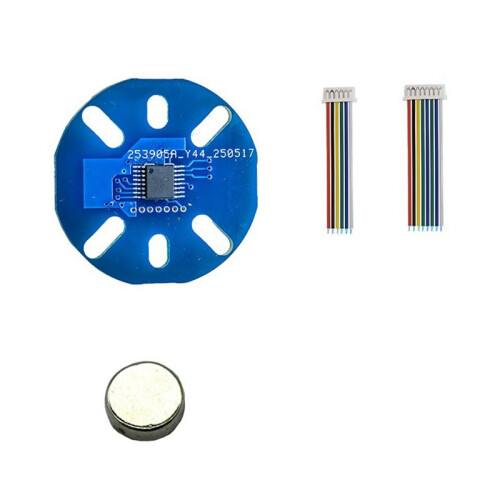

Package Contents:
1 x Magnetic Encoder
1 x Magnet
2 x cable
