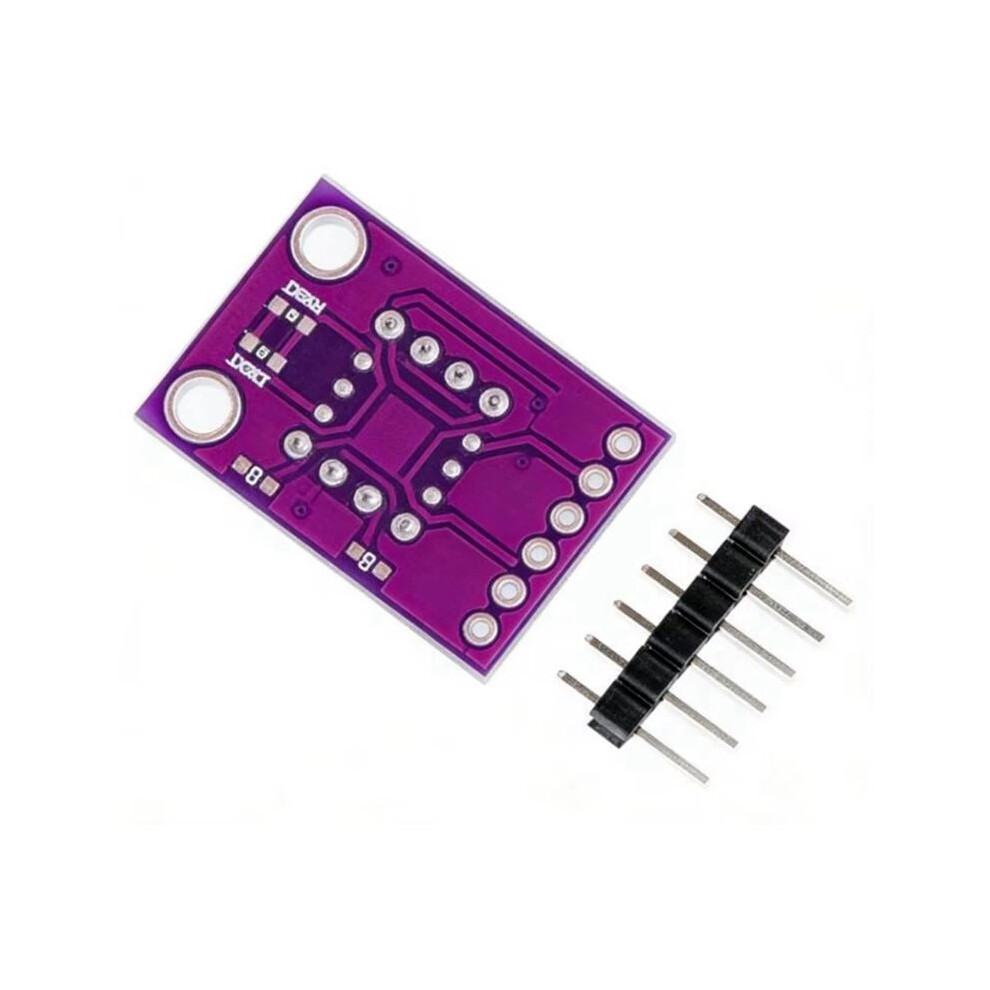

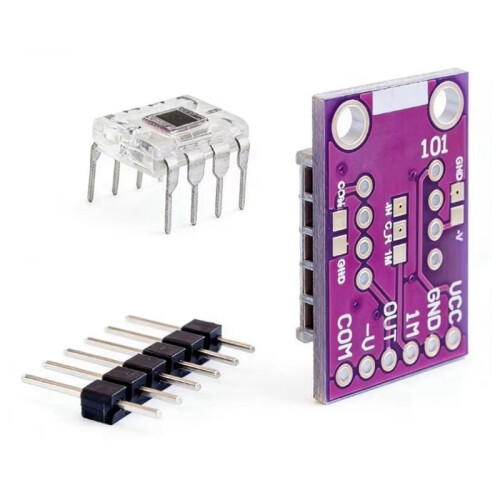

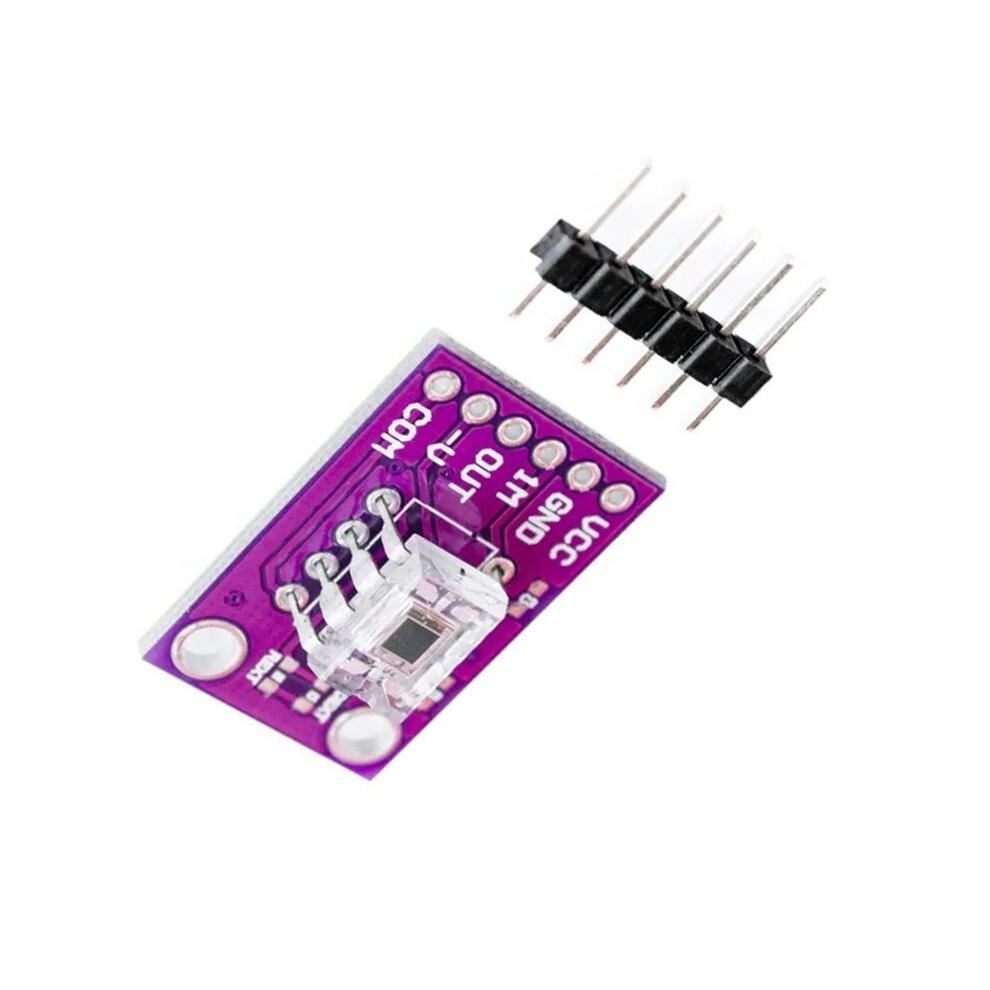

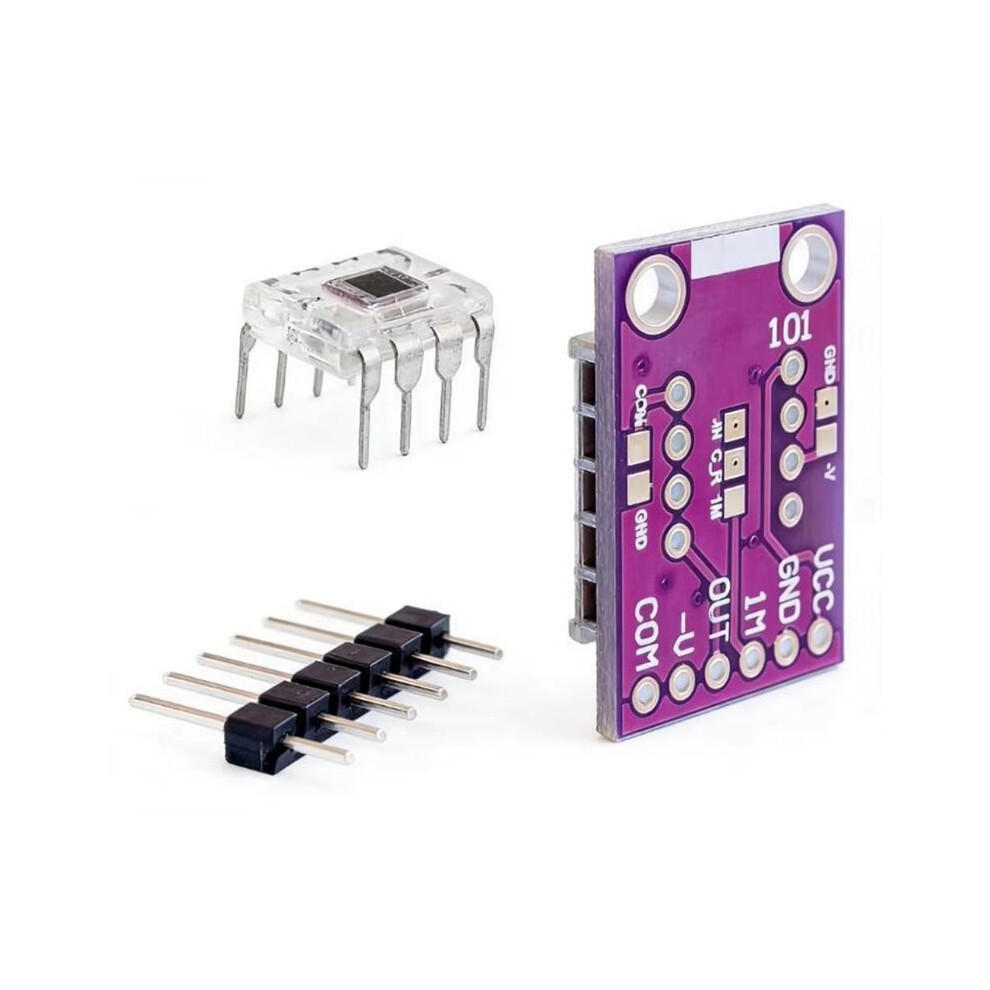

OPT101 Light Analog Light Intensity Sensor Module Single Chip Photoelectric Diode 14KHz

OPT101 Light Analog Light Intensity Sensor Module Single Chip Photoelectric Diode 14KHz Kuvaus

Product Feature

The OPT101 is an illuminance photosensor that integrates a photodiode and a specially optimized op amp. The transparent package allows the photodiode to have a larger sensing surface with higher sensitivity and a wide spectral response range (infrared to visible light 300nm-1000nm).

Product Parameter
Working voltage: 2.7 ~ 36V

Working temperature: 0C~70C

Photodiode light irradiation area: 5.2mm2

Photocurrent: 0.45A/W (λ = 650nm)

Output voltage ratio: 0.45V/uW

Analog voltage output range: Vs-1.15

Bandwidth: 14KHz

Static power consumption: 120uA

VCC: power supply positive pin

V: negative supply

IN: the inverting input of the internal op amp and the negative of the internal photodiode,

Do not connect or apply feedback that is abandoned in the operation

1M: Internal 1MΩ feedback resistor input

OUT: Amplifier output

COM: Internal photodiode positive, generally connected to GND
Color:
Material: PCB

Package Contents:
1*Module
