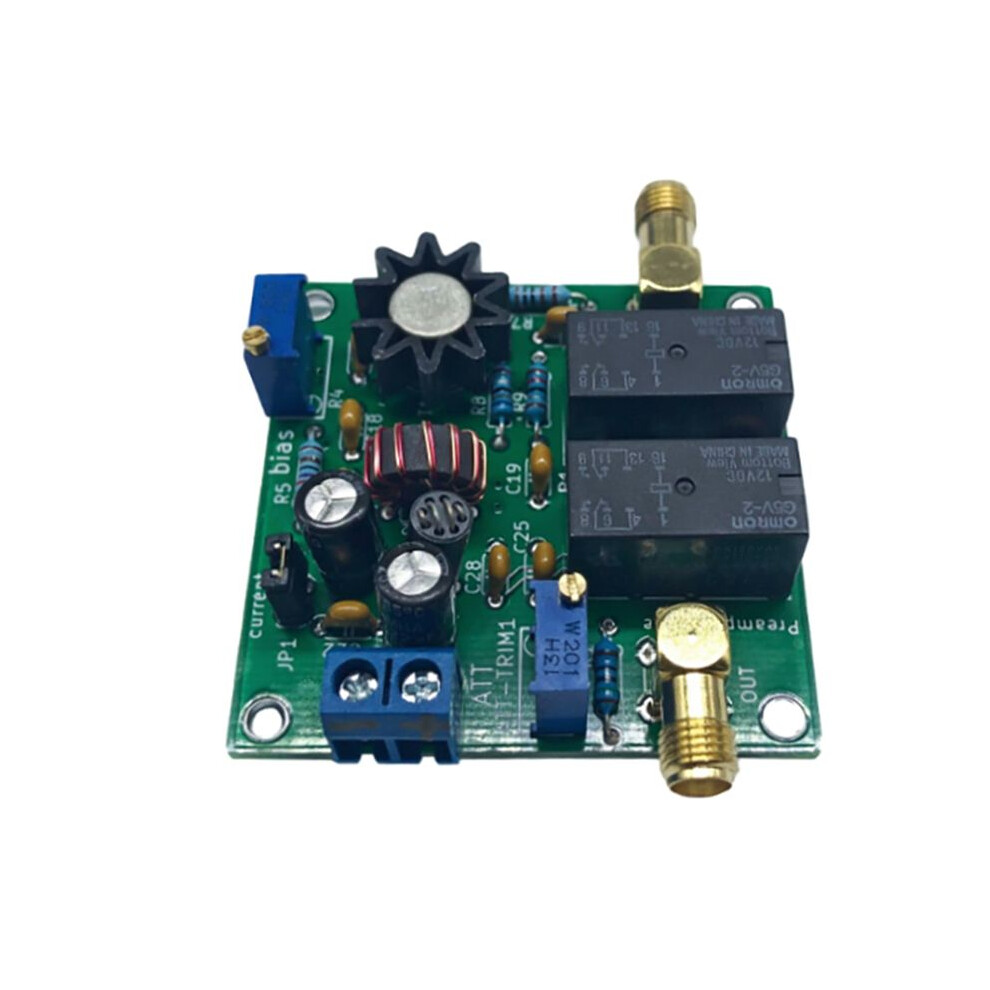

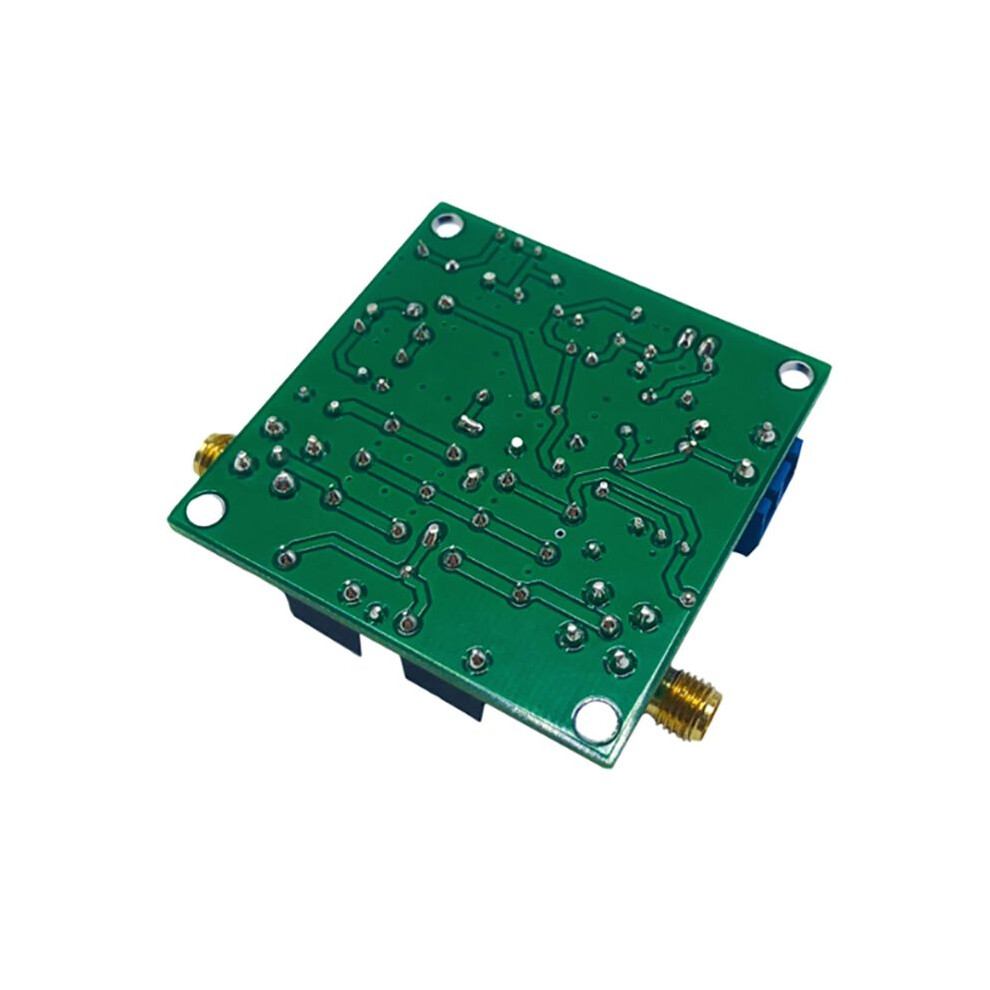

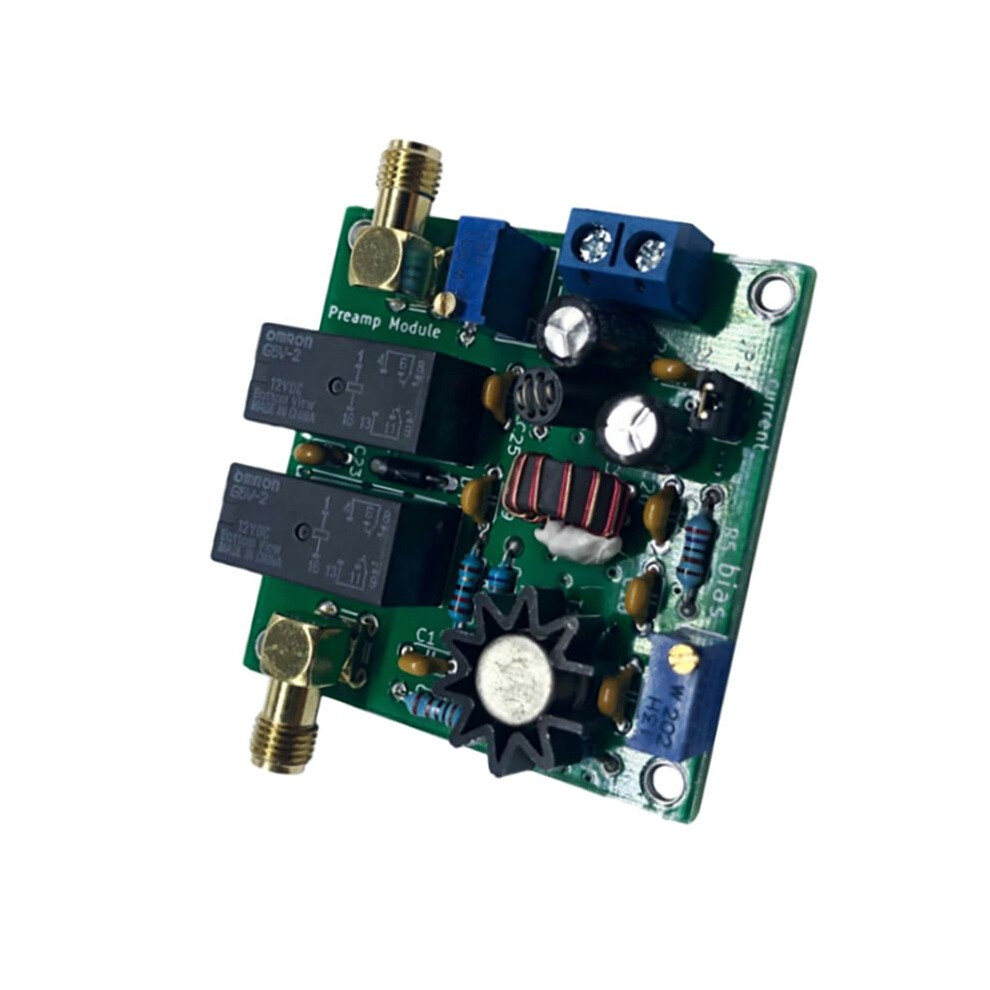

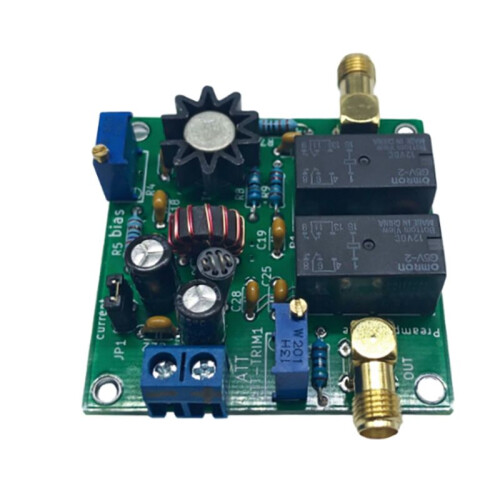

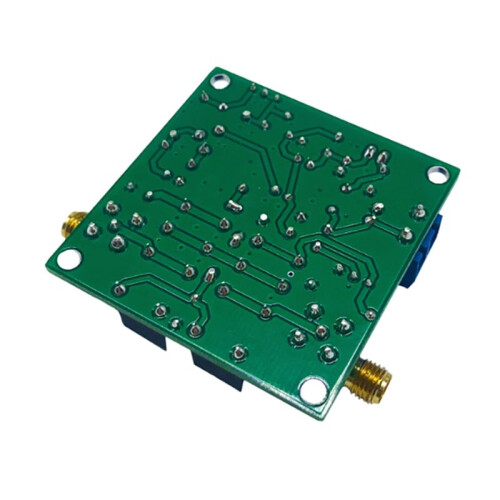

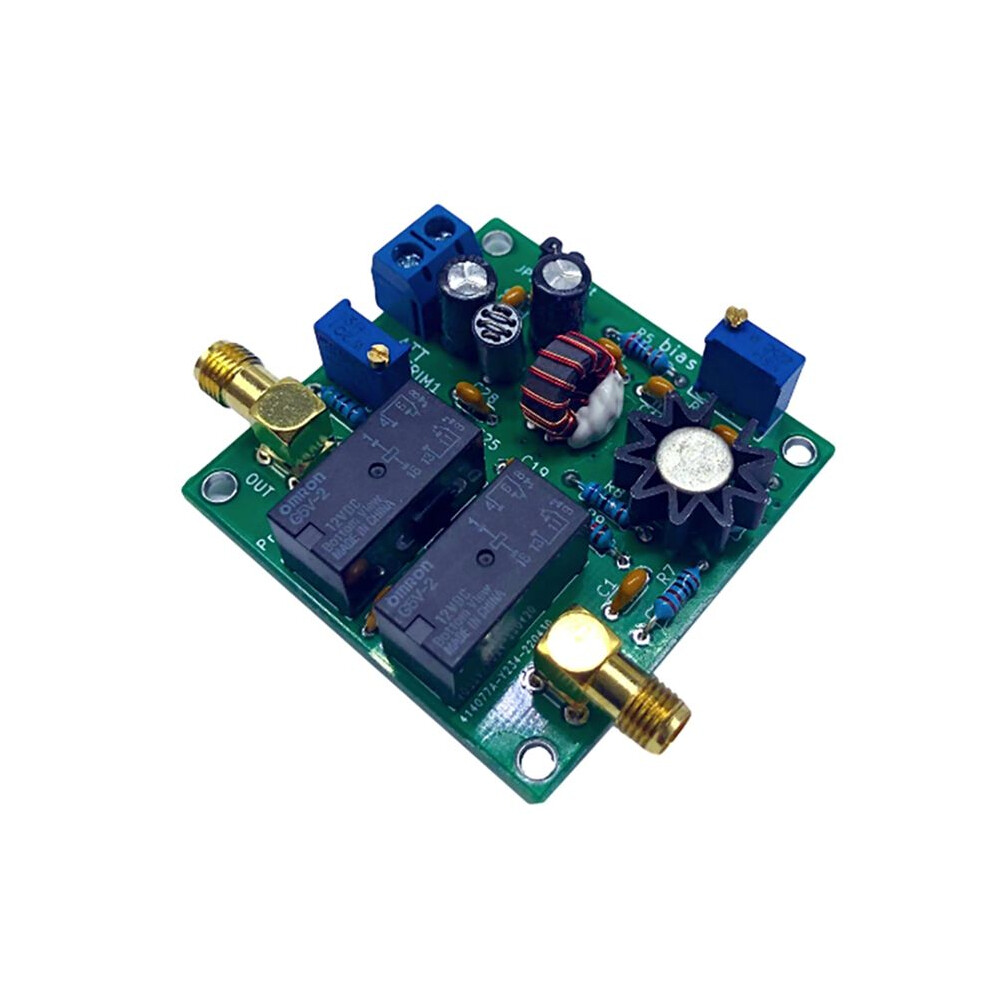

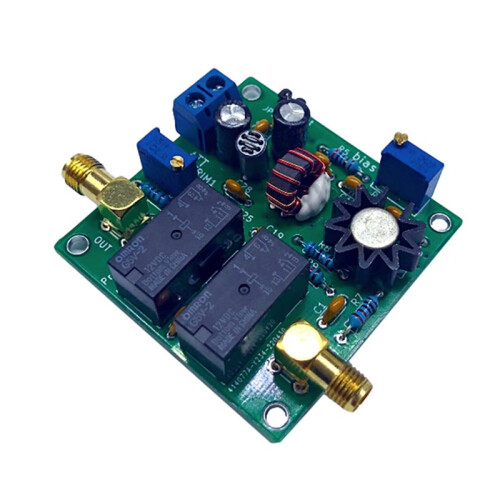

Preamplifier High IP Low Noise RX Antenna Medium and Short Wave Amplifier

Preamplifier High IP Low Noise RX Antenna Medium and Short Wave Amplifier Kuvaus

Adopt: NPN transistor
Supply voltage: 11 - 14 V, 180 mA (actual use)
Broadband: 0.1 MHz to 60 MHz (11 dB @ 150 MHz)
Gain: to 18 dB

Low noise figure (NF) 1,2 dB (20 mA 50 MHz)
Low Noise Figure (NF) Less than 2 dB (60 mA 50 MHz)
Low noise figure (NF) 2,3 dB (20 mA 150 MHz)
IP3 34dBm
High output power to 26 dBm
Variable ATT gain 0 to 18dB
2. Purpose:
High IP, Low Noise RX Preamplifier - RX Antenna
buffer amplifier
driver amplifier
3. Operating frequency: 0.1 MHz to 60 MHz;
4. Power supply: DC11-14V, 200MA
Material: PCB
colour: As shown

Package Contents:
1 x Preamplifier
