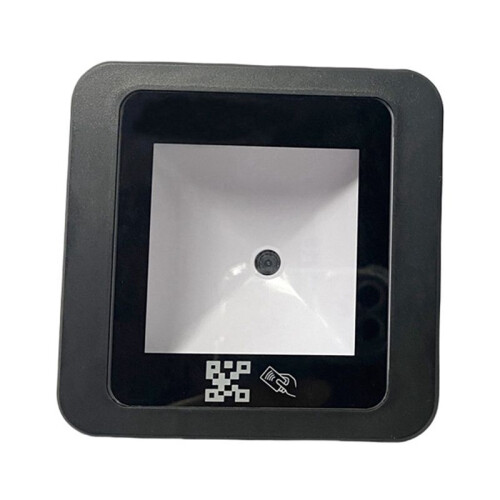

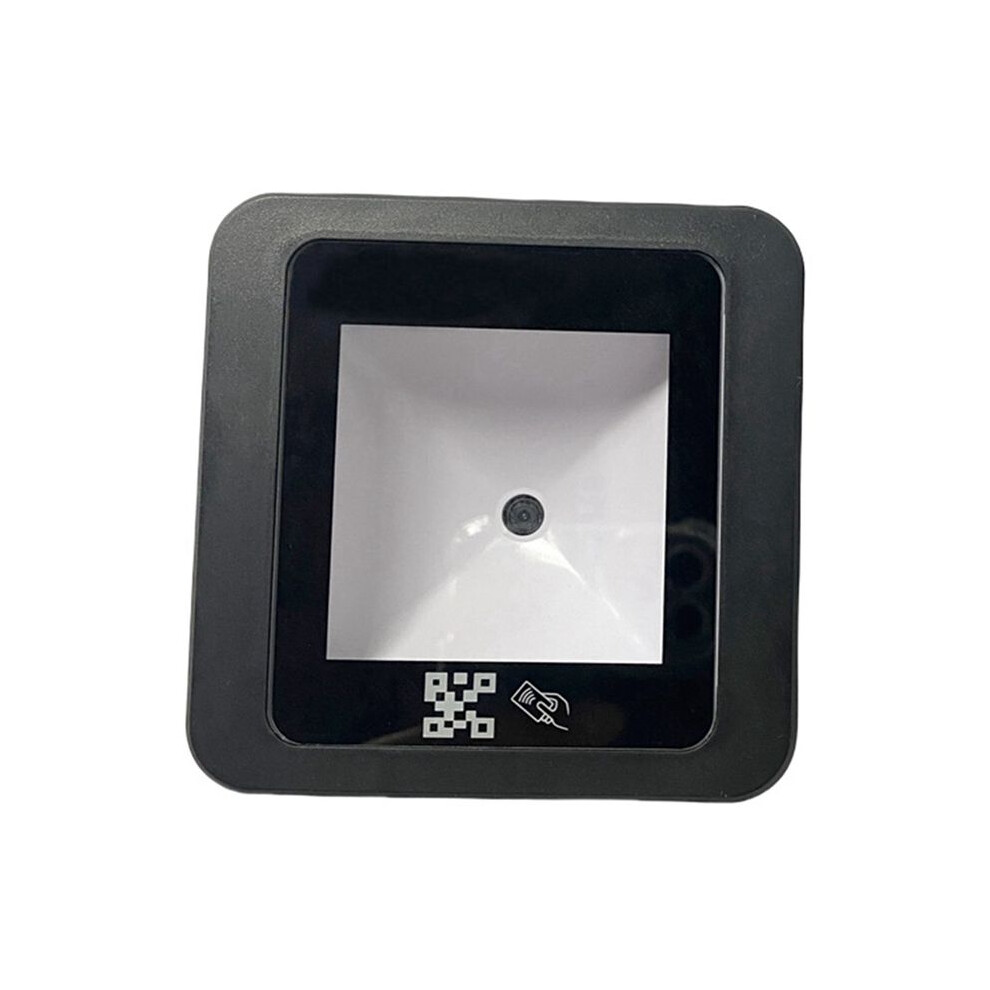

R35C 13.56Mhz Embedded Barcode Scanner Wired Scanning Module RFID Card Reader USB Connect /232/485 Interface

R35C 13.56Mhz Embedded Barcode Scanner Wired Scanning Module RFID Card Reader USB Connect /232/485 Interface Kuvaus

Description: QR Code Access card Reader is our new intelligent Access Card Reader, Fast reading speed, High recognition rate, Strong compatibility, can connect to any Wiegand input contronller, widely Community visitor access management, Administration Service Hall management, Gates access control, Visitors intelligent machines, home; Upgrade old access control systems etc.
Specification: Model: R35-IC QR 2D Barcode + (13.56MHZ)
Interface:Wiegand26/34, RS232,USB,RS485,TTL
Decode mode: Immage decoding
Reading directions: Camera centric slant 45

Reading feature: Auto-induction & beeper
Voltages: 4-12V Wide voltage input
Reading range of range: 3-6CM
Reading speed: Less than 200ms
Operate system: Windows(XP,7,8,10), Linux
Remark
Use objects inserted into RESET hole of QR code reader backside, release till the QR code reader automatically restarted
Application
Self-service equipment,
Brake machine products,
Retail, cashier POS, medical,
Mobile phone coupon,
Ticket check
Lottery betting station,
Bank, etc.
Please check as much as possible to make sure the item is what you need.
Tips: The product may be updated constantly ,Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use
Colour: As Shown
Material: PC

Package Contents:
1 x Access Control Card Reader
