Relay Controller 6-80V Voltage Detection Charging Discharge Monitor Digital Display Voltage Detection

Relay Controller 6-80V Voltage Detection Charging Discharge Monitor Digital Display Voltage Detection Kuvaus

Digital display voltage detection, control the relay output.

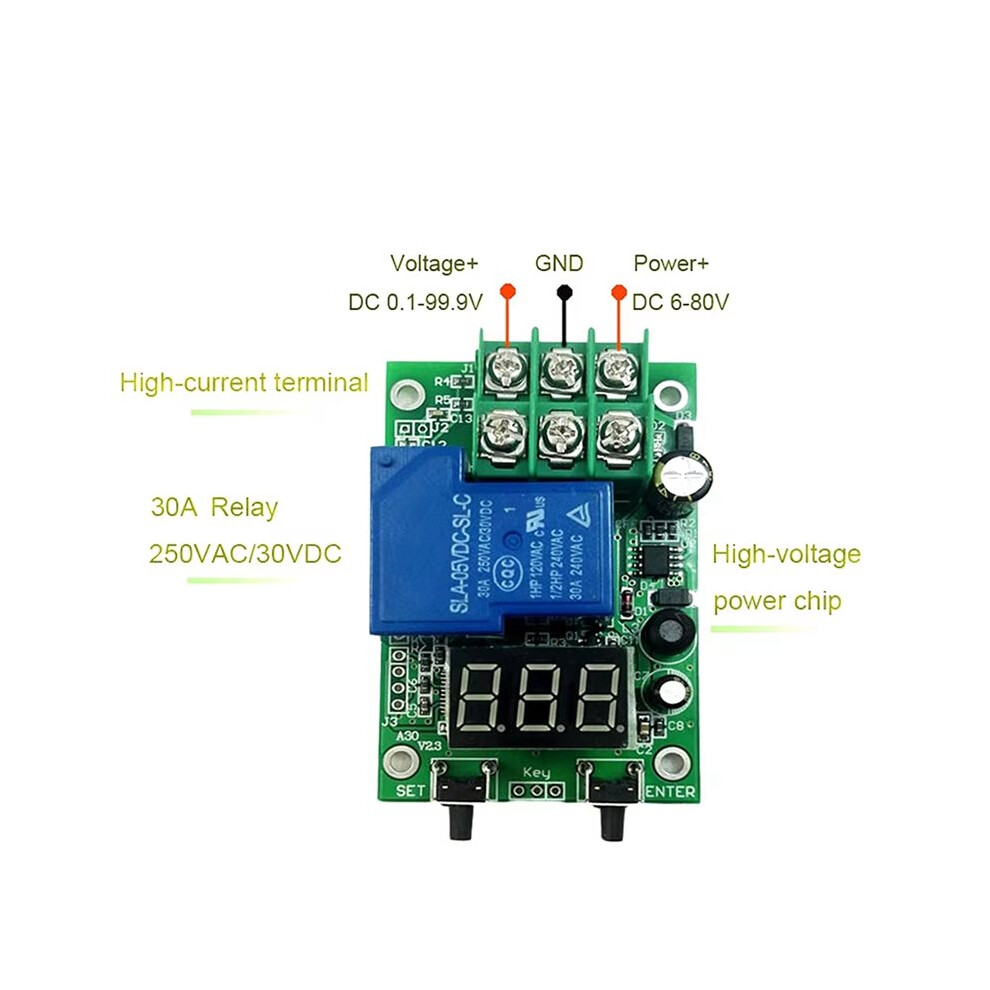

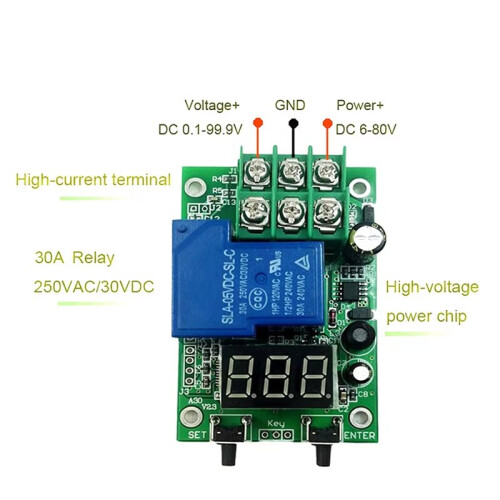

6~80V relay interface board with 2 buttons for easy operation.
With clear LED display, convenient to check the value.
Adjustable Voltage Detection Range: 0~99.9V.
When the measured voltage is lower than the lower limit or higher than upper limit value, the relay works.

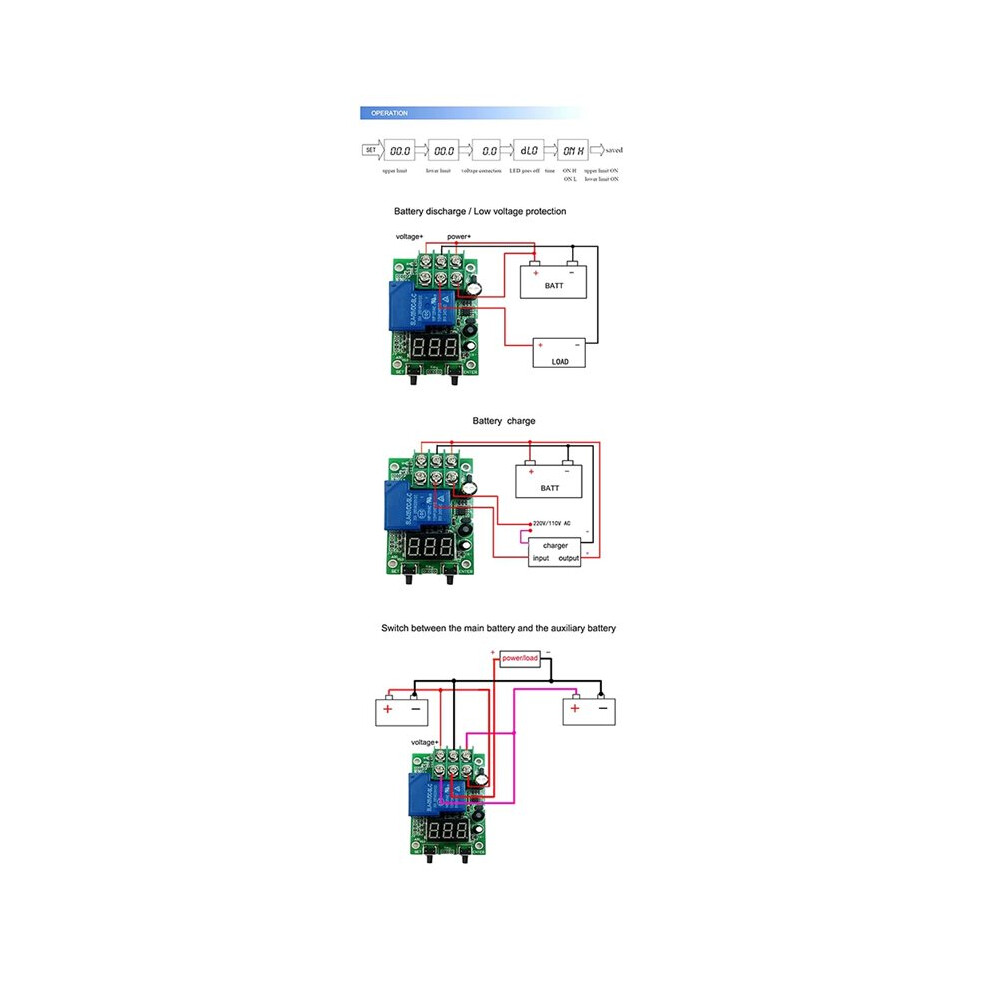

Can be used for voltage detection , battery over/under voltage protector or discharge meter.

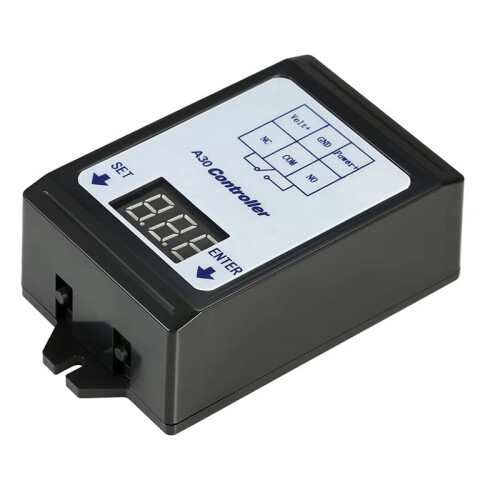

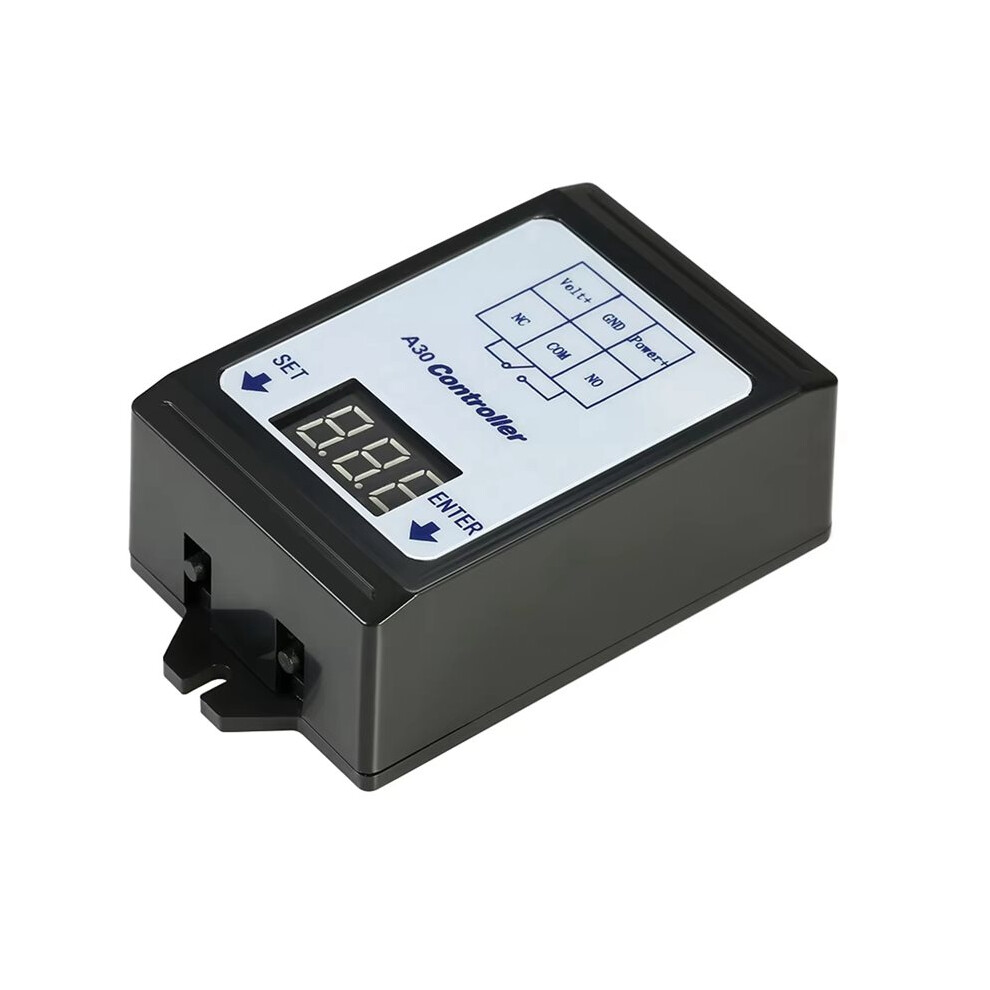

Comes with a cover for protection.
Working Voltage: 6~80V
Voltage Detection Range: 0~99.9V
Error: +/-0.1V
Working Current: 8mA/24V(relay open, LED displays OFF about 4mA/24V); 58mA/24V(relay closed)
A set of transformations(normally open/normally close, NO/NC)
Contact Load: NO: 30A/250V AC or 30A/30V ; NC: 20A/250V AC or 20A/30V
Attention: Because high voltage electric arc damages relay contact,
so the electric load above DC60V load current is less than 10A.
Contact Resistance: 100mΩ(1A 6VDC)
Mechanical Durability: 10 millions Electricity durability: Greater than 100,000 (20A~250VAC)
Operating Temperature: -40~85C
Color: Black
Material: PCB + ABS

Package Contents:
1 * Relay Controller
