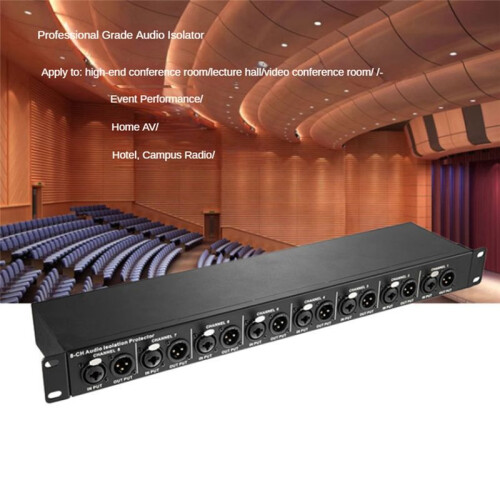

T8 Multi-Function 8-Channel Audio Isolator 1U Rack Mounted XLR 6.35mm Audio Isolator Eliminates Current

T8 Multi-Function 8-Channel Audio Isolator 1U Rack Mounted XLR 6.35mm Audio Isolator Eliminates Current Kuvaus

The 8-channel multi-interface audio isolator is a high-quality, fully passive audio interface that uses 8 to separate the input and output signal grounds, isolating the two systems and reducing hum and ground loop noise.
The T8's audio have a flat and wide frequency response that can handle high signal levels while maintaining isolated balanced outputs. This gives the T8 a very clean and neutral sound from a variety of signal sources.
The are wound with 1:1 unity gain and are designed for impedances from 600 ohms to 100k ohms. The versatility of connections sets the T8 apart from other isolation boxes. The T8 offers balanced XLR, 1/4-inch phone, and RCA type phono connections simultaneously all inputs and outputs.

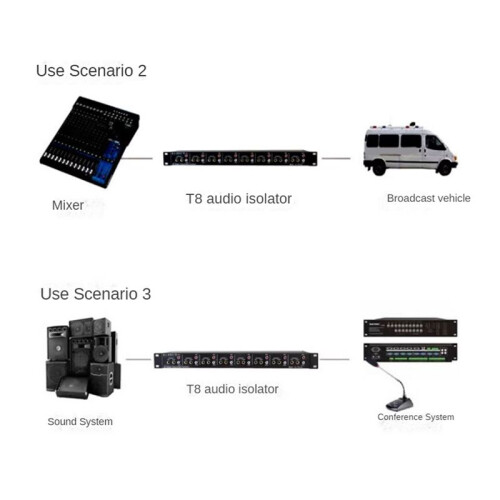

The T8 easily fits into almost any audio system and is a clear patching point between all types of systems.
The mounting ears of the T8 are reversible so you can place the XLRs the front.

The T8's full feature set, rugged construction and high-end specifications make the T8 the obvious choice for live sound, permanent/fixed installations, DJ and virtually any PA application. High-quality passive audio interface with 8 high-performance transformer-mounted XLR, 1/4inch phono and RCA type phono connections all inputs and outputs.
Parameters and specifications:
1. Eight channels (6.5 RCA ) input and output, with PAD attenuation , GND ground isolation
2. Impedance ratio:600 at input, 600 at output (1:1)
3. Frequency response:20HZ-30KHz (0.3dB, +4dBu; -1.5dB, +28dBu)
4. Maximum input level:+28dBu (THD0.5%, 50HZ; TH-D Less than 0.01%, 1KHz)
5. Distortion: 0.0025% (+4dBu1KHz)
6. Loss attenuation:-0.5dB at 600 load; 0.1dB at 10K load
Colour:Black
Material:Metal

Package Contents:
1 * 8-channel Audio Isolator

Only the above package content, other products are not included.
Note: Light ref
