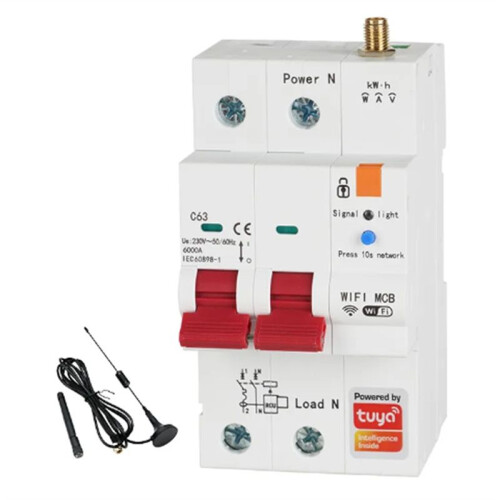

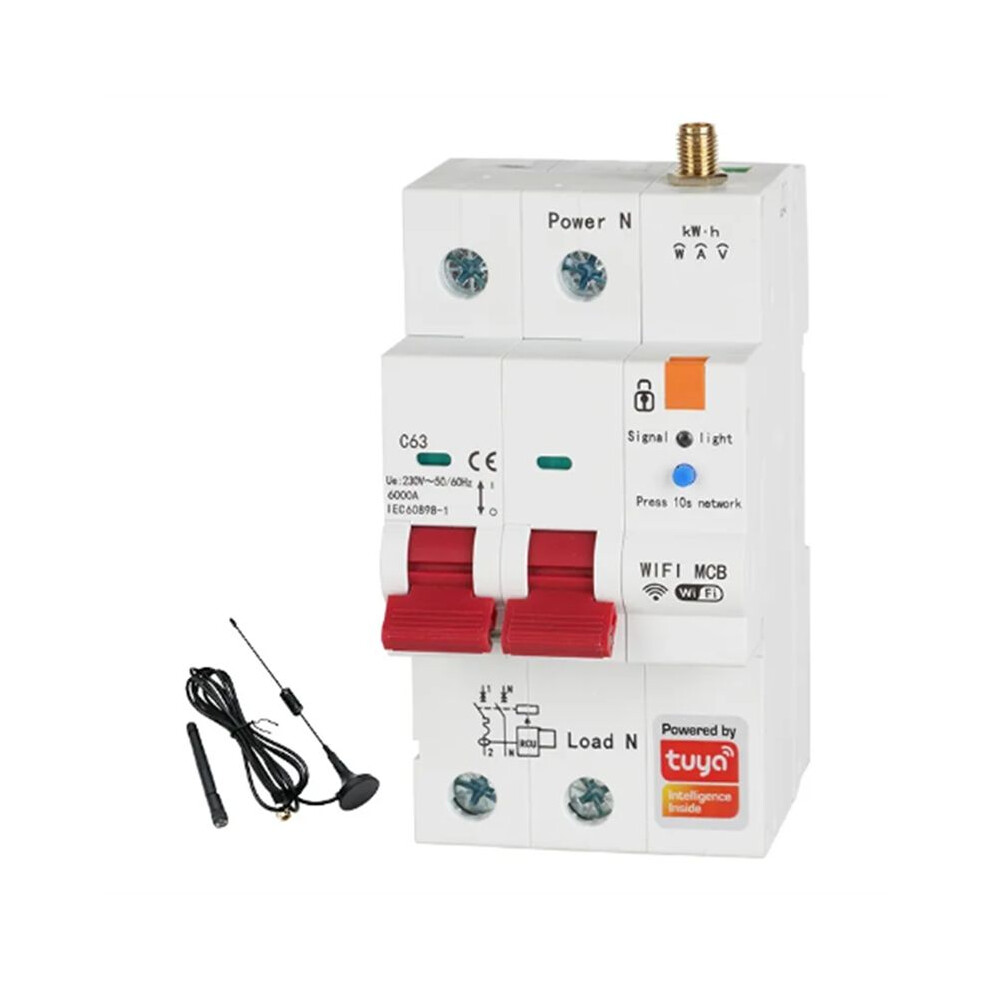

Tuya WiFi RS485 2P 63A MCB Breaker Prepaid Meter Timer Voltage Current Protector Voice Control Alexa

Tuya WiFi RS485 2P 63A MCB Breaker Prepaid Meter Timer Voltage Current Protector Voice Control Alexa Kuvaus

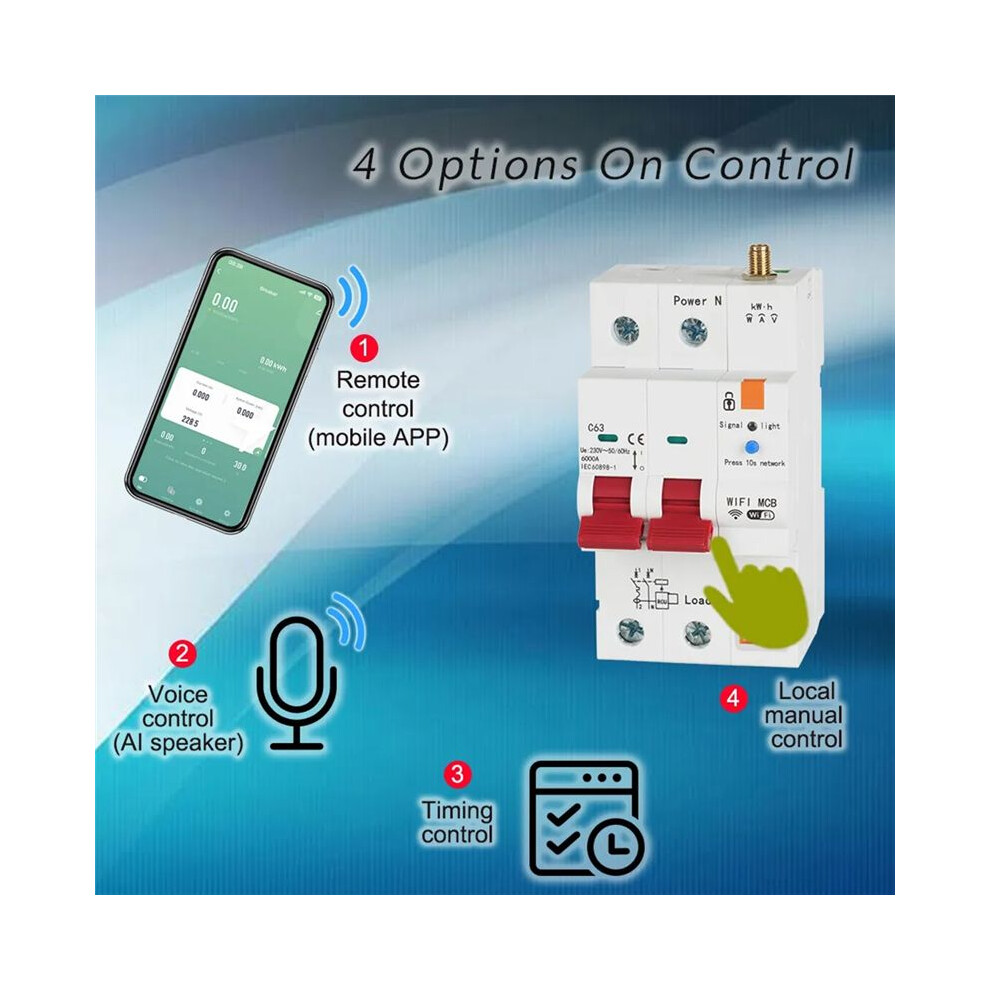

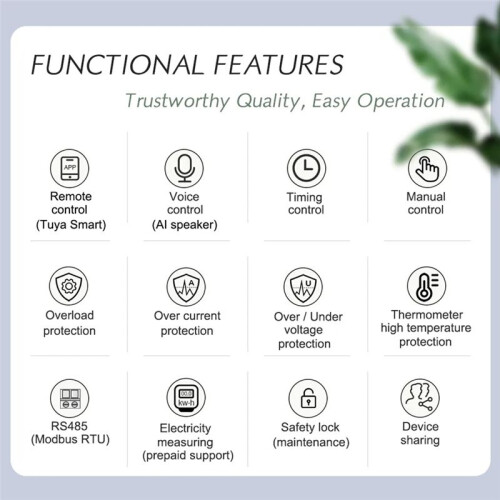

Functional features1. Four options control: Remote control anytime anywhere (mobile app, Tuya , Life).Voice control (AI speaker, Alexa, for , Alice, ...).Timing control (programmable Schedule).Manual control
2. Monitor real- electricity consumption and statistics phone (A, V, mA, kW, kWh, );
3. Prepaid metering mode available as option by ;
4. Adjustable protections against overload, residual current(leakage), high temperature, overcurrent, over/under voltage, low balance(prepaid);
5. Overload protection adjustable, 13kW as default; Overcurrent protection adjustable, 63A as default; Over voltage operation value range: AC240~300V adjustable, 275V as default; Over voltage recovery value range: AC220~250V adjustable;

Main specifications:
Poles: MCB(1P+N, 2P, 3P+N, 4P); RCBO(2P, 4P);
voltage: AC220V (over/under voltage protection adjustable);
Rated current: to 63A (overcurrent adjustable);
Frequency: 50/60Hz;
Breaking capacity: 6000A
Mounting: 35mm din-rail;
Communication: WiFi 2.4G + RS485 Modbus RTU;
Under voltage operation value range: AC140~190V adjustable, 160V as default;
Under voltage recovery value range: AC170~220V adjustable;
Under voltage recovery delay: 0.5S~6S;
Residual current(leakage) protection adjustable, 30mA as default;
High temperature protection adjustable, 80 as default;
In prepaid mode, insufficient balance protection adjustable, 10kWh as default;
Auto-reclosing after protected conditions recovery(under auto mode);
Timing schedule programmable App;

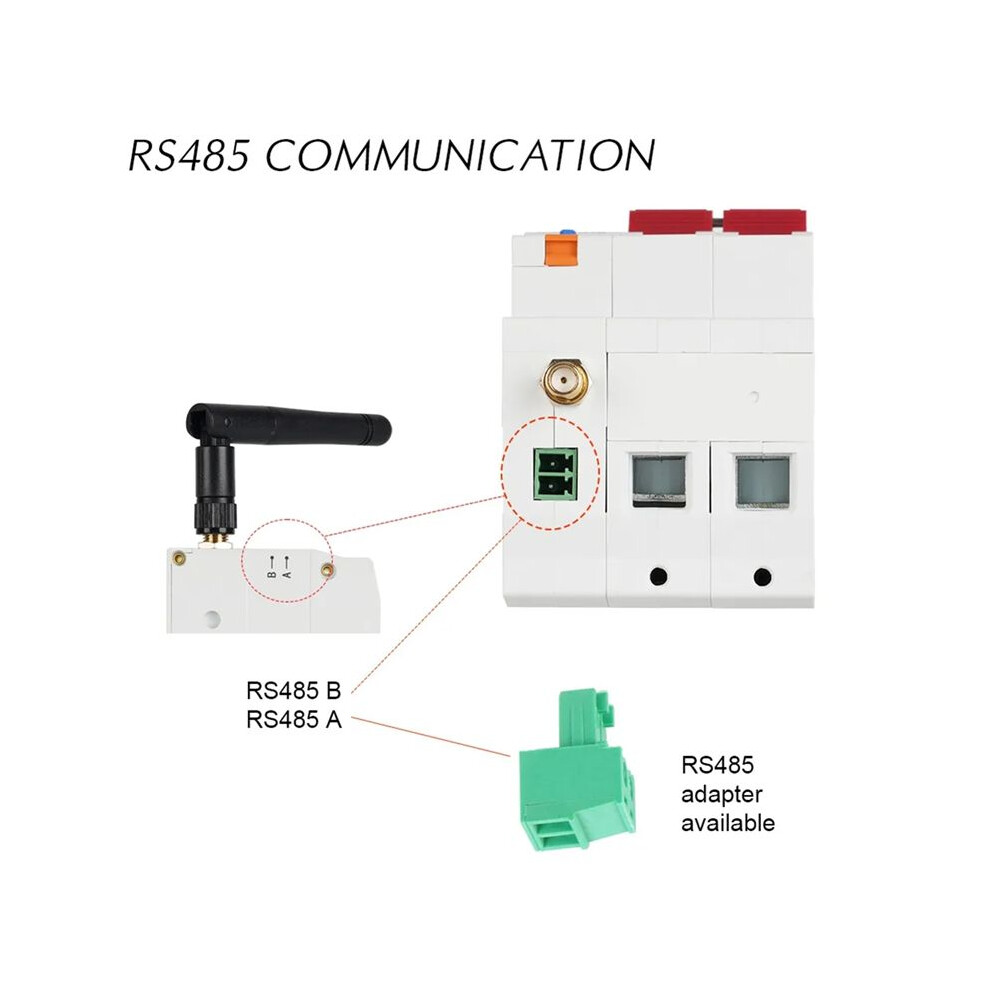

RS485 baud rate 9600, address range 1~247, wiring adapter available;

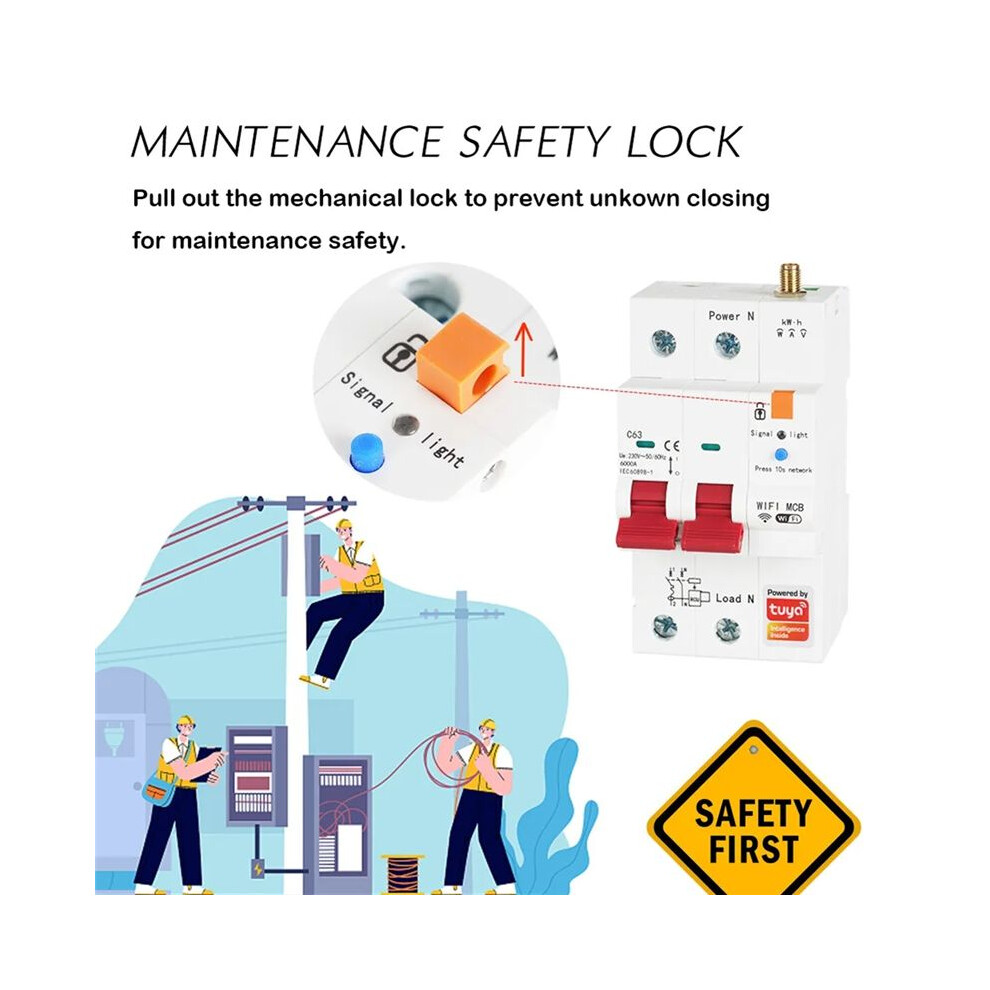

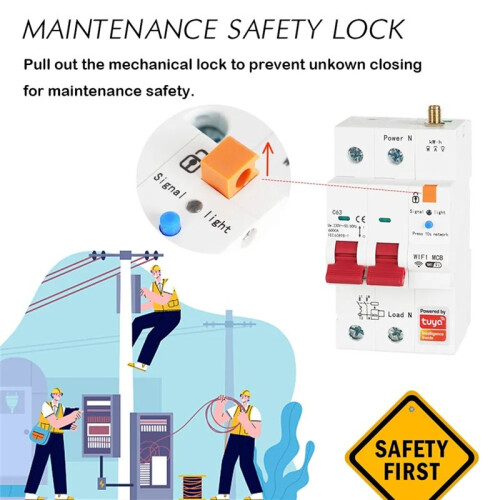

Mechanical lock available for maintenace safety;
Device sharing among family or your team;
Note: RS485 Modbus RTU configuration
Material: plastic
colour: white

Package Contents:
1 x Tuya MCB Breaker (Due to different product batches, t
