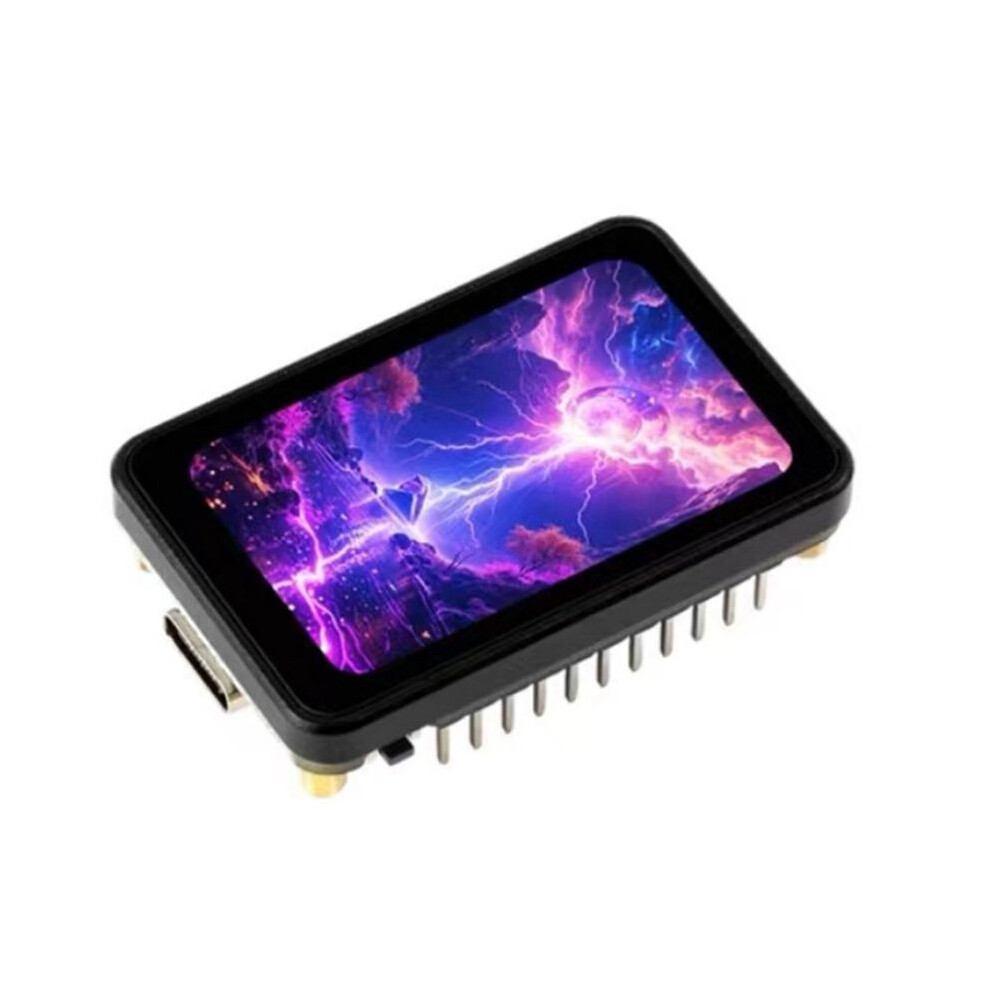

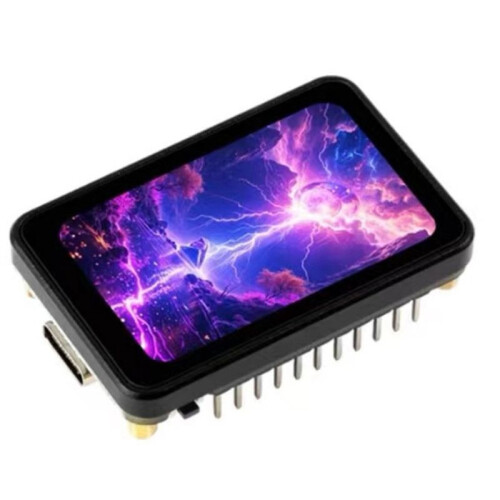

Waveshare RP2350 Development Board 280x456 Resolution for Raspberry Pi 2 1.64 Inch AMOLED Rounded Capacitive Touch Display

Waveshare RP2350 Development Board 280x456 Resolution for Raspberry Pi 2 1.64 Inch AMOLED Rounded Capacitive Touch Display Kuvaus

This product is a high-performance, highly integrated microcontroller development board designed by Waveshare. In a smaller board, it is equipped with 1.64-inch capacitive HD AMOLED screen, six-axis sensor (three-axis accelerometer and three-axis gyroscope), RTC and Micro- card slot and other peripherals, which are easy to develop and integrate into products
RP2350A microcontroller chip designed by for Raspberry Pi
Unique dual-core and dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, the clock running frequency is to 150MHz, supporting users to flexibly between the two architectures
Built-in 520KB and 16MB -chip Flash
Using Type-C interface, no need to worry about whether to insert it forward or backward

Onboard 1.64-inch capacitive touch HD AMOLED screen, 280x456 resolution, 16.7M color, can clearly display color pictures
Built-in CO5300 driver chip and FT3168 capacitive touch chip, using QSPI and I2C respectively Interface communication
Onboard lithium battery charging and discharging interface, which is conducive to mobile scene use
Support USB1.1 host and slave device
Support low-power sleep and hibernation modes
Can be identified as a large-capacity storage through USB for drag-and-drop program download
17 multi-function GPIO pins
2 I2C, 2 UART, 3 12-bit ADC and 13 controllable PWM channels
Accurate -chip clock and timer
Temperature sensor
-chip accelerated floating-point library
12 programmable I/O (PIO) state machines for custom peripheral support
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Color: As Shown
Material: PCB

Package Contents:
1 * Development Board
