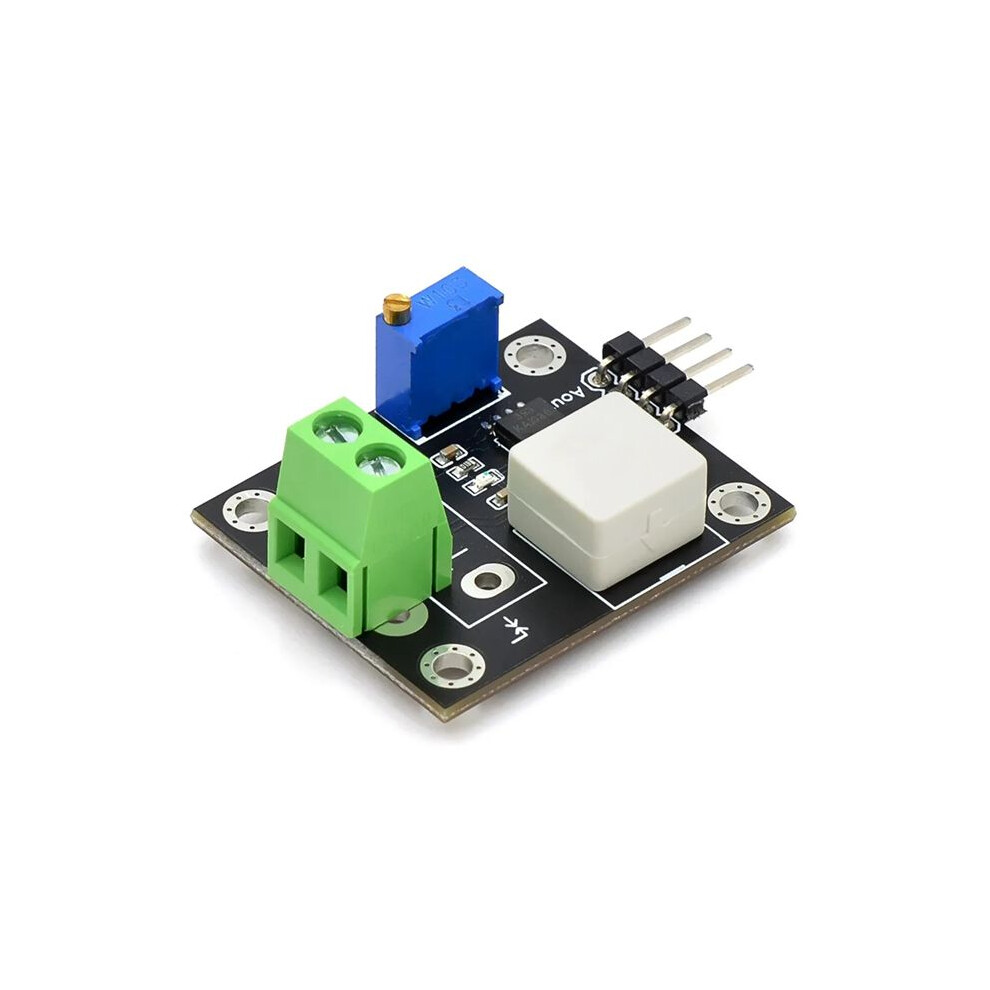

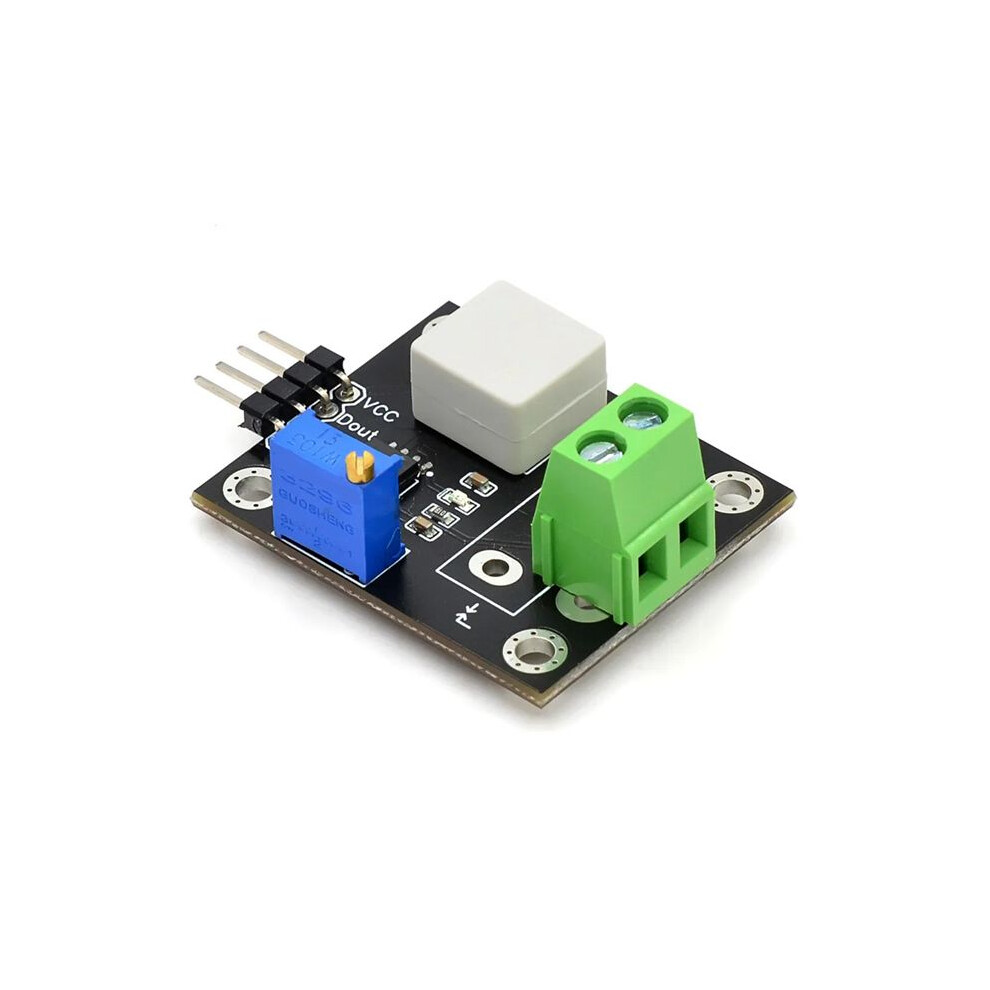

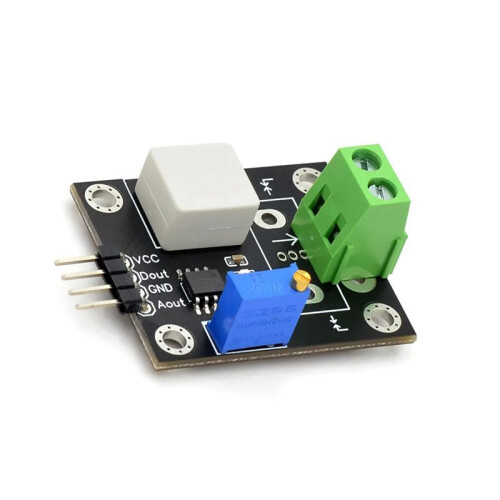

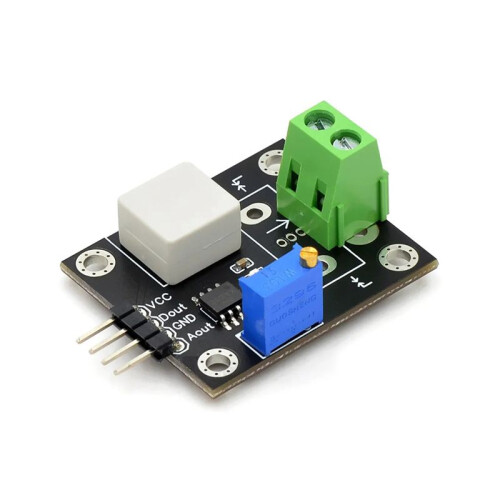

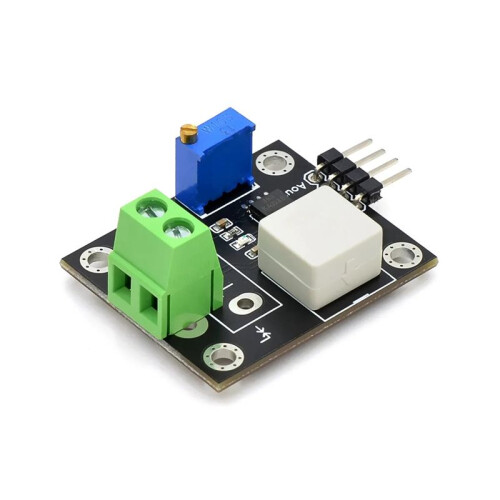

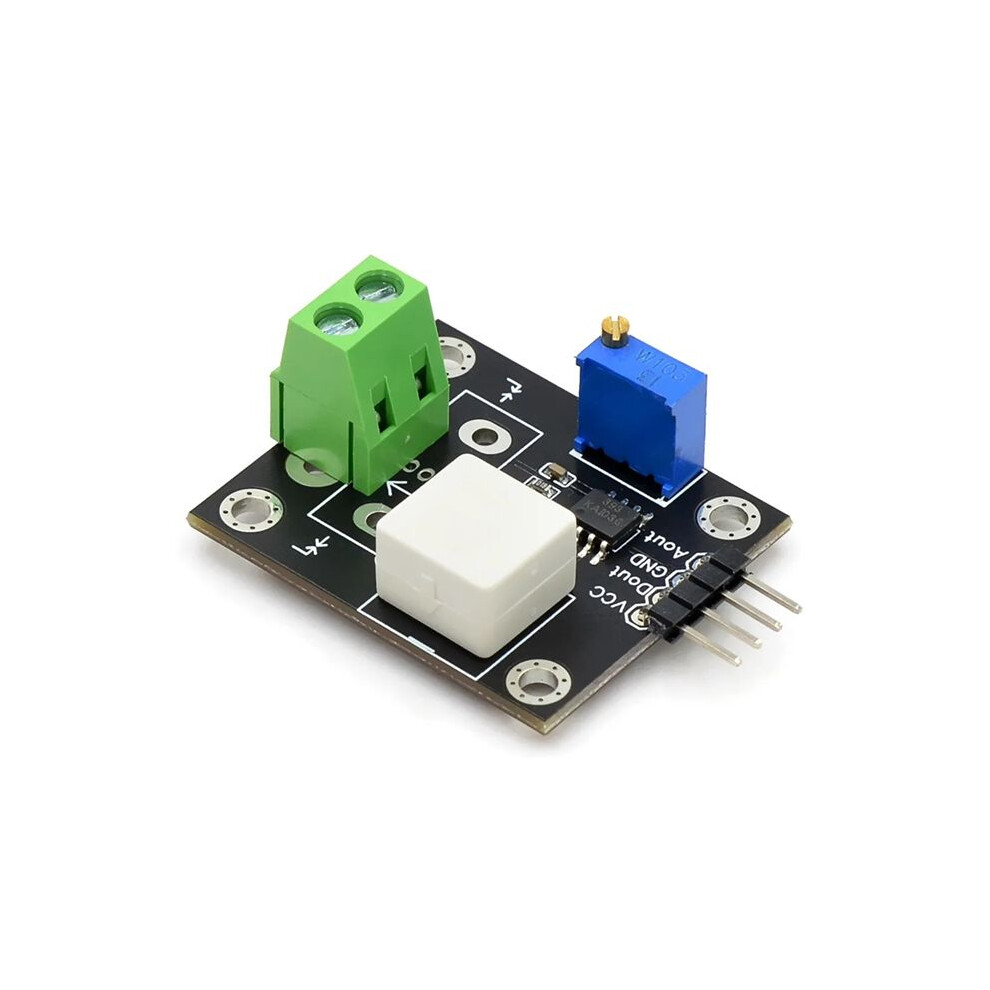

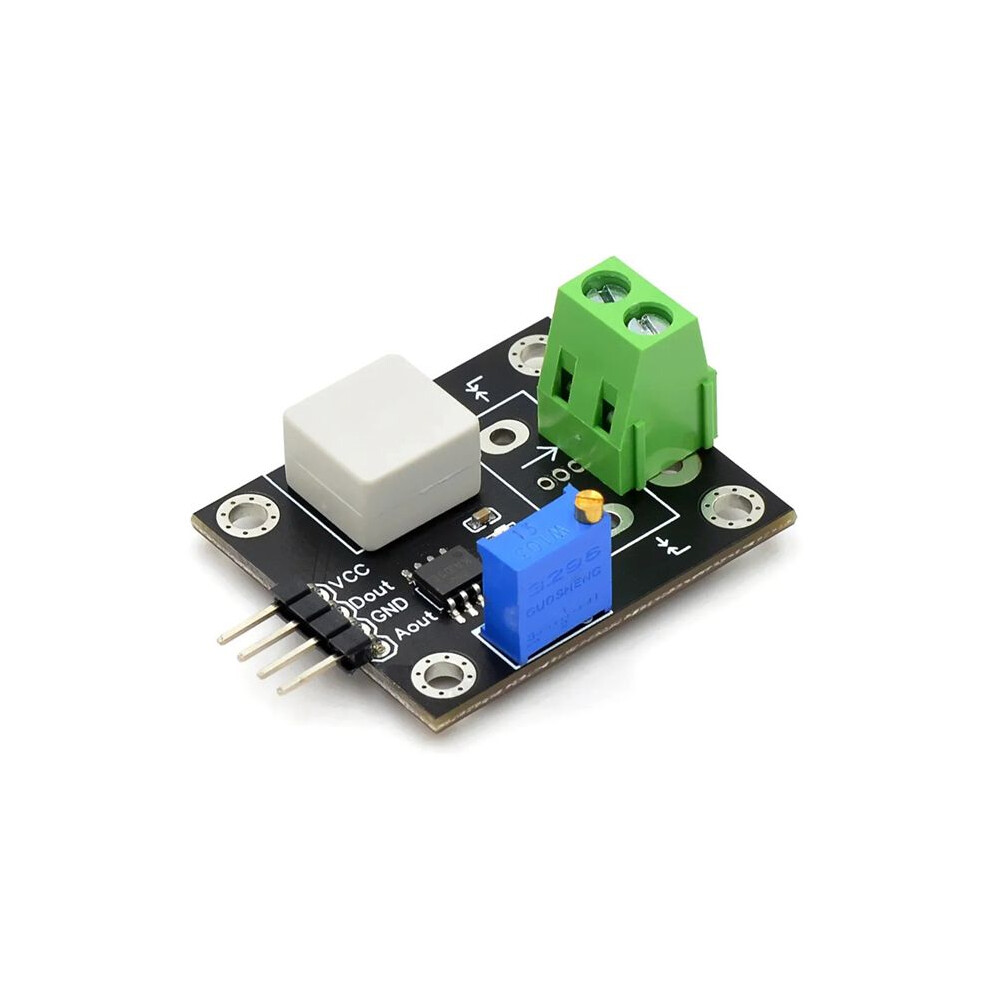

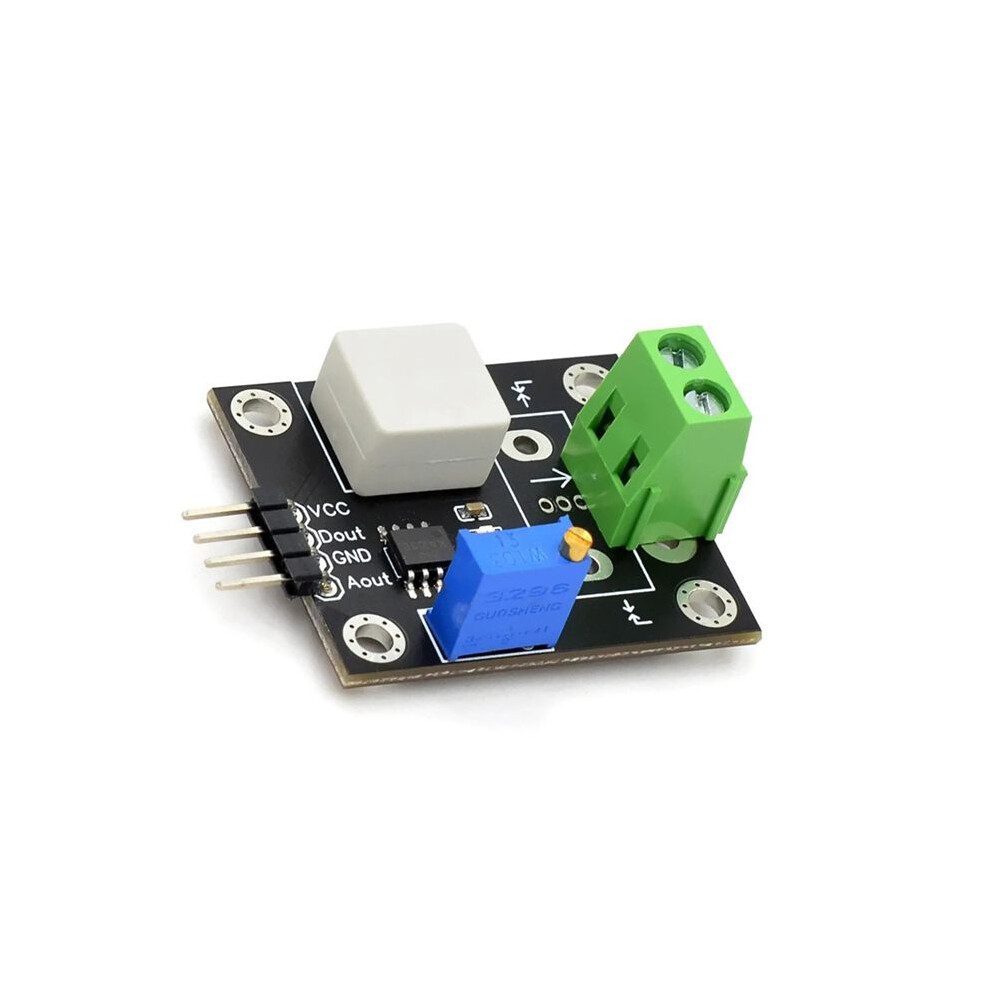

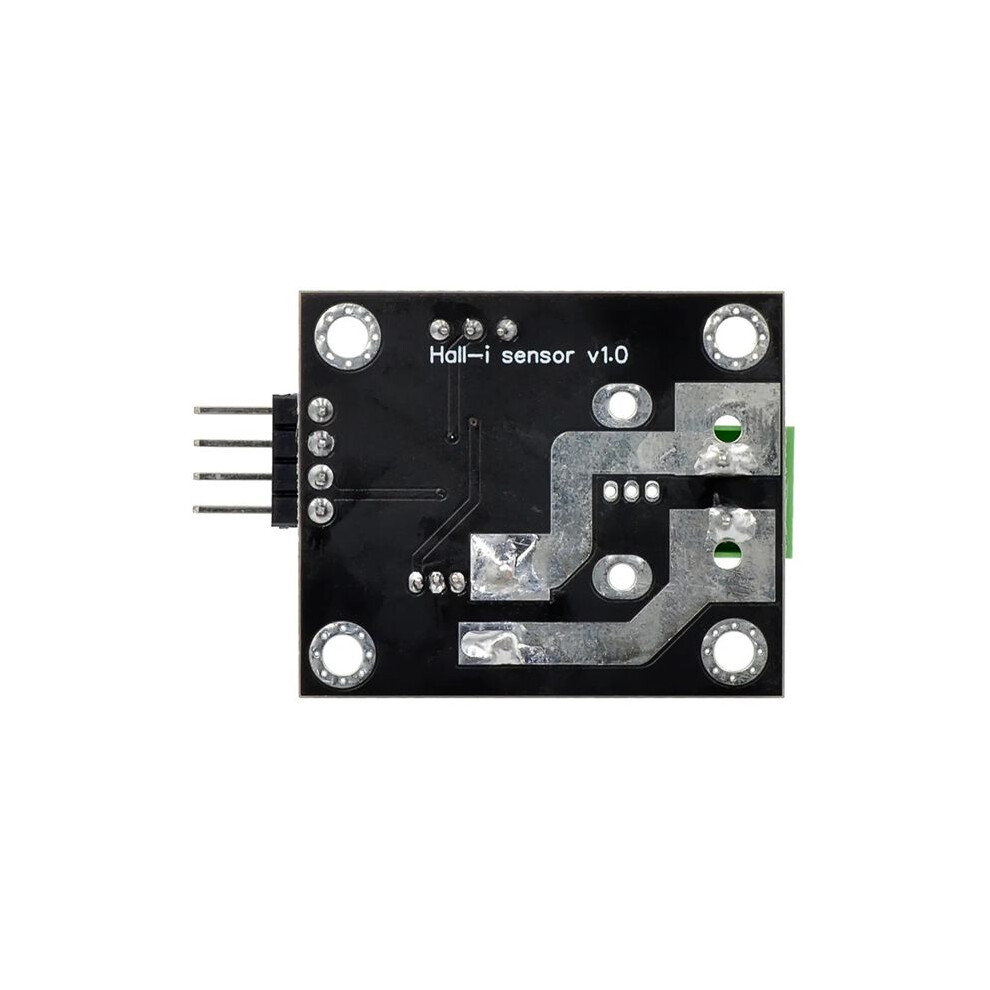

WCS2702 Current Sense Sensor Adjustable 2A Short Circuit Overcurrent Protection Module Board DC5V

WCS2702 Current Sense Sensor Adjustable 2A Short Circuit Overcurrent Protection Module Board DC5V Kuvaus

This module has two main functions. The first function is the analog signal followed by the op amp, which is suitable for A/D conversion.
The second function is the signal, which can pre-set the current limit value. When the actual current value is greater than the pre-set current value, the signal will change from low level to high level, and there will be an LED indicator to indicate. Simple and easy to use.
Application areas: AC and current detection; motor stall detection; leakage detection; multi-channel current detection.
Application: Intelligent car motor overcurrent detection, stall protection current detection, short circuit protection testing, demonstration teaching experiments and other occasions to facilitate the secondary development.

Main chip:LM393 op amp, WCS2702
Working voltage: DC5V
With signal output indication
Current detection range is wide 2A AC:1.4A
Current detection resolution is 1V/A
Output overcurrent signal indication
Overcurrent signal setting critical point is adjustable, and the setting resolution is 0.1A
With mounting holes, it is convenient for firmware installation
Sampling current conversion analog signal output, which can be connected to ADC, TTL level signal output, and can be connected to 10-port control of single-chip microcomputer.
The output signal is: analog signal and signal
Colour:Black
Material:PCB+electronic components

Package Contents:
1 * Current Sense Sensor
