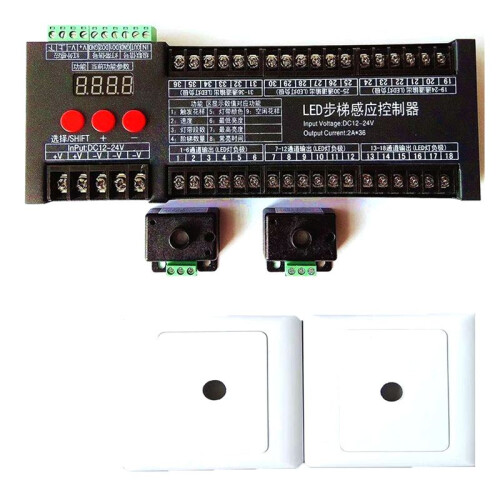

WS2811 Led Strip Lights 6-36 Channel Human Infrared Touch Multi-Function Induction Controller Staircase Lamp Running

WS2811 Led Strip Lights 6-36 Channel Human Infrared Touch Multi-Function Induction Controller Staircase Lamp Running Kuvaus

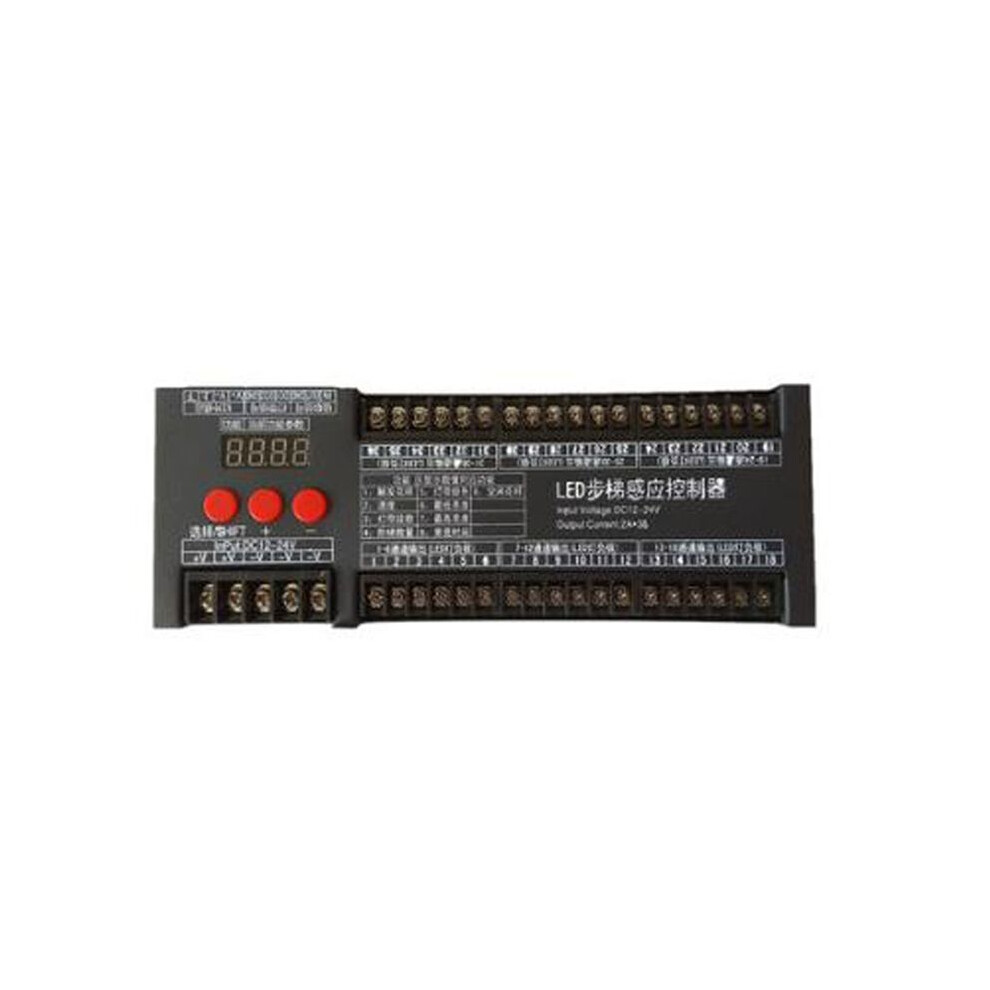

36-channel multi-function LED controller with two sensors, which can drive 2 kinds of LED lights, one is a dreamcolor light that supports a universal SPI single-wire chip, such as the universal 1903, 1909, 1912, TM1812, WS2811, 16703, WS2812B, 8205, 8206 and so full-color pixel

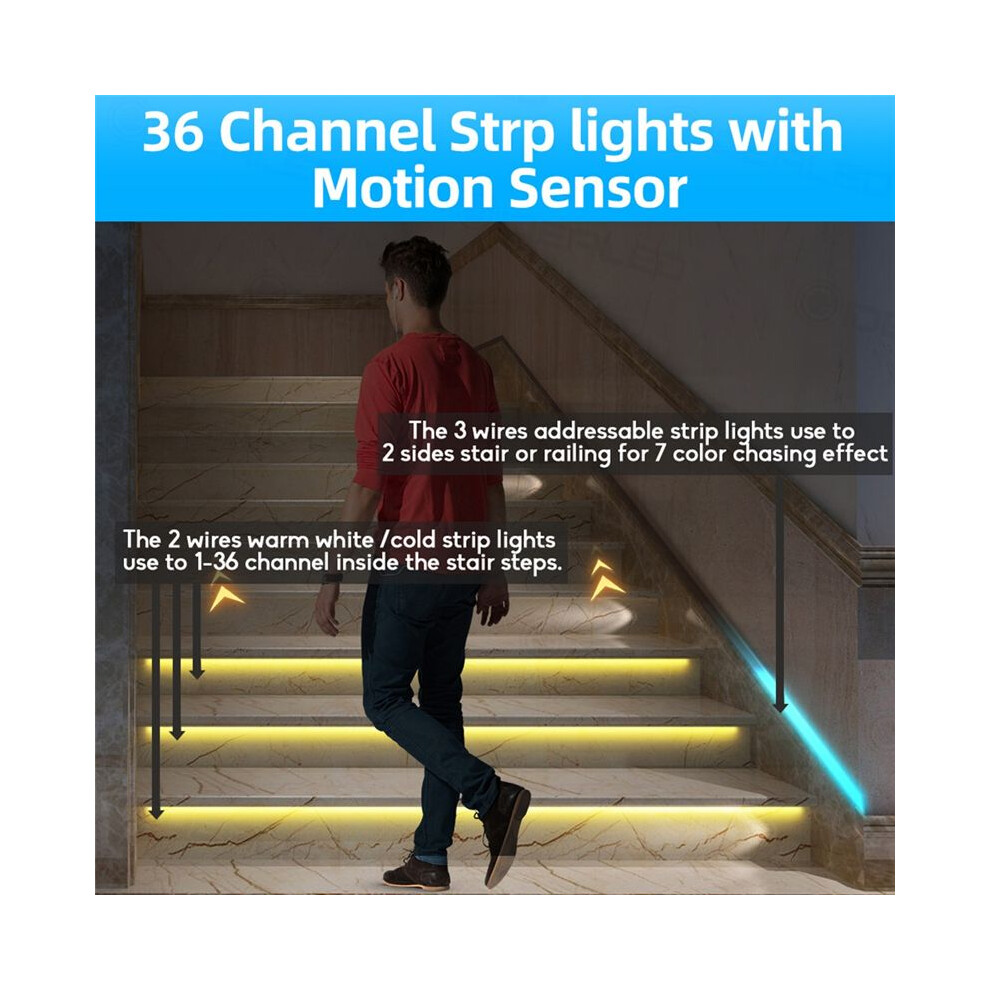

LED lights, the control system at the lower left corner of DO1, GND, DO2, GND with 2 parallel output terminals, can be connected to the left and right sides of the stairs lights. The output terminals both sides of the controller are for the single-color light strips used the 36-way stair tread, the number of light strips can be adjusted.

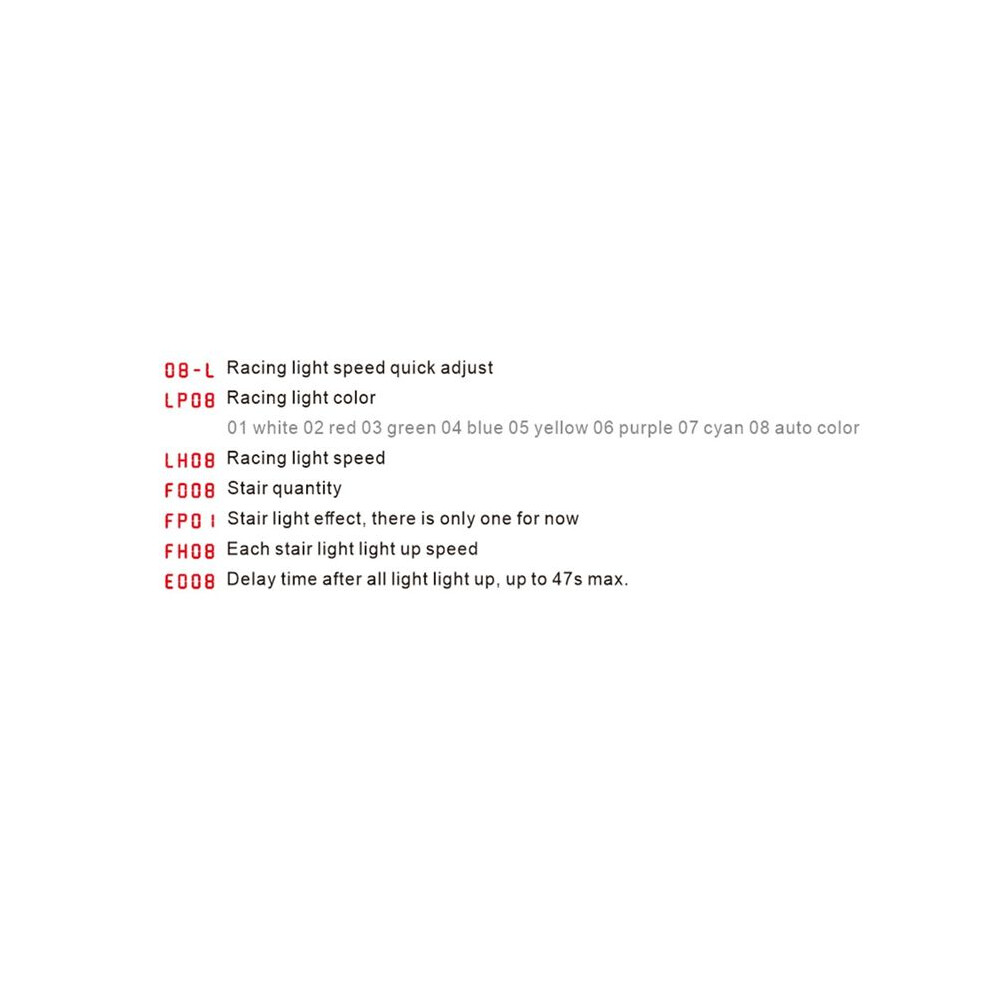

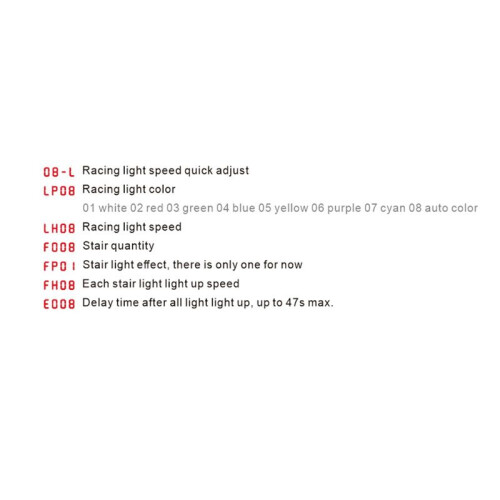

The function setting of the induction controller is selected by the buttons.The setting is displayed through the 4-digit digital tubes the left.

Colour:black
Material:Iron + Plastic
Important note:
The positive and negative terminals of the power supply input of the controller cannot be reversed, the red wire V+ is connected to the positive electrode of the switching power supply, and the (or black wire) V- is connected to the negative electrode of the switching power supply.
Note:
1. you need buy the Power supply & white strip lights and addressable strip lights
2. The sensor has been changed to white.
Due to different batches, there may be differences in product appearance and printed text, which will not affect use

Package Contents:

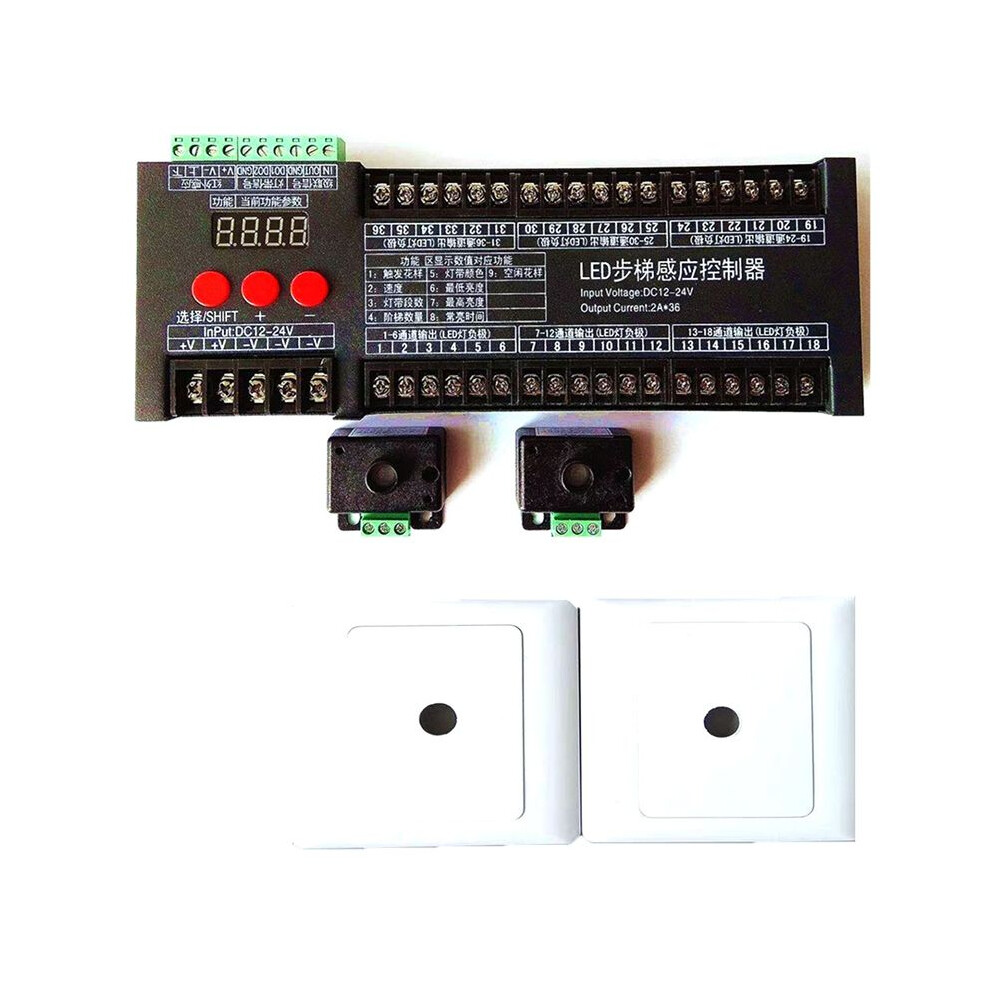

1 * Led Strip Lights Controller Kit
