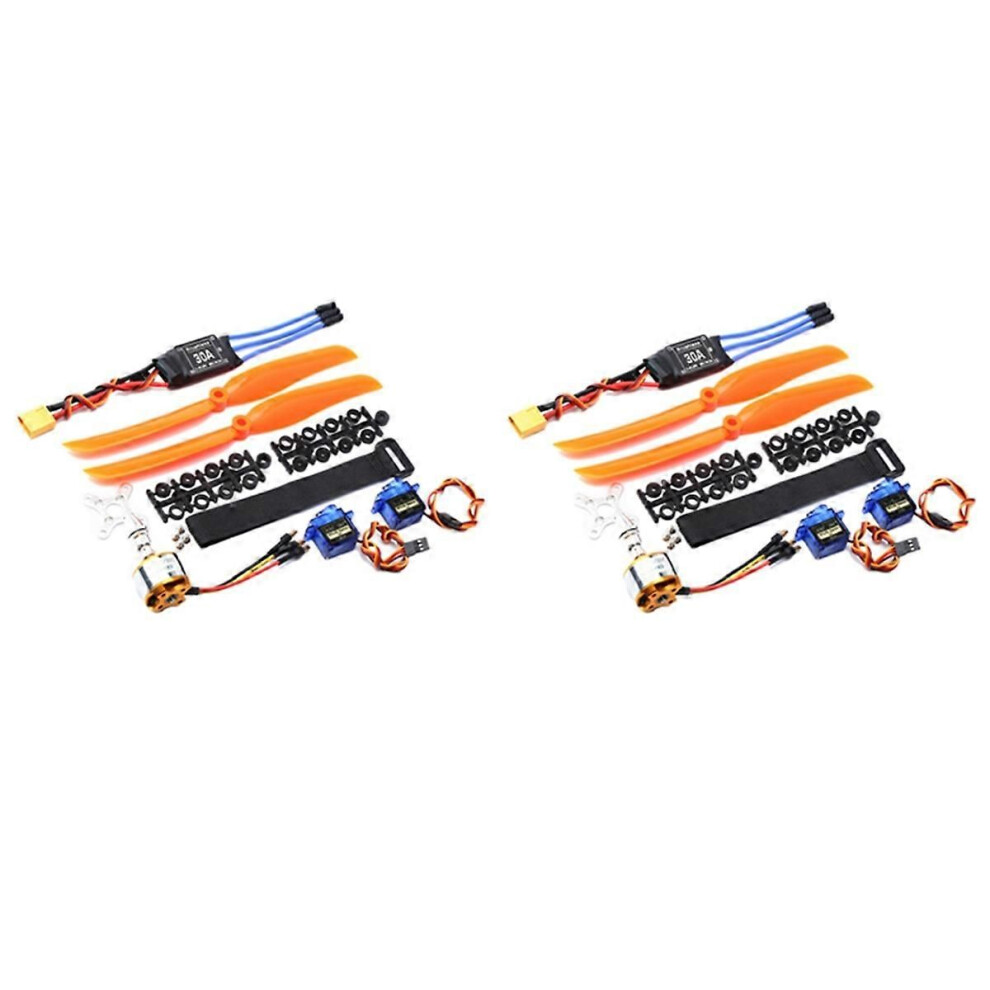

1400KV Brushless Motor 30A ESC XT60 Plug SG90 9G for RC Fixed

Description de 1400KV Brushless Motor 30A ESC XT60 Plug SG90 9G for RC Fixed

1400KV Brushless Motor 30A ESC XT60 Plug SG90 9G for RC Fixed
30A Brushless speed controller ESC MultiCopter Quad-rotor X-copter Compatible with: 400-450 helicopters / Aircraft or Quad-Rotor Multi RC Helicopter. Output: Continuous 30A, Burst 40A up to 10 Secs. Input Voltage: 2-3cells lithium battery or 5-9 cells NiCd/NIMh battery. BEC: 2A / 5V (Linear mode). Max Speed: 210,000rpm for 2 Poles , 70,000rpm for 6 poles , 35,000rpm for 12 poles . (: BrushLess Motor) With XT60 Plug and 3.5mm banana connectors SG90A 9G Mini Servo : This is the most popular mini servo. Only weighs 9 and gives you a 1.5 kg/cm torque. Pretty strong regarding its size. Suitable for beam type robots. Key features: Translucent body Less noise SG90A 9G servo parameters: Size: 21.5mmX11.8mmX22.7mm Weight: 9 grams No load speed: 0.12 sec / 60 (4.8 V) Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V) Operating temperature: -30~~+60 degrees Celsius Dead zone setting: 5 microseconds Working voltage: 4.8V-6V 1400kv Motor Specification: KV: 1400 Max Efficiency: 80% Max Efficiency Current: 4-10A ( 75%) Current Capacity: 12A/60s No Load Current @ 10V: 0.5A No. Of Cells: 2-3 Li-Poly Motor Dimensions: Φ27.5 x 30mm Shaft Diameter: Φ3.17mm Weight: 47g/set size:about 5x3.6x1.5cm Material:Plastic + Metal colour:Multicolor Package Contents: 2 x Motor 2 x ESC 4 x Servo 4 x paddle 2 x Magic Belt. Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
